Used 256V 105Ah 54kWh LiFePO4 HV Battery Pack 200A CAN/RS485
Used 256V 105Ah 54kWh LiFePO4 HV Battery Pack 200A CAN/RS485
Used 256V 105Ah 54kWh LiFePO4 HV Battery Pack 200A CAN/RS485
Used 256V 105Ah 54kWh LiFePO4 HV Battery Pack 200A CAN/RS485
Used 256V 105Ah 54kWh LiFePO4 HV Battery Pack 200A CAN/RS485
Battery Hookup

Used 256V 105Ah 54kWh LiFePO4 HV Battery Pack 200A CAN/RS485

$200.00 $0.00

256V 105Ah 54kWh LiFePO4 High-Voltage Battery Pack — 200A — CAN/RS485

Industrial high-voltage lithium iron phosphate battery module. Bipolar ±256V architecture with midpoint (N), 105Ah capacity, 53.76 kWh total energy. Rated 200A charge and discharge (~51 kW class).

Specs

  • Voltage: ±256V (512V span with common N)
  • Capacity: 105Ah / 53,760Wh
  • Max charge/discharge: 200A
  • Operating temperature: 0–45°C
  • Chemistry: LiFePO4

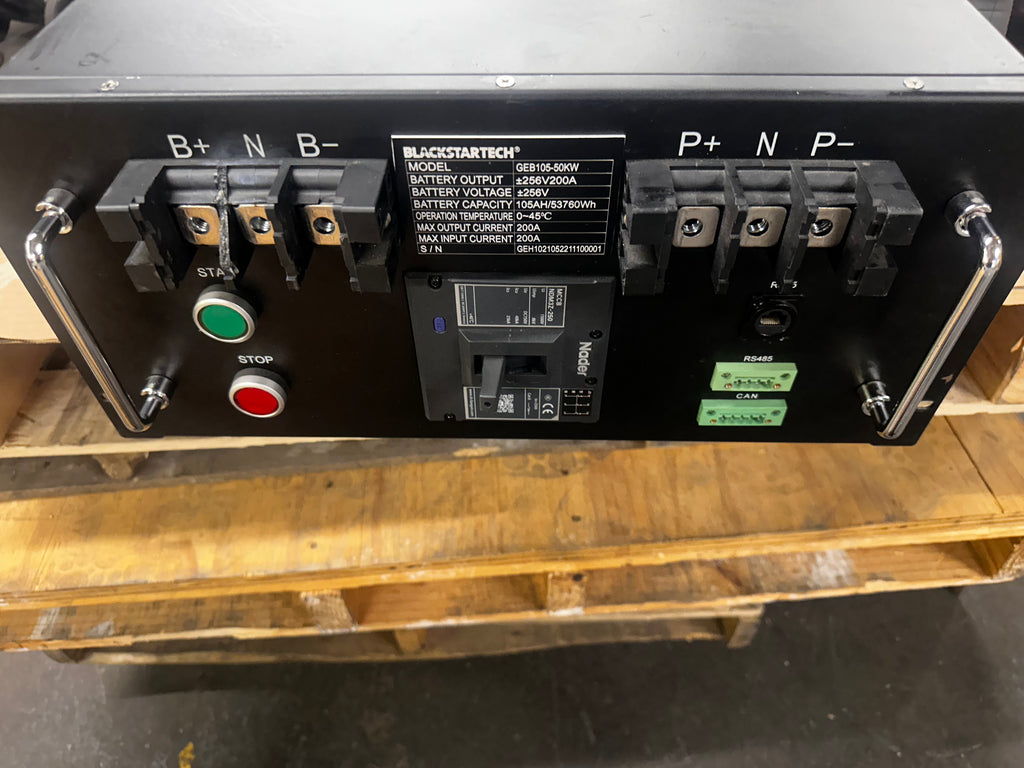

Connections & controls

  • Battery terminals: B+ / N / B−
  • Load terminals: P+ / N / P−
  • Green START and red STOP
  • Built-in DC circuit breaker
  • Communication: RS485 and CAN (plus RJ45 diagnostic port)

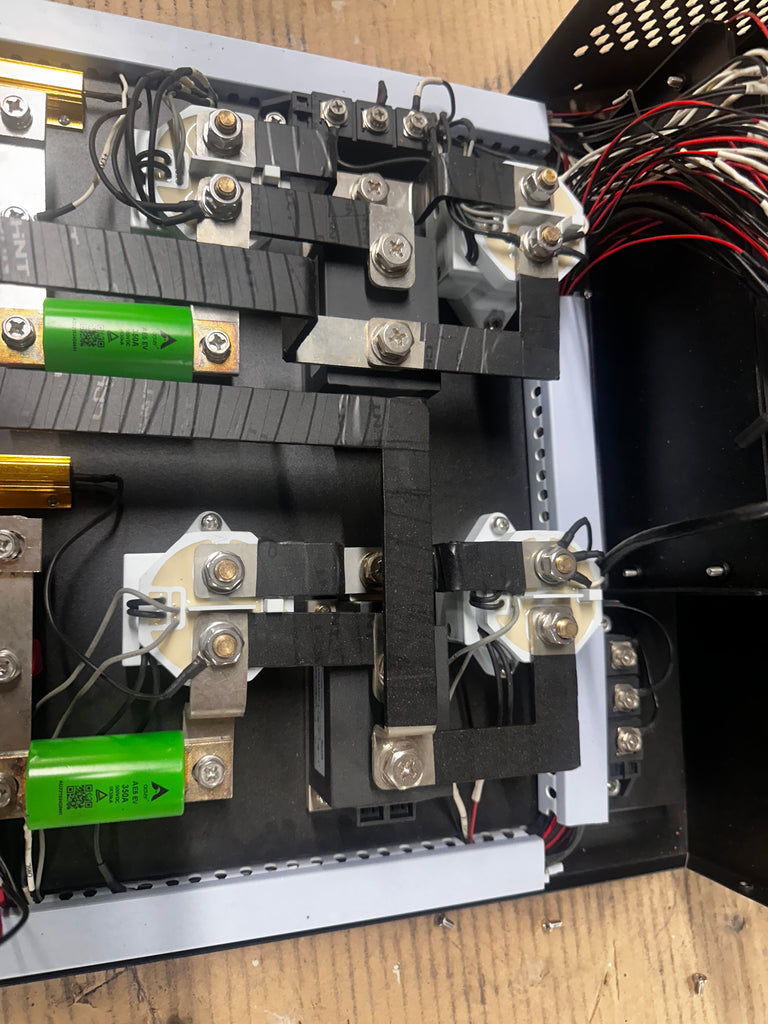

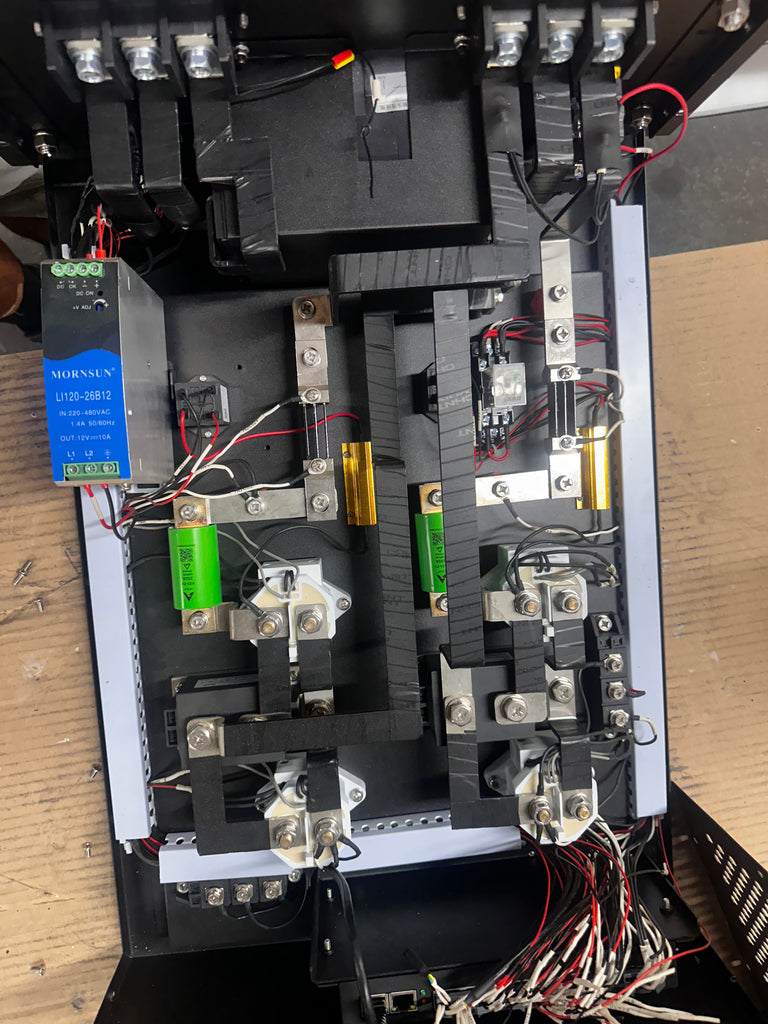

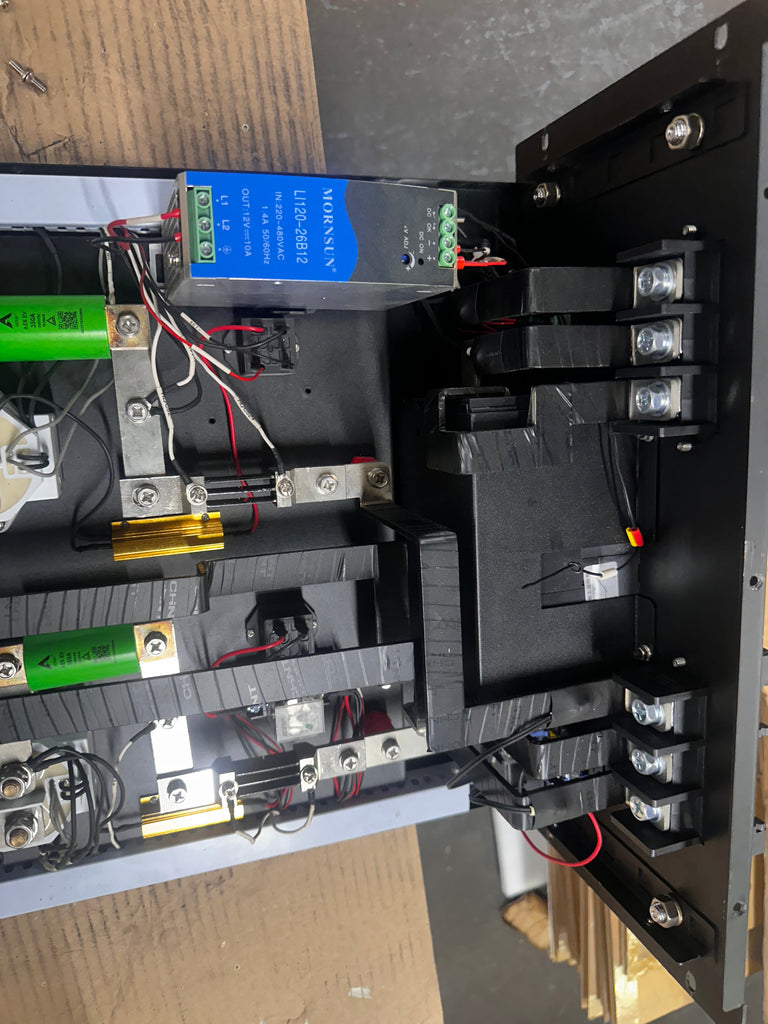

Internal high-current DC contactors, copper busbars, and a 12V auxiliary supply for control electronics. Designed so the BMS and contactors can run independently of the main DC bus.

Typical use High-voltage energy storage, industrial DC systems, UPS, commercial ESS, and custom inverter/hybrid setups that accept a ±256V or 256V-class pack with CAN or RS485.

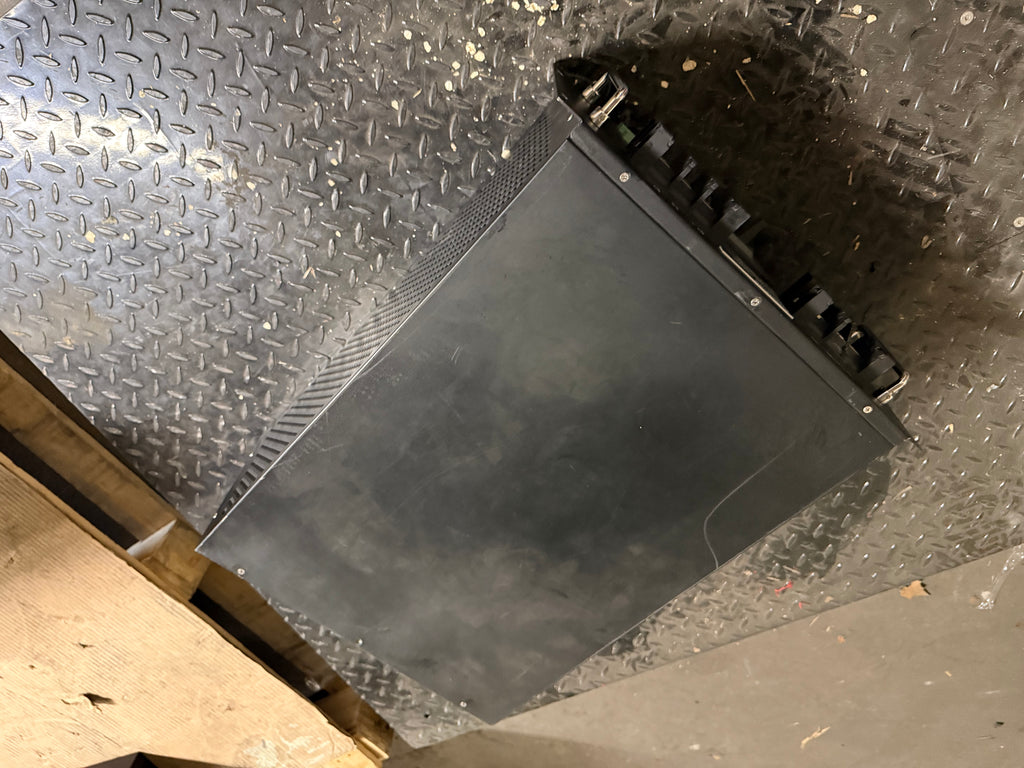

Used unit. Inspect photos for condition. High-voltage equipment — qualified install only. Protocol details are not documented with the unit; buyer should verify CAN/RS485 compatibility before pairing with an inverter.
