Used Battery Management System (BMS) all-in-one unit.

What the unit actually is

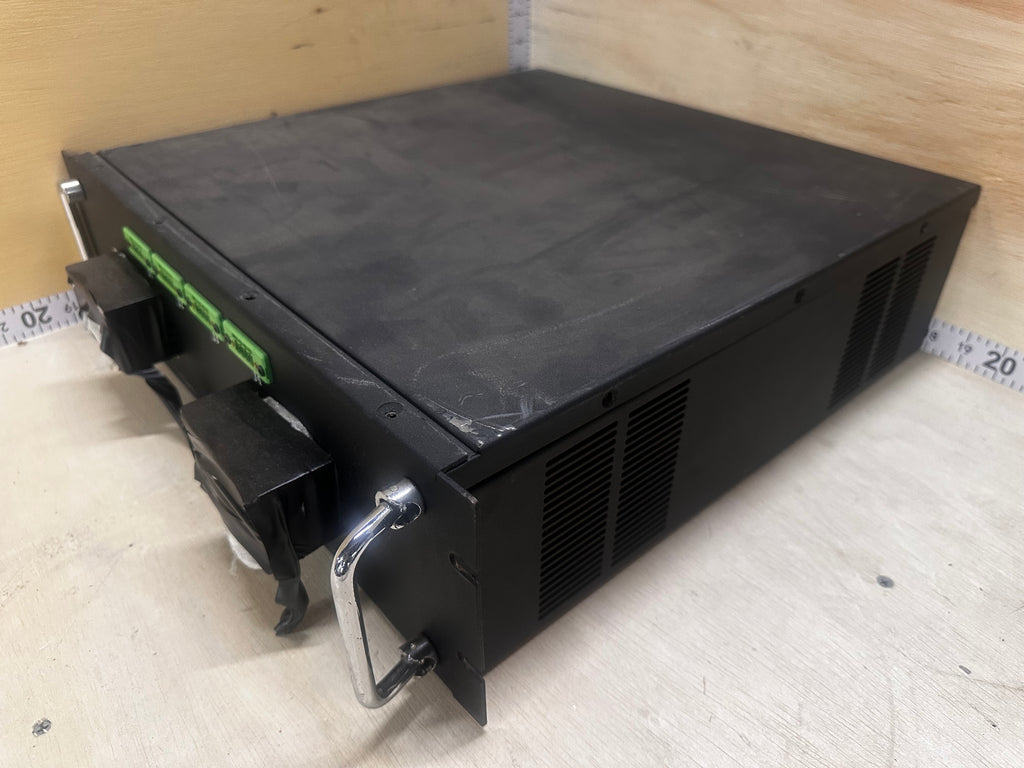

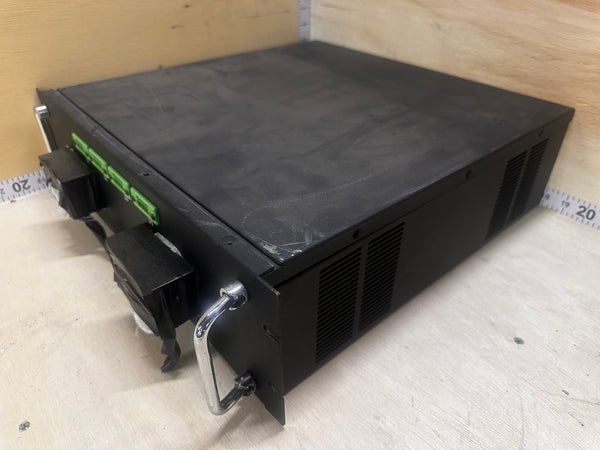

This is a rack-mountable (19" style) assembled BMS cabinet for a 24-series (24S) lithium battery pack. For LiFePO4 that would be roughly 76.8 V nominal.

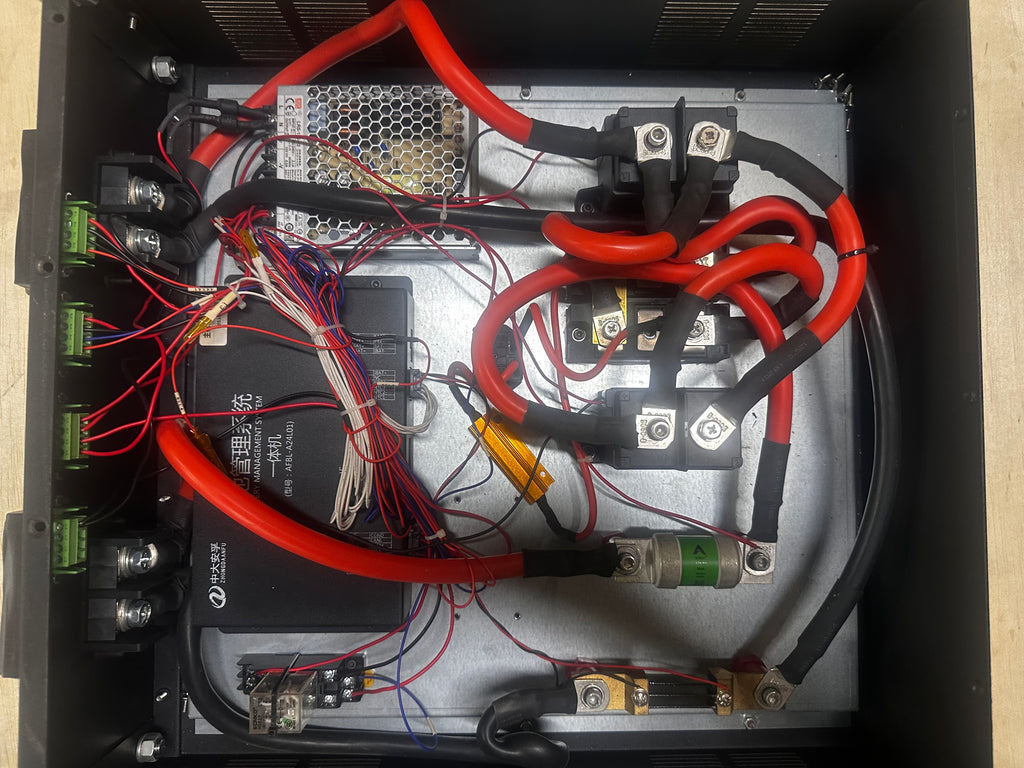

Visible internals:

• Main BMS controller box
• Heavy-gauge red/black power cables
• Contactors/relays for charge/discharge disconnect
• Current shunt (green labeled component)
• Auxiliary switching power supply
• Large bundle of thin balance/voltage sensing wires

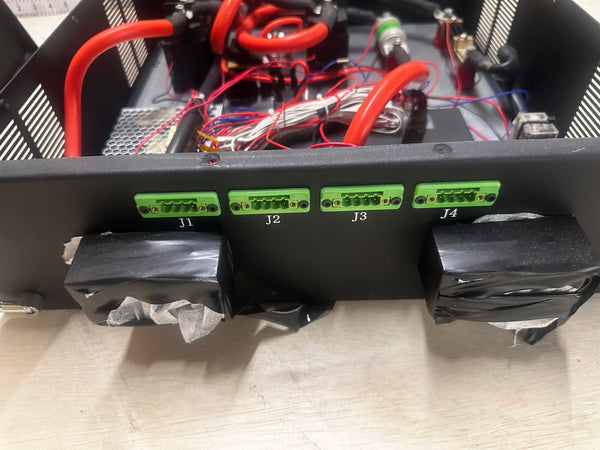

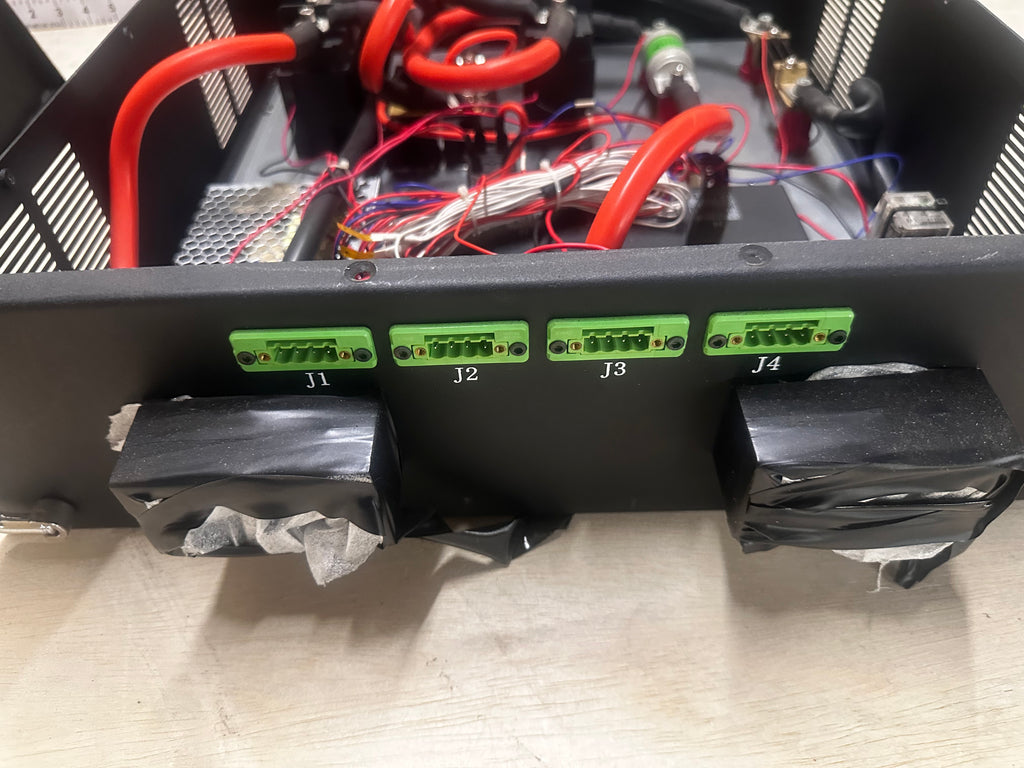

• Phoenix-style green terminal blocks (J1–J4)

Typical functions

• Per-cell and pack voltage monitoring
• Over-voltage / under-voltage protection
• Over-current and short-circuit protection
• Temperature monitoring
• Cell balancing
• Current measurement (via shunt)
• SOC estimation
• Communication (the J1–J4 connectors are almost certainly RS485, CAN, dry contacts, or temperature sensor inputs)

The green J1–J4 connectors on the front panel are industrial I/O terminals, not primary communications ports in the networking sense. They are typical for connecting to an inverter, display, or monitoring software.

This style of unit is commonly used in:

• Telecom base station backup batteries
• Energy storage systems (ESS)
• Industrial rack-mounted battery cabinets
