Used 25.6V 400Ah 10.24kWh LiFePO4 8S4P Rackmount Pack - Needs BMS
Used 25.6V 400Ah 10.24kWh LiFePO4 8S4P Rackmount Pack - Needs BMS
Out of stock
Couldn't load pickup availability
These must ship freight. We have excellent freight rates which includes lift gate and residential service if needed. Of course, you can always do a local pickup for free from our Bensalem, PA location or schedule your own freight.

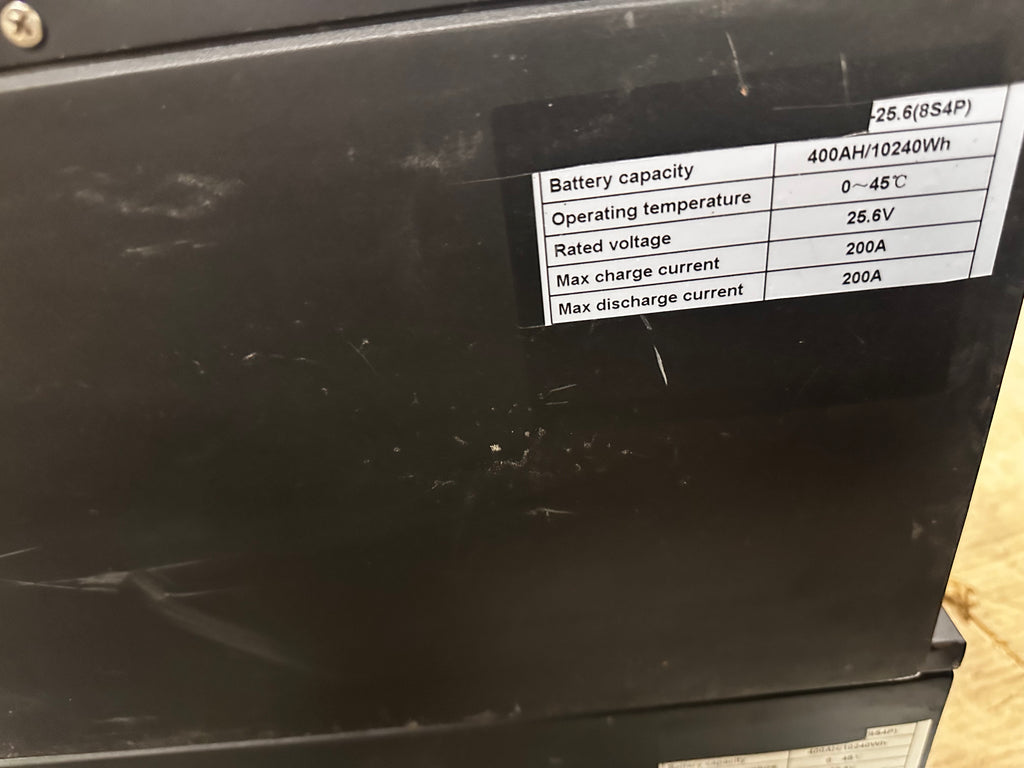

Specifications
• Chemistry: LiFePO4
• Nominal Voltage: 25.6V
• Amp Hours: 400Ah
• Capacity: 10.24 kWh
Configuration: 8S4P
• Max charge current: 200A
• Max discharge current: 200A
• Operating temperature: 0–45°C

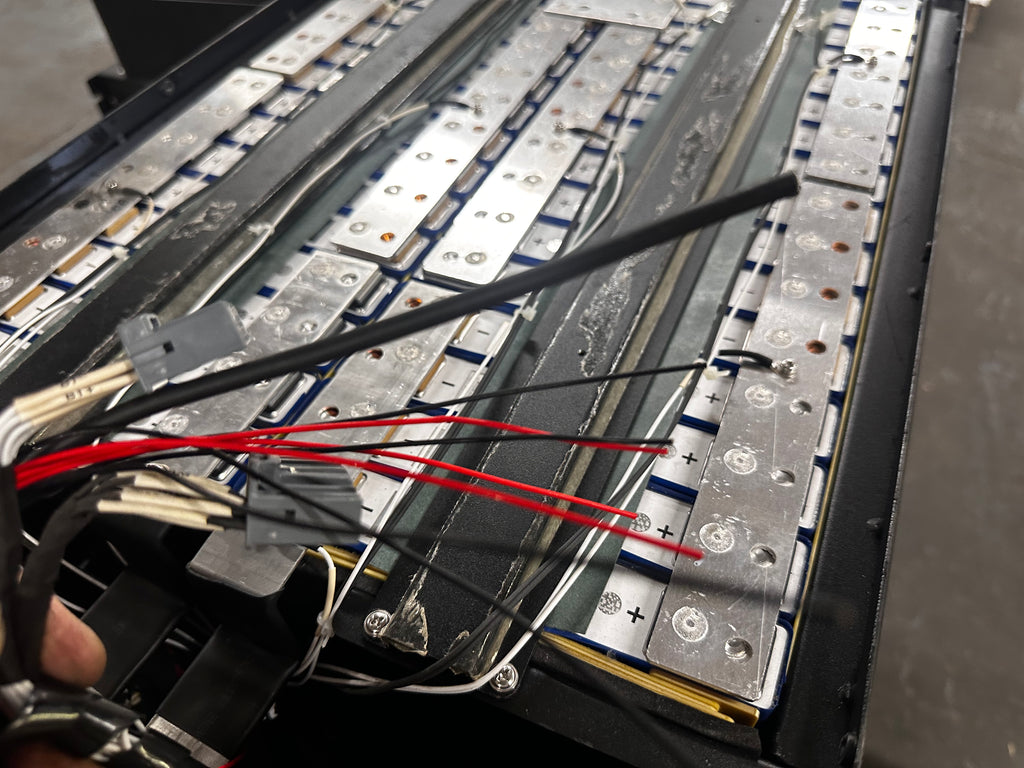

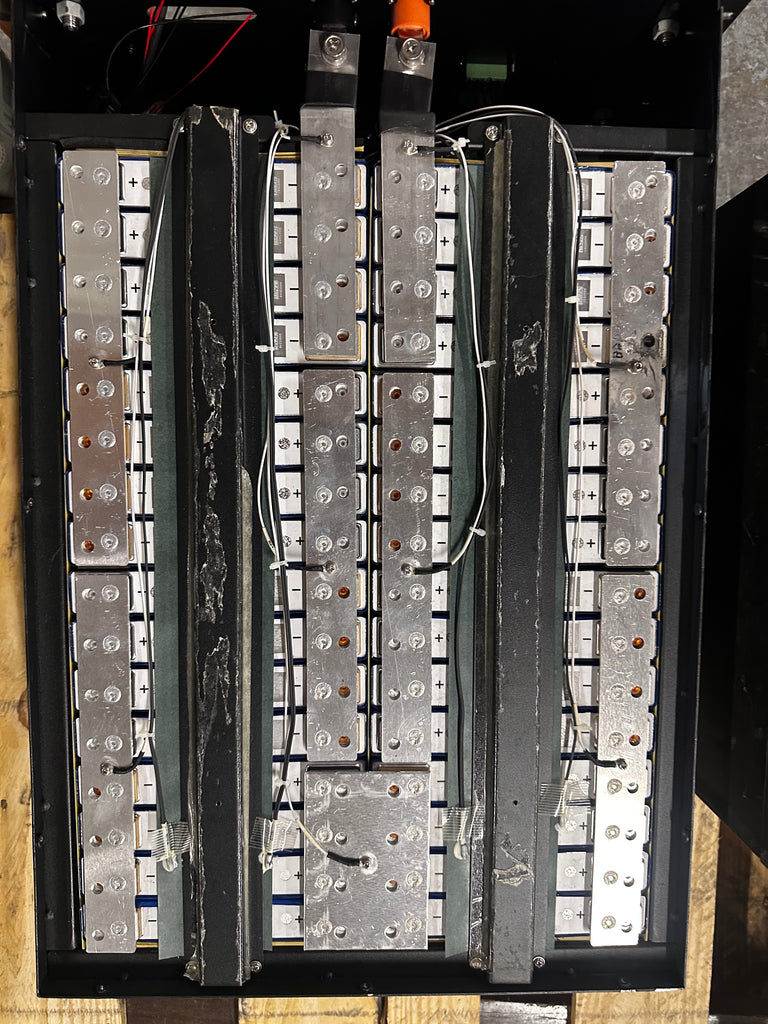

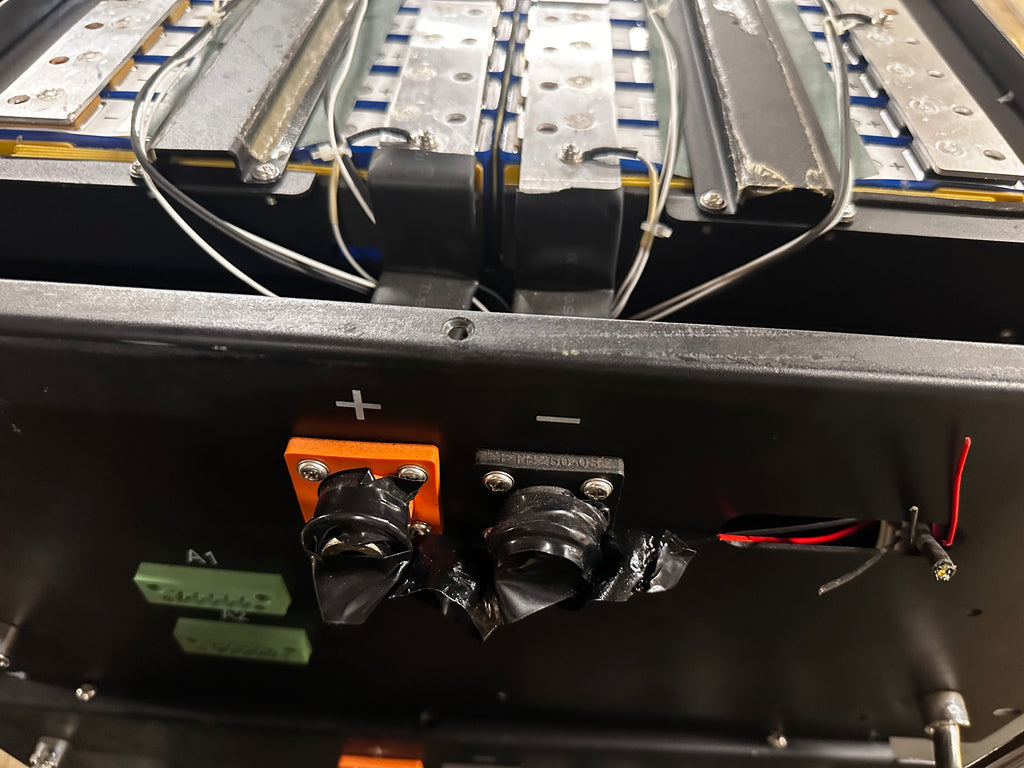

Used 25.6V 400Ah LiFePO4 rackmount battery pack in 8S4P configuration. The pack has been checked and the cells are balanced. High-current positive and negative terminals are present. Balance/sense wiring is present, but the wires are cut. No BMS is included; a properly sized BMS is required for safe use and charging.
As you can see the wires are all there so adding a BMS will be easy.
