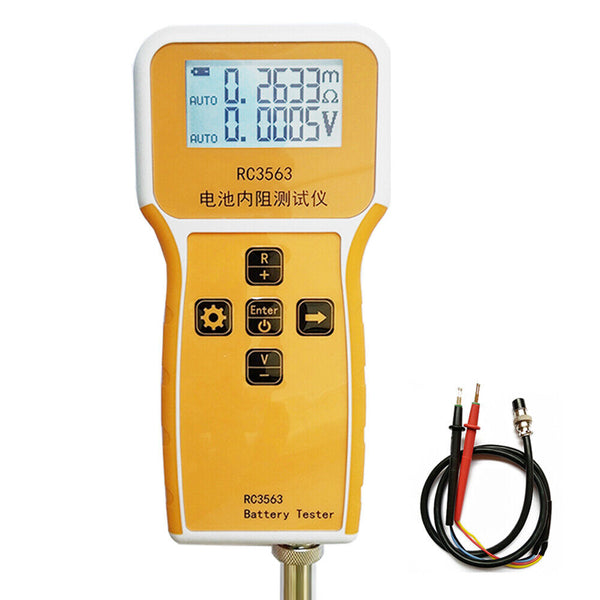

RC3563 Lithium Battery Internal Resistance Tester with 4-wire Probes
Regular price
$49.99
These are brand new in the box. Excellent quality and value. Accurately test internal resistance of your batteries with voltage range of 0-100v.
We include the 4-wire probes because they can be used for any type of battery. Pouch, cylindrical, and prismatic style.

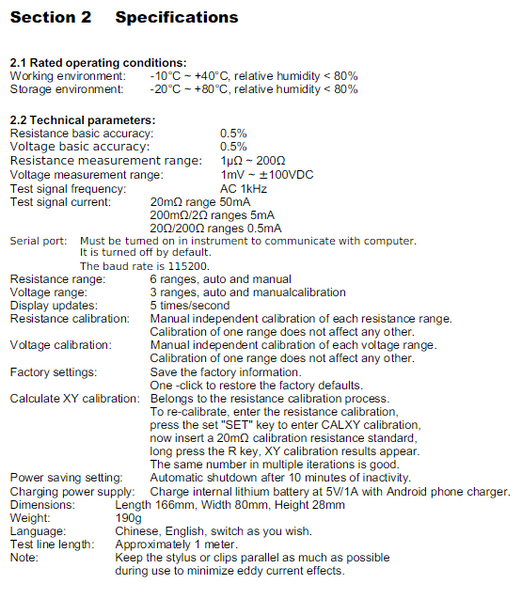

Specifications:
Speed: 5 times/second
Adjustment: Correction for resistance and voltage separately
Basic accuracy:
Resistance: 0.5%
Voltage: 0.5%
Measuring ranges:
Resistance: 0.0001mΩ~200Ω
Voltage: 0.0001V~±100V direct current
Resistance ranges: 6 ranges automatic and manual
Voltage ranges: 3 ranges automatic and manual
Battery: 1 * lithium battery, 1000mAh (included)
Package size: 180 * 90 * 35mm / 7.1 * 3.5 * 1.4in
Package weight: 250g / 8.8ounce
Packing list:
Speed: 5 times/second
Adjustment: Correction for resistance and voltage separately
Basic accuracy:
Resistance: 0.5%
Voltage: 0.5%
Measuring ranges:
Resistance: 0.0001mΩ~200Ω
Voltage: 0.0001V~±100V direct current
Resistance ranges: 6 ranges automatic and manual
Voltage ranges: 3 ranges automatic and manual
Battery: 1 * lithium battery, 1000mAh (included)
Package size: 180 * 90 * 35mm / 7.1 * 3.5 * 1.4in
Package weight: 250g / 8.8ounce
Packing list:
1 Tester
1 Set of 4-wire Probes
- The battery internal resistance tester can measure the battery internal resistance and voltage at the same time.
- Wide applications: This product is widely used in various battery production, maintenance, testing, scientific research laboratories and other occasions. It can also be used to measure the AC resistance of resistors and low-resistance high- resistance.
- This tester adopts intelligent control and large display, also with built-in 1000mAh lithium battery to provide long service
