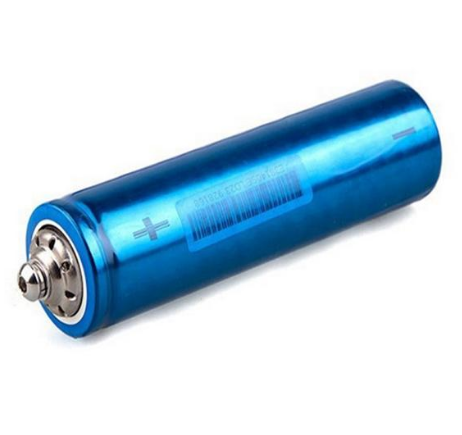

USED Headway 3.2v 17ah 40152s 10c

Regular price $17.00 $0.00 Unit price per

These batteries were recovered from modules that were used as backup only for a few years. They all have good voltage and will test great. They come with the bolts as well.

These are 40152 cells so they are a little larger than the 38120 cells. These are an excellent balance between high power and high energy density. They also are better in cold temperatures since they can be used in -20 degrees C. These are an excellent option for car audio due to the 170a rating per cell capability.

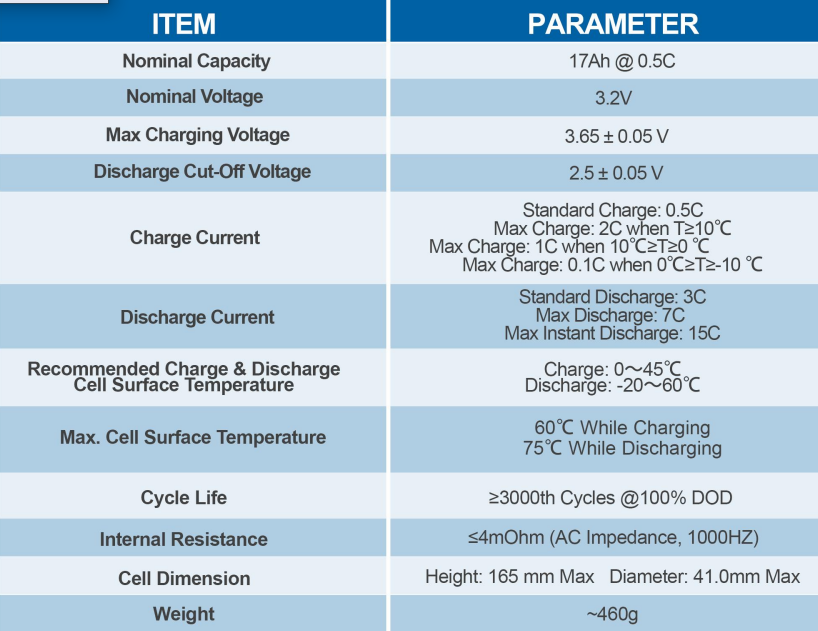

Specification

Nominal Voltage

3.2V

Nominal Capacity(0.5C,25)

17Ah

Weight(Approximate)

480±5g

Standard Discharge@25

Recommended Discharge Current

17A

Max. Continuous Current

34A

Max. 3 sec. Pulse

170A

Cut-off Voltage

2.0V

Standard Charge

Charge Voltage

3.65V

Recommended Charge Current

8.5A

Max. Charge current

17A

Others

Internal Resistance

≤4mOhm

Self-discharge rate

≤2% per month

0.5C/1C cycle life

≥2000 Times
