Trojan 3.2v 92.5ah 296wh Lifepo4 module
Trojan 3.2v 92.5ah 296wh Lifepo4 module
Battery Hookup

Trojan 3.2v 92.5ah 296wh Lifepo4 module

Regular price $55.00 $0.00 Unit price per

These modules were salvaged from Trojan 12v Lifepo4 batteries that had a faulty BMS. Each of these batteries comes fully tested with a printout of the actual test that was performed for the battery you receive. These batteries are made of 25 3.2v 3700mah cells in parallel. 4 of these make a perfect 12v battery. They also can be connected easily with nuts and bolts.

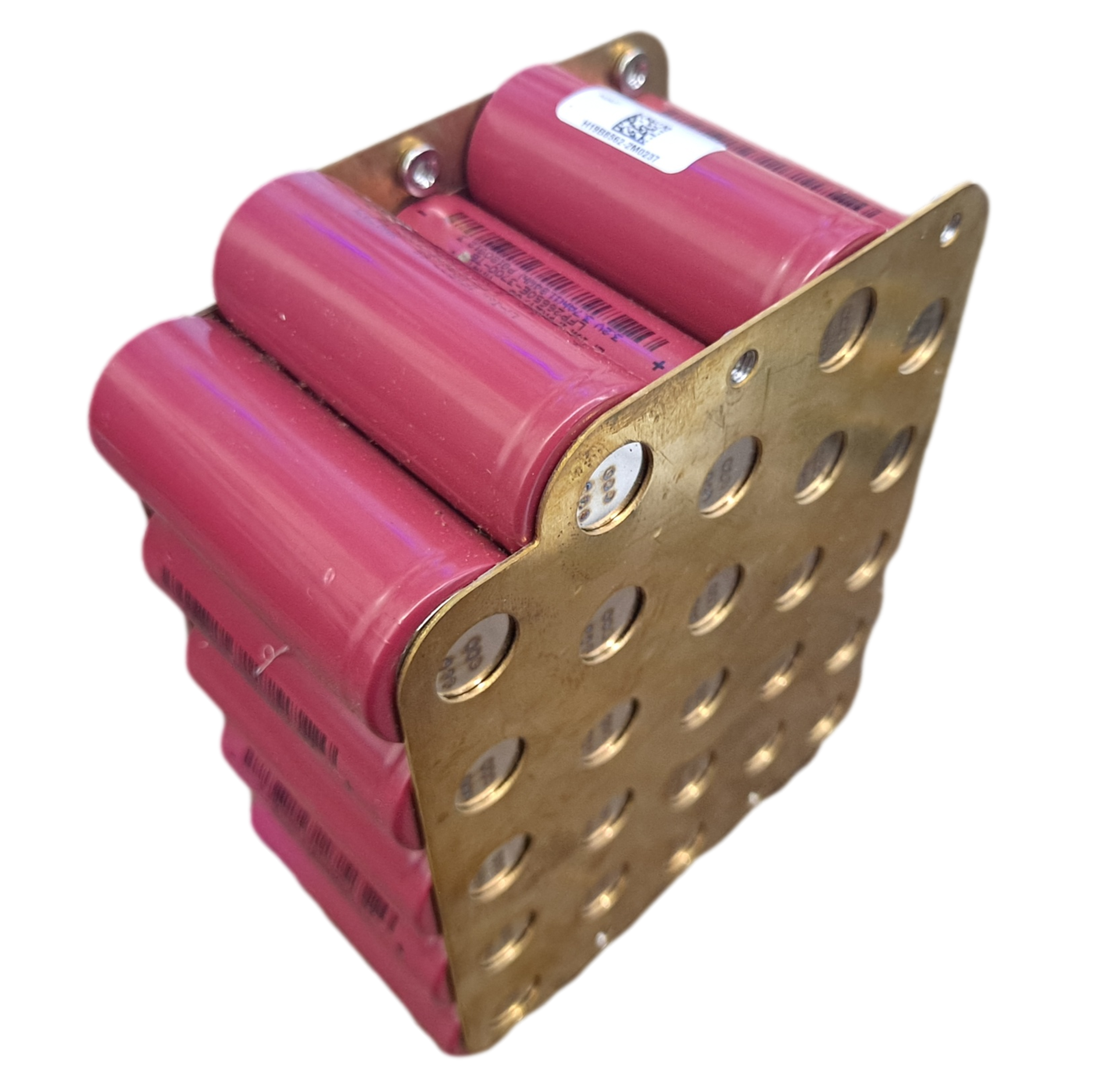

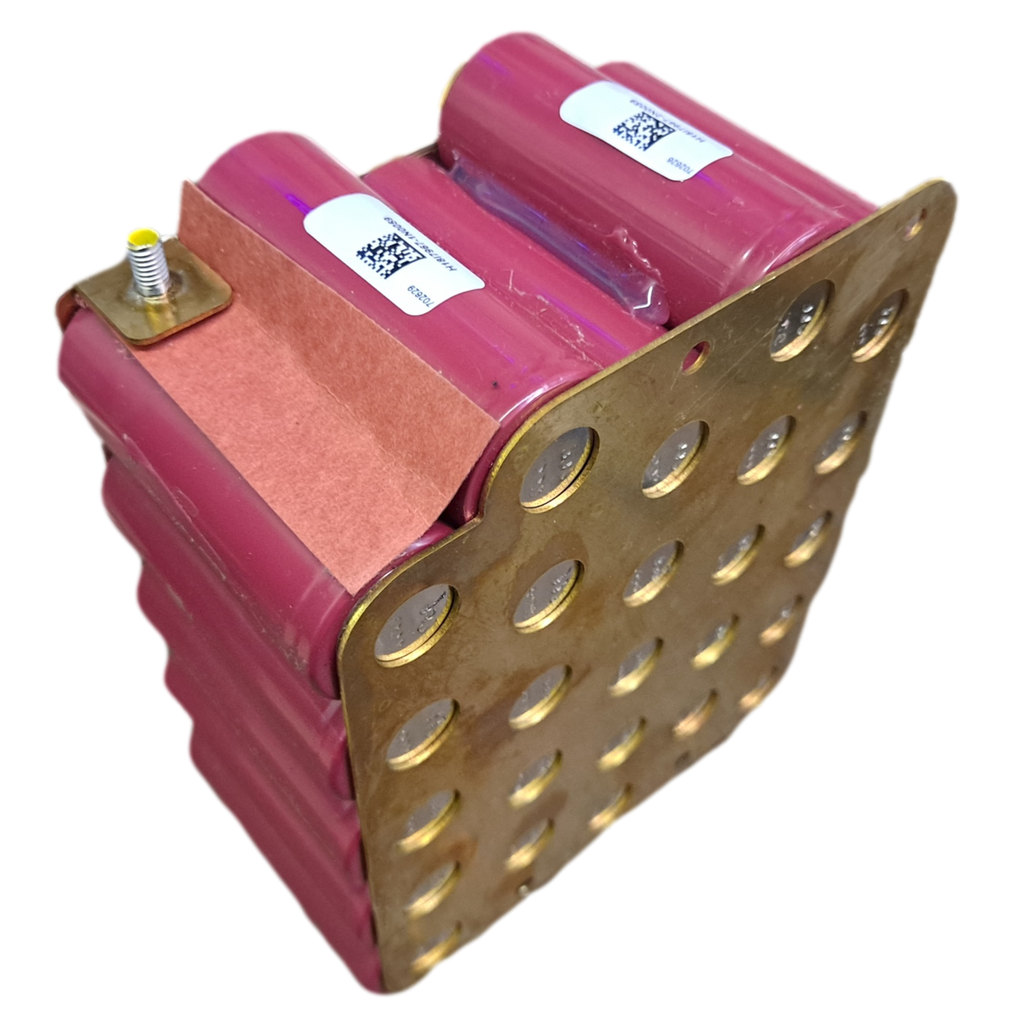

Center pieces are actually the first photo, the 2nd photo shows the end pieces. The end pieces have an M6 bolt sticking out. The one side of the end piece connects to the center pieces. The original 12v batteries came with 2 center pieces and 2 end pieces. You can choose which ones you want from the drop down menu. We don't have too many of these unfortunately. These batteries can easily push 150 amps continuous. Fully charged is 3.65v and fully discharged is 2.5v just like every other lifepo4 battery. These are over 2000 cycle rated as well. You can charge these at 50 amps.

Dimensions: 4.75" x 5.75" x 2.5"
