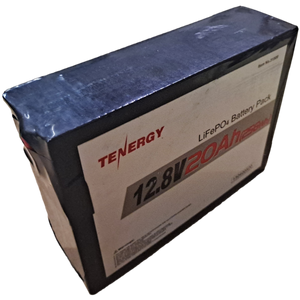

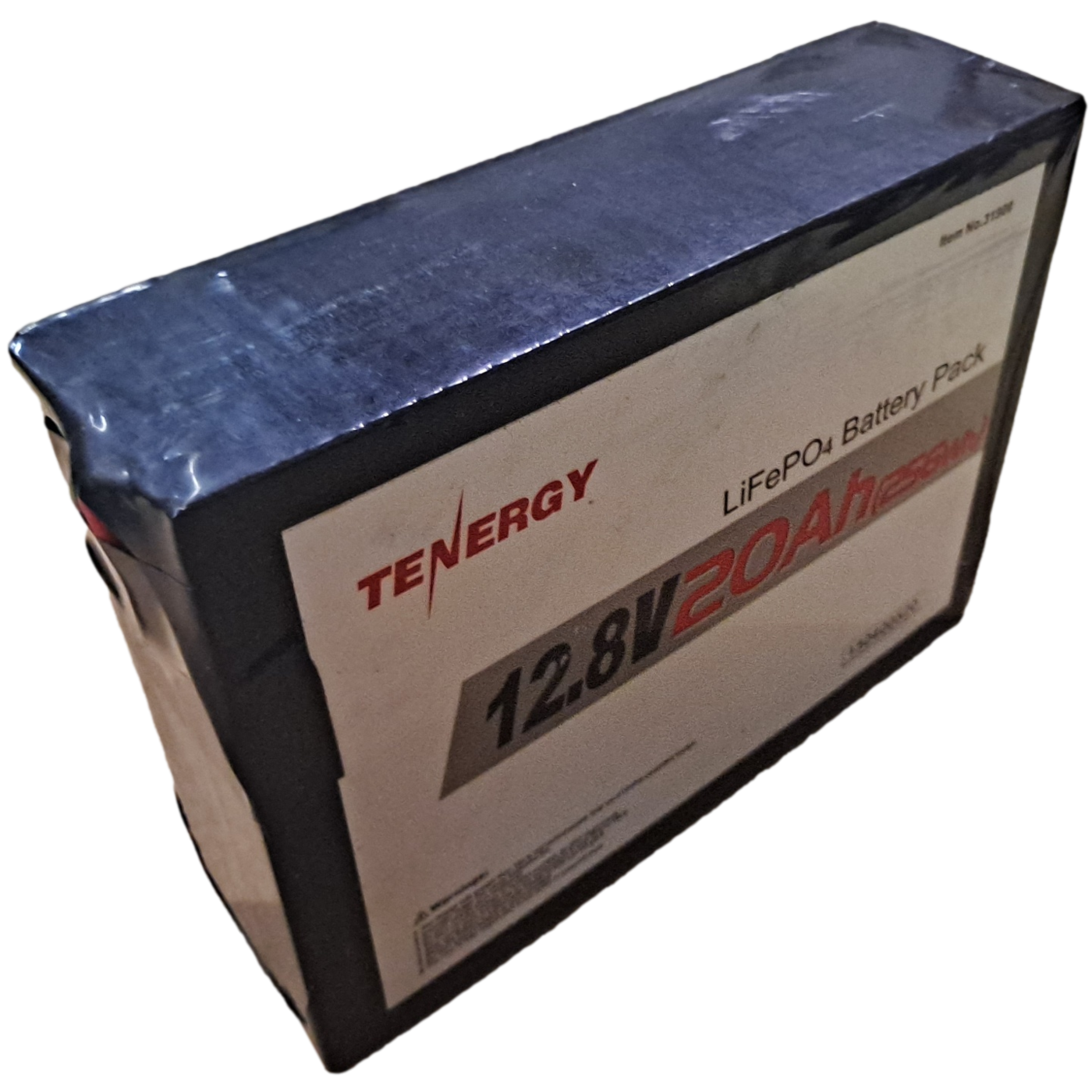

Tenergy 12.8v 20ah 256wh Lifepo4 Battery with BMS
Regular price
$29.00

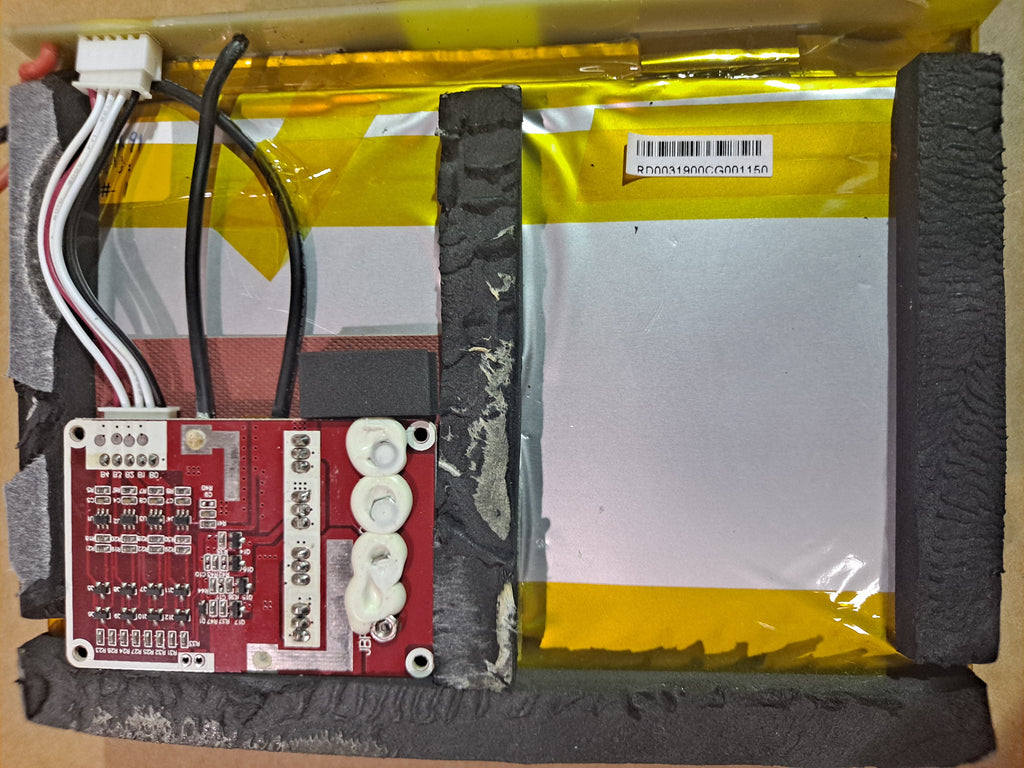

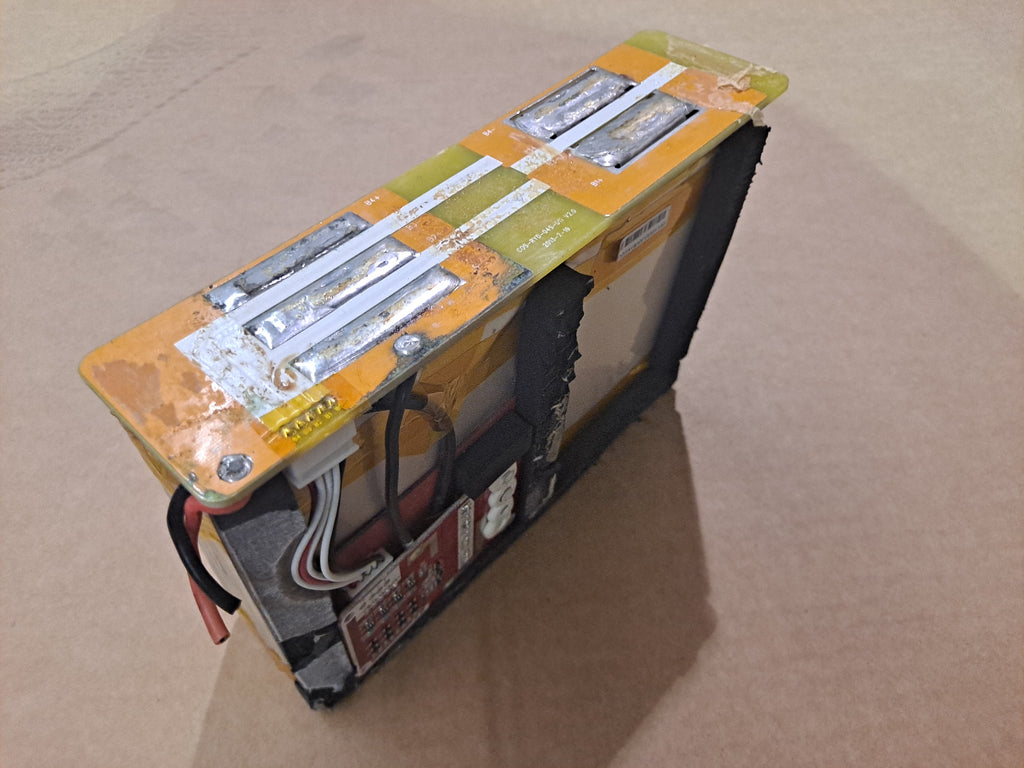

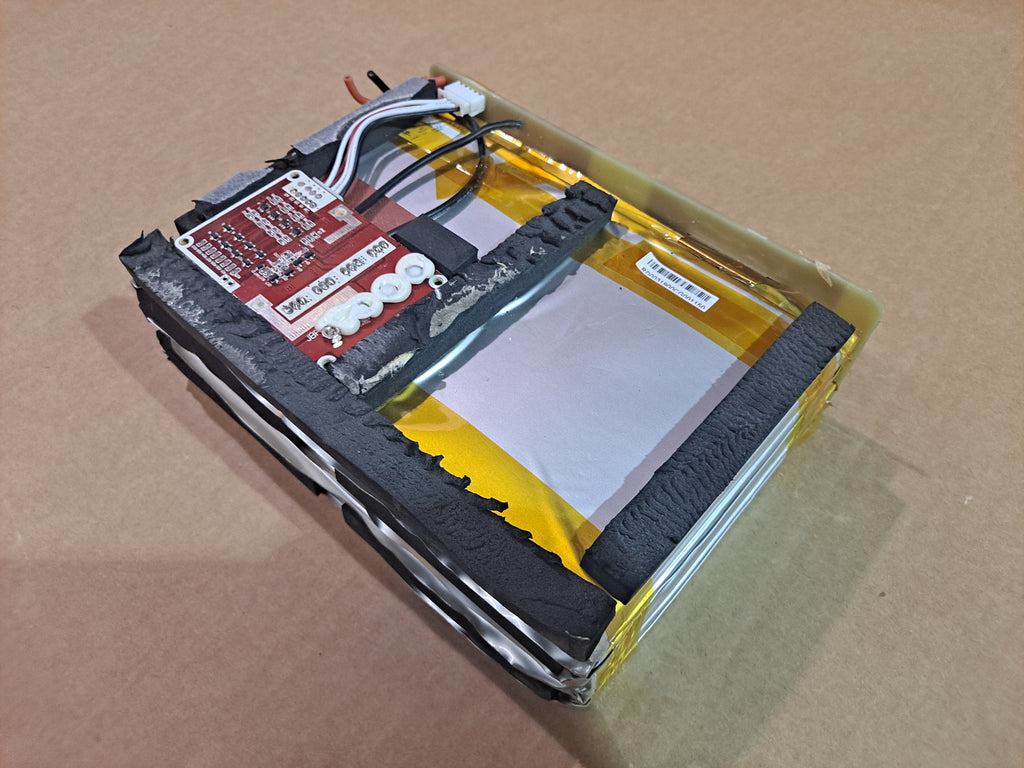

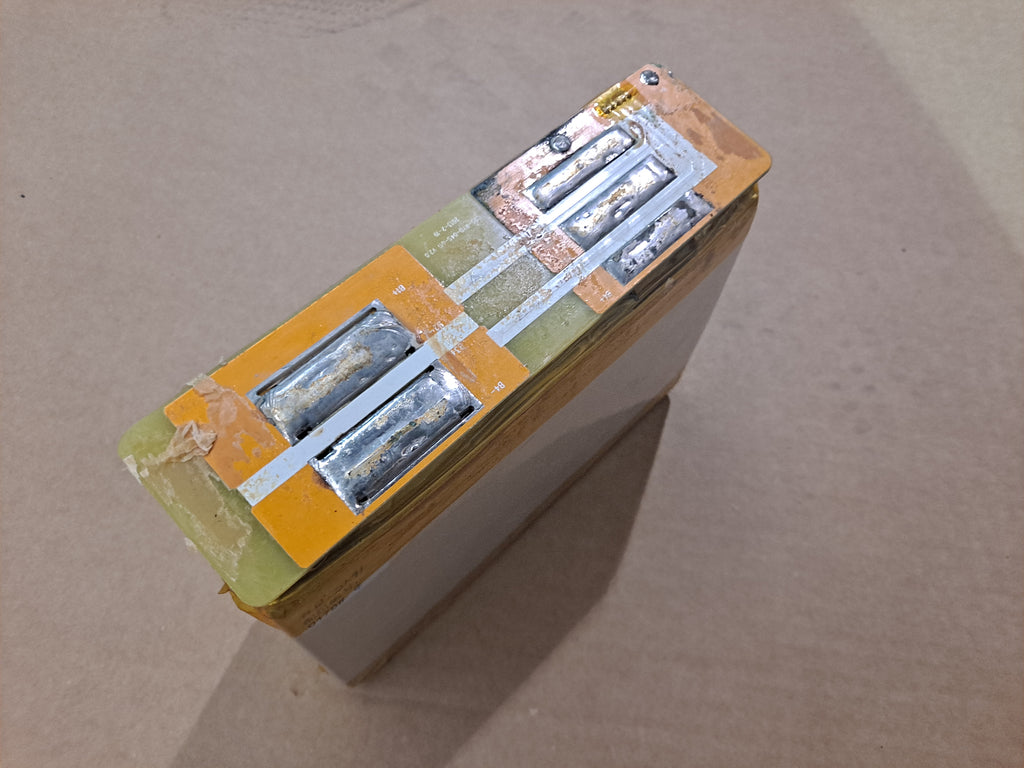

We have a decent amount of these packs that are used but have good voltage. Each battery has a BMS and 4 3.2v 20ah cells in 4s configuration. 12.8v 20ah. The BMS appears to be a 15a rated BMS. We cannot guarantee capacity however we can guarantee the batteries will charge and discharge like normal.
Fully charged - 14.6v
Fully discharged - 10v
Each battery has a main positive and negative wire. The wires are a little short but you have plenty of wire to work with and add your own connector.
Dimensions 7.5" x 5.5" x 2.25"
Weight 5.2 lbs
