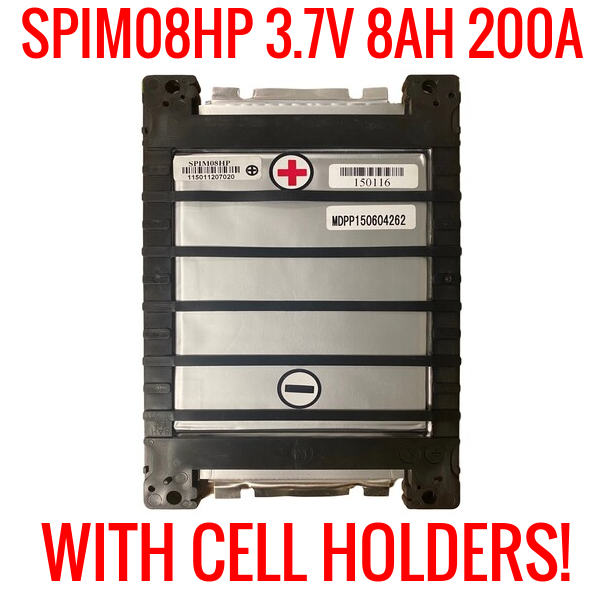

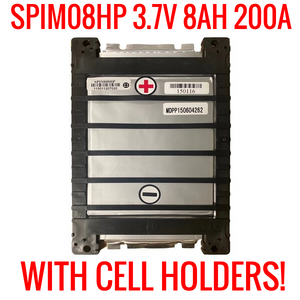

SPIM08HP 3.7v 8ah 200a LITHIUM ION W/ CELL HOLDER
HERE ARE POWERFUL SPIM08HP LITHIUM ION 3.7V 8AH CELLS THAT ARE RATED FOR 2000 CYCLES! (VIDEOS BELOW) THESE ARE BIG CELLS WITH A CRAZY AMOUNT OF POWER. EACH CELL WILL COME IN THE ORIGINAL CELL HOLDER! IF YOU WANT THESE IN PAIRS WITH THE THREADED INSERT WE ALSO HAVE THEM AS 16AH MODULES BUT IF YOU WANT TO MAKE YOUR OWN CONNECTIONS THIS IS THE CHEAPEST OPTION FOR THE CELLS AND THE HOLDERS.
EACH CELL IS RATED AT 200A DISCHARGE AND CAN BE CHARGED AT 80A. WE LITERALLY STARTED A CAR WITH 4 OF THESE IN SERIES.
PLEASE BE CAREFUL WITH THESE AND DO YOUR RESEARCH. THIS IS A MASSIVE AMOUNT OF POWER. WE TESTED 1000's OF THESE AND ON AVERAGE THESE ARE AROUND 95% CAPACITY. THESE CELLS WERE ONLY USED AS BACKUP POWER FOR COLD CLIMATE GENERATORS SO THEY HAVE NOT CYCLED TOO MANY TIMES. EVERY CELL IS CONFIRMED TO HAVE VOLTAGE SO YOU WILL NOT GET ANY DEAD CELLS.
IF YOU ARE LOOKING TO POWER SOMETHING THAT REQUIRES A LOT OF POWER IN A SMALL SPACE THEN LOOK NO FURTHER. THE TABS CAN BE WELDED WITHOUT HEATING OR DAMAGING THE BATTERIES OR YOU CAN CONNECT THEM WITH NUTS AND BOLTS OR RIVETS. ALSO THESE ARE MORE SAFE THAN 18650 CELLS BECAUSE WHEN THEY ARE SPENT THE BAG EXPANDS.
JUST KEEP IN MIND HOW MUCH POWER THESE THINGS ARE CAPABLE OF AND USE THE PROPER THICKNESS IN WIRE OR BUSBARS TO CARRY THAT POWER FOR WHATEVER YOUR APPLICATION WILL BE PULLING FROM THESE. THESE ARE 40 TIMES MORE POWERFUL THAN MOST 18650 BATTERIES.
CHECK OUT THE SPECS BELOW, THESE ARE REAL SPECS.
Material Li-ion
Typical capacity 8-9AH
Nominal Voltage 3.7V
Weight around 300g
Dimensions of cell body: 9x138X190mm
Dimensions of cell with tabs 9x138X210mm
Dimensions of cell holder:6 & 5/8th x 5 & 5/8th by 3/8th inches
Internal Resistance ≤0.8mΩ
Max Charge Rate 120A
Recommend Continuous Discharge Rate 200A
Pulse Discharge Rate（3 seconds） 400A
Fully Charged voltage 4.2V
Discharge cut off voltage 2.5V
Working Charge Temp 0~50°C
Working Discharge Temp –20°C~50°C
Storage Temperature –20°C~50°C
Applications
e-bikes, powerwalls, car audio, golf
carts, forklifts, UPS, solar system, etc.
Cycle life
2000 cycles to 80% with 100% DOD
under normal temperature
Advantages
safety, environment-friendly, high
discharge current, low capacity loss,
super-long cycle life.

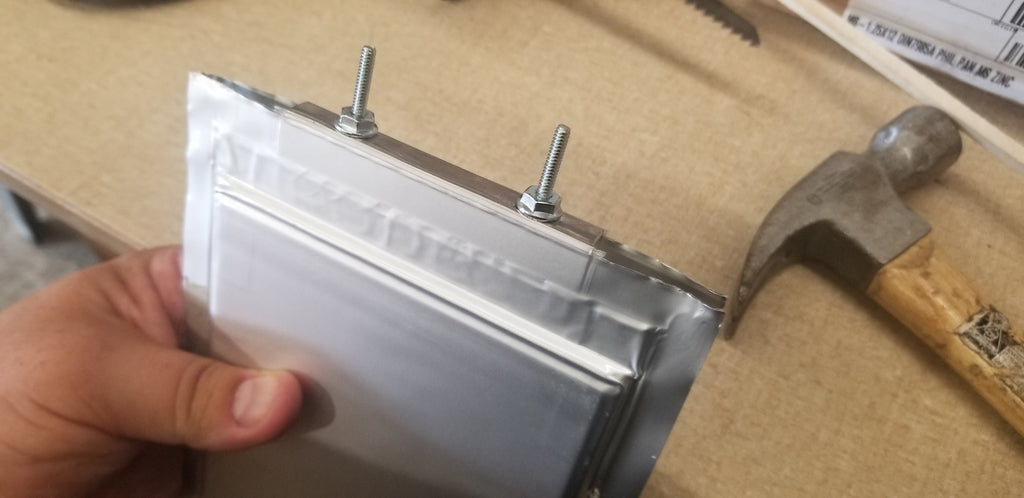

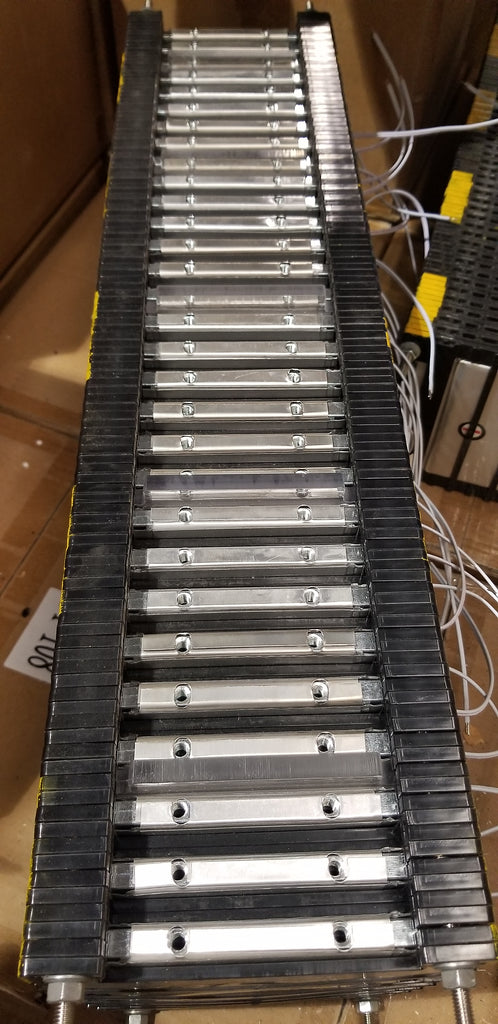

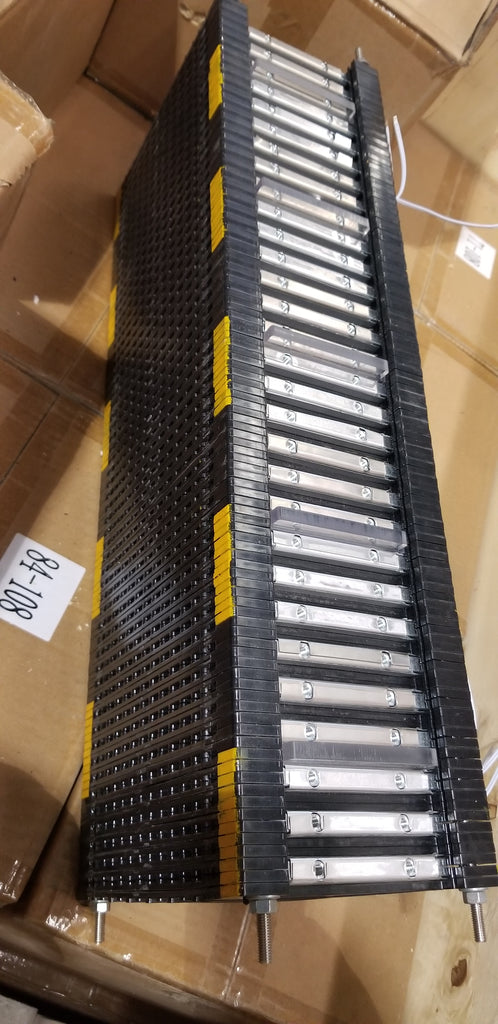

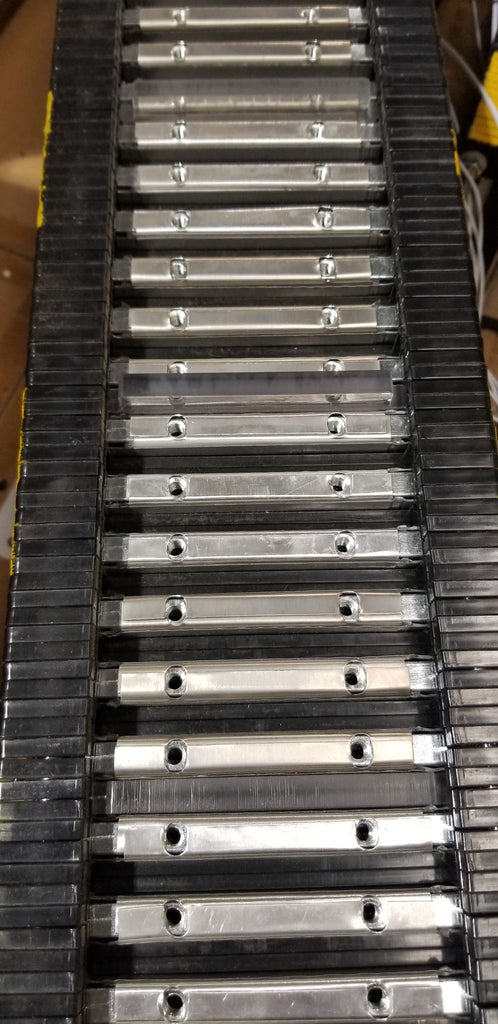

The other photos show you some ideas on how these should be connected. Drop in a square dowel with threads or bolts lined up where the tab cutouts are. You would have to make those pieces. Or just find small screws with large heads and just lay a piece of wood in between and screw the tabs down tight but not too far so the screw doesn't hit the pouch.
