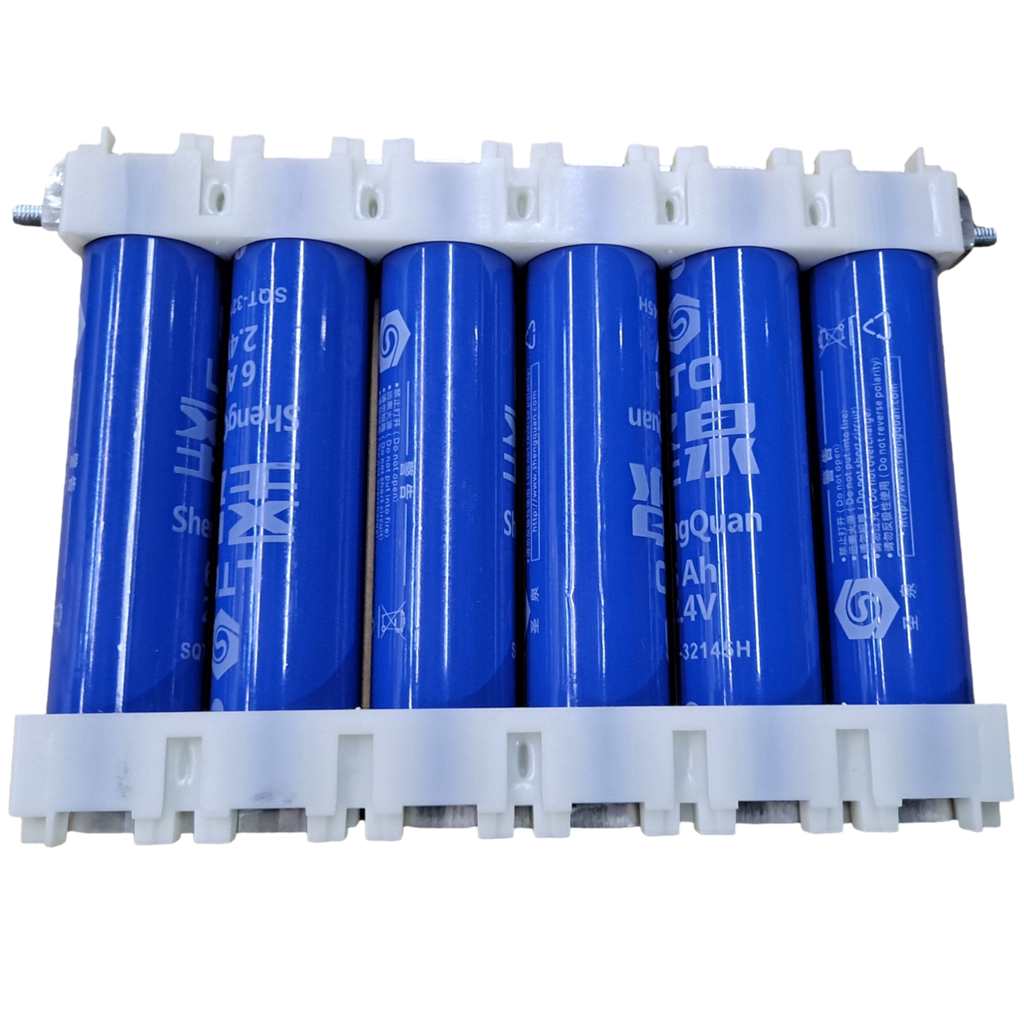

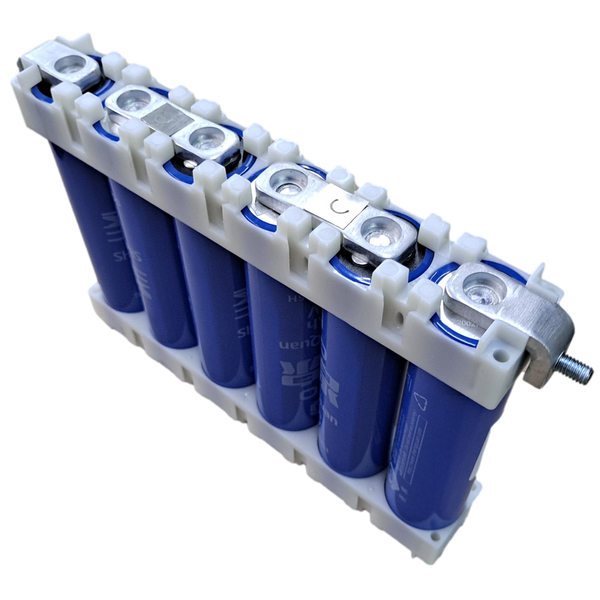

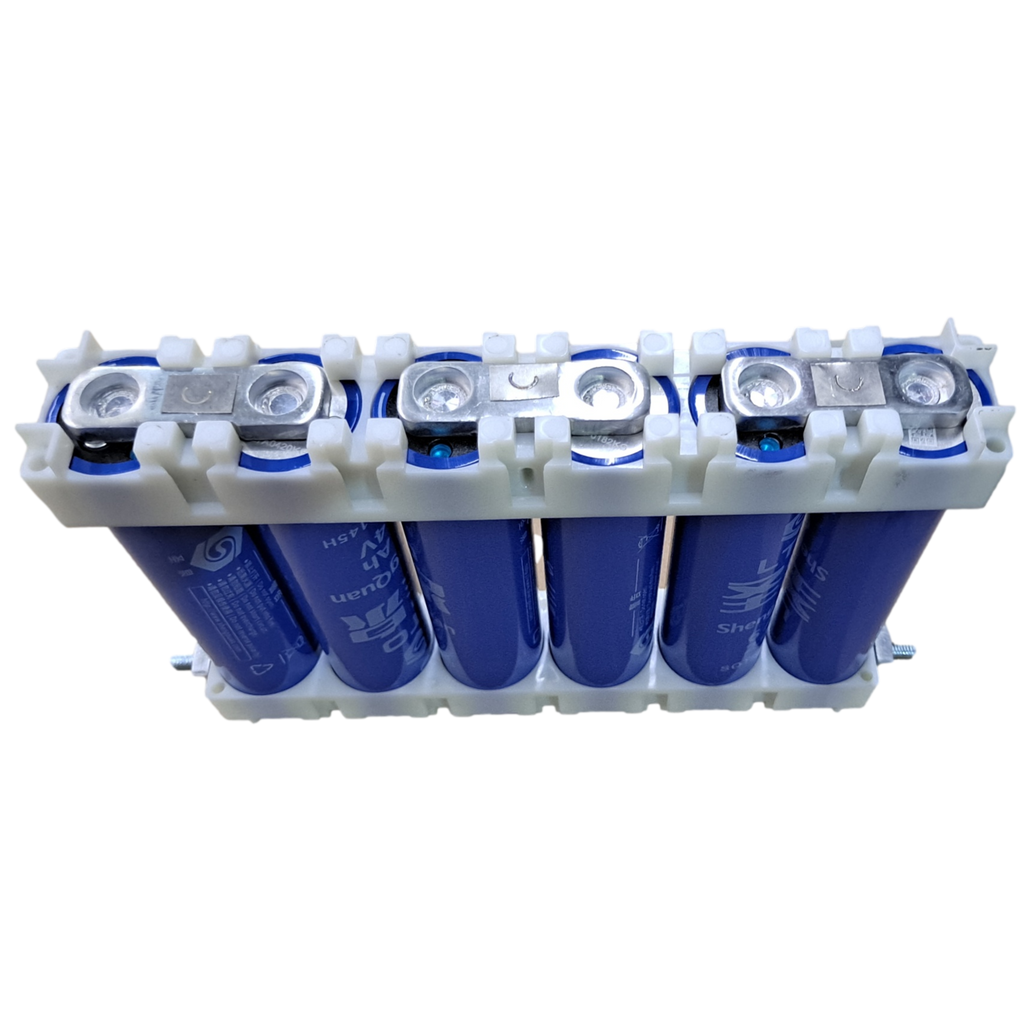

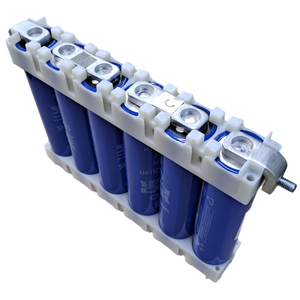

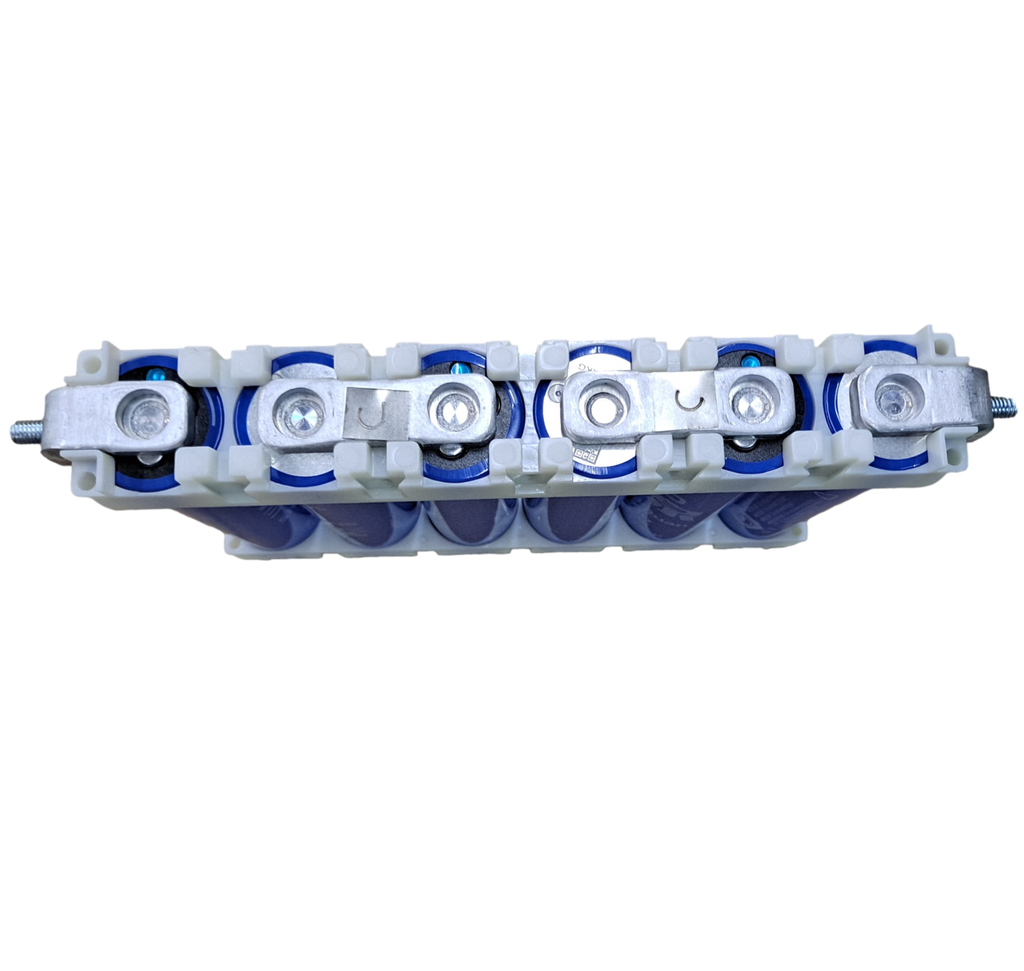

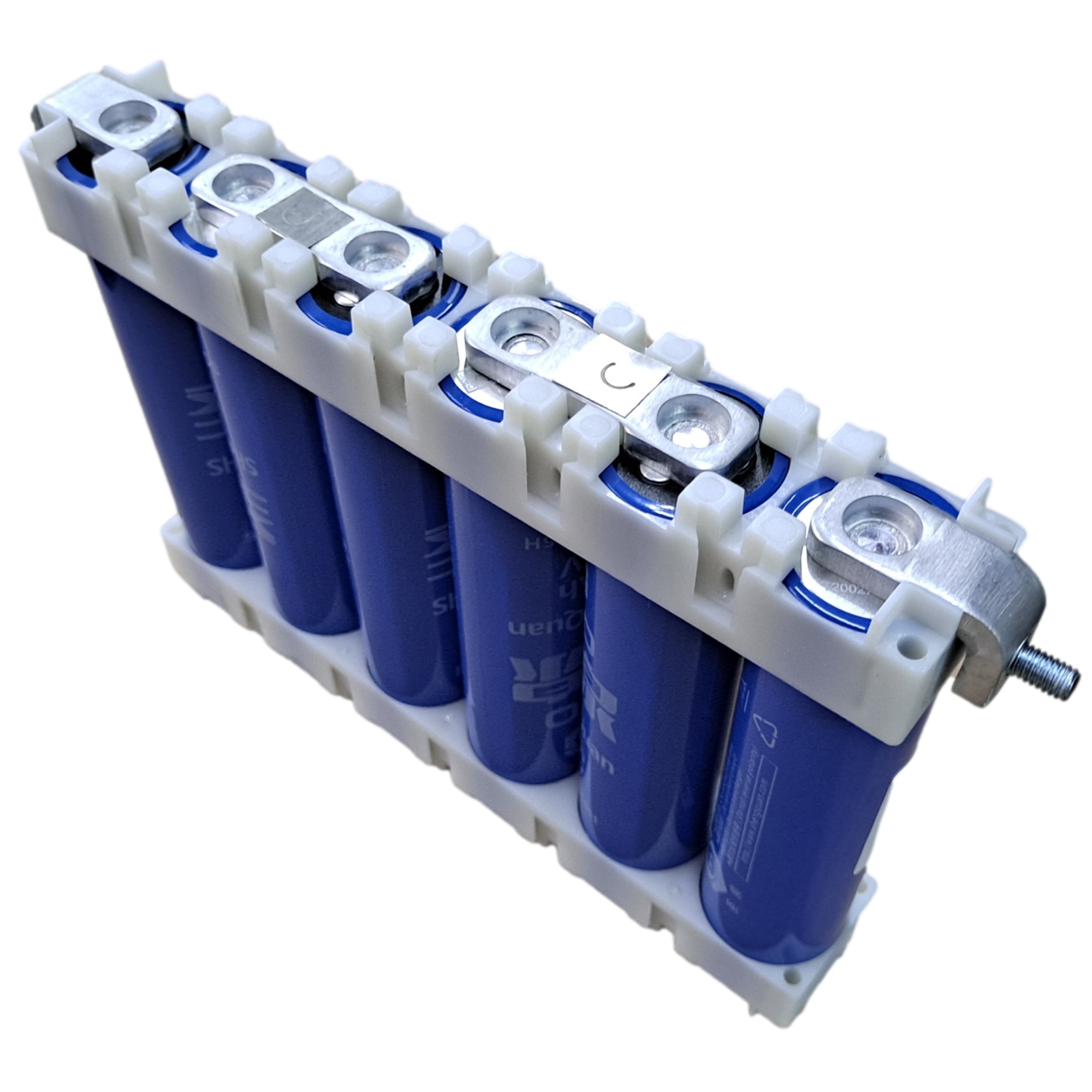

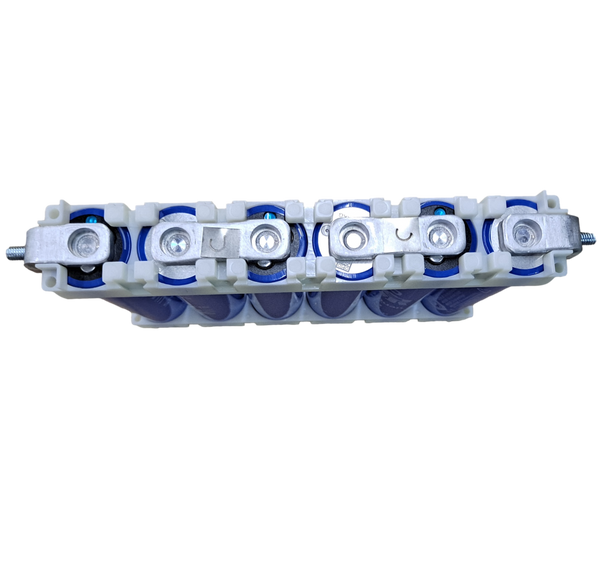

Shengquan 6s1p 6ah LTO Lithium Titanate POWER 5kw
These batteries are brand new and already in 6s1p format. Perfect for car audio. They can handle a 60c pulse which means this little pack can push 5kw in a pulse, the busbars are professionally laser welded, and we even had a solder tab added to each busbar so you can wire your balance leads for a BMS. The busbars are 1/4" thick. These are one of the most powerful little batteries you can find. Each cell being 2.4v nominal means this pack at nominal voltage is 14.4v, fully charged 16.8v, and fully discharged at 9v. Of course we always recommend a BMS and make sure if you are using these for high discharge current that you monitor all the cells and use thick enough cables to make your connections. You can make your main positive and negative connections with ring terminals which makes these little modules super easy to work with. The modules are under 4 pounds in weight. Yes these are rated at 40,000 cycles. These batteries can also be used at -40 degrees C. LTO is an amazing chemistry but of course they come with a higher cost however they are perfect for specific applications like car audio. Can't really pack much more power into a small space than what you get here. Very easy to parallel as well.
|MAX CHARGE VOLTAGE||2.8V|
|MAX DISCHARGE VOLTAGE||1.5V|
|25℃ CYCLE LIFE @1C||40000|
|INSTANTANEOUS DISCHARGE RATE||70C|
|SUSTAINABLE CHARGING RATE||40C|
|SUSTAINABLE DISCHARGING RATE||40C|
