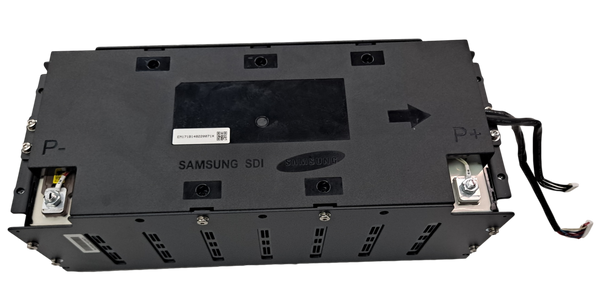

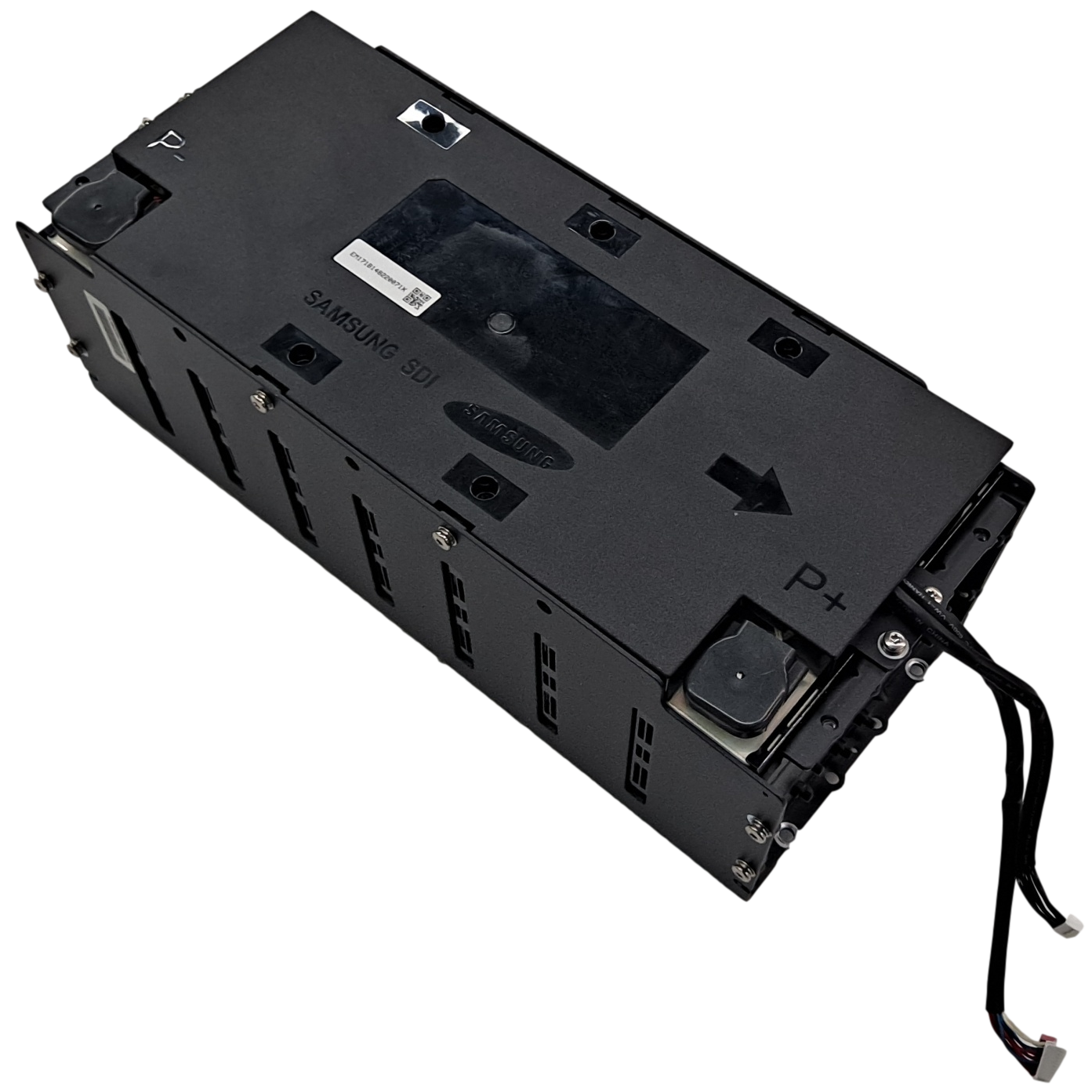

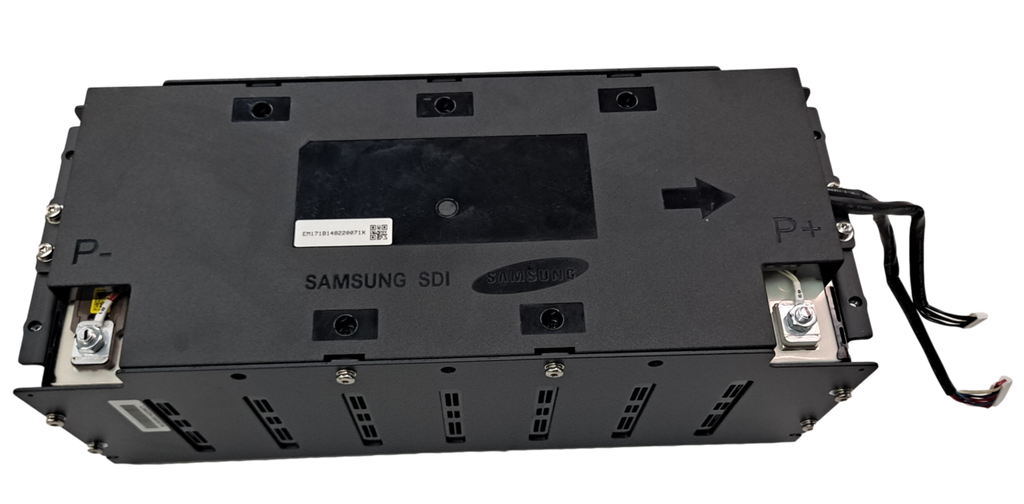

Samsung 8s Lithium Ion 29.6v 60ah 1.776kWh Module - Broken Post
Samsung 8s Lithium Ion 29.6v 60ah 1.776kWh Module - Broken Post
Samsung 8s Lithium Ion 29.6v 60ah 1.776kWh Module - Broken Post
Battery Hookup

Samsung 8s Lithium Ion 29.6v 60ah 1.776kWh Module - Broken Post

Regular price $175.00 $0.00 Unit price per

This module in particular had the post of the one cell break off. You can likely solder your connection to it. The cells are still in balance so it's just a matter of making that connection on the one cell at the end. Or just use it as a 7s 24v module. We took $50 off for the bad post.

These are absolutely beautiful Samsung 8s lithium ion modules. They came out of server racks and were used as hospital backup power. We tested a few modules and they were all around 90% capacity so you can expect these to last a very long time. All cells are checked and confirmed to be balanced as well. Just an overall beautiful battery that I think you will enjoy.

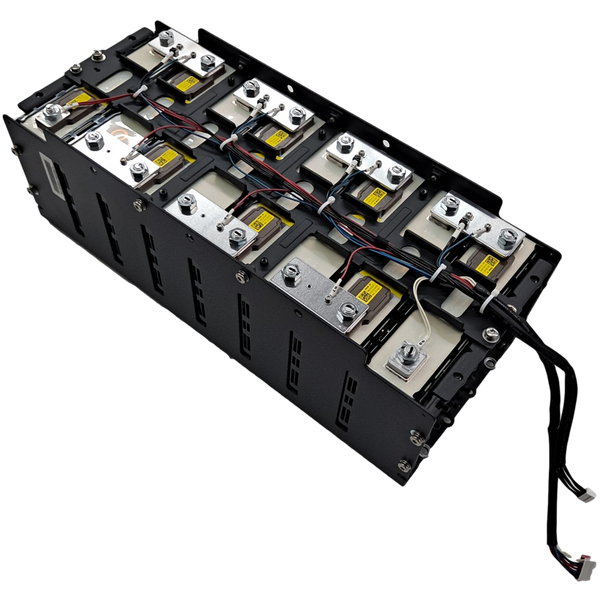

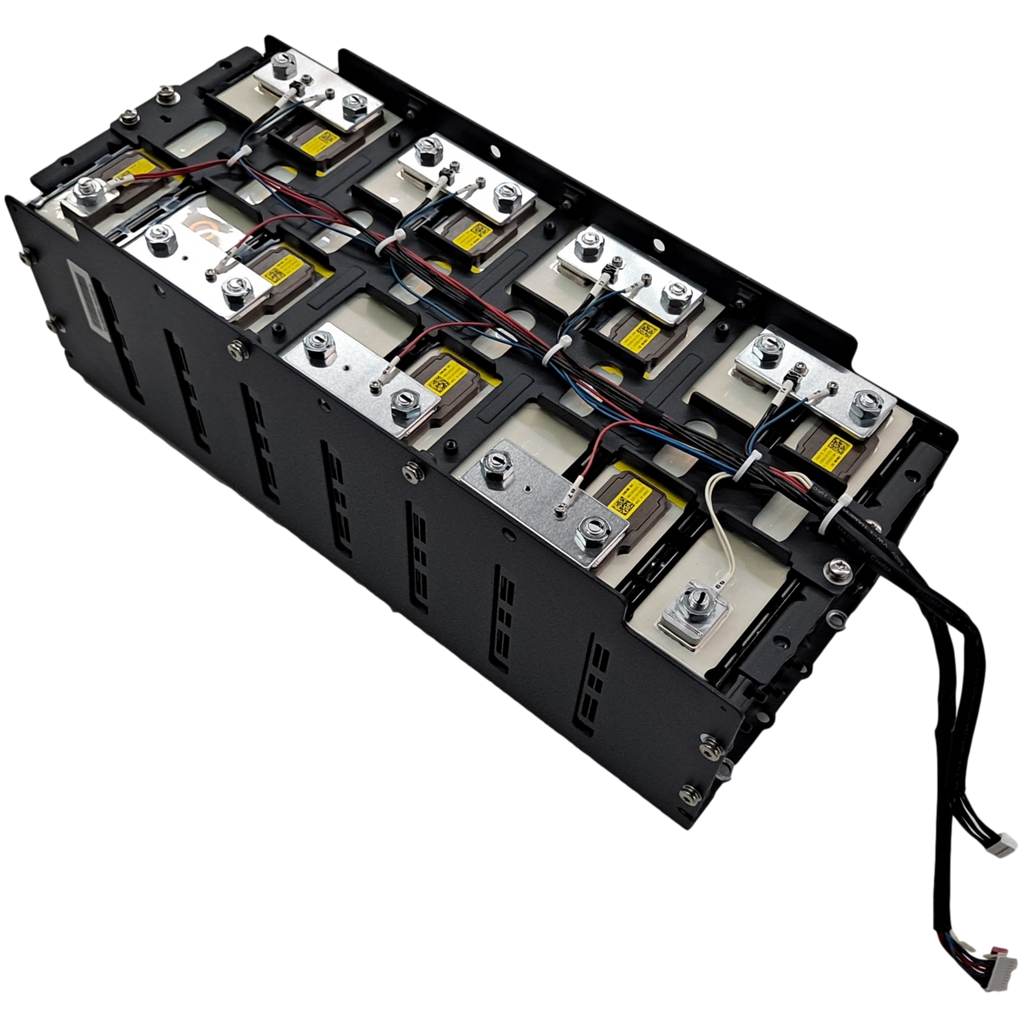

The best part is these batteries have bolt connections so that makes it super easy to reroute the busbars into different voltages or to connect your main connections with ring terminals and a wrench. There are wire leads which you can splice into your BMS balance leads as well. You can buy 5 of these and turn it into a 36v (10s4p) 240ah golf cart or forklift battery. Just simply reroute the busbars with a wrench.

Fully charged 33.6v (4.2v per cell)
Fully discharged 22.4v (2.8v per cell)
Recommended max continuous discharge - 180a (3c)
Recommended max continuous charge - 60a (1c)
Dimensions 17" x 7" x 6"
Weight 44 lbs

These are genuine Samsung cell modules and would actually work well for an EV application.
