SAMSUNG 8S 28.8v 7.8ah 225wh w/ BMS
SAMSUNG 8S 28.8v 7.8ah 225wh w/ BMS
SAMSUNG 8S 28.8v 7.8ah 225wh w/ BMS
SAMSUNG 8S 28.8v 7.8ah 225wh w/ BMS
SAMSUNG 8S 28.8v 7.8ah 225wh w/ BMS
SAMSUNG 8S 28.8v 7.8ah 225wh w/ BMS
Battery Hookup

SAMSUNG 8S 28.8v 7.8ah 225wh w/ BMS

Regular price $29.99 $0.00 Unit price per

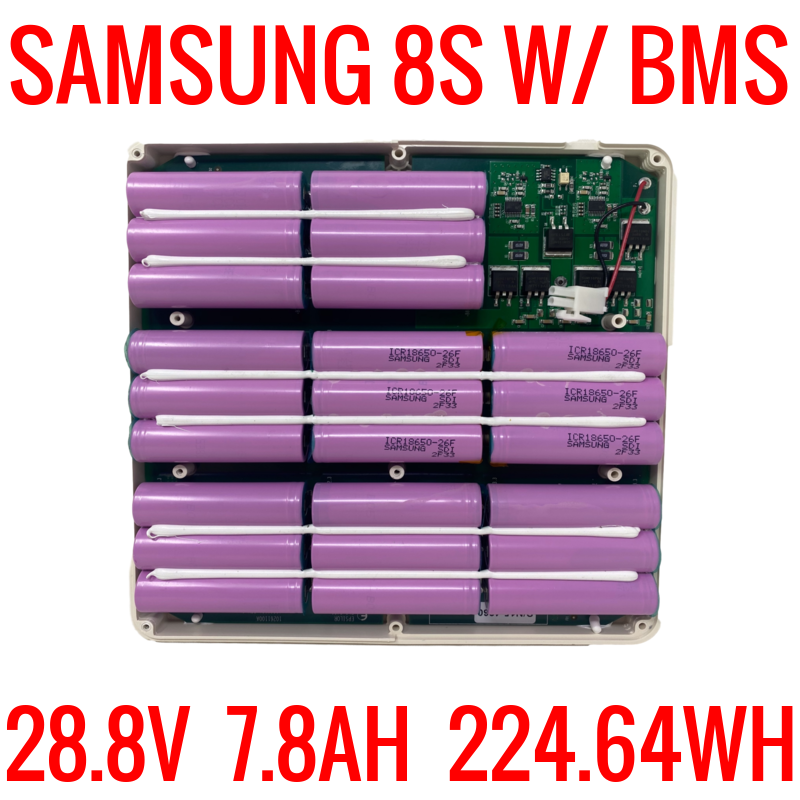

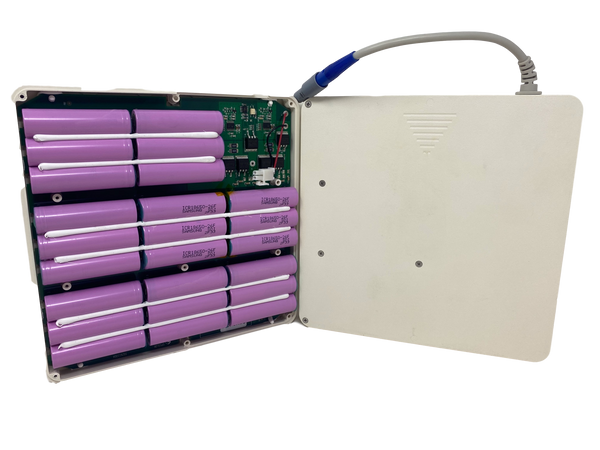

Here are fully tested and balanced 8s lithium ion medical batteries. These are absolutely beautiful packs with a legit BMS. The best part about medical grade batteries is they only use the best name brand cells with super high quality BMS units.

Each unit has 24 Samsung 26f 2600mah 18650 cells which are one of the best and most popular cells available.

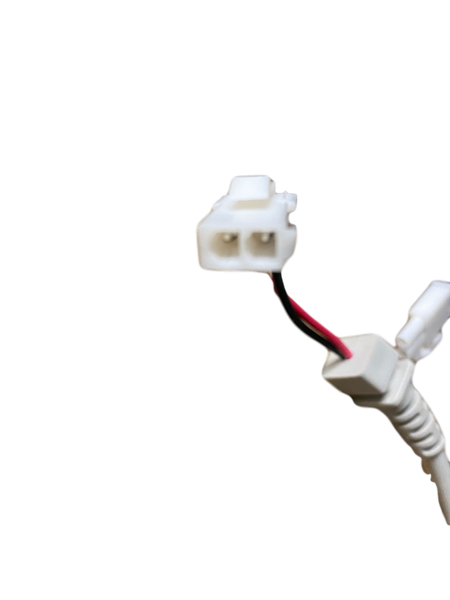

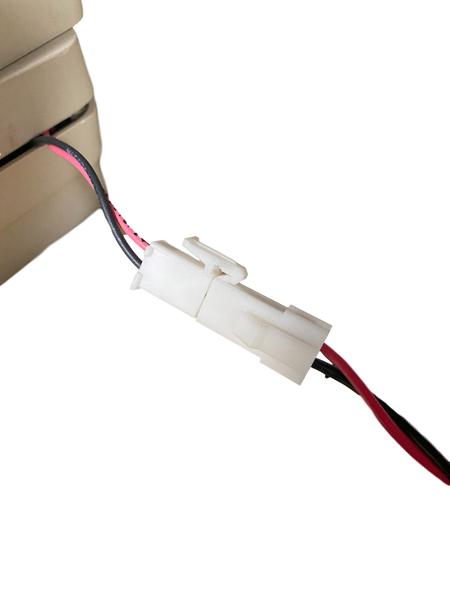

The main positive and negative wiring harness is still there so you can simply cut off the outer connector and put your own connector on the wire leads. The BMS is rated for 10a but I would recommend using charge and discharge limits to 5a. You can see the main positive and negative wires are pretty thin. Good rule of thumb is 100w per battery. If you have a 1000w inverter then run 10 of these packs in parallel.

you can easily line up these side by side and connect them in parallel to a busbar. Just make sure each battery is the same voltage before you connect them in parallel. These packs have been consistently testing above 90% capacity.

These batteries new were super expensive, hundreds of dollars each and were used for brain tumor treatment mobility packs. Medical batteries usually only get used a limited number of times before being swapped out for new ones so that's why these are testing so good.

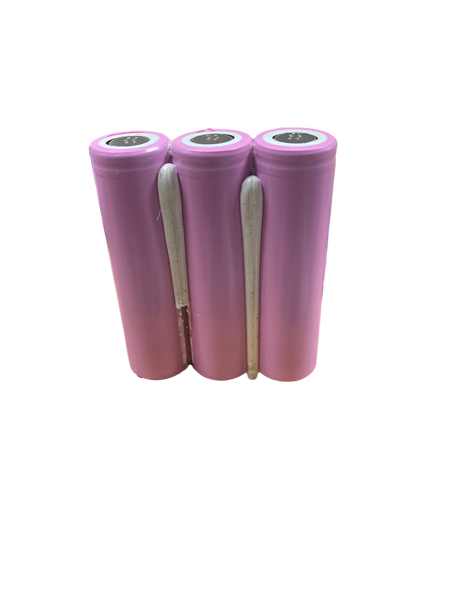

Yes you can salvage the cells from these packs however you will likely need to rewrap the cells because they are glued together. I would recommend using this pack as is because you can utilize the super high quality BMS.

If you have a 24v inverter that has an input voltage range up to 32v this would be perfect. Each cell would charge up to 4v and you will see 4 times the cycle life and only 15-20% less capacity.

Pack fully charged voltage: 33.6v (4.2v/cell)
Fully discharged voltage: 22.4v (2.8v/cell)
Recommended Max Continuous Charge: 5a
Recommended Max Continuous Discharge: 5a

Again, a good rule of thumb for sizing a build with these packs is 100w discharge rate per module. These are 225wh modules. They'll make for a super safe and high quality modular system and would take very little effort to make a nice powerwall and especially for an RV application. Have a 2kWh 24v inverter in your RV already? 20 packs in parallel and you're all set. 4.5kWh battery right there.
