SAMSUNG EV 12s 43.2v 8.5ah module

Regular price $44.99 $0.00 Unit price per

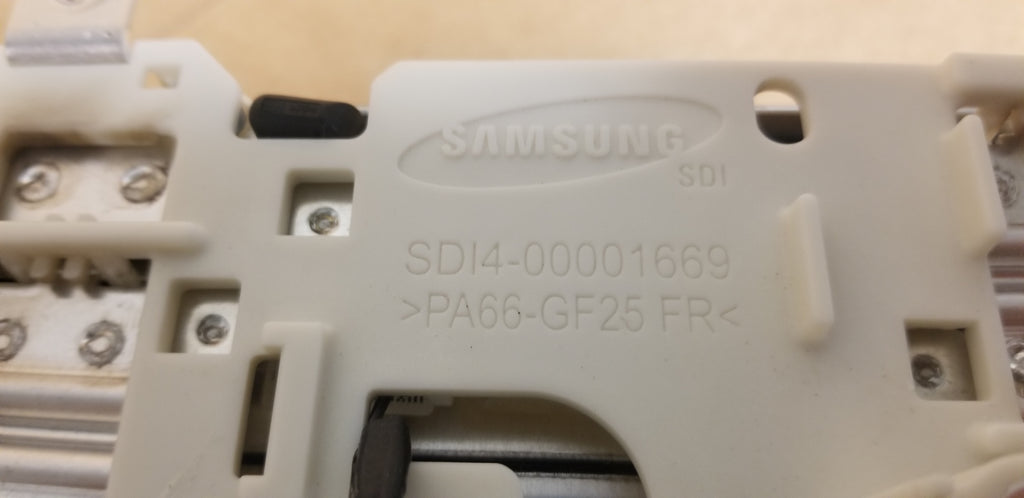

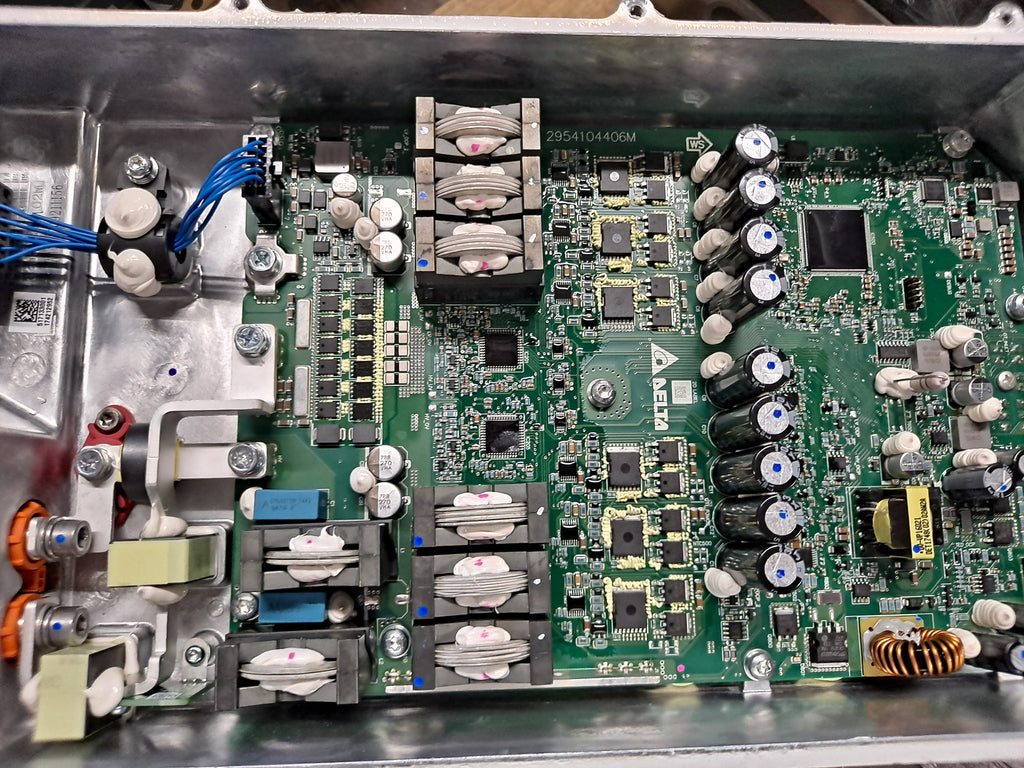

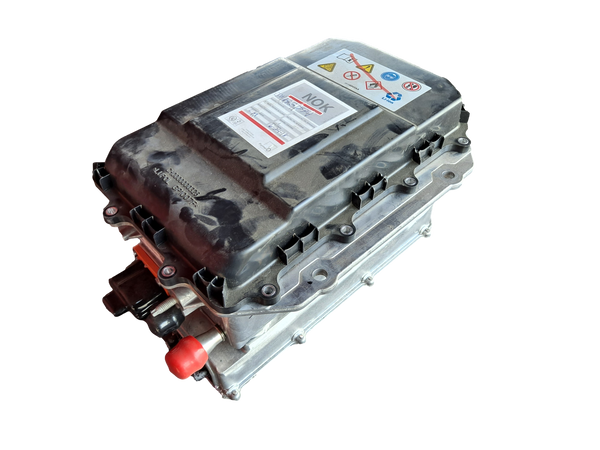

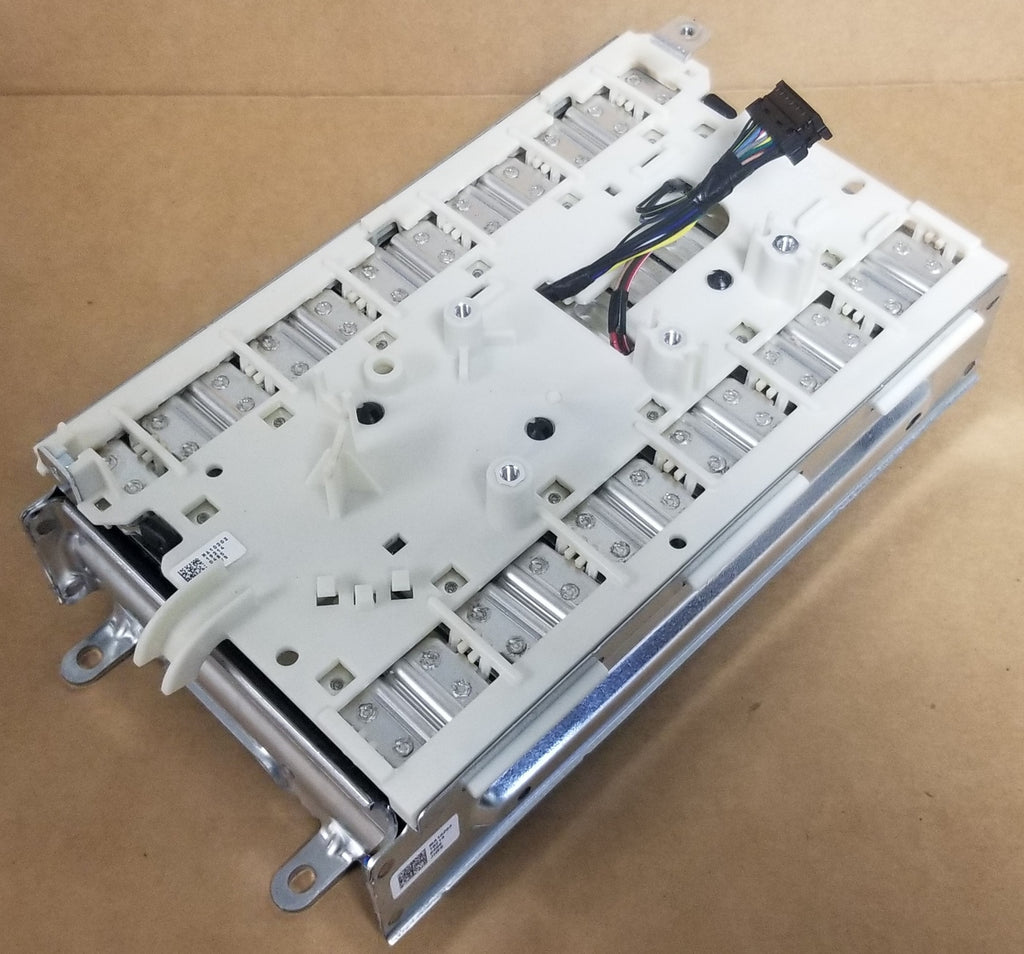

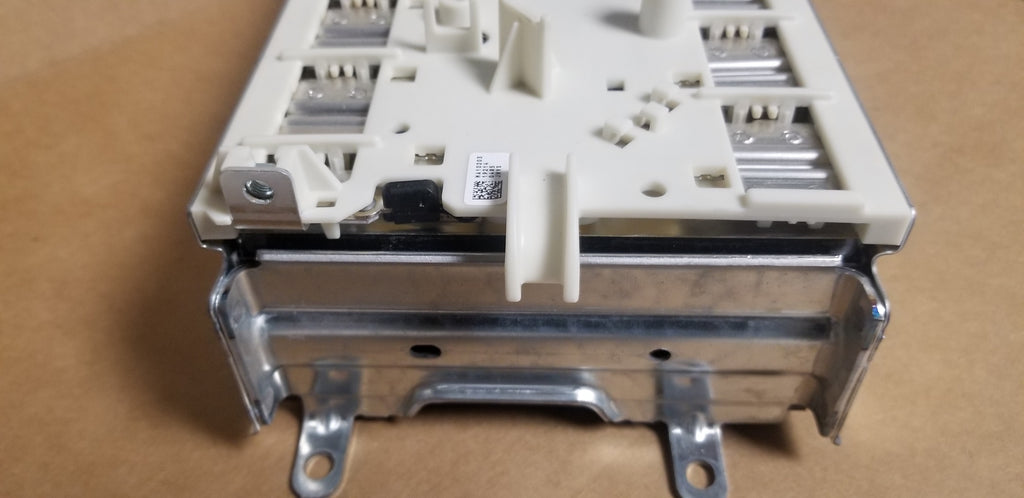

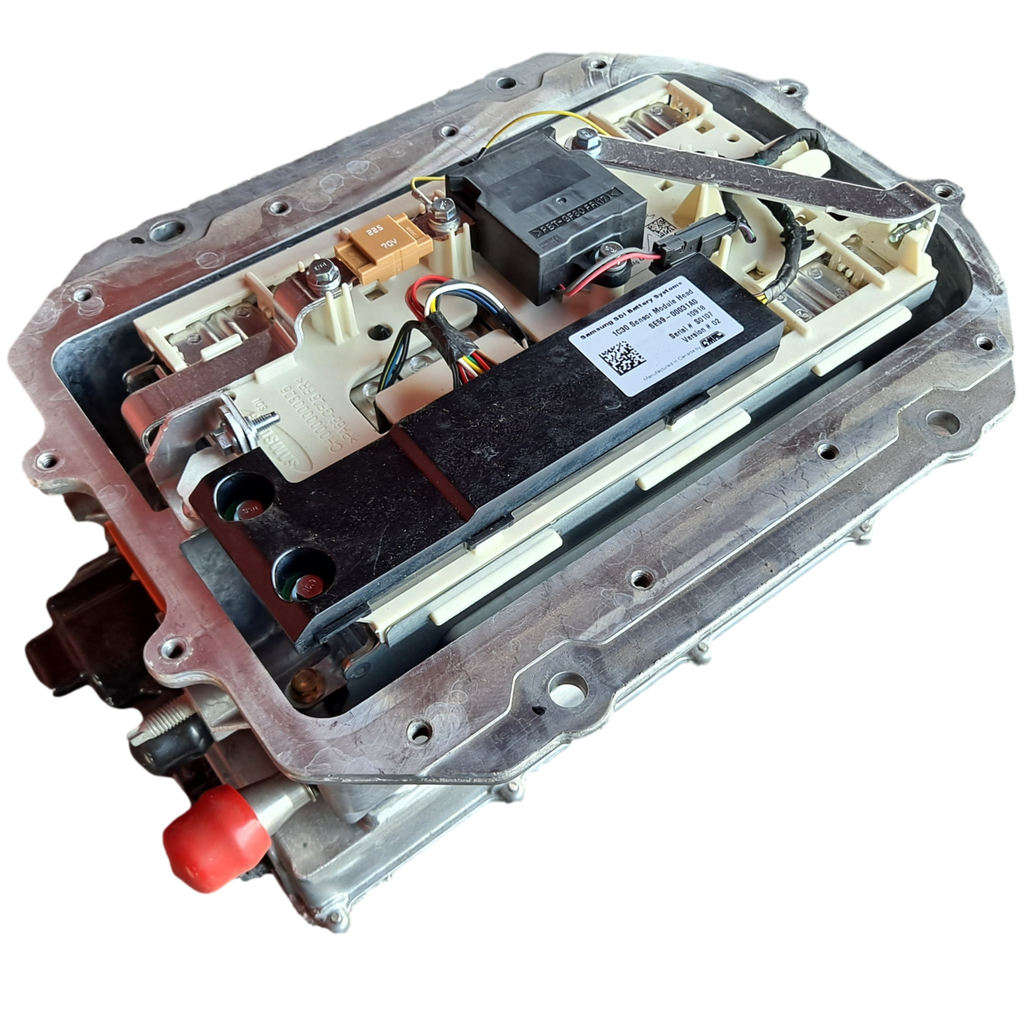

These Samsung modules are so awesome, come with a cast aluminum enclosure, and the circuit board even has some nice capacitors you can salvage. They are made of 12 8.5ah Samsung lithium ion prismatic cells. The module is in 12s1p configuration. If you have an EV conversion, golf cart upgrade, performance e-bike/e-motorcycle, powerwall, etc. These batteries are built to last, fully balanced, and testing amazing! This is truly a well assembled battery, built like a tank, and the rest of the enclosure and components have some nice value as well.

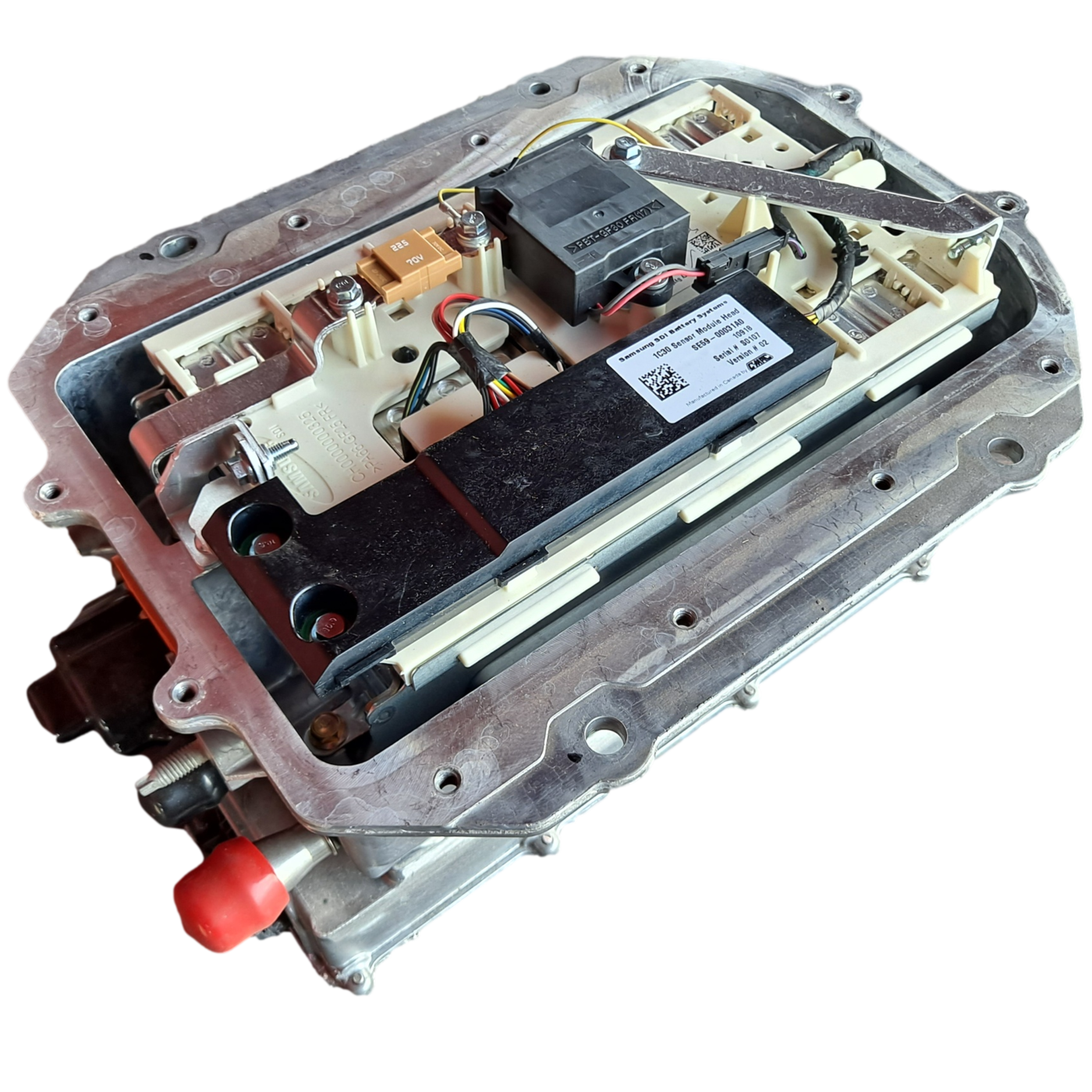

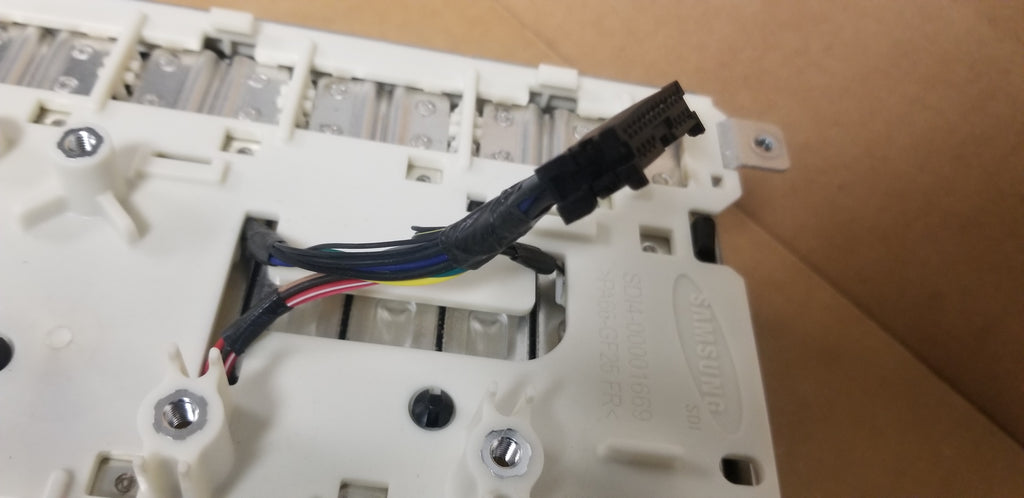

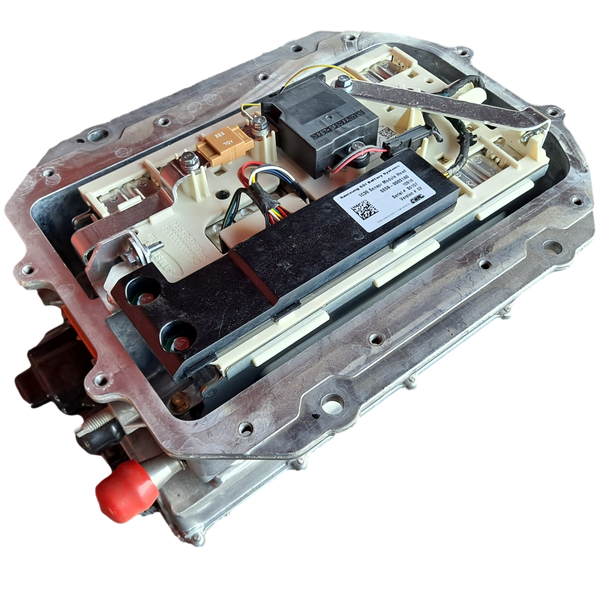

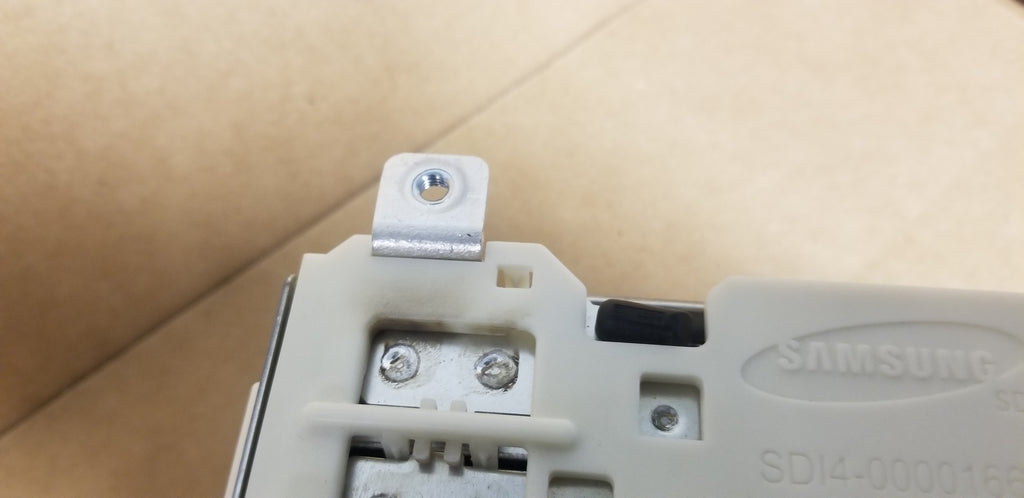

The BMS is proprietary so you will not be able to reuse that. You can reuse a lot of the connectors, busbars, enclosure, capacitors, etc.

Chemistry: Lithium Ion
Nominal Voltage: 43.2
Fully Charged Voltage: 50.4
Fully discharged Voltage: 33.6
Recommended Max Charge rate: 17a (2c) (367w)
Recommended Max Discharge rate: 42.5a (5c) (1836w)
Pulse Discharge rate (10 seconds): 85a (10c) (3672w)
Measurements: 11" x 7" x 3"
Weight: 12.3 lbs.
