This battery is fully tested above 100% capacity and comes with the printout of the test report showing the capacity and curve chart. It looks new too and comes with the bolts.

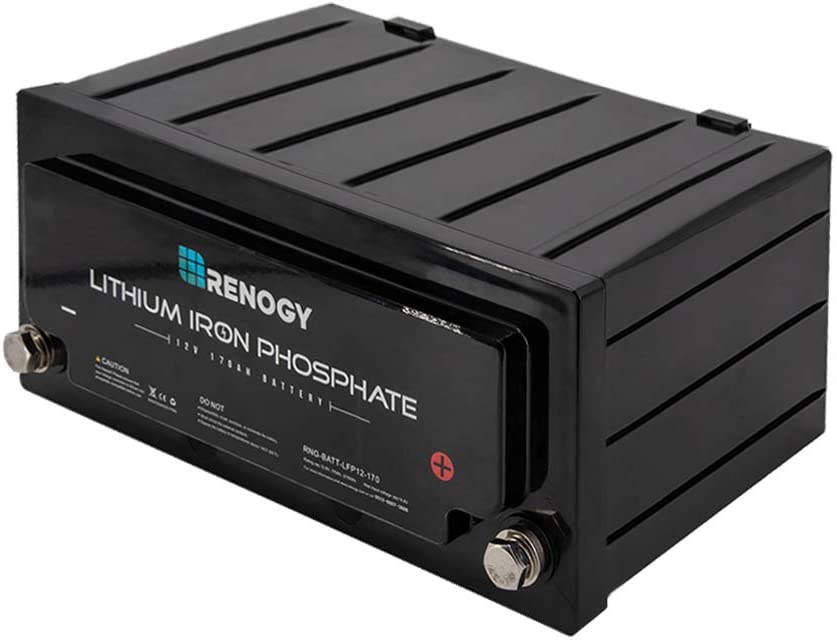

The Renogy 12V 170AH Lithium-Iron Phosphate Battery is perfect for deep-cycle applications including cabins, solar/wind energy systems, UPS battery backups, telecommunication systems, medical equipment, and more. Unlike gel or lead-acid batteries, the Renogy LFP battery is safer, lighter, and more powerful with a long service and shelf life to boot. Invest in this sealed, maintenance-free battery for your off-grid system today!
Note:
Please be aware that if the batteries' Battery Management System (BMS) is activated and the battery voltage shows 0V, you must use a compatible Li charger to reactivate our Li batteries.
Make sure to tightly screw the battery terminals in, having loose battery terminals will cause the terminals to build up heat resulting in damage to the battery.
Please be aware that the batteries' M12 terminals are thicker and will not work with any of our battery cable offerings, they require 1/2" ring terminals for proper connectivity. Custom Wires available upon request.
DO NOT string this battery in series. It is made ONLY for parallel connections using identical batteries.
Lightweight
BMS Protection
Low Self-Discharge

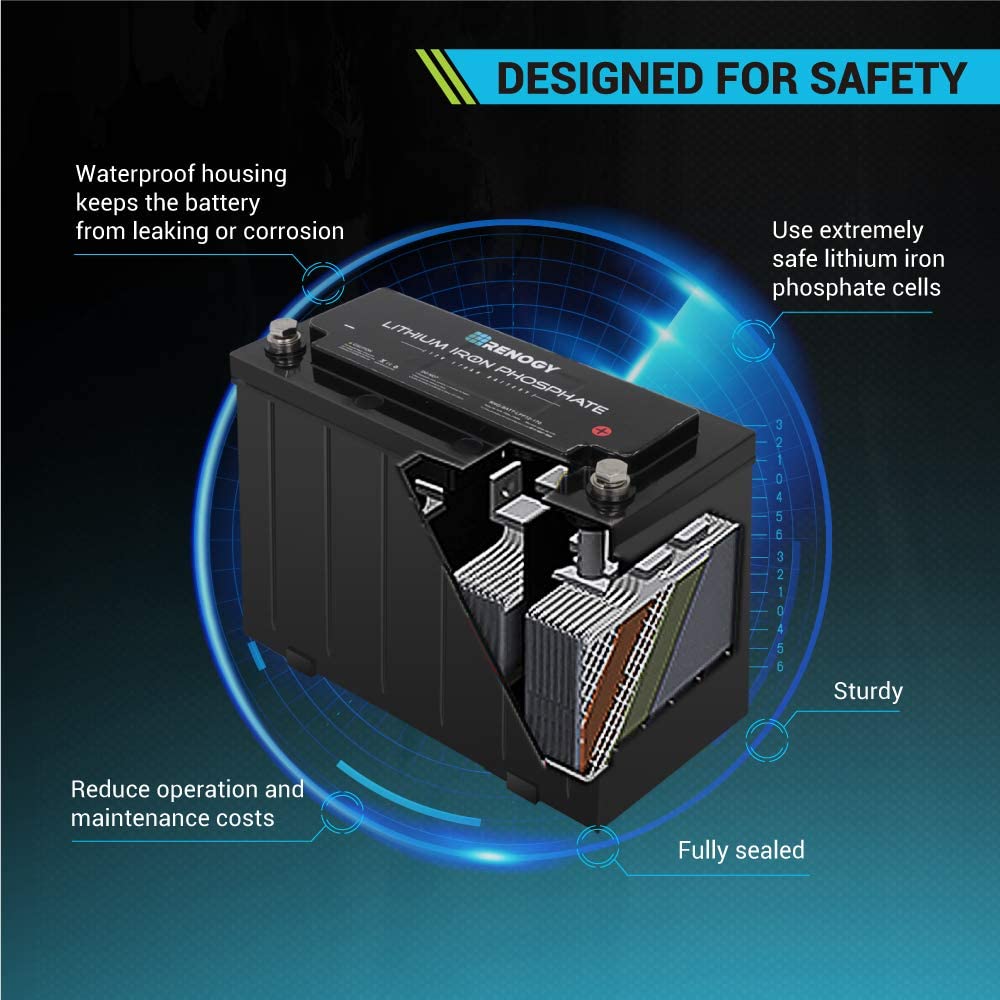

Triplex Sealed Construction
Patent Designed Construction
ELECTRIC CHARACTERISTICS

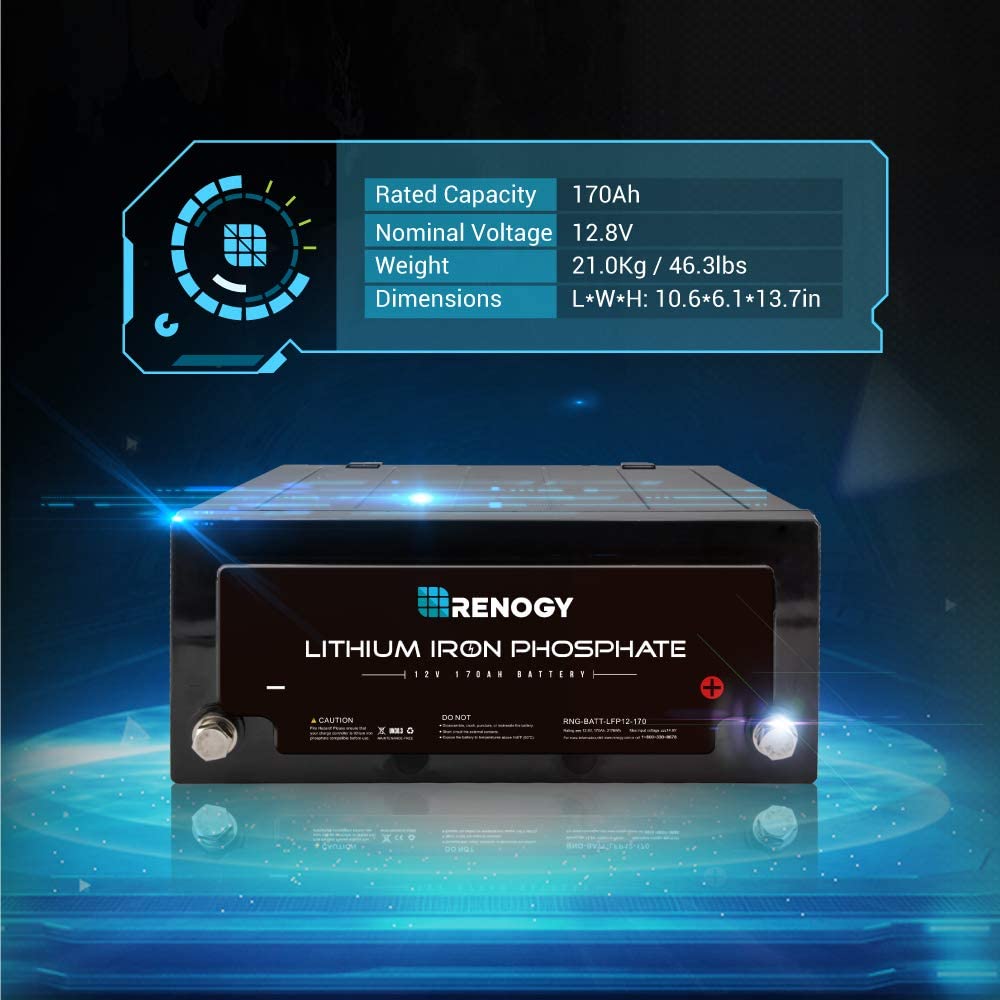

Nominal Voltage:12.8V
Energy Density:149.1Wh/L
Rated Capacity (0.2C):170Ah
Internal Resistance:≤10mΩ
Minimal Rated Capacity (0.2C):161.5Ah
Cycle Life (0.2C, 20±5°C):80% DOD 1500 cycles
Energy:2176Wh
Specific Energy:103.6Wh/kg
CHARGING PARAMETERS
DISCHARGING PARAMETERS
Charge Voltage:14.4 ± 0.2V
Maximum Continuous Discharge Current:125A
Maximum Charge Current:85A
Discharge Cut-off Voltage:≥10V
Charge Cut-off Voltage:14.6V
TEMPERATURE PARAMETERS OPERATION TEMPERATURE RANGE
