No Battery - DIY 18v 100w Motor - BMS - On/Off Switch
No Battery - DIY 18v 100w Motor - BMS - On/Off Switch
No Battery - DIY 18v 100w Motor - BMS - On/Off Switch
Battery Hookup

No Battery - DIY 18v 100w Motor - BMS - On/Off Switch

Regular price $15.00 $0.00 Unit price per

This is the ultimate DIY/Creativity must-have product.

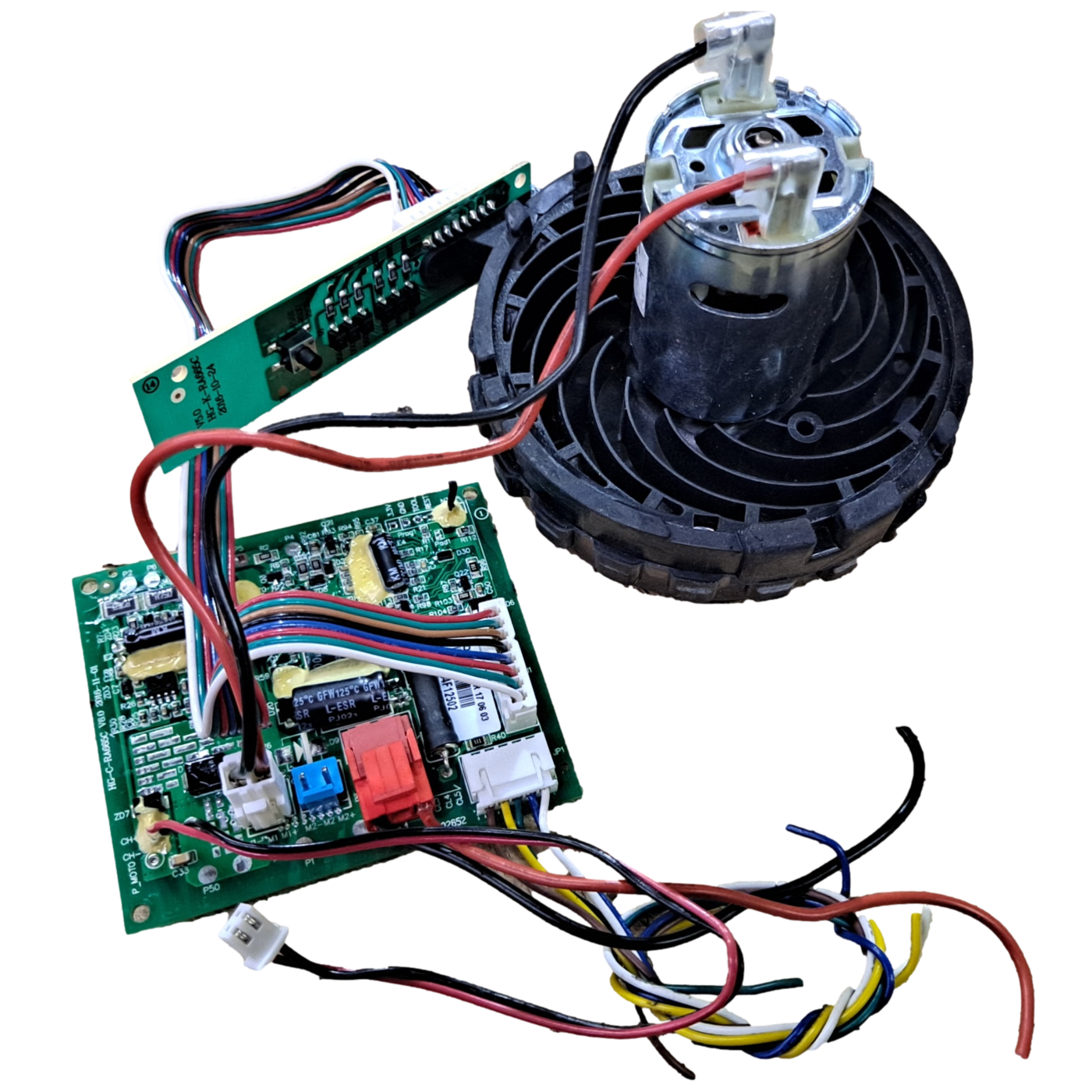

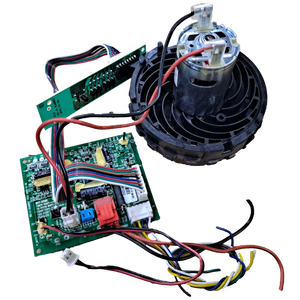

You get a 6s BMS, 100w motor, vacuum attachment, on/off button, and LED display. All ready to go! Just add a 6s lithium ion battery!

These kits came out of popular wireless vacuum cleaners that had cracked cases so they never were used. We opened them all up and took the time to test these kits and make sure everything works. These are the kits where the battery packs were over discharged so we removed the battery pack and the rest is in perfect working condition.

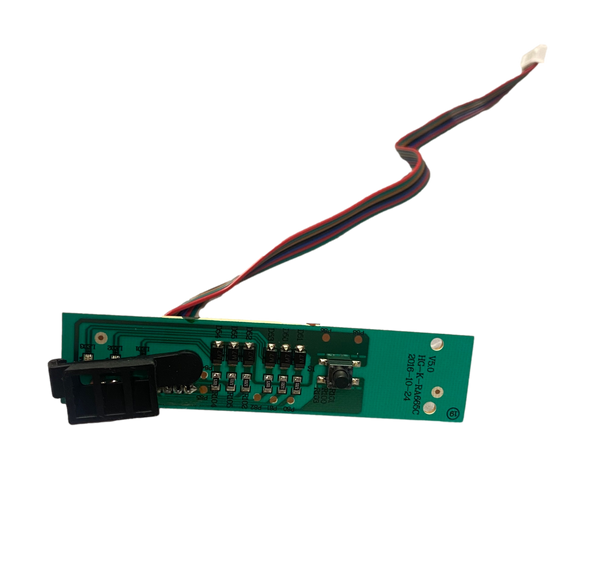

Hit the button one time for a slow speed, again for faster, one more for fastest. 4th time turns it off. An LED display shows your battery level.

You can use this as a leaf blower, water pump, skateboard, vacuum, hair drier, etc. If you have any project in mind that requires a motor this is it.

The thin black and red wire are the charge port. After 5 seconds the BMS allows the charge to begin. Charger should be 25.2v and 2a.



Build a small or large 6s battery, connect this BMS, you are all set!

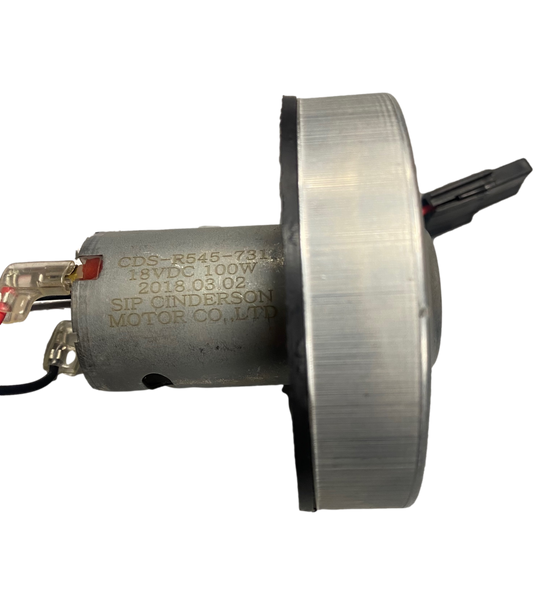

The motor also comes with a rubber gasket around the fan area for extra suction. This could be a great setup for a racing boat too. Or a pump that sucks water out of a pool. There really is a lot of applications even if you can't use this particular motor you could always sell the motor and attach anything around 18-24v that you need to trigger on and off.

BMS wiring is simple. The thin red and black wires are for charging. You can charge at 25.2v and 2a, those chargers are cheap to find on Amazon. Red plug with thicker black and red wires, black wire goes to the main negative of your battery, red wire goes to the main positive of your battery (the 6th positive). Now for the 1st thru 5th positive balance leads you will use the connector with the 5 wires. Brown goes to the first positive in series (the positive end of the main negative cell), 2nd positive gets the yellow wire, 3rd positive green, 4th positive blue, 5th positive white. Of course, again, main positive and negative get the red and black wires from the red connector. Very simple set up.
