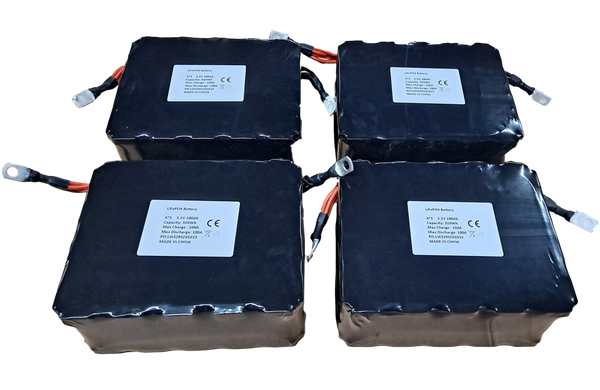

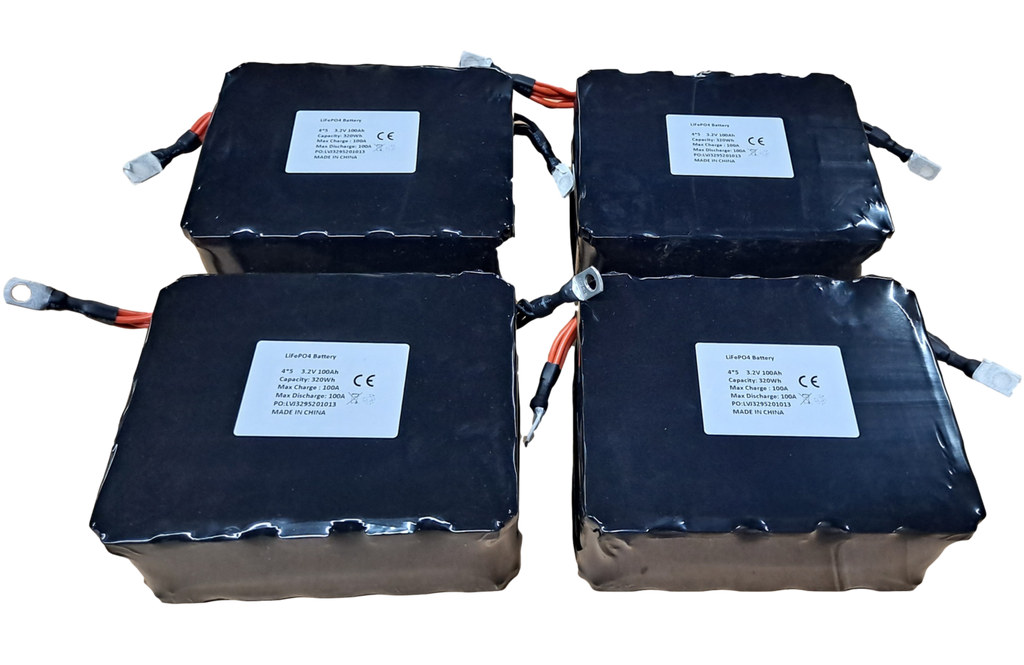

NEW CASE OF 4 BATTERY HOOKUP 3.2V 100ah MODULES

Regular price $220.00 $0.00 Unit price per

Shipping only available to the United States and Canada. Shipping out of the country requires these to be shipped via freight. For a quote email us at sales@batteryhookup.com.

No compression needed since these are cylindrical cells which means these are the easiest batteries to assemble, all you need is 1/4" nuts and bolts.

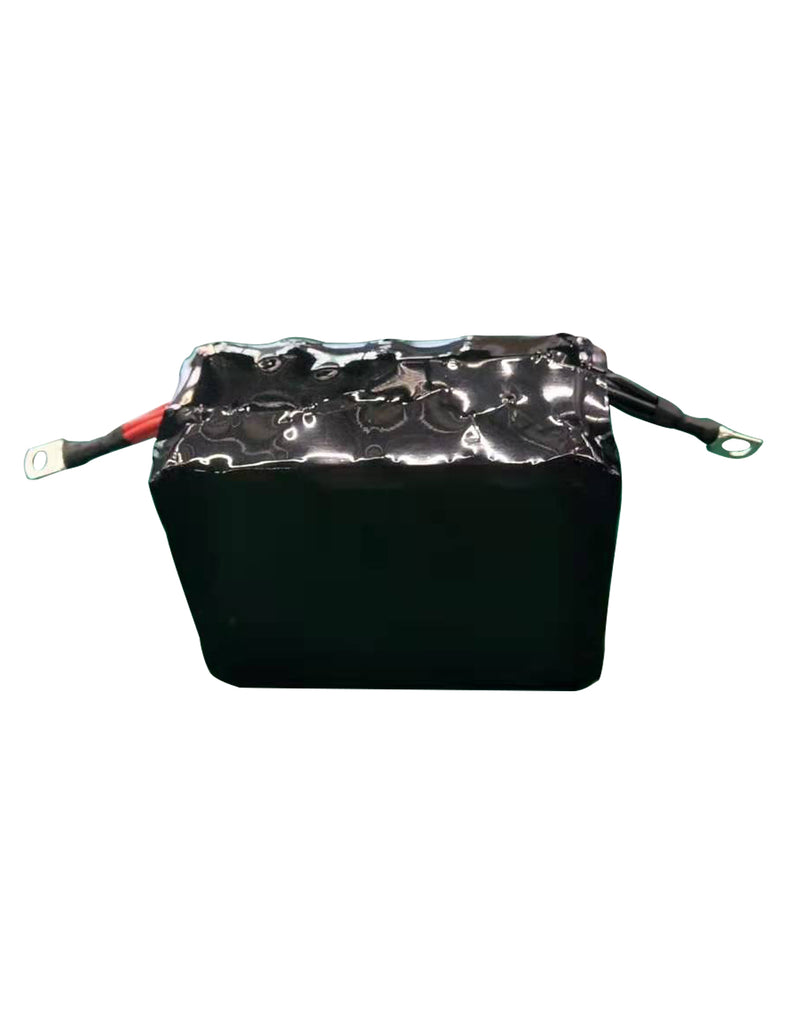

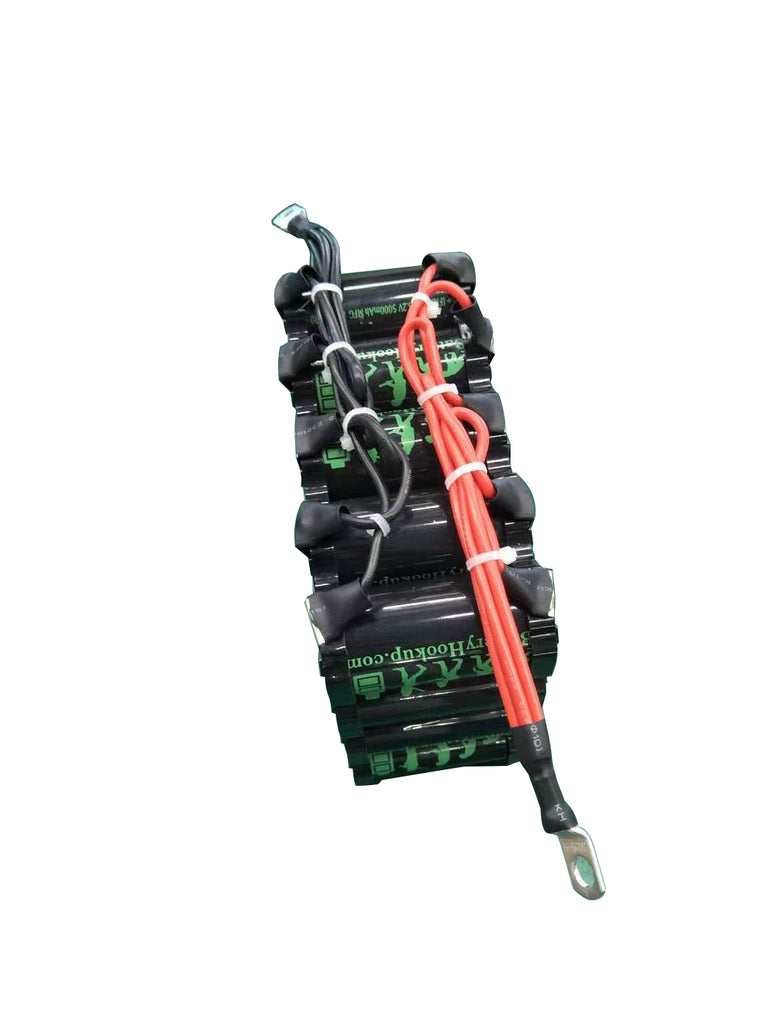

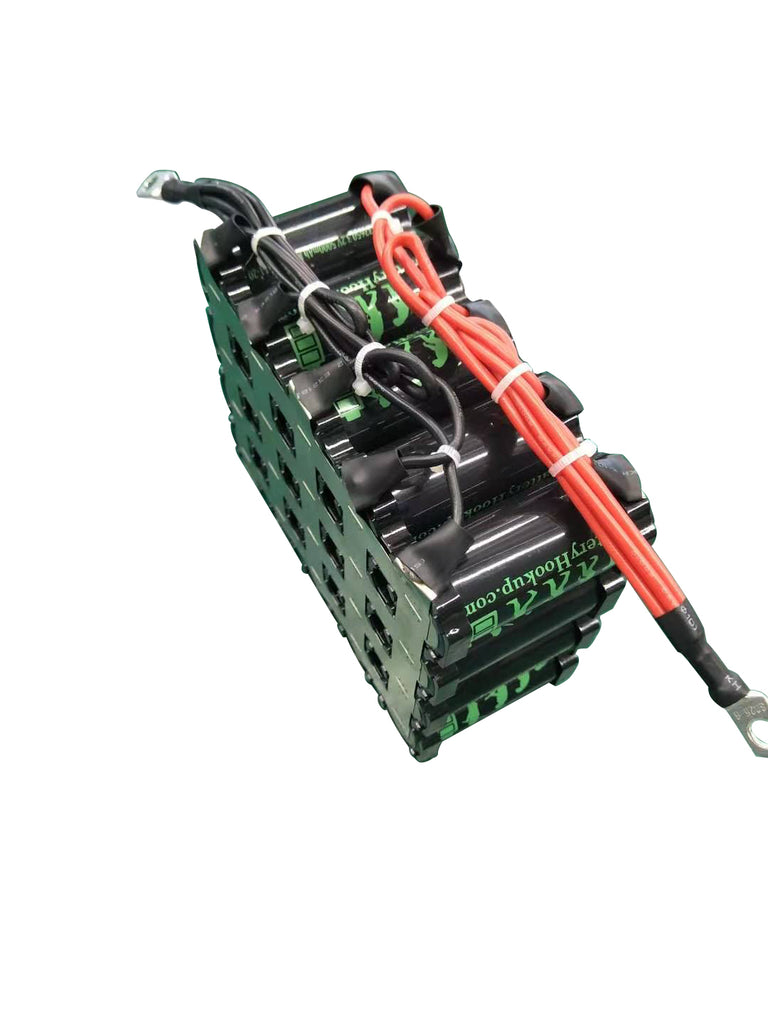

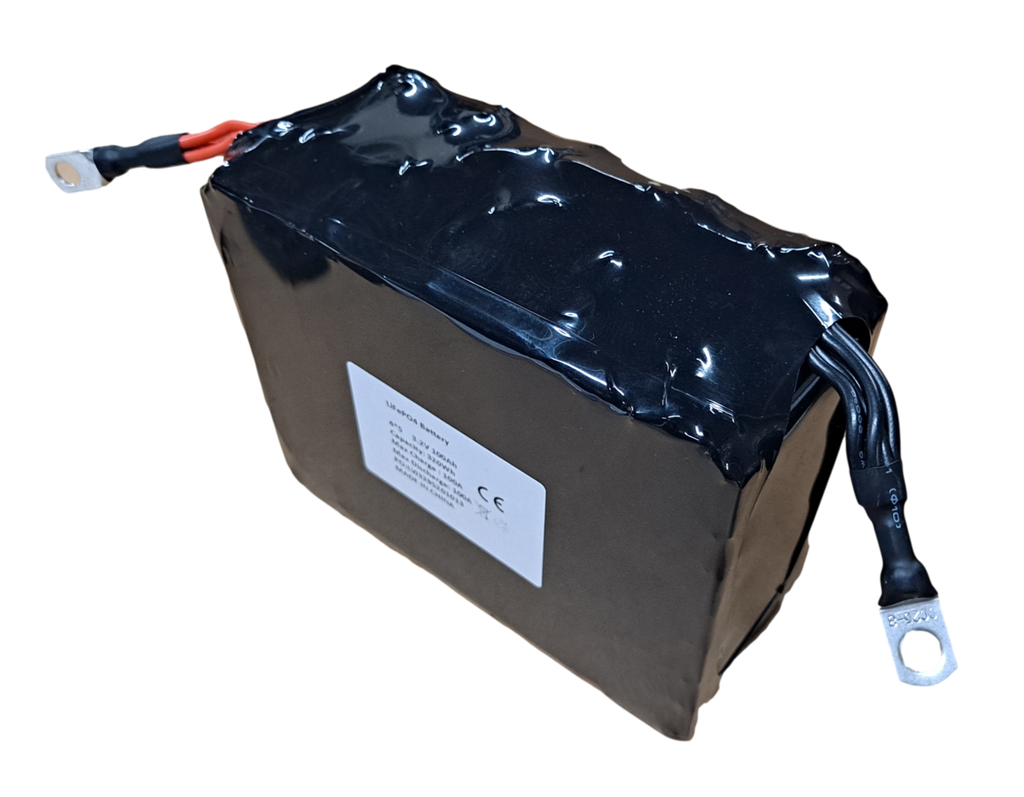

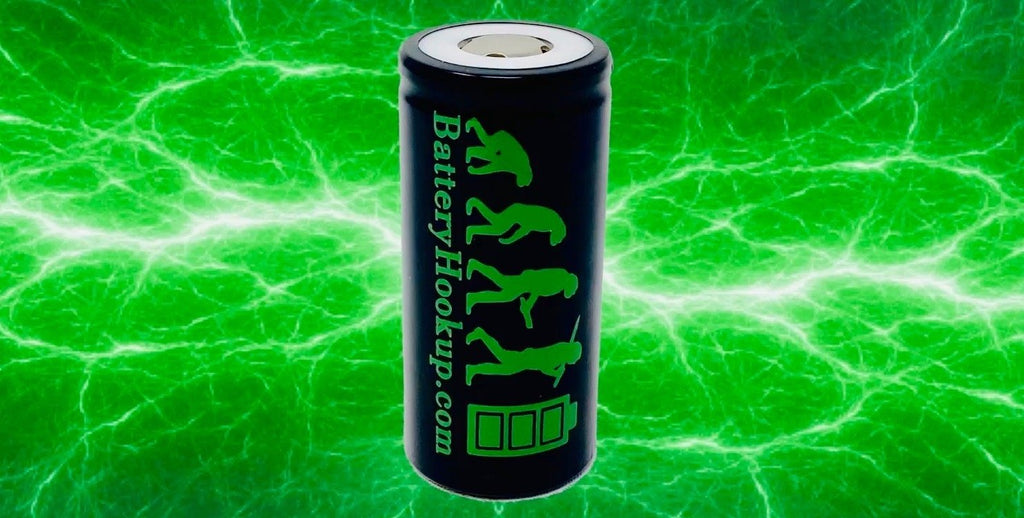

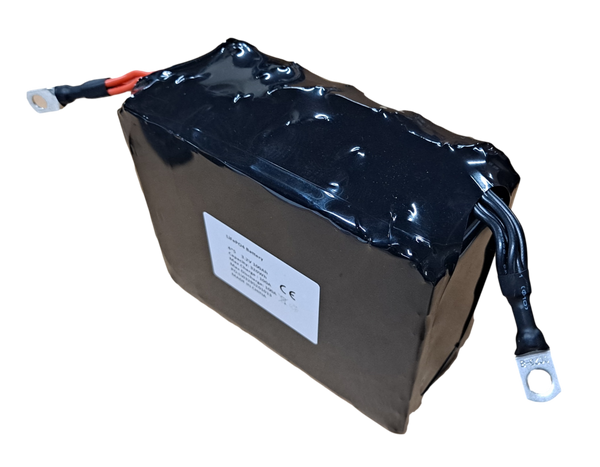

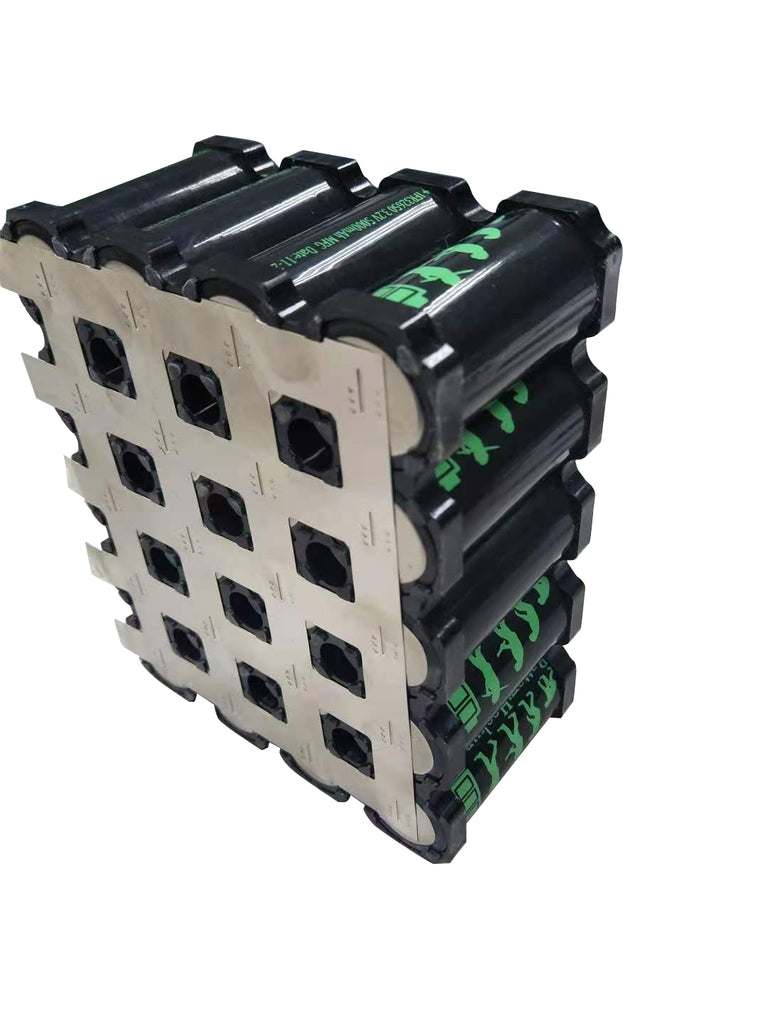

THIS IS THE EASIEST WAY TO BUILD A 12V, 24V, 36V, OR 48V 100ah BATTERY WITH OUR BATTERY HOOKUP 32650 CELLS ALREADY IN 20P GROUPS. YOU CAN CONNECT THE MODULES WITH JUST NUTS AND BOLTS THROUGH THE RING TERMINALS AND THESE ARE OVER 2000 CYCLE RATED CYLINDRICAL CELL MODULES. COMPARE THESE TO POPULAR 12V 100ah BATTERIES ON THE MARKET AND YOU CAN BUILD ONE WITH THESE FOR 50-70% LESS. WE HAD OUR CELLS ASSEMBLED INTO 20P 100ah MODULES BY A TOP QUALITY AND POPULAR COMPANY. OUR CELLS ARE NOT CHEAP, OFF-BRAND CELLS. THEY WILL LAST A VERY LONG TIME. THEY ARE NOT GRADE B OR REJECTS, THESE ARE THE REAL DEAL. WE HAD THEM MANUFACTURED BY A VERY POPULAR MANUFACTURER THAT MAKES CELLS FOR A COMPANY THAT CHARGES $950 FOR A 12V 100AH BATTERY.

EVERY MODULE HAS BEEN TESTED ABOVE 100ah BY TWO SEPARATE TESTING FACILITITES WITH MOST TESTING IN THE 105-110ah RANGE WHICH IS WHAT NEW CELLS SHOULD BE TESTING AT.

EVERY MODULE IS RESTING AT NOMINAL VOLTAGE AND READY TO BE ASSEMBLED OUT OF THE BOX.

These modules were built specifically to handle up to 100a (1c) charge and discharge continuous. Standard lithium ion capacity tests are done at 0.2c which would be 20a continuous. The cells can handle up to 3c but the nickel and wiring was sized to handle 1c loads which is realistically where you want to be.

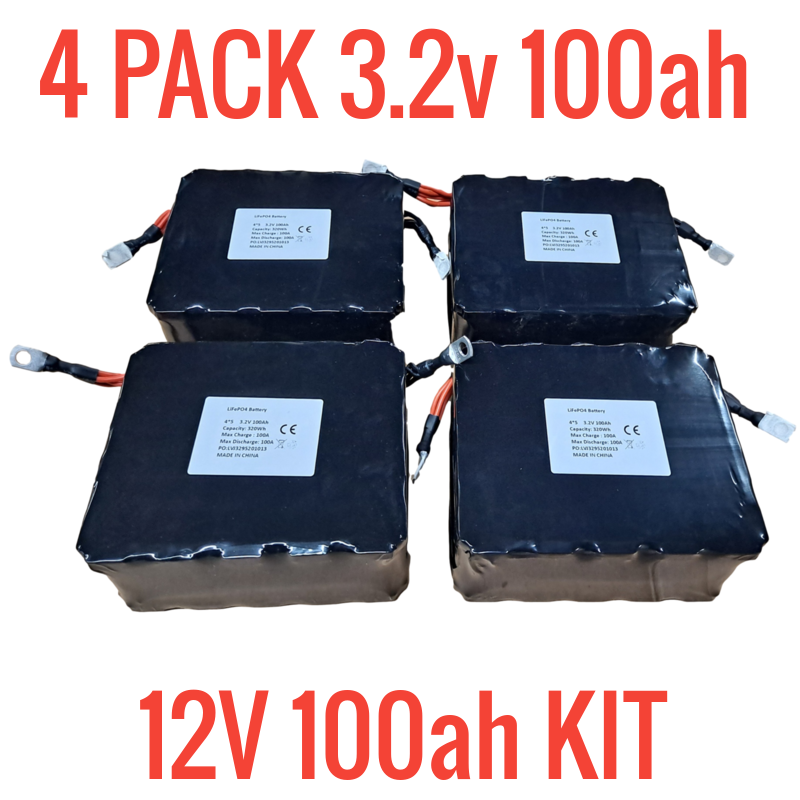

4 modules (1 BOX) in series for 12v
8 modules (2 BOXES) in series for 24v
12 modules (3 BOXES) in series for 36v
16 modules (4 BOXES) in series for 48v

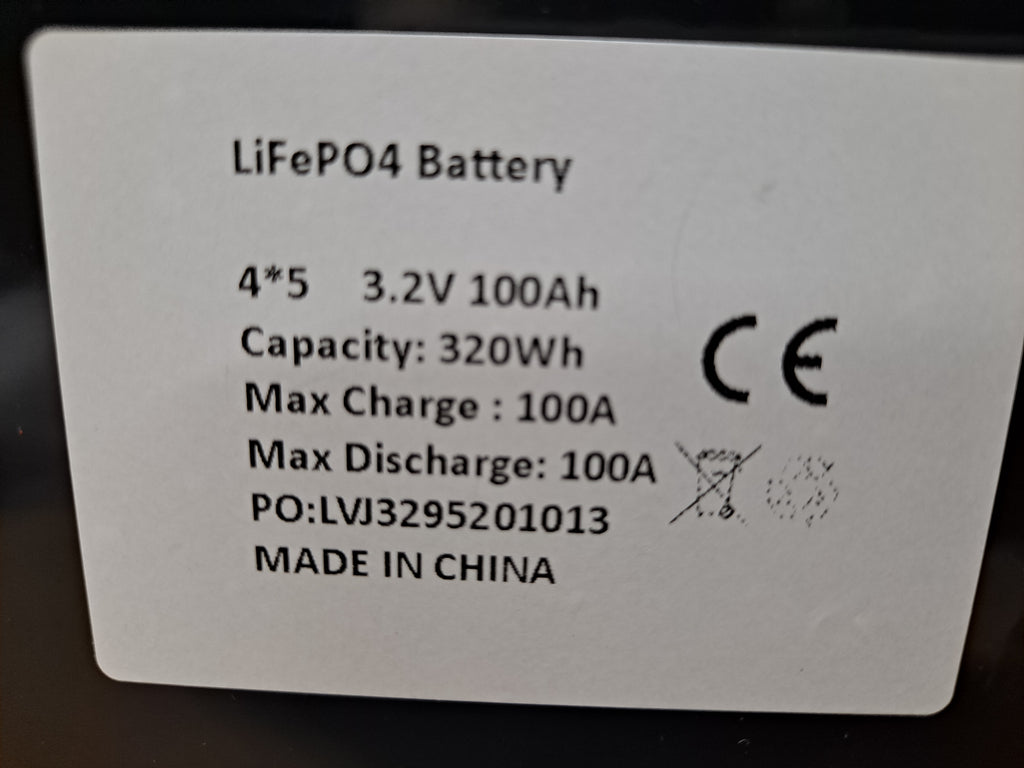

NOMINAL VOLTAGE: 3.2V
CAPACITY: 100ah (105ah+ is being reported by customers)
WATT HOURS: 320
FULLY CHARGED VOLTAGE: 3.65V
FULLY DISCHARGED VOLTAGE: 2.5V
MAX CONTINUOUS CHARGE: 100A (1C)
MAX CONTINUOUS DISCHARGE: 100A (1C)
MAX PULSE DISCHARGE (10 SECONDS): 200A (2C)
MODULE WEIGHT: 6.5 lbs
MODULE DIMENSION: 7" X 5.5" X 3"
