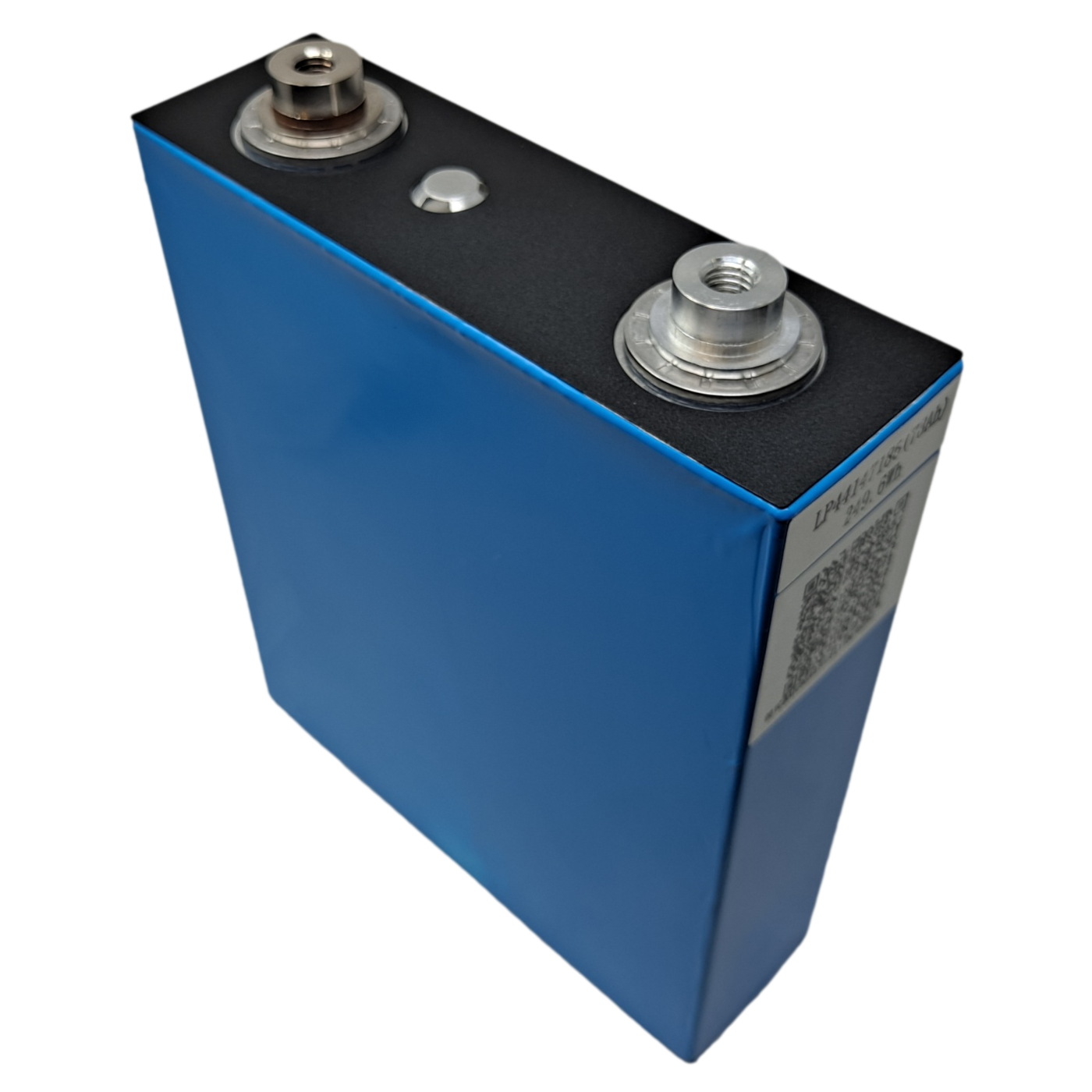

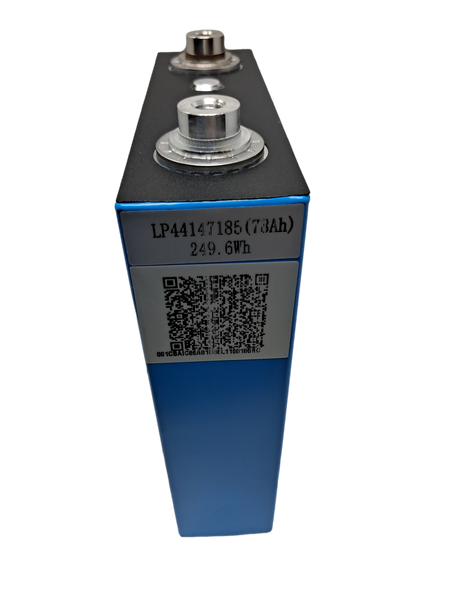

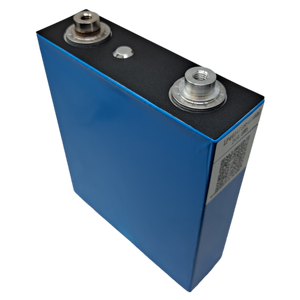

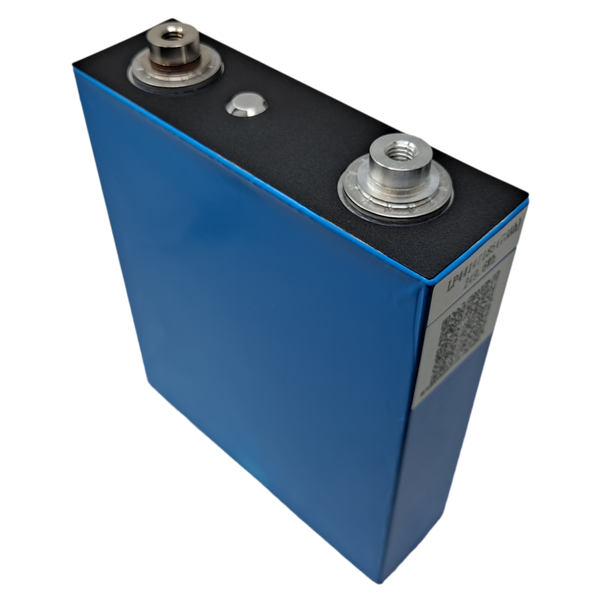

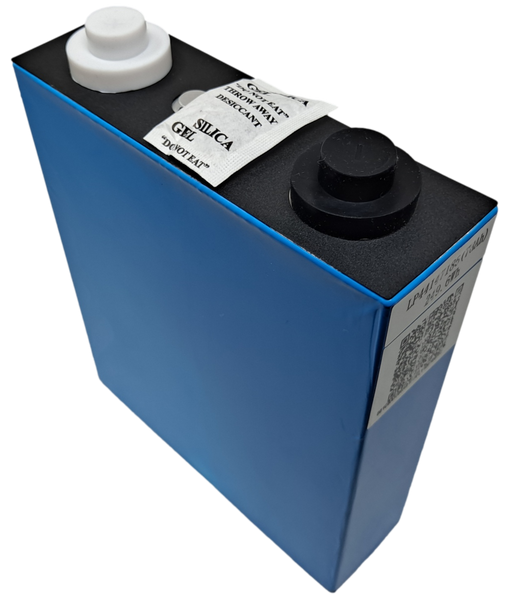

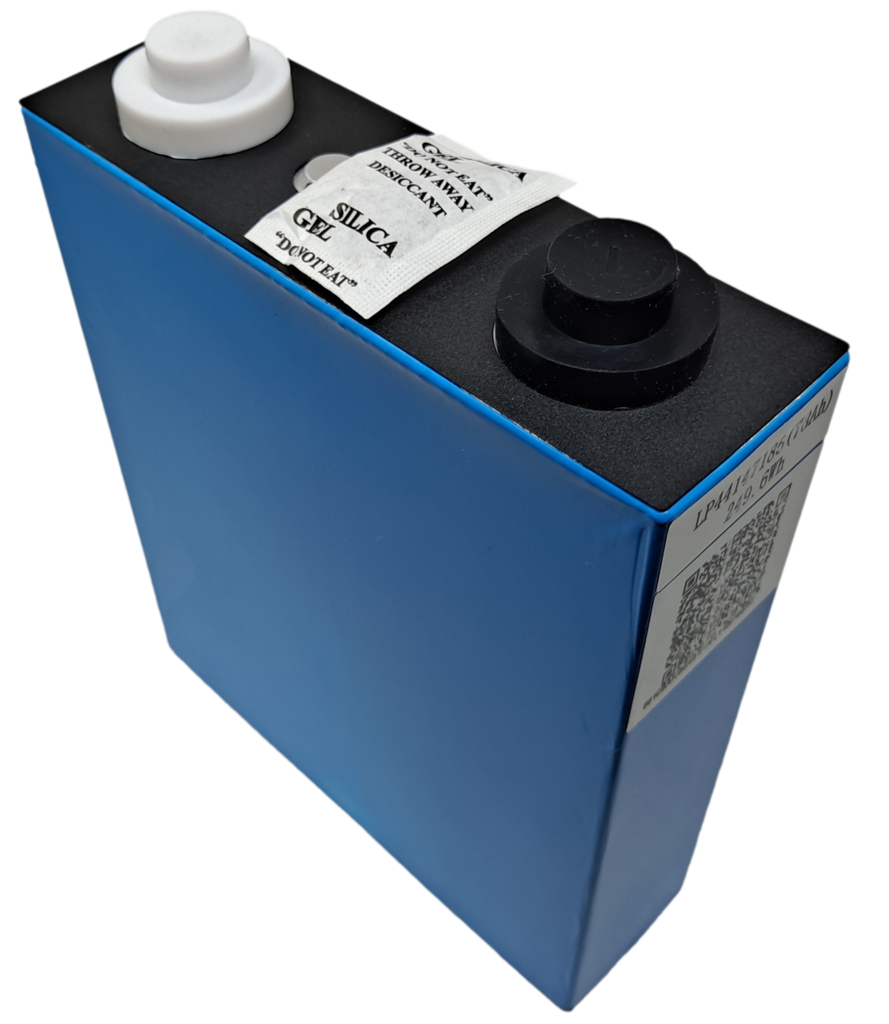

NEW 4 Pack 3.2v 78ah Lifepo4 Lishen Prismatic
Here are 4 new 3.2v 78ah prismatic lifepo4 cells. These are Lishen cells. Every cell is fully tested to meet the most strict standards.
These are not grade B or used cells being sold as new. This is the real deal! These were cells that were 3rd party verified to meet the most strict and consistent standards.
Dimensions: 7" x 6" x 1.75"
4 cells in series for 12v
8 cells in series for 24v
12 cells in series for 36v
16 cells in series for 48v
These batteries are perfect for many applications like EV and powerwall builds. M8 bolts and busbars are not included.

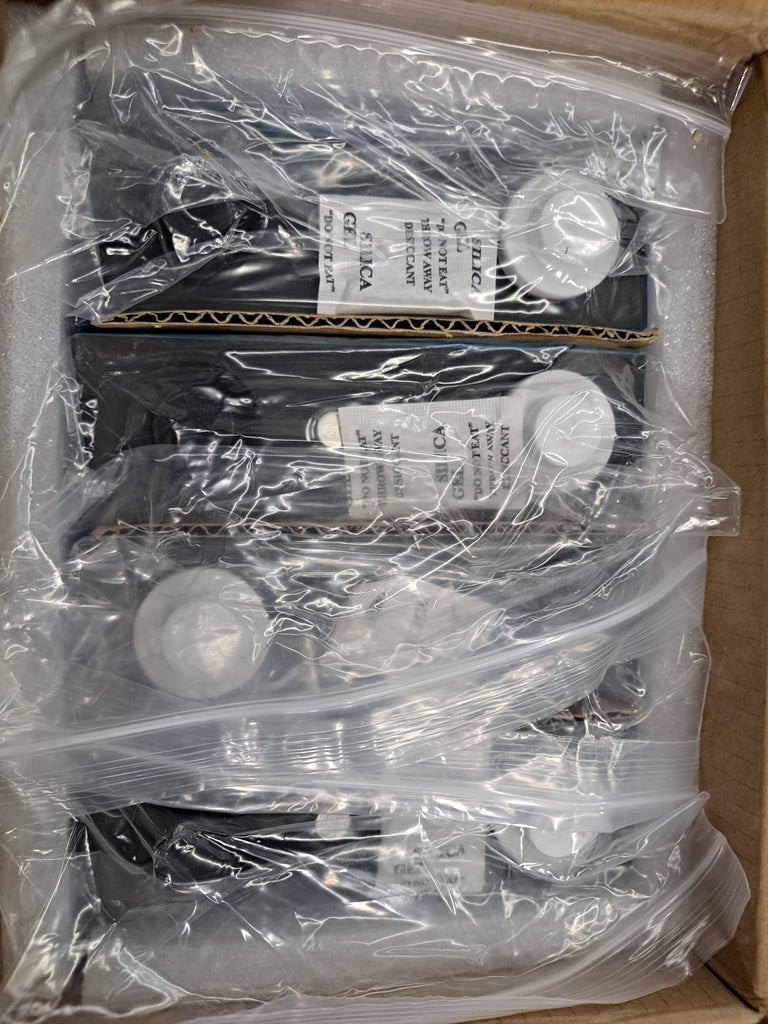

To meet strict DOT lithium battery shipping guidelines the cells must be shipped at or below 30% state of charge, therefore it is possible a cell or two will be a little below 3.2v because we have to take them off the recharge early after the discharge test. To be clear, every cell is fully tested and guaranteed. Capacity and internal resistance tests using professional testing equipment.
Fully Charged 3.65v
Fully Discharged 2.5v
Continuous Charge 78a (1c)
Continuous Discharge 156a (2c)
Cell Weight roughly 4.5 lbs.
