New 1s70p 3.6v 210ah 756wh Panasonic NCR18650BD - $99/kWh

Regular price $75.00 $0.00 Unit price per

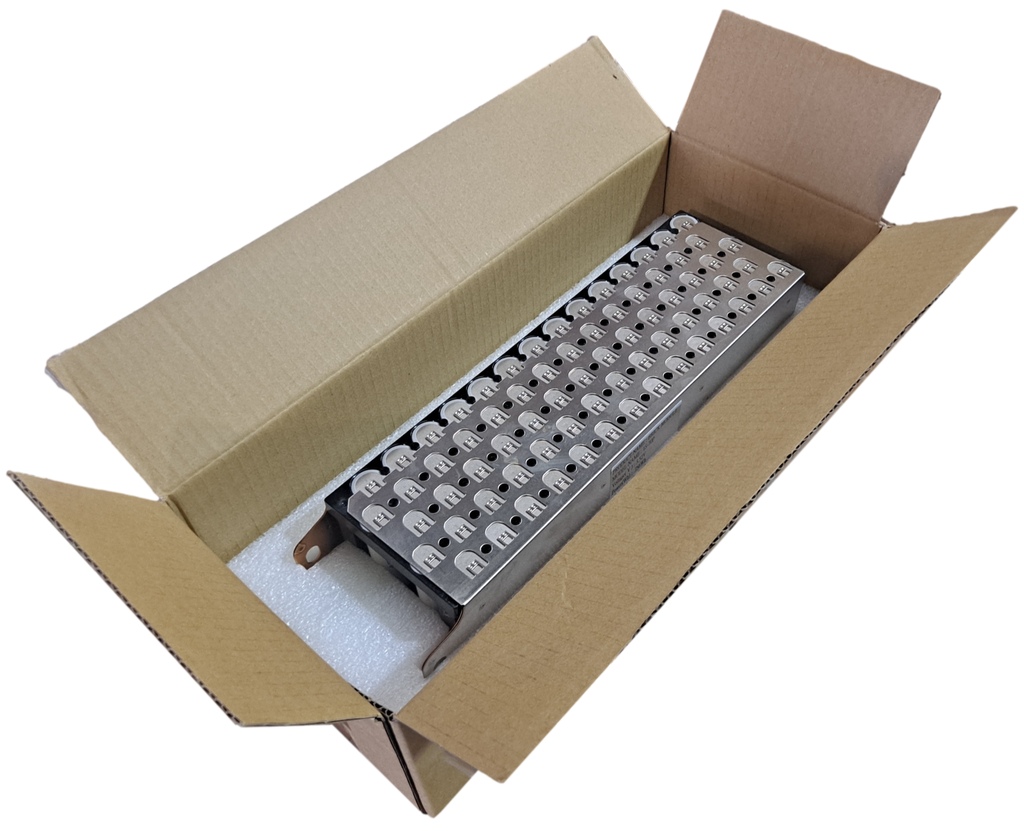

These battery modules have never been cycled. They are overstock for a large project.

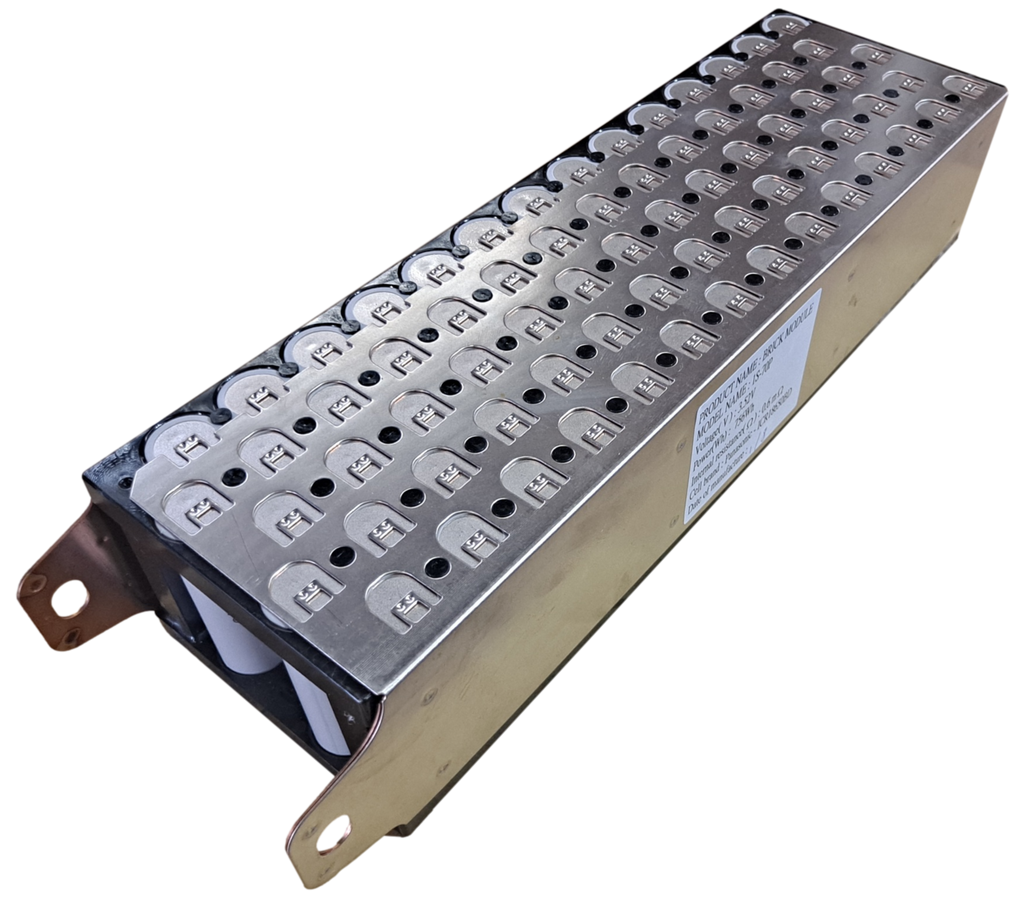

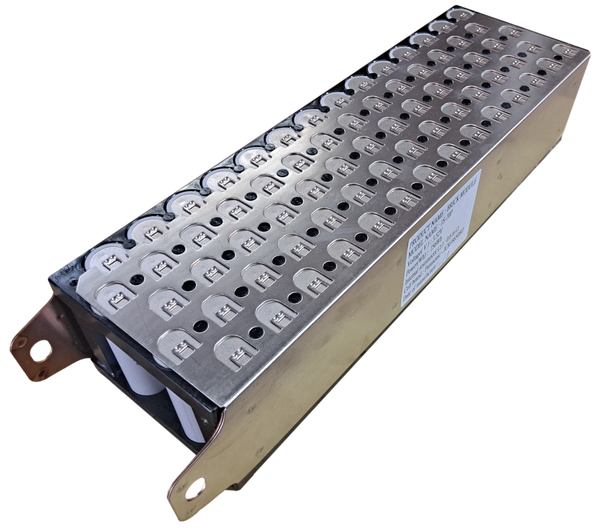

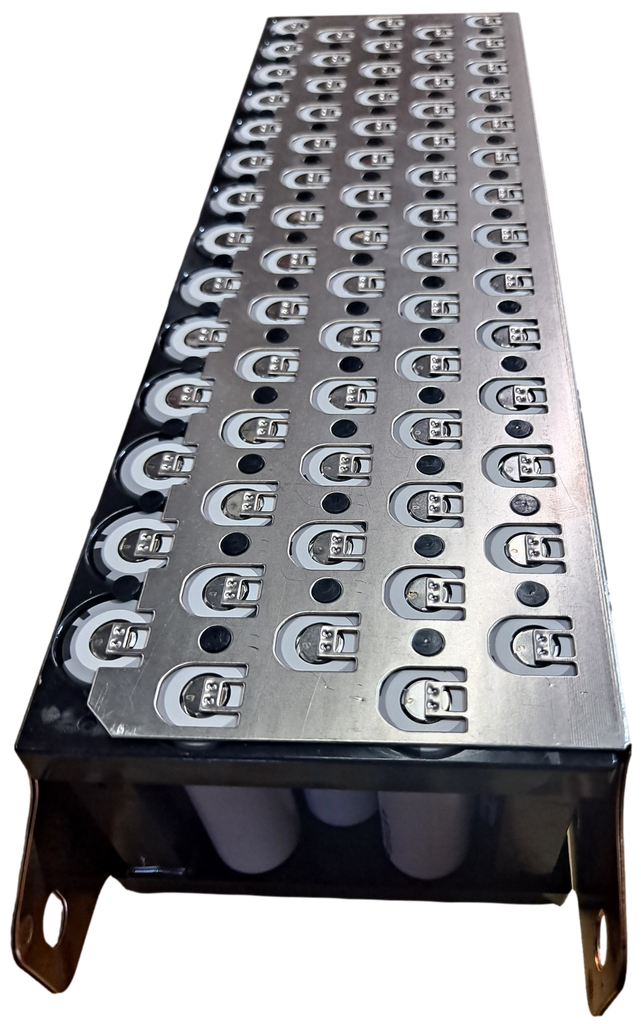

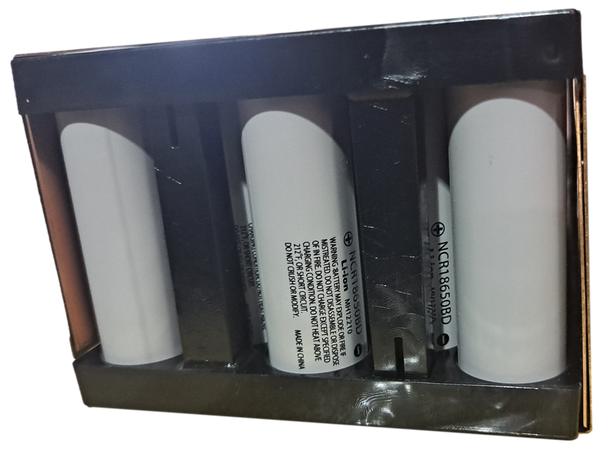

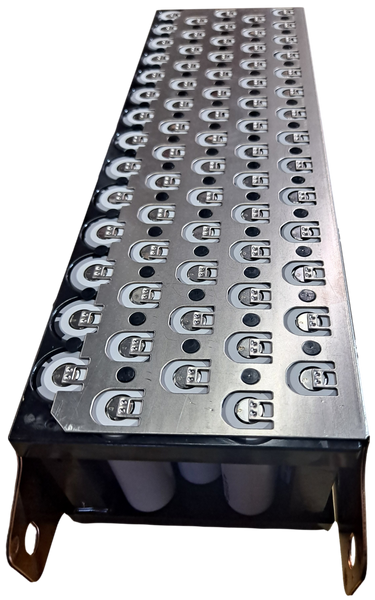

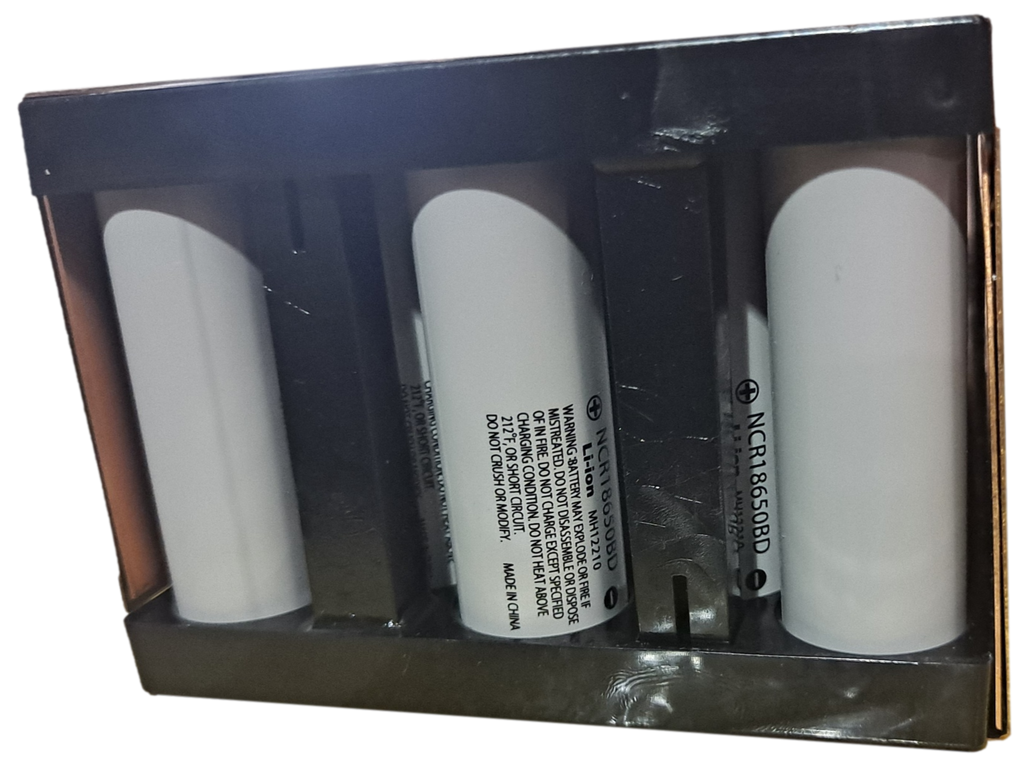

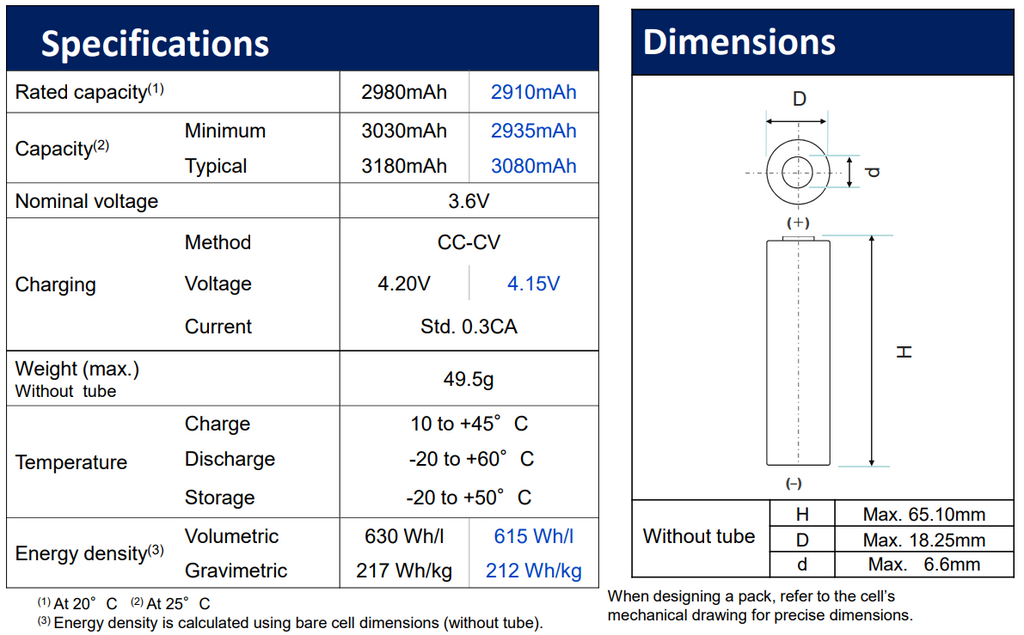

They are already spot welded into 70p (70 cells in parallel). The cells are Panasonic NCR18650BD. Datasheet is in the photos.

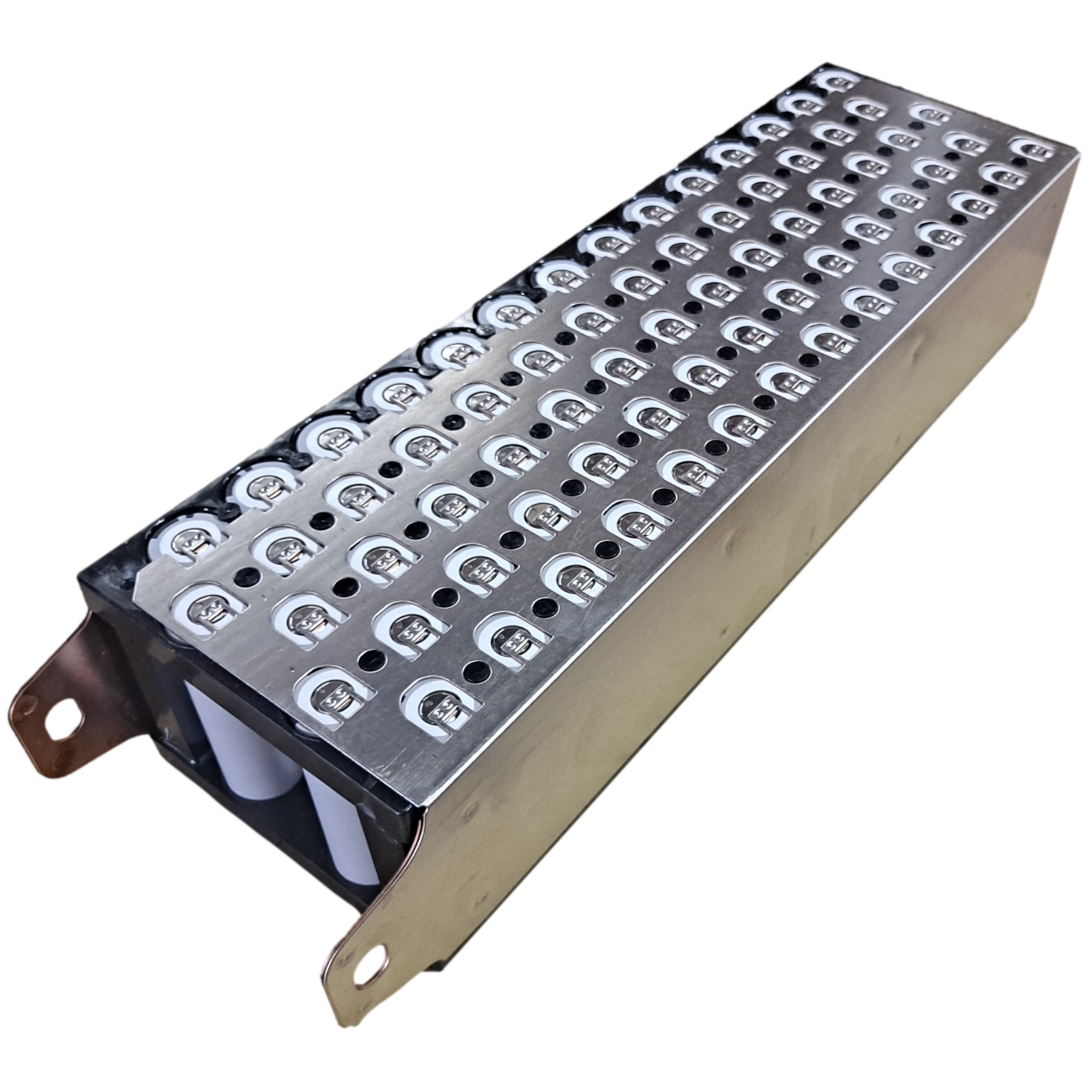

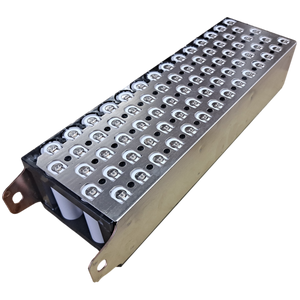

There is a nice busbar on each end plus a custom cell holder. You can bolt these together if you want. Or at this price, for 3000mah Panasonic cells at only $1.07 each, it would make sense to break them down to cell level and rebuild into whatever you want.

We would recommend to limit the current per module to 200a however each cell can handle up to 10a continuous discharge.

Fully charged - 4.2v
Fully discharged - 2.8v
Nominal - 3.6v
Capacity - 210ah (756wh)
Weight - 12.5 lbs
Dimensions - 12.5" x 3.75" x 2.5"
