NEW 10.8v 7.2ah Battery Pack with BMS

Regular price $7.00 $0.00 Unit price per

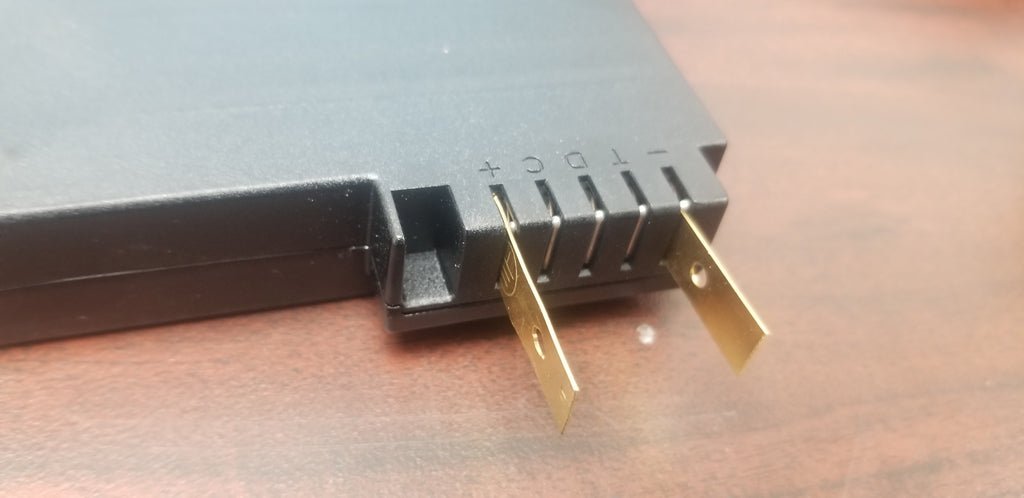

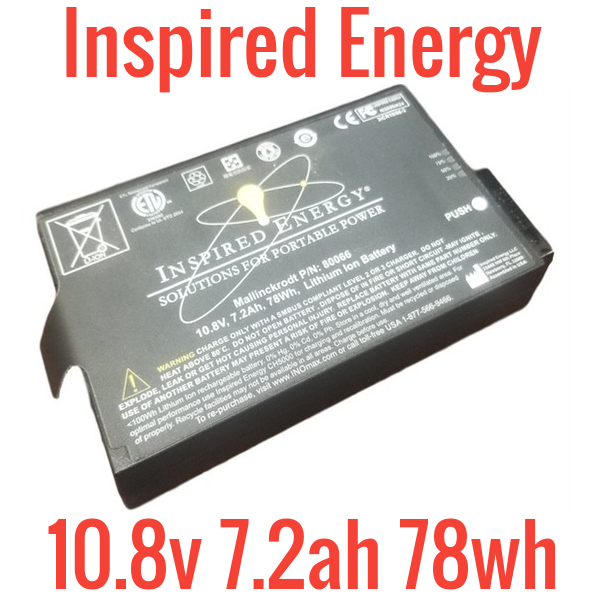

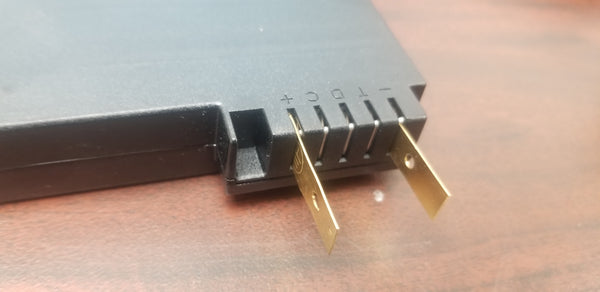

Here are new in box Inspired Energy battery packs. They are 10.8v 7.2ah 78wh with a 6.2a BMS and fuel gauge. The positive and negative allows for energy to flow in and out so you don't need any proprietary connection to enable current flow. Simply add 2 blades of nickel, copper, or brass in the positive and negative slot and you are all set.

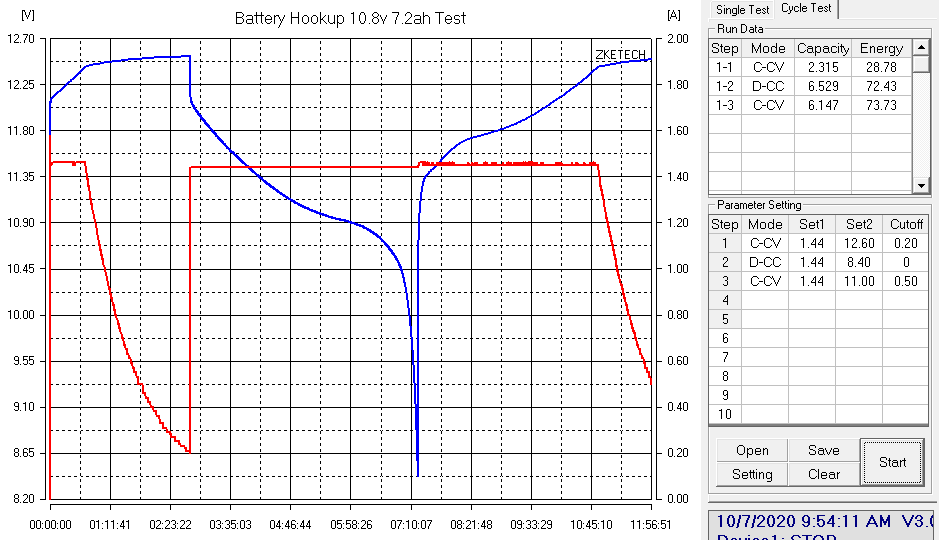

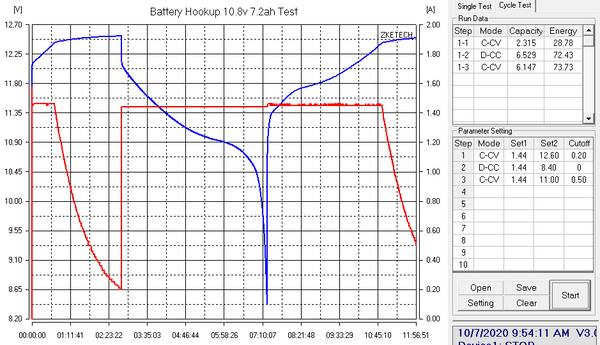

Check out the discharge curve from the tests we performed in the 6th photo. As you can see 95% of the energy is stored above 10v so you can absolutely use these with a 12v inverter since most 12v inverters cut out at 10v. Just set your charger or charge controller to 12.6v and you can parallel as many packs together of these as you want.

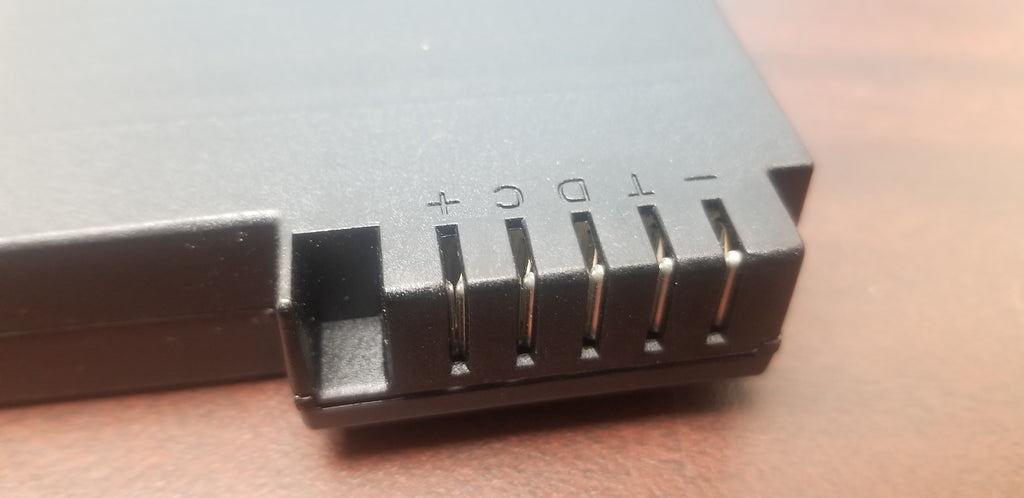

I am not sure what the connector type is, just use any blade to make your connections. Since these have a 6.25a BMS I would recommend running continuous at most 5a per pack. Just figure 55-60w of power continuous per pack. If you have a 500w inverter then use 9 packs in parallel. 1000w inverter you should use 18 packs.

These batteries are still new in the original unopened cases. We only have 1 pallet so get them while they last. We tested 10 batteries and every battery tested above 90% of the original capacity. One pack we cycled 3 times and each cycle the pack gained 0.2ah so since these have been sitting for a while I would say to expect these to be around 92% capacity then wake up after a few cycles into the 95%+ range.

Each module is made of 9x 2370mah Moli ICR-18650J cells. These Molicel batteries are excellent and trusted by the medical industry.

You are essentially getting a never used, 12v battery with a BMS for under $100/kWh

Recommended Max continuous charge and discharge is 5a per pack. Yes these can handle much more but let's not try to burn out the BMS inside or cause any unnecessary heat. They're only $7. Build a pack large enough to handle your load without needing any cooling so stay under that 1c rate.

The pack weighs 1 lb. Dimensions are around 3.5" x 6" x 1"
