BEAST MODULE WITH 32 HEADWAY 38120 HP 3.2V 8AH 24V

Regular price $319.99 $0.00 Unit price per

Under $10 per cell with busbars, spacers, and metal enclosure.

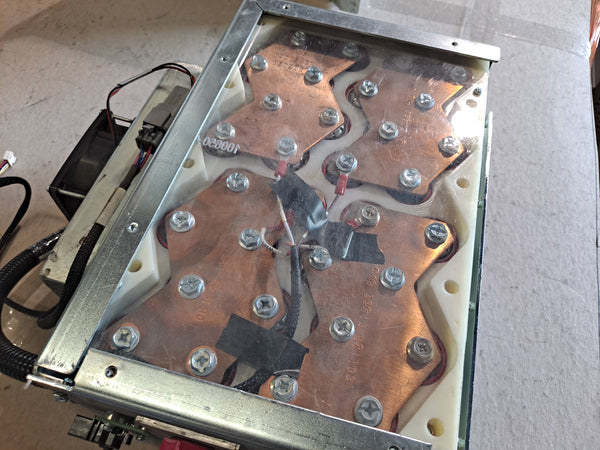

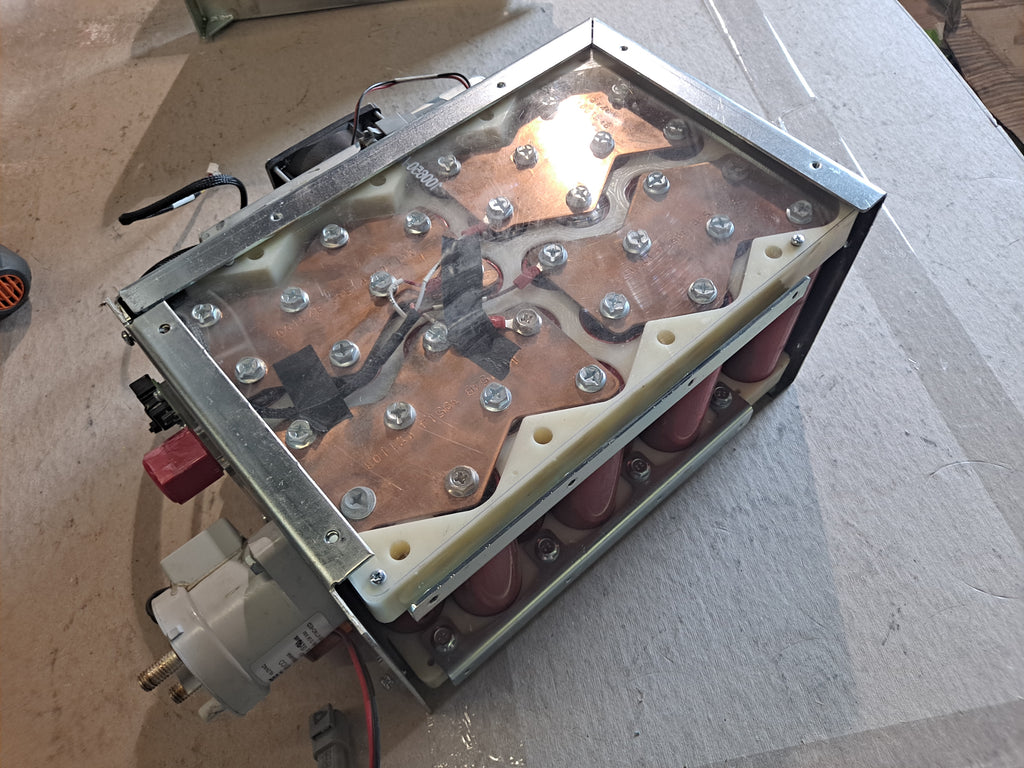

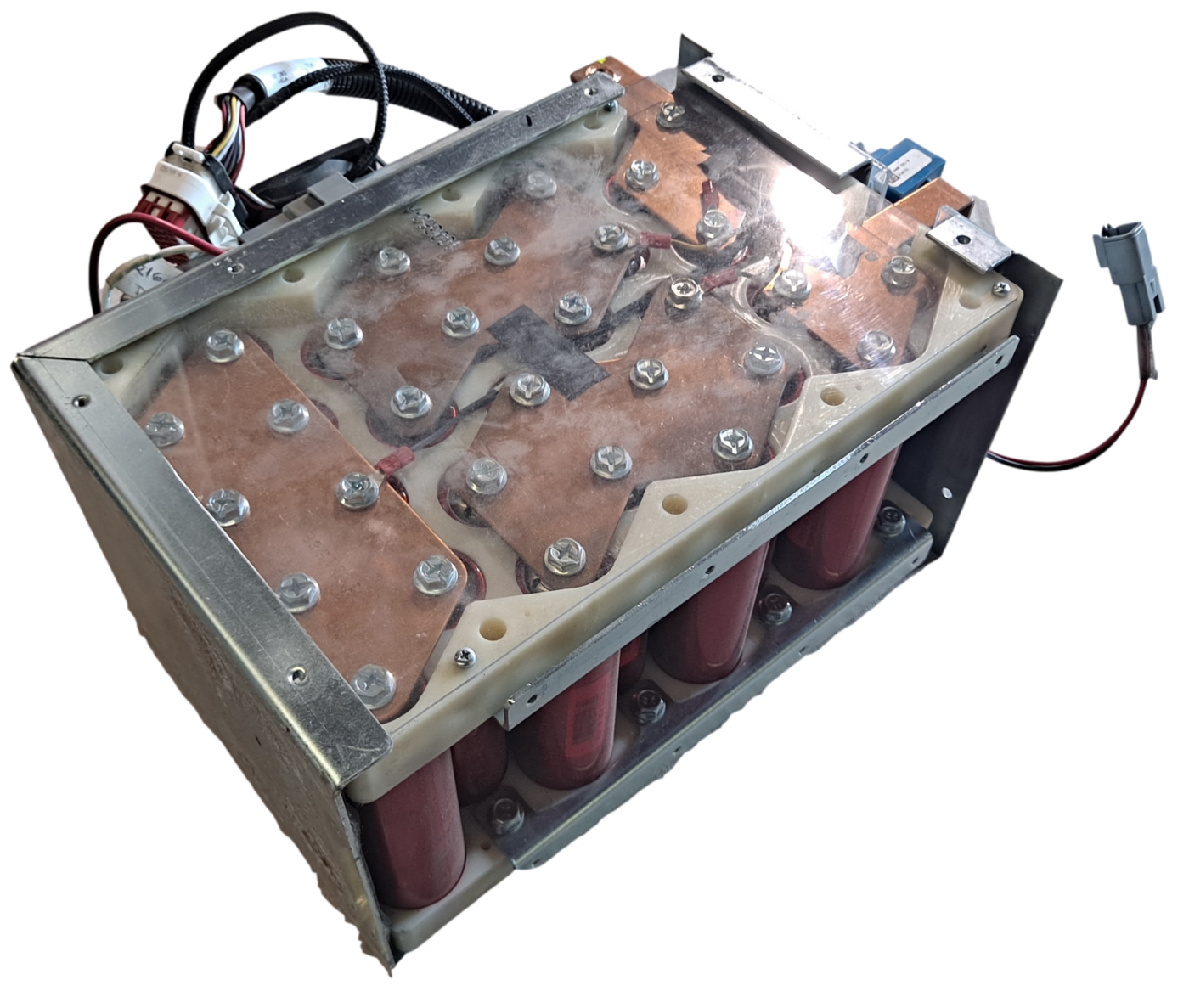

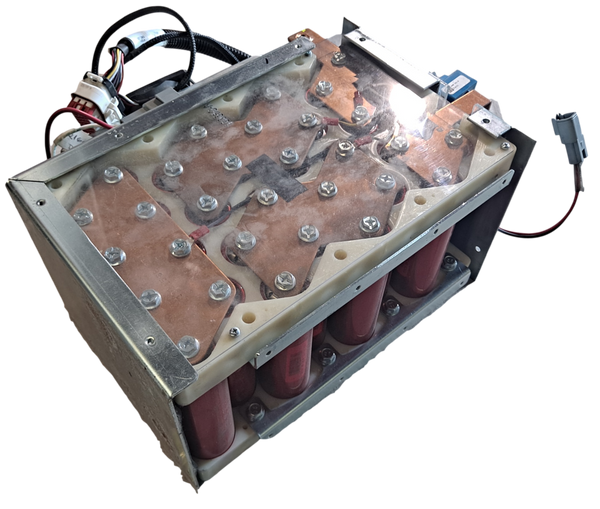

The Headway battery game has just officially gotten better. These modules have 32 headway cells inside and they are configured in 8s4p (24v). All you have to do to convert these into 12v is cut the busbar in the center of the one side straight down the middle. You will then have 2 12v modules that can push 500a or more continuous each. You get copper busbars, holders, steel enclosure, balance leads for a BMS, etc. You also get a fan and a relay that you can reuse or remove easily. Everything you need is here. These are absolute beast modules made to provide hundreds of amps of power. This is the absolute cheapest and best option for car audio. Professionally built and ready to go. We only have 400 of these available at the moment so get them while they last. We all know how this goes when we get Headways in like this, they sell fast.

Shipping only available to the United States and Canada. Shipping out of the country requires these to be shipped via freight. For a quote email us at sales@batteryhookup.com.

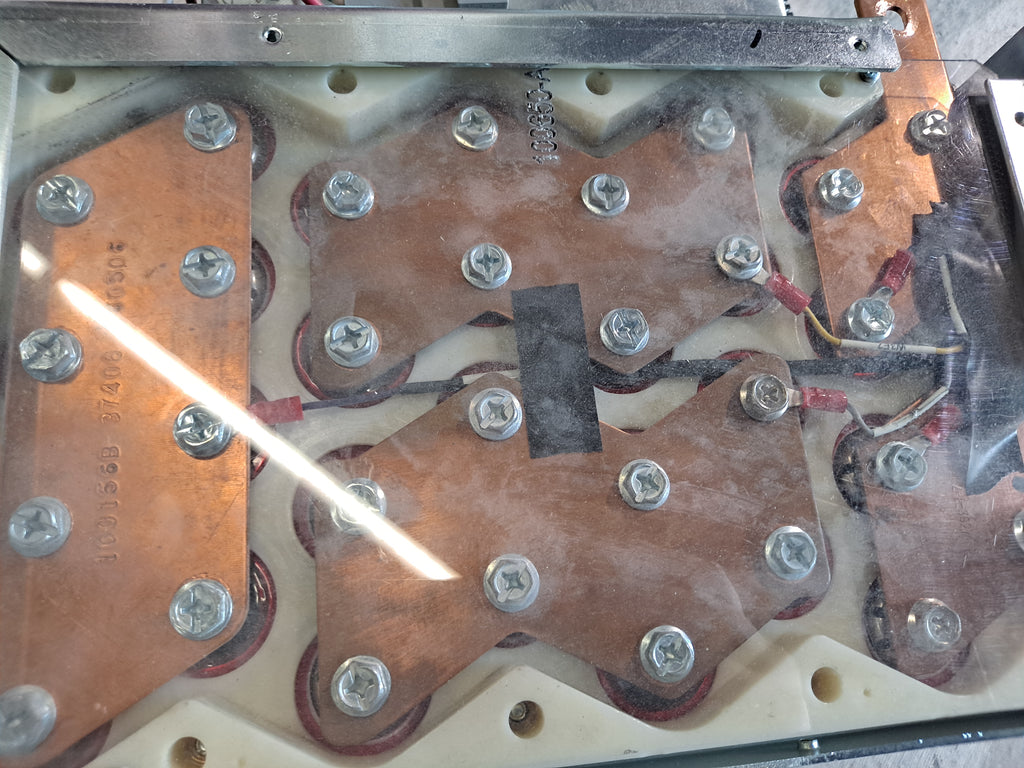

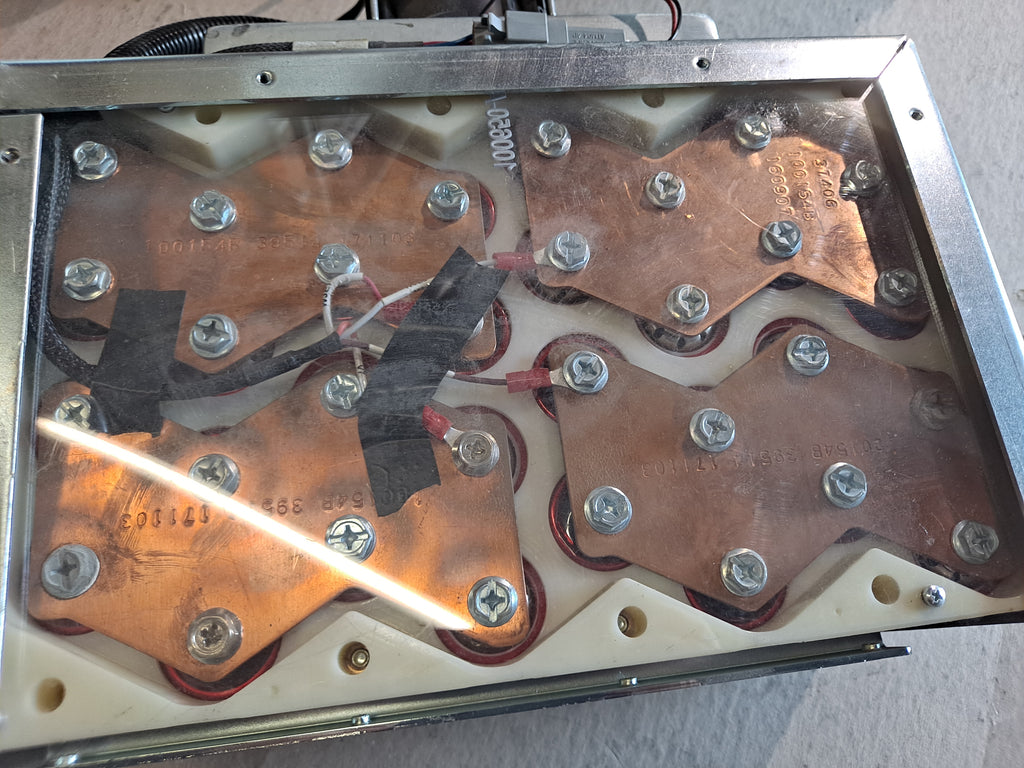

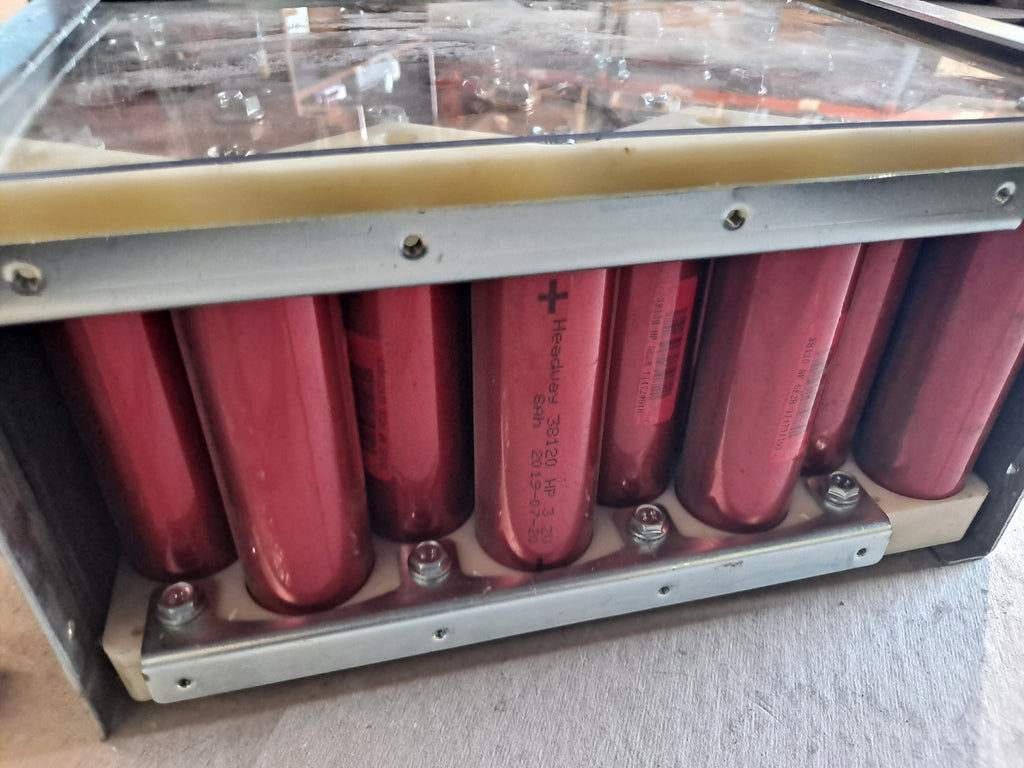

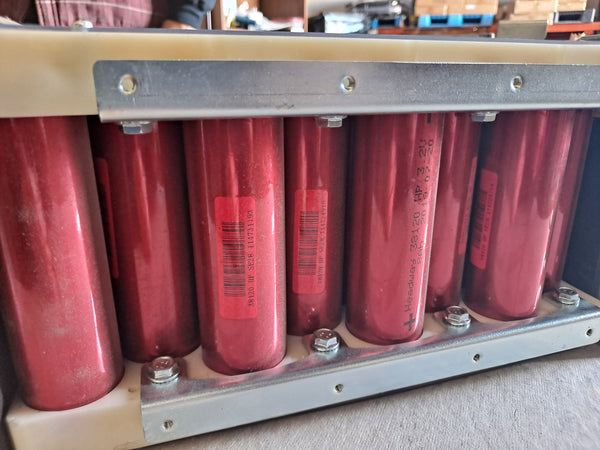

The module with the fan and relay removed is 12" x 8" x 7". Inside the steel enclosure the cells on the busbar sides have plexiglass which is really awesome. This module can be disassembled with just regular screw drivers and wrenches. Super easy to work with. You will not be disappointed. This is a monster and priced to save you money on your car audio build or other project that requires a crazy amount of power.

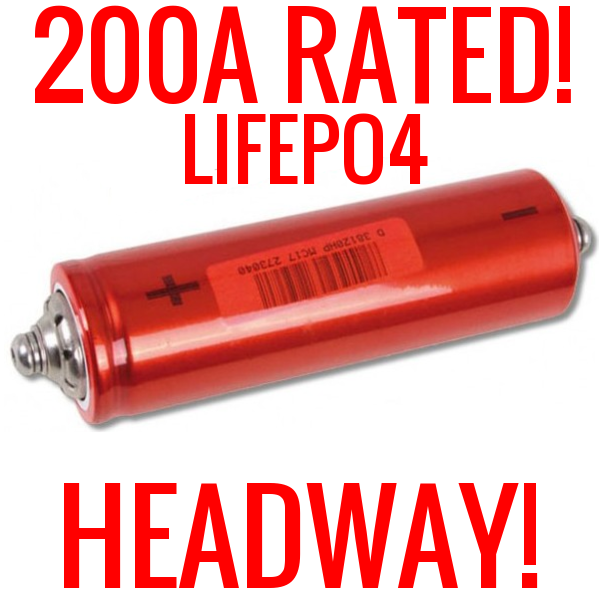

Below are the specs of each cell. You can separate them if you want very easily to build your own module. These were only used as backup to start transformers so the cells will test like new even though they are technically used. Plus you know these are the legit cells, not rejects or grade B crap



chemical composition

LiFePO4

Nominal Capacity

8Ah

Charging voltage

3.65V

Nominal Voltage

3.2V

Cut-off Discharge Voltage

2.0V

Charging Method

CC/CV

Maximum Discharge Current(continuable)

200A

Maximum Charge Current(continuable)

80A

Cycle Life

1500cycles 1C 100%DOD

2000cycles 1C 80%DOD

Work temperature

Charge -10 to 45

Discharge -20 to 65

Energy Density

83 Wh/Kg

Initial Internal Impedance

<4mΩ

Dimension(mm)

Diameter

38mm

Length

120mm(152 with screw)

Weight(g)

360
