MERCEDES OEM LG CHEM 12S 44.4V 18AH 800WH

Regular price $99.99 $0.00 Unit price per

When you shop here at Battery Hookup you don't have to be rich to afford Mercedes OEM batteries.

If you are looking to build that 96s 350v EV battery these are a perfect option. 6 modules in series is all you need.

Also great for powerwall, forklifts, golf carts, etc.

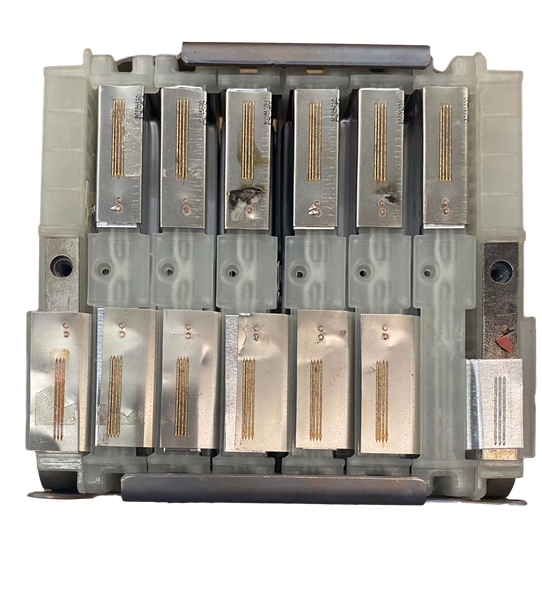

These are 12s1p lithium ion modules that are already tested and balanced. These are beautiful packs, consistently testing around 90% or better of original capacity, and you have easy access to the cells to solder your balance leads for your bms. We recommend using Daly bms units. I'm sure you can remove the cells to salvage them but you may have to cut the tabs short and also be careful not to short the battery of you plan on salvaging the cells. You can also connect your main positive and negative cables with M5-0.8 bolts that you find on Amazon or at Home Depot / Lowes. The ribbon connector you can just rip off the battery, it is unusable anyway. Just solder your BMS balance leads, takes a few seconds doing that and is much easier.

Fully charged: 50.4v
Fully Discharged: 33.6v
Max Continuous discharge: (3c) 54a
Max Pulse 10 second discharge: 180a
Max Charge: (2c) 36a
Weight: 16.5 lbs
Dimensions: 9" tall 6" wide 5.5" deep
