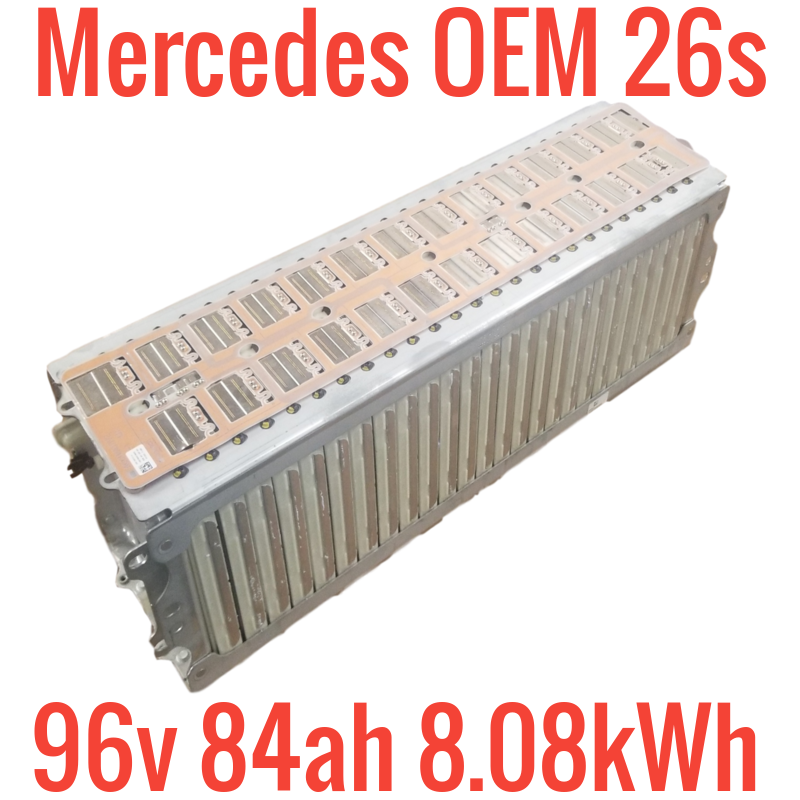

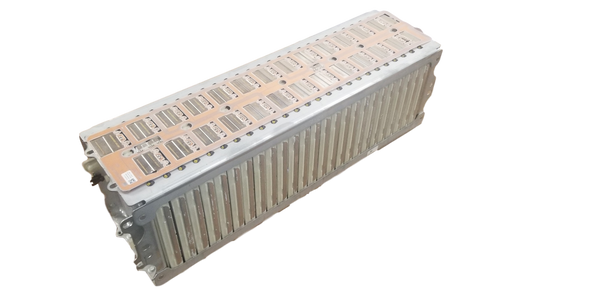

Mercedes OEM 26s 96v 84ah 8.08kWh module

Regular price $999.99 $0.00 Unit price per

Here are fully tested and ready to go 96v Mercedes OEM battery modules. These are testing above 95% capacity and came out of an assembly defect caused by a bolt pattern misalignment so they have not been cycled. We only have a few of these available. They have to ship freight but the freight costs are flat rate. $350 total freight cost even if you buy more than 1. These are super energy dense modules and built like tanks. Freight includes lift gate and residential delivery. Or you can pickup in Bensalem, PA. for free, just email us at sales@batteryhookup.com to schedule.

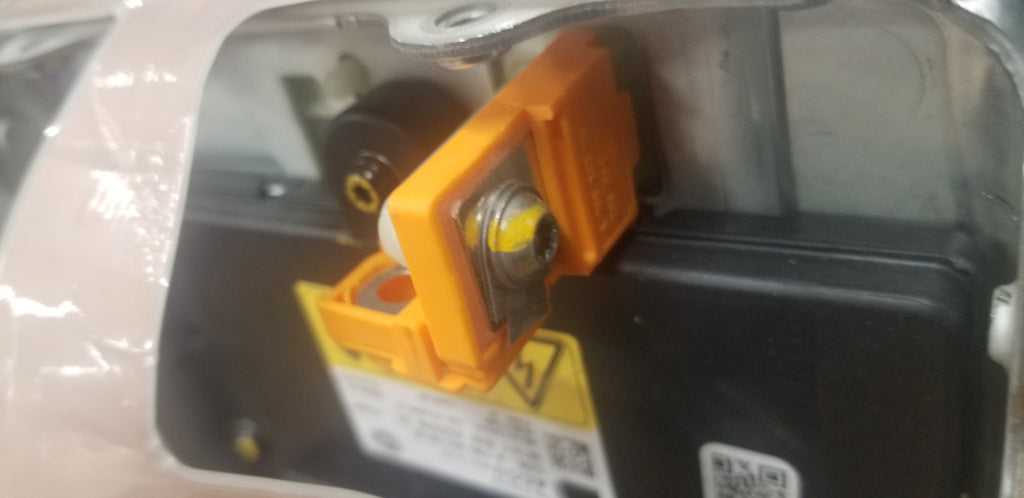

The modules use LG Chem lithium ion pouch cells. 26 cells in series. I'm sure you can separate the packs into 2x 13s modules for 48.1v but it would likely take some time and tooling to remove the cage around the module. If you are building an electric car these would be awesome. 3.7v per cell, 84ah, 8.08kWh. The connector for the robbon cable balancers can be salvaged so you can utilize that for your BMS. We recommend Daly brand BMS units. You can also just solder your balance leads for your BMS to the cells. There is easy direct access to the cell tabs as you can see in the photos. The main positive and negative terminals have bolts so you can easily use a ring terminal on your main leads to make your perfect connection.

Nominal voltage module: 96.2v (3.7v per cell)
Fully charged module: 109.2v (4.2v per cell)
Fully discharged module: 72.8v (2.8v per cell)
Max recommended continuous discharge: 252a (3c)
Max recommended continuous charge: 126a (1.5c)
Weight: 102.5 lbs.
Dimensions: 26" length x 8" tall x 7.5" wide
