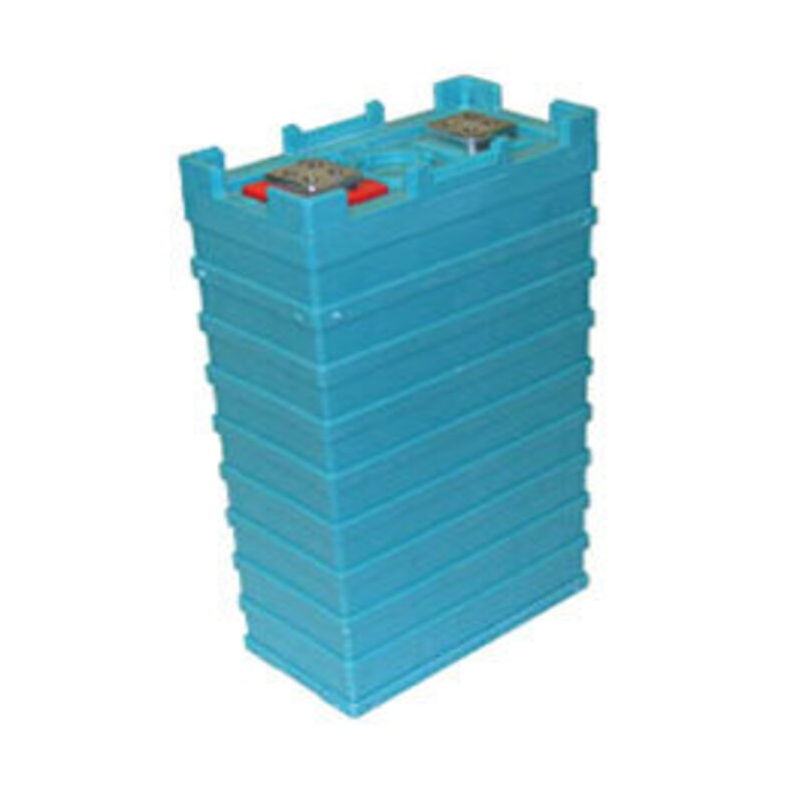

GBS LiFeMnPO4 Prismatic Module: 3.2V 100Ah
Battery Hookup

GBS LiFeMnPO4 Prismatic Module: 3.2V 100Ah

$65.00 $0.00

JUST 1 BATTERY AVAILABLE AT THE MOMENT. FULLY TESTED AND COMES WITH THE PRINTOUT OF THE TEST RESULTS. THIS CELL TESTED ABOVE 100% CAPACITY AND HAS NEVER BEEN CYCLED.

Chemistry LiFeMnPO4 in prismatic case
Nominal Voltage   Average 3.2 V (working)  3.65V-3.8V (peak )  2.5 V ( cut-off low)
Capacity                  100Ah  (320 wh) at 1.0C rate
Energy Density 90-110Wh/kg
Cycle Performance 2000 (80DOD%@0.2C rate, IEC Standard)
Terminal
  • Screw terminal
  • Material of the terminals on the cells are made from aluminum.
Operation Temperature
  • Charging: > 0°C (32F) - 65°C(149F)
  • Discharging:  -20°C (-4F) - 65°C(149F)
  • Self-discharging <3% monthly
  • Temperature Durability of case ≤ 135°C(275F)
Charging current
  • Best charging current <0.5C (50A)
  • Max. 3C (300A)
Discharging current
  • Constant discharge current: ≤300A (≤3C rate)
  • Impulse discharge current (<10sec): ≤1000A (≤10C rate)
Dimensions(LxWxH) 140x62x236mm(243mm with tall cover)- 5.5"x2.5"x9.3" (9.6" with tall cover)
Weight 3.2Kg±100g (7LB)
