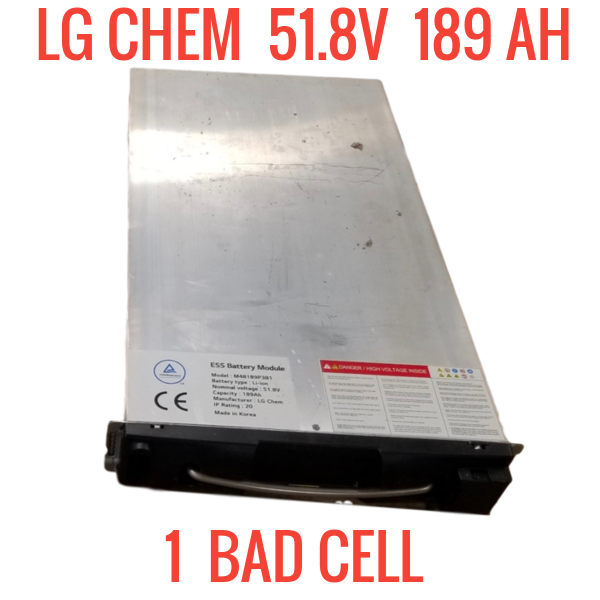

LG CHEM 48V 9.79kWh 51.8V 189AH WITH 1 BAD CELL
THIS LISTING IS FOR A 48V LG CHEM BATTERY, THIS BATTERY HAS BEEN TESTED BUT IS SHOWING 1 BAD CELL! THE REMAINING 13 CELLS ARE IN GREAT SHAPE!
Flat rate $350 includes lift gate and residential freight shipping! Or pick up from our warehouse in Bensalem, PA for free.

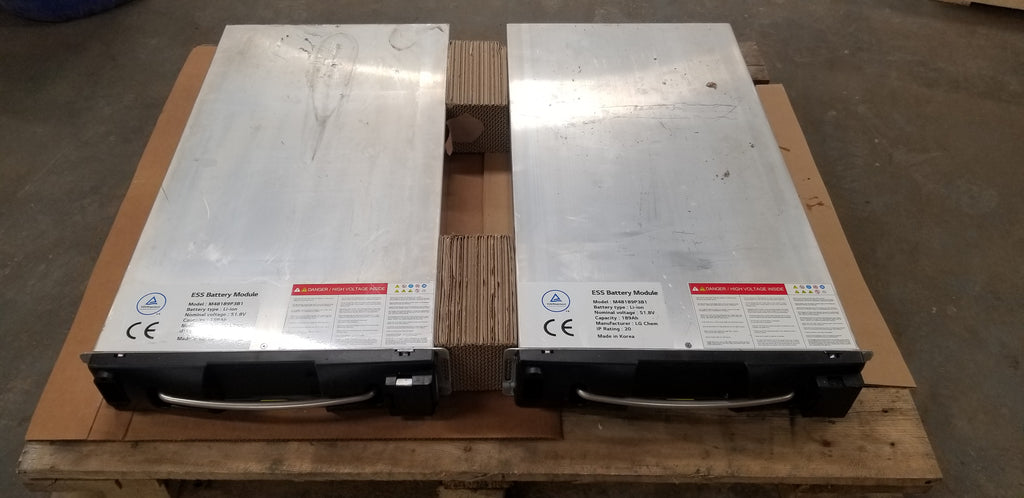

These are the LG Chem rack mount modules we got in last year and they sold out in 7 hours. This one in particular has 1 bad cell inside but you can salvage the module to make a 13s 48v powerwall that is above 9kWh. Just $50/kWh here for this one since it has a bad cell inside.

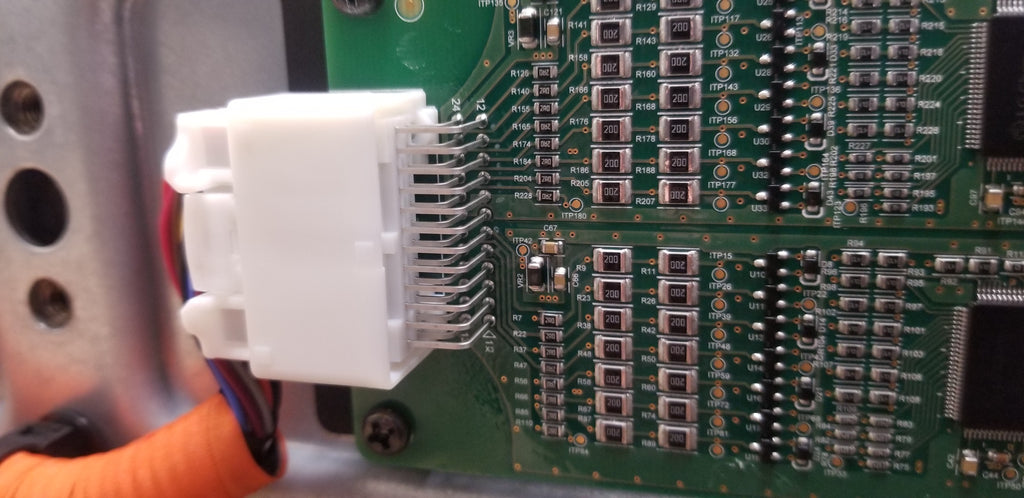

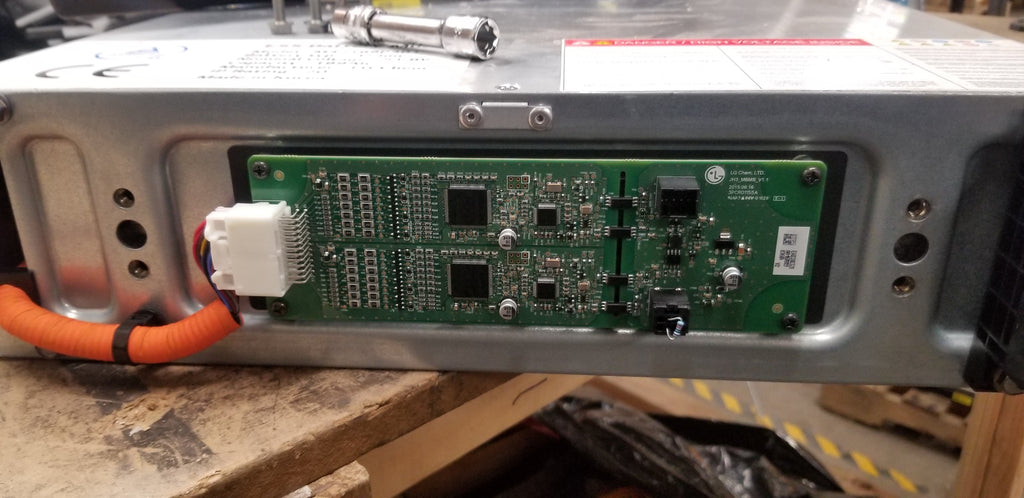

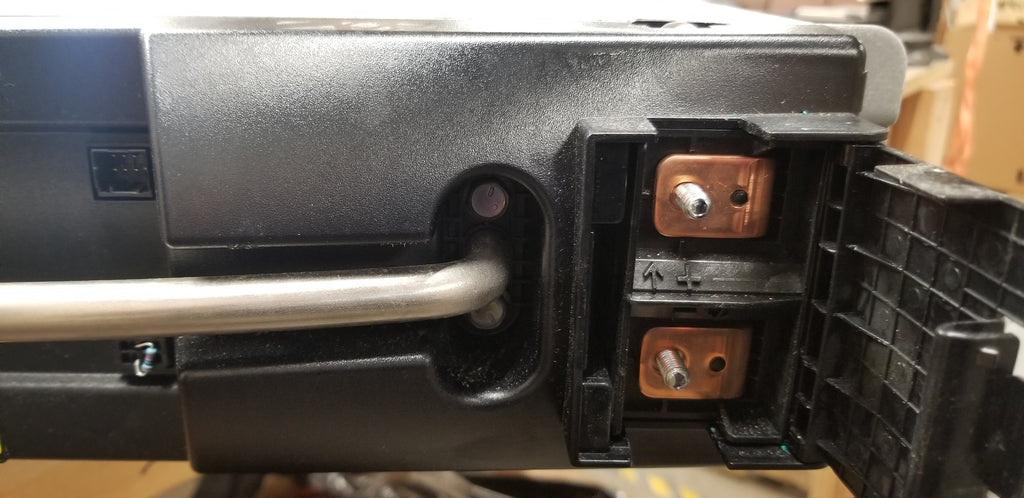

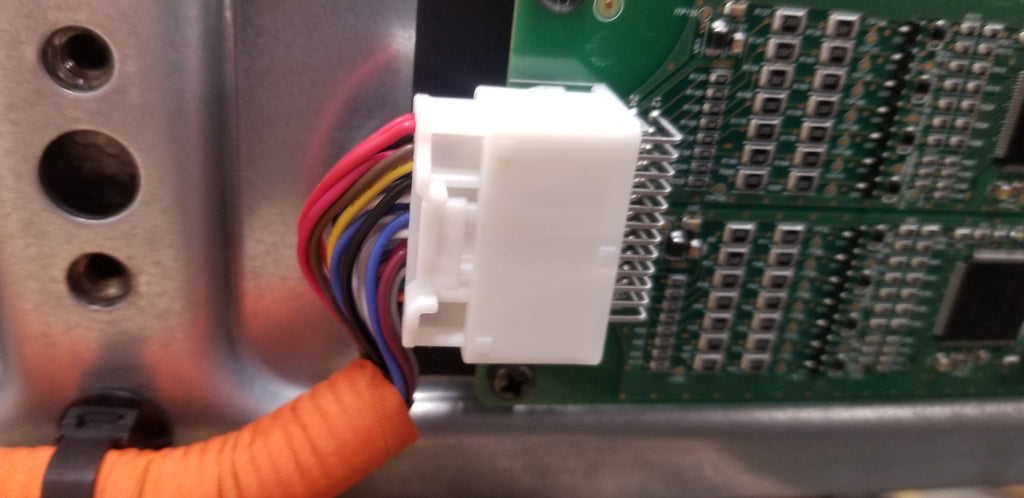

There are 4 bolts that come out and little side tabs on the face of the front, the black part. That pops out and you will have access to all the balance leads coming out of the orange cable. There are 24 wires coming out, You can easily test the wires to see which 15 are the balance leads (main negative and 14 cell leads). Check the photos for more information. These were used at BACKUP ONLY which means they were only cycled a few times and every one we test is over 90% of original capacity.

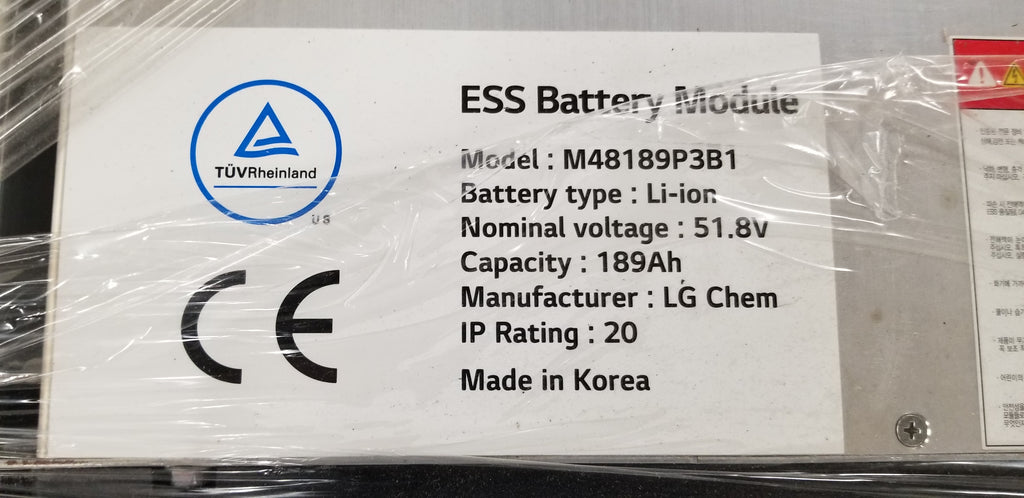

Original module specs.
Fully charged is 58.8v.
Fully discharged is 39.2v.
Typical capacity 9-10kWh
Max discharge rate 300a
Max charge rate 150a
