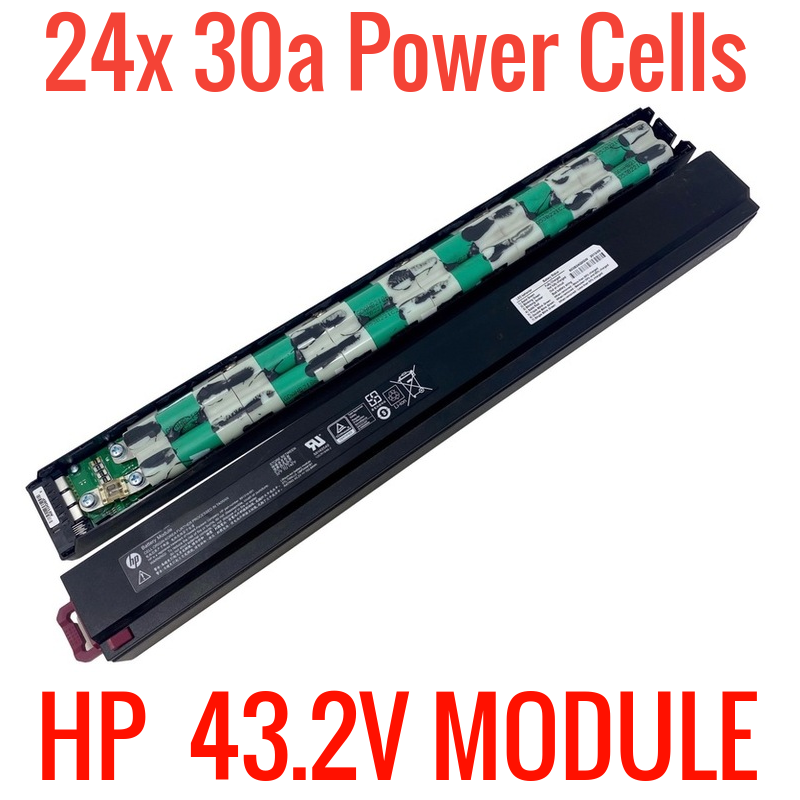

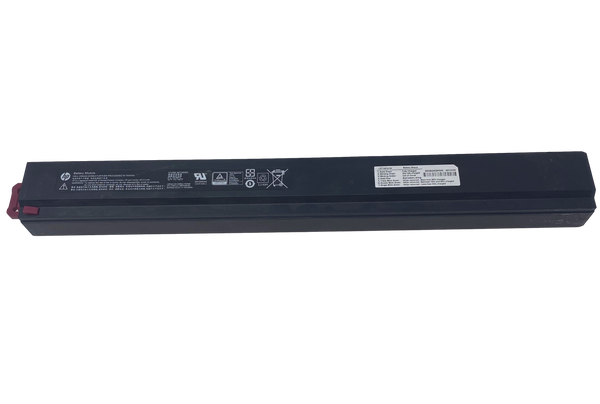

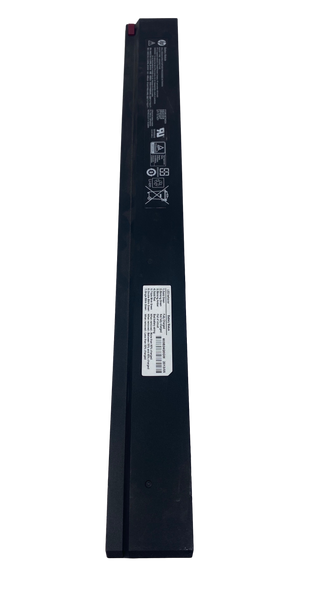

HP 43.2V Module with 24x 30a LG 18650 cells 103.68wh
These HP modules have 24 LG 1500mAh cells in 12s2p configuration. The module has a 70a fuse that can be reused!
These are LG HB2 power cells that are 30a (20c) rated! They are one of the most powerful 18650 cells ever made.
Perfect for any application that requires a lot of power in a small space.
The modules were used as backup ONLY so they still have a ton of life left in them. We tested a couple thousand of these cells, and they tested at 90% or better!

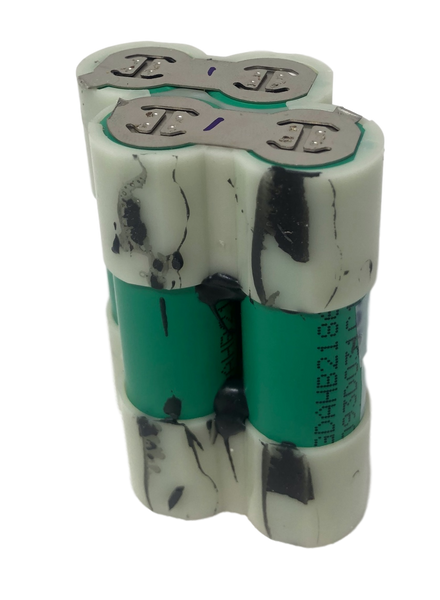

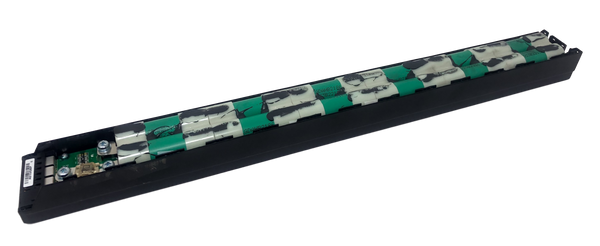

You can pry or crack the seam of the case. It will come off fairly easy. Once the case is off you have easy access to the cells inside. They will break out into 4 packs as seen in the 3rd picture.
Cell specifications are below.
Brand: | LG |
Model: | LGDAHB21865 (ICR18650HB2) |
Capacity: | 1500mAh Rated |
Voltage: | 3.65V Nominal |
Charging: | 4.20V Maximum 750mA Standard 4000mA Maximum |
Discharging: | 2.50V Cutoff 300mA Standard 30000mA Maximum |
Description: | Teal Cell Wrapper White Insulator Ring 18650 Form Factor |
Cylindrical lithium-ion battery cells should never be used in e-cigarettes for vaping or other consumer devices that allow for the cell to be removed. Certain issues like mishandling by the consumer and broken or faulty springs and circuits can cause inherent dangers. Cylindrical lithium-ion cells are intended to be assembled into enclosed battery packs with protective circuitry.
