DIY 18v 100w Motor - Battery - BMS - On/Off Switch

This is the ultimate DIY/Creativity must-have product. Selling this kit for less than the price of just the motor.

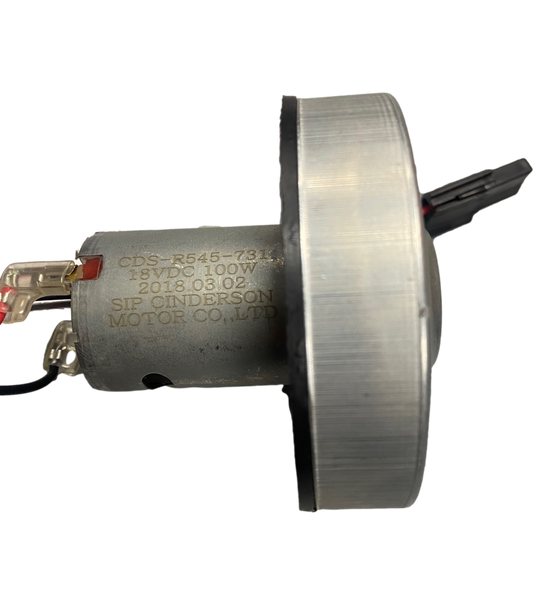

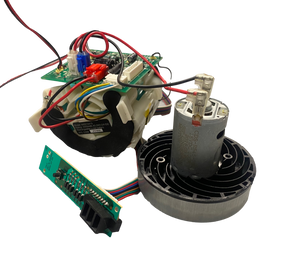

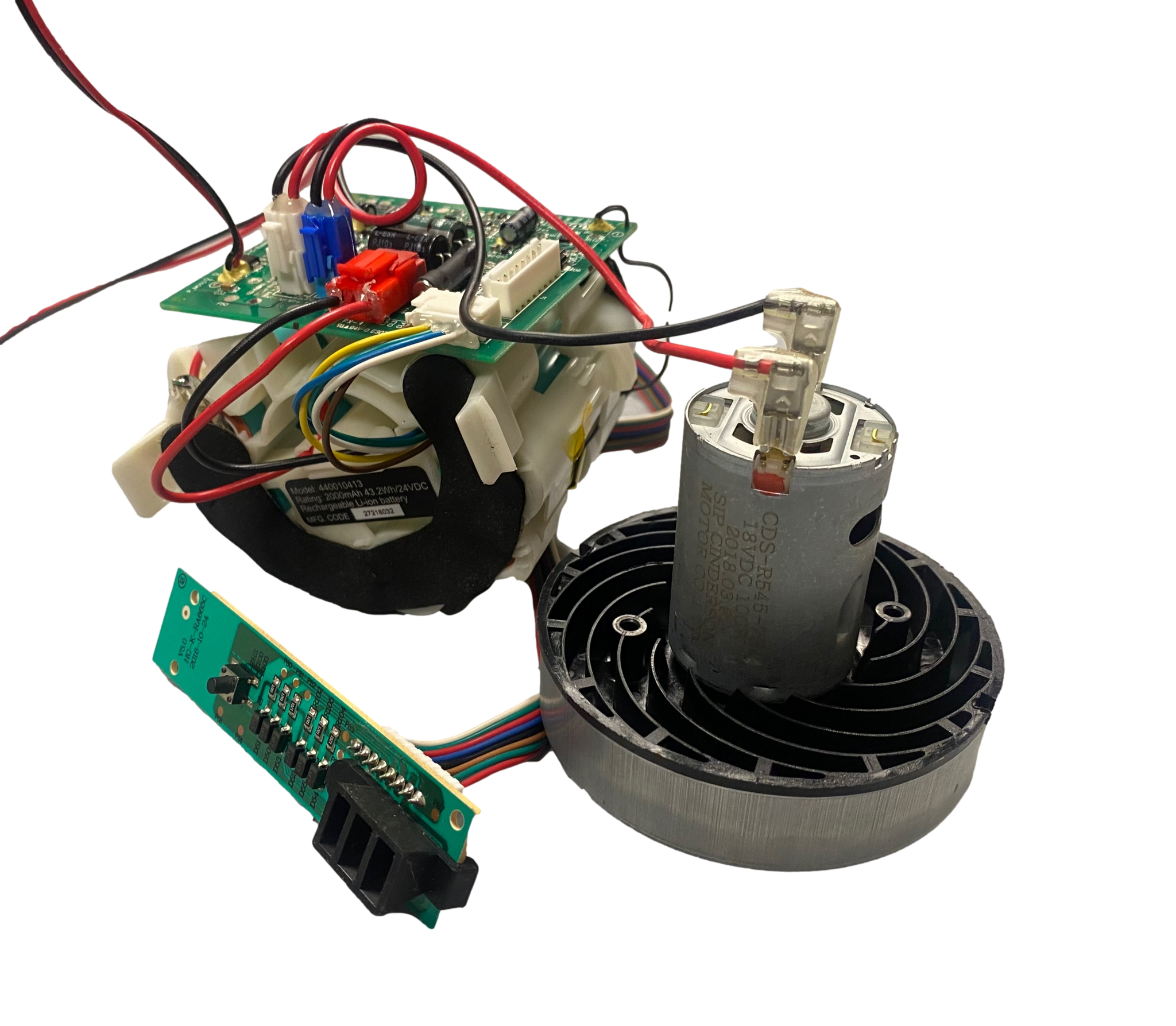

You get a 6s Samsung lithium ion battery, a BMS, 100w motor, vacuum attachment, on/off button, and LED display. All ready to go!

These kits came out of popular wireless vacuum cleaners that had cracked cases so they never were used. We opened them all up and took the time to test these kits and make sure everything works.

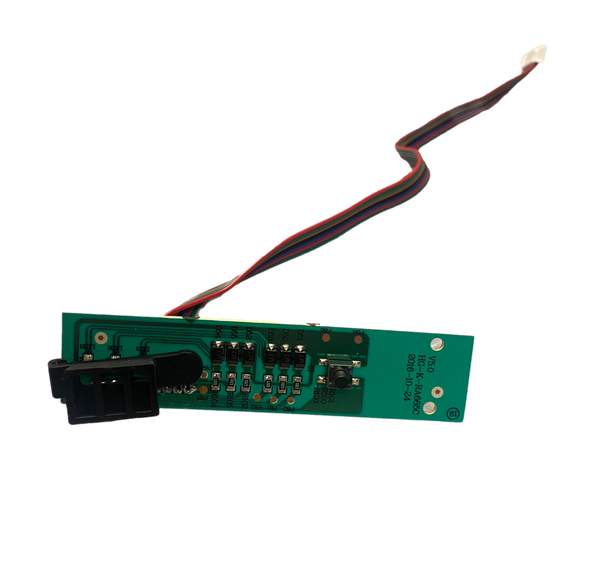

We ship the on/off button and display unplugged from the board so it doesn't turn on during shipping. All you have to do is plug it back to the board. Takes 1 second.

Hit the button one time for a slow speed, again for faster, one more for fastest. 4th time turns it off. An LED display shows your battery level.

You can use this as a leaf blower, water pump, skateboard, vacuum, hair drier, etc. If you have any project in mind that requires a motor this is it.

The thin black and red wire are the charge port. After 5 seconds the BMS allows the charge to begin.

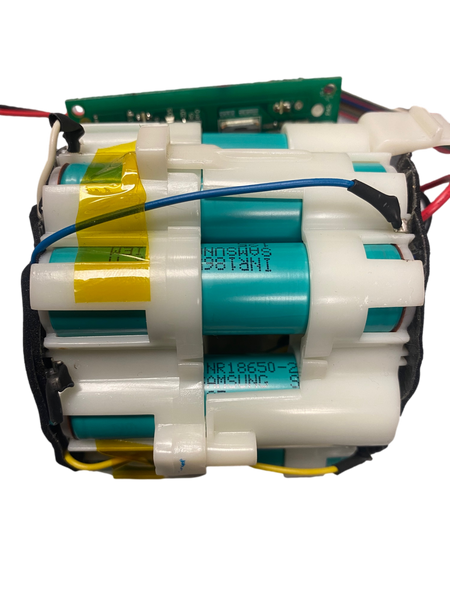

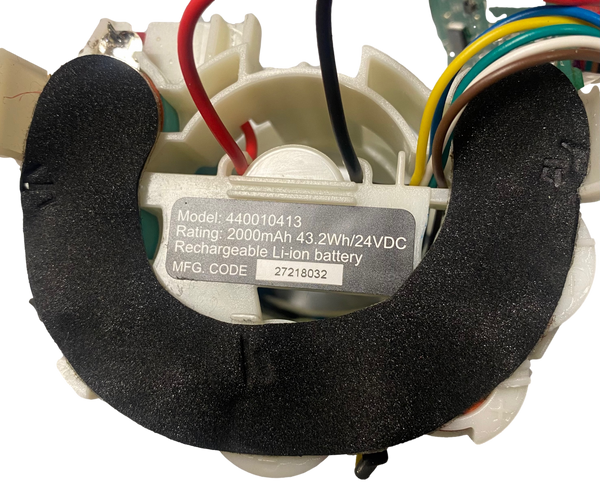

6s Samsung 2000mah power cells.

You will need a charger that can charge up to 2 amps and 25.2v (4.2v per cell). Fully discharged 16.8v (2.8v per cell). Of course you can always expand these batteries by parallel wiring your own 6s batteries to this pack. Make sure you connect them when they are the same voltage.

There is also a 2nd cable with a red and black wire that also provides power when you hit the button. So you can also use that to power another 20v item up to 10a.

The motor also comes with a rubber gasket around the fan area for extra suction. This could be a great setup for a racing boat too. Or a pump that sucks water out of a pool. There really is a lot of applications even if you can't use this particular motor you could always sell the motor and attach anything around 18-24v that you need to trigger on and off.
