* discharged * A123 36V MODULE with 48 26650 ANR26650M1-B LIFEPO4

Regular price $16.80 Sale price $59.99 Unit price per

Only 1 left out of the pallet

THESE MODULES IN PARTICULAR LIKELY HAD A FAULTY BMS WHICH CAUSED THE BATTERIES TO BE DRAINED. MOST OF THE ROWS WILL BE 0V, HOWEVER, WE SLOWLY CHARGED AND CYCLED A FEW OF THESE PACKS AND WERE ABLE TO RECOVER A LOT OF CELLS, THESE PACKS HAVE NOT BEEN SITTING AT 0V FOR VERY LONG SO THERE SHOULD NOT BE TOO MUCH DEGRADATION ON THE CELLS FROM SITTING AT 0V FOR VERY LONG.  WE ARE SELLING THESE DIRT CHEAP AT JUST 35 CENTS PER CELL FOR THE ABSOLUTELY BEST LIFEPO4 CELL ON THE MARKET.  EVEN IF YOU RECOVER 50% OF THE CELLS IT IS WORTH IT BUT CUSTOMERS HAVE REPORTED THAT THEY ARE ABLE TO GET MOST CELLS TO RECHARGE AND AFTER SOME CYCLES THEY WAKE UP AND WORK GREAT. THESE PACKS ARE BEING SOLD AS IS AND PRICED ACCORDINGLY.

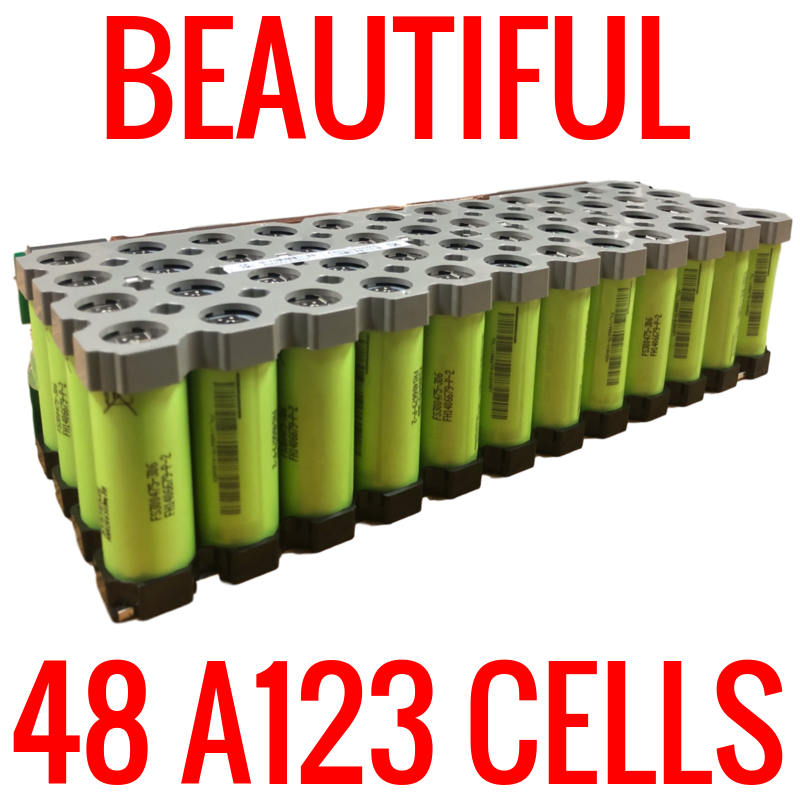

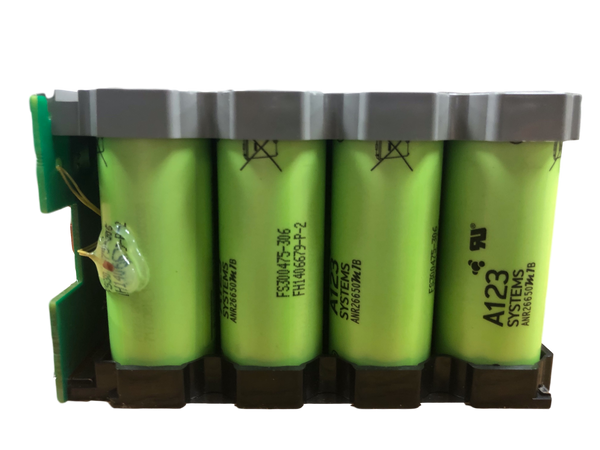

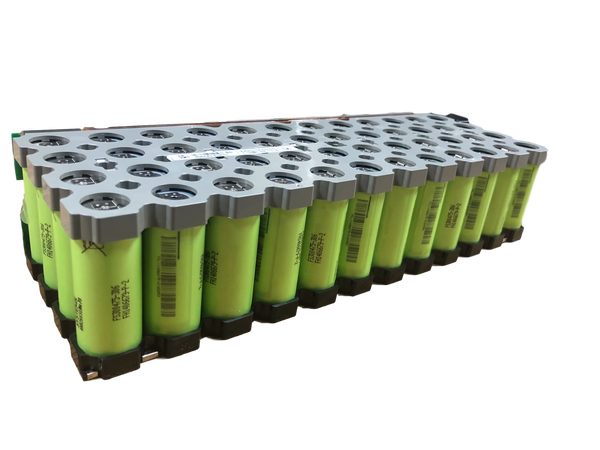

36V EMC MODULES WITH 48X A123 26650 ANR26650M1-B CELLS!

WE CAN SHIP UP TO 5 IN A BOX. IF YOU ORDER MORE THAN 5 IT MAY SAY WE CAN'T SHIP, JUST BREAK THE ORDER DOWN TO QUANTITIES OF 5 AT A TIME. IT SHOULD SAVE YOU ON SHIPPING COSTS TOO.

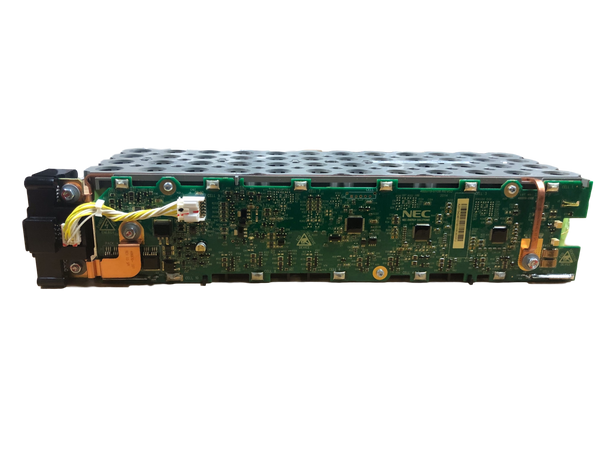

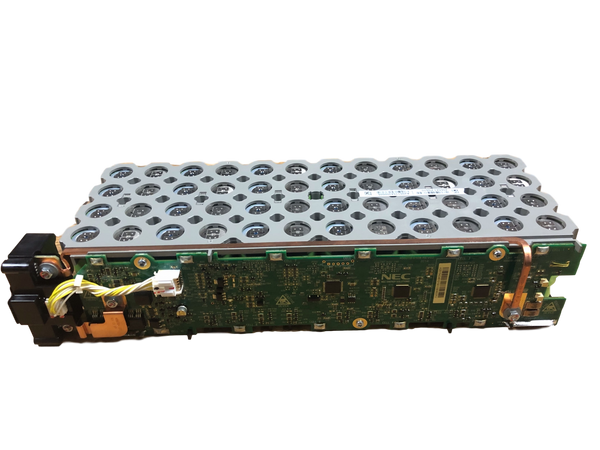

THE BMS IS PROPRIETARY, MAYBE YOU CAN FIGURE OUT THE OUTPUT AND COMMUNICATION BUT WE RECOMMEND ADDING YOUR OWN BMS FOR CHARGING AND DISCHARGING. THESE PACKS IN PARTICULAR SINCE THERE IS 0V CELLS YOU SHOULD SALVAGE THE VALUABLE CELLS. YOU CAN ALSO RECOVER SOME GOOD COPPER AND HIGH GRADE PCB FOR SCRAP.

THIS IS ONE OF OUR POP UP DEALS THAT WE HAVE LIMITED QUANTITY OF BUT WE NEED TO CLEAR SOME SPACE HERE IN THE WAREHOUSE AND YOU ALL NEED SOME GREAT DEALS!

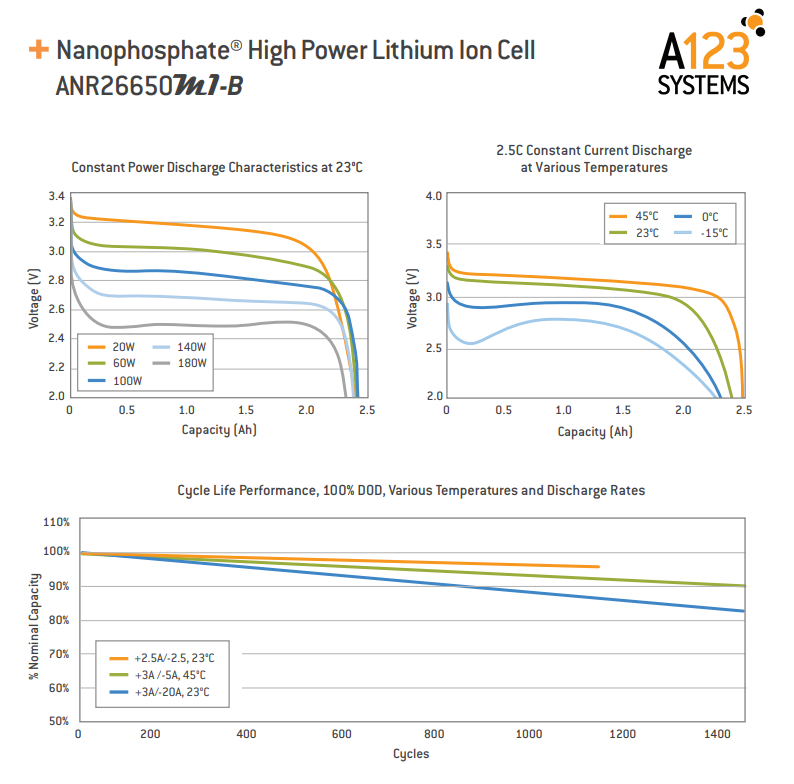

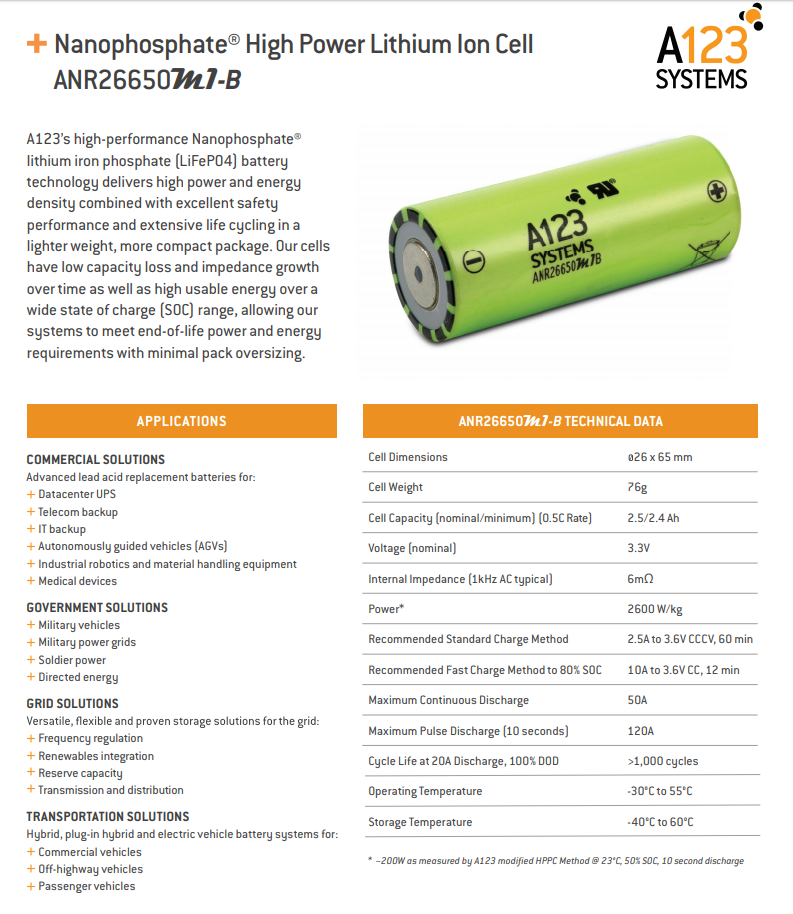

CHECK OUT THE AWESOME SPECS OF THE CELLS. THIS IS THE BEST A123 LIFEPO4 CELL ON THE MARKET AND THE NEWEST VERSION. SPEC SHEET IS ALSO IN OUR PHOTOS.

ANR26650M1-B Specifications
 Nominal Ratings
  Voltage: 3.3 Volts
  Capacity: 2.5 Ah
  Energy: 8.25 Wh
  Specific Power: 2600 W/kg
  Impedance (1KHz AC Typical) 6 mΩ
  Cycle Life at 1C/1C, 100% DOD: > 4000 cycles
  Cell Type: 26650 Lithium Ion Power Cylindrical Cell

 Discharging
  Max Continuous Discharage: 50 A
  Max Pulse Discharge Current >50% SOC (10s): 120 A
  Minimum Voltage: 2 Volts
  Temperature: -30ºC to 55ºC

 Charging
  Recommended Standard Charge: 2.5 Amps
  Max Charge Rate: 10 Amps
  Max Pulse Charge Current <50% SOC (10s): 25 A
  Float Voltage: 3.45 Volts
  Recommended charge V & Cut-off Current: 3.6 Volts, taper to 125mA
  Temperature
    (reduce charging current to 250mA when under 0ºC): 0ºC to 55ºC

 Mechanical
  Diameter: Ø25.96 +/- 0.5 mm
  Length: 65.15 +/- 0.5 mm
  Mass: 76 g

 Certifications
  Transportation: UN 3480 (UN38.3), CIQ
  Safety: UL 1642, IEC 62133
