DISCHARGED - 12x POWER CELLS! HONDA INSIGHT 235.25wh

Regular price $15.00 $0.00 Unit price per

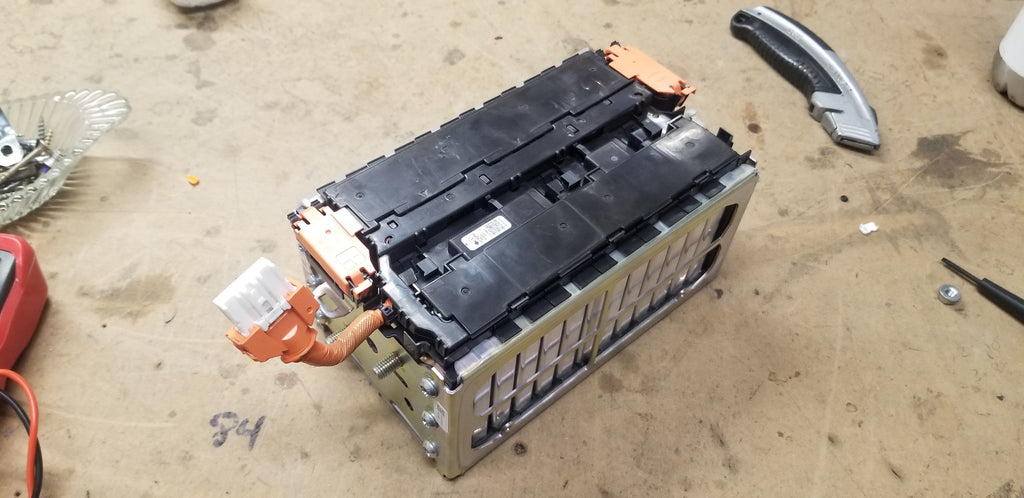

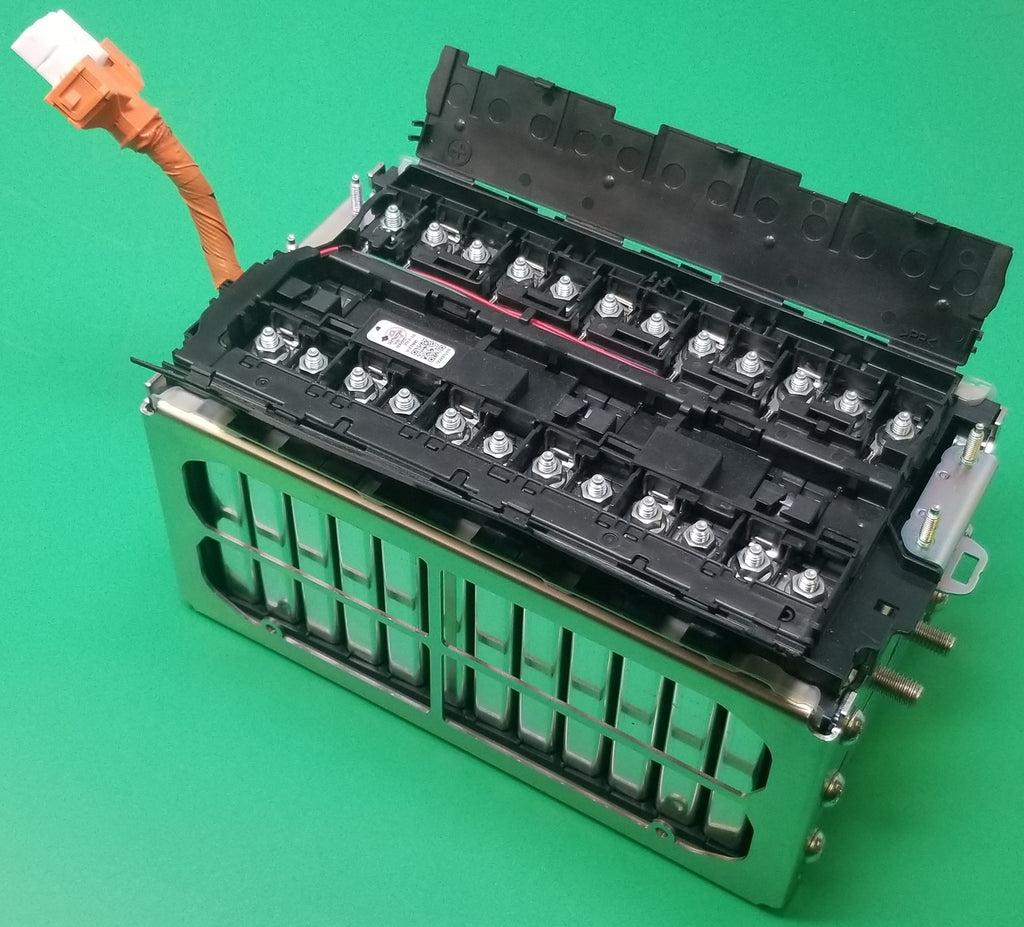

YOU GET 12 POWER CELLS IN SERIES IN THIS MODULE!

THESE MODULES WERE NEVER CYCLED BUT EITHER THE BOLT PATTERN DIDN'T LINE UP WITH THE VEHICLE FRAME OR THE MAIN THREADED POST WAS OVERTORQUED AND BROKEN OFF. UNFORTUNATELY THEY DISCHARGED THESE MODULES BEFORE SENDING THEM TO US. THEY WILL TAKE A CHARGE AND A LOT OF OUR CUSTOMERS HAD SUCCESS USING THESE CELLS AGAIN AFTER CYCLING THEM A FEW TIMES. HOWEVER SINCE THESE ARE SITTING AT 0V WE ARE SELLING THEM FOR JUST $1.25 PER CELL SO THEY ARE PRICED ACCORDINGLY.

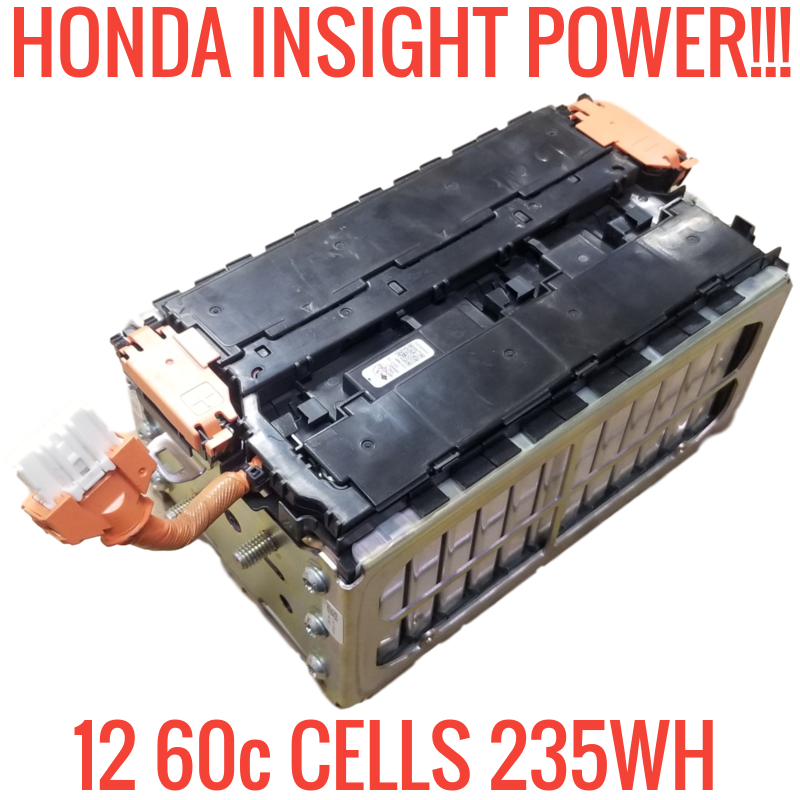

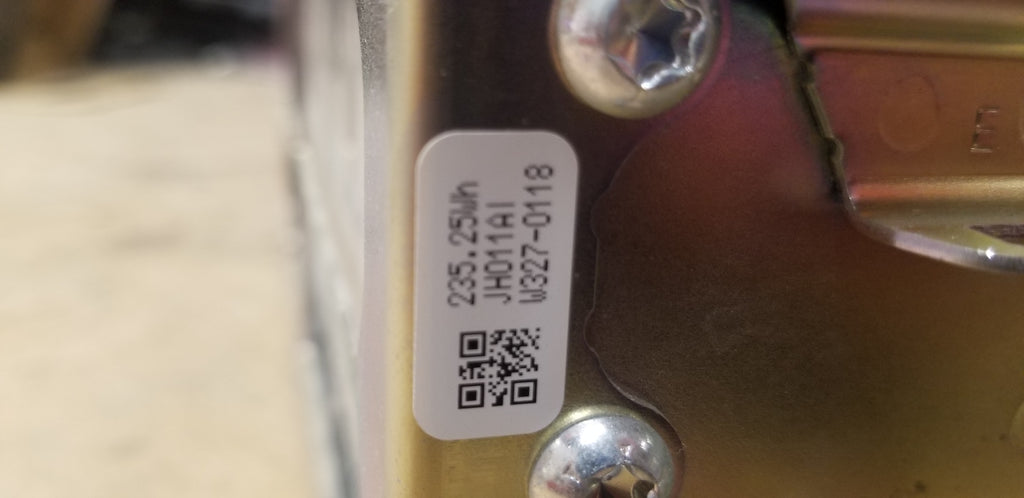

EACH MODULE HAS 12 CELLS IN SERIES AND TOTAL CAPACITY OF THE MODULE IS 235.25WH.

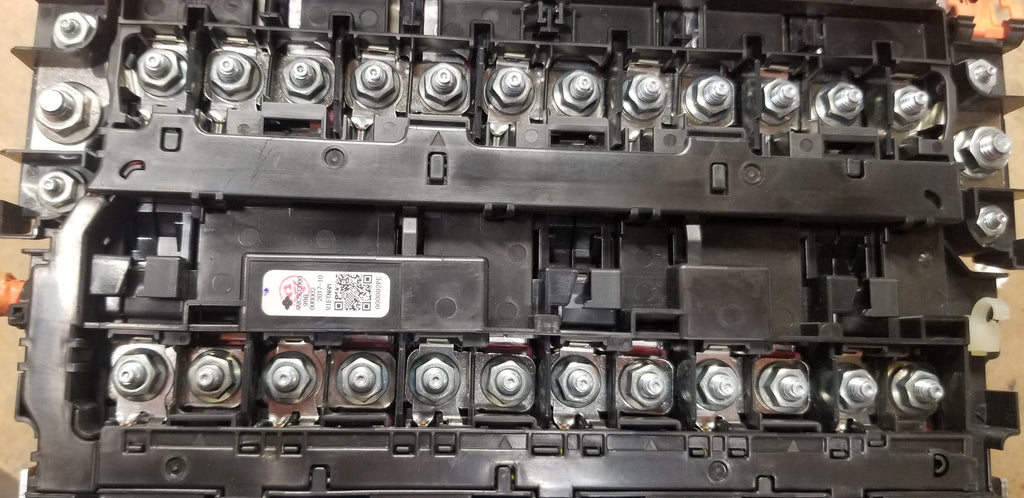

These cells have threaded posts on them.

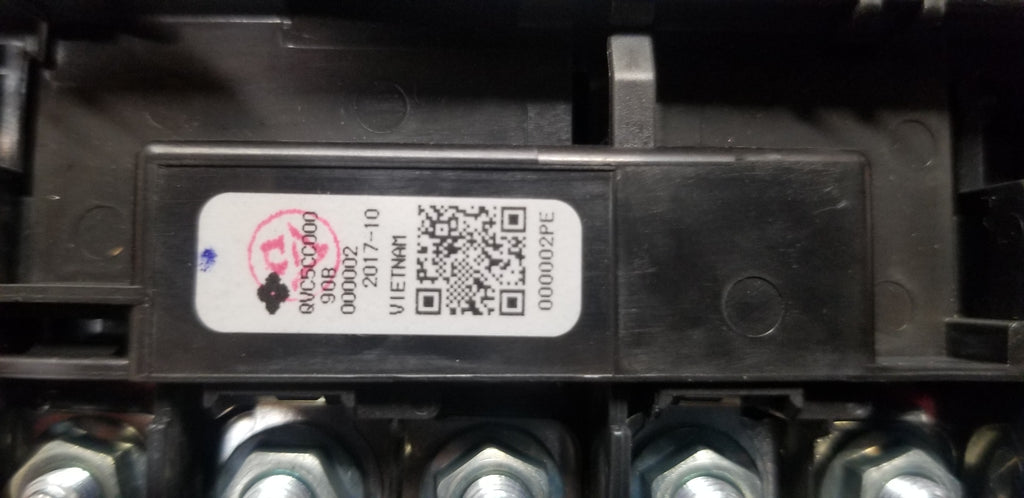

I BELIEVE THESE ARE PANASONIC 5AH CELLS. BASED ON THE DEMAND OF POWER THE NEW HONDA INSIGHT REQUIRES FROM THE BATTERIES THESE ARE DEFINITELY POWER CELLS, MOST LIKELY SIMILAR TO THE BLUE ENERGY EHW5 CELLS WHICH ARE 60C, 300A RATED. FULLY CHARGED VOLTAGE IS 4.2V PER CELL AND FULLY DISCHARGED VOLTAGE IS 2.75V PER CELL.

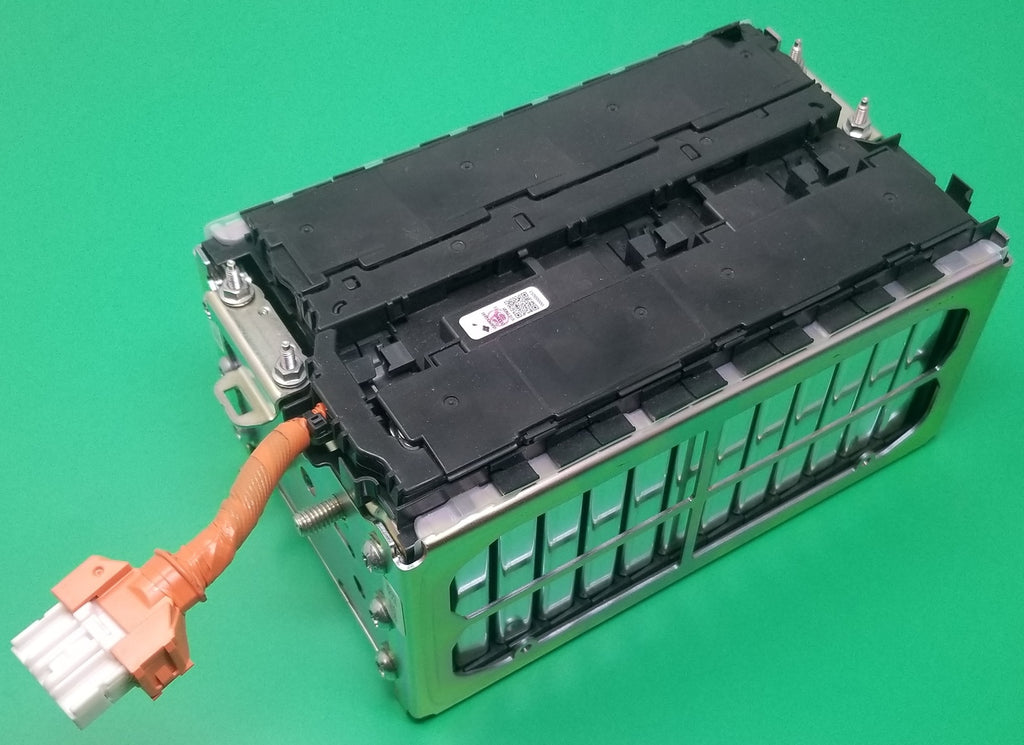

THIS MODULE IS ABOUT 4" TALL, 8.5" WIDE, AND 5" DEEP

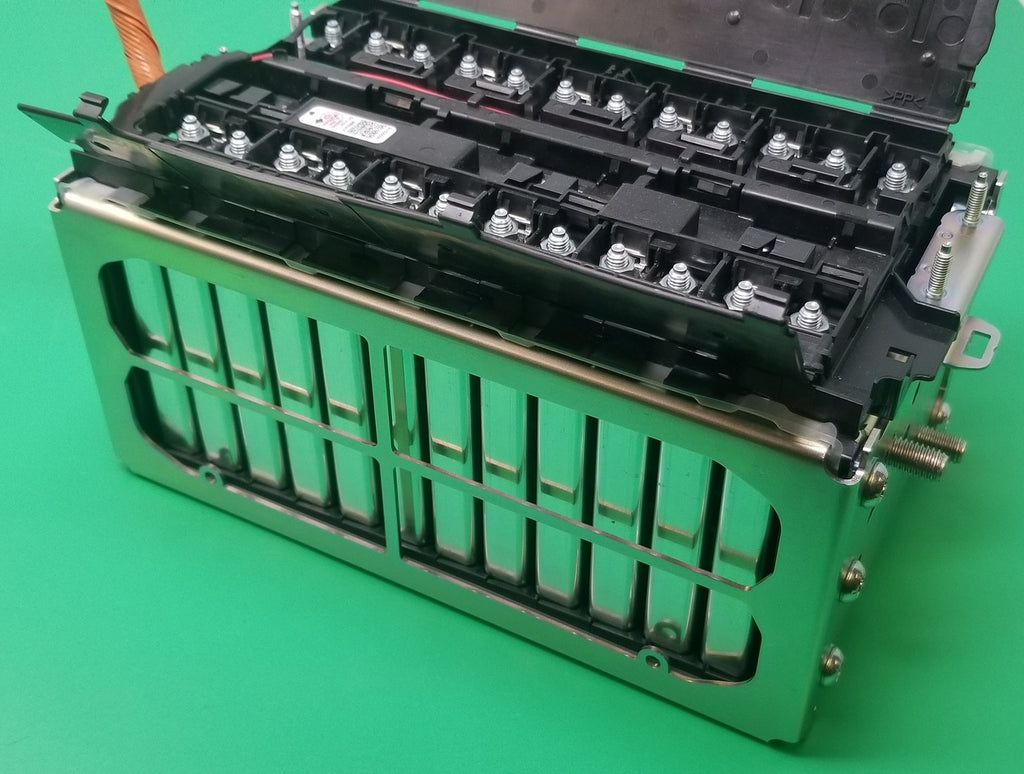

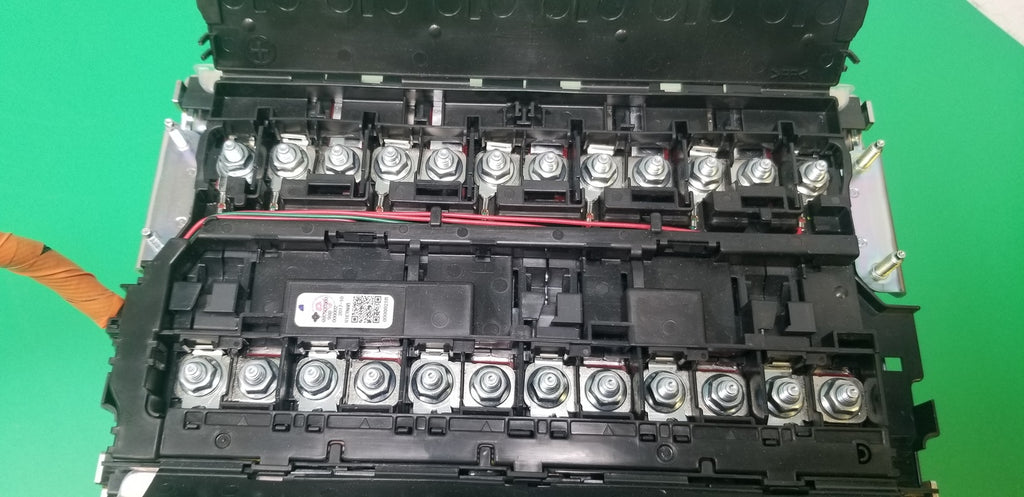

I DON'T KNOW HOW EASY IT IS TO REMOVE THE CELLS, I HAVEN'T TRIED. LOOKS LIKE IT IS POSSIBLE THOUGH AND WHAT'S NICE IS THE BUSBARS ARE BOLTED DOWN, NOT WELDED.
