NEW CYBERPOWER 425VA 255W SE425G BATTERY BACKUP
HERE ARE BRAND NEW IN THE BOX CYBER POWER BATTERY BACKUP UNITS. THESE CAN HANDLE 255 WATTS. OTHER STORES HAVE THESE FOR $40, OF COURSE YOU HAVE BATTERY HOOKUP ON YOUR SIDE AND WE HAVE THEM FOR JUST $15.
THERE IS A CHANCE THE LEAD ACID BATTERY IS EXPIRED HOWEVER THE REAL VALUE FOR US IS WE CAN BUILD A LIFEPO4 BATTERY FOR THIS AND USE IT LIKE AN INVERTER. ONLY A FEW OF THESE AVAILABLE AT THE MOMENT. WE WILL CONTINUE TO TRY AND SOURCE UPS UNITS BECAUSE THEY TRULY ARE BUILT THE RIGHT WAY AND MAKE FOR EXCELLENT BUDGET FRIENDLY, UL CERTIFIED INVERTERS.
ALSO, JUST TO BE CLEAR, WE ARE NOT GUARANTEEING THE LEAD ACID BATTERY WILL WORK, THE LEAD ACID BATTERY IS MOST LIKELY EXPIRED. THE UNIT WILL NOT TURN ON UNTIL YOU ADD A BATTERY TO IT THAT WORKS OR IS AT LEAST READING 10V. WE TESTED A LOT OF THESE AND THE ONES WITH DEAD BATTERIES WORKED PERFECTLY ONCE WE CONNECTED OUR LIFEPO4 4S BATTERY.
Product Overview

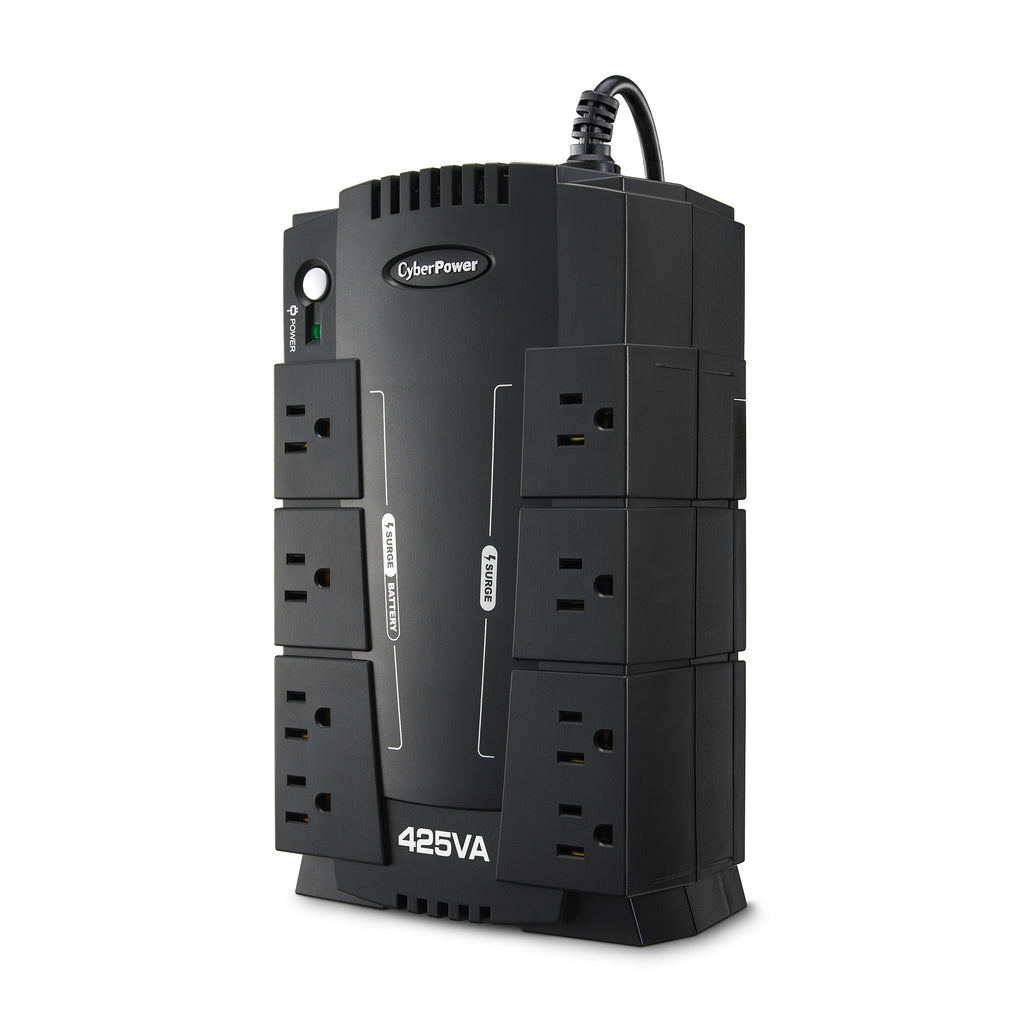

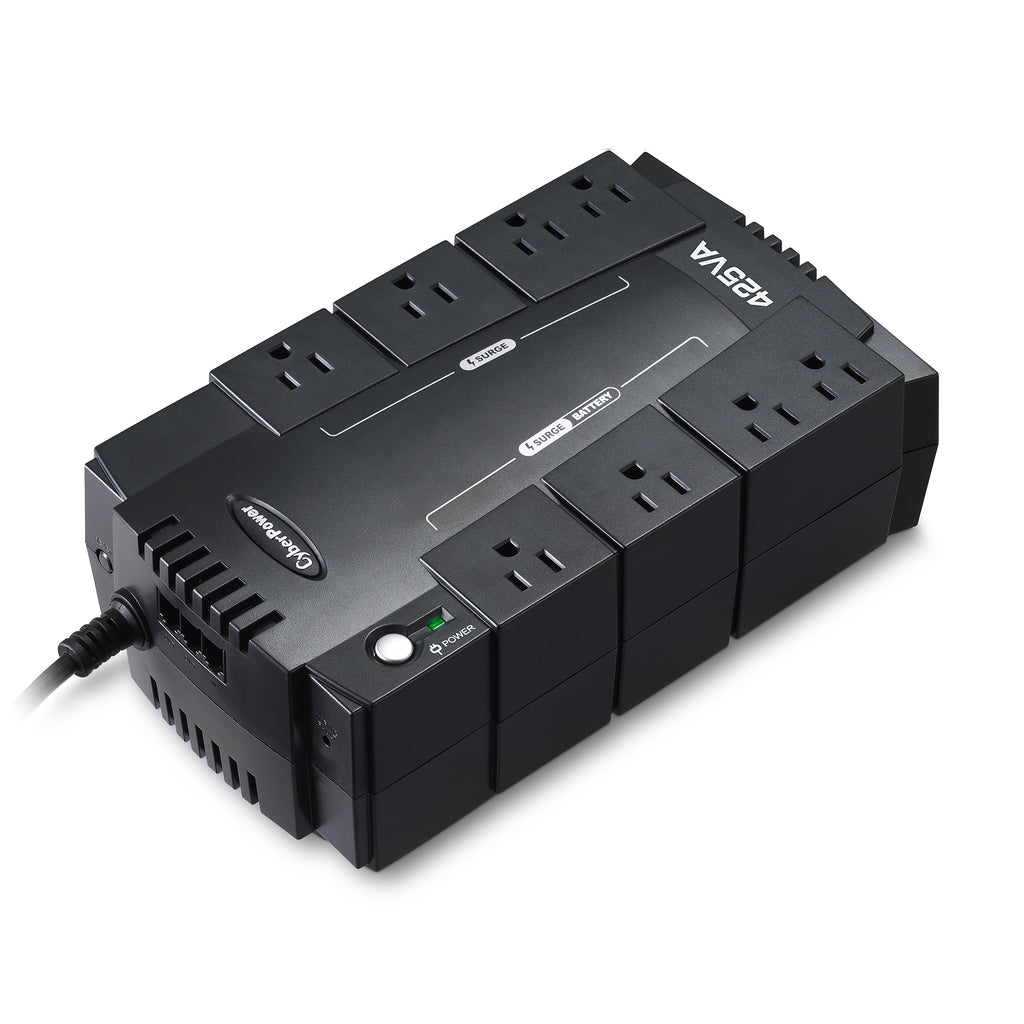

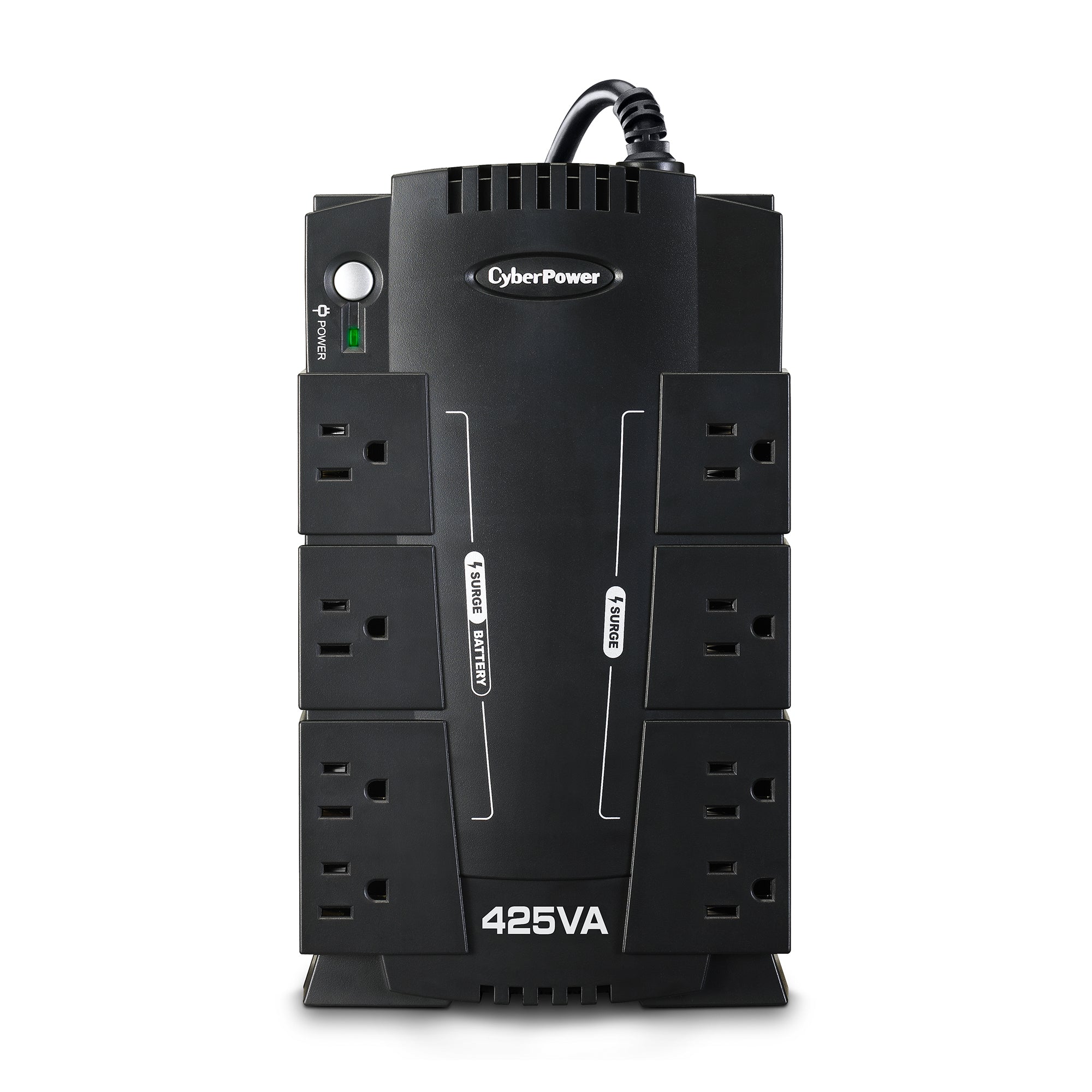

The CyberPower SE425G uninterruptible power supply (UPS) safeguards small office workstations, networking devices, and home entertainment systems by providing battery backup (using simulated sine wave output) and surge protection during power interruptions. Data line protection for phone/network (RJ11) is included. The SE425G has a capacity of 425VA/255 Watts and eight NEMA 5-15R receptacles four widely spaced to accommodate transformer-based plugs.
Compact design allows for vertical or horizontal placement of the model, and the SE425G can be wall-mounted. Features include EMI/RFI Filtration, GreenPower UPS™ High-Efficiency Design, and widely spaced outlets. The SE425G comes with a three-year warranty and a connected equipment guarantee.
-
Battery Backup
Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown. -
Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage. -
Data Line Protection

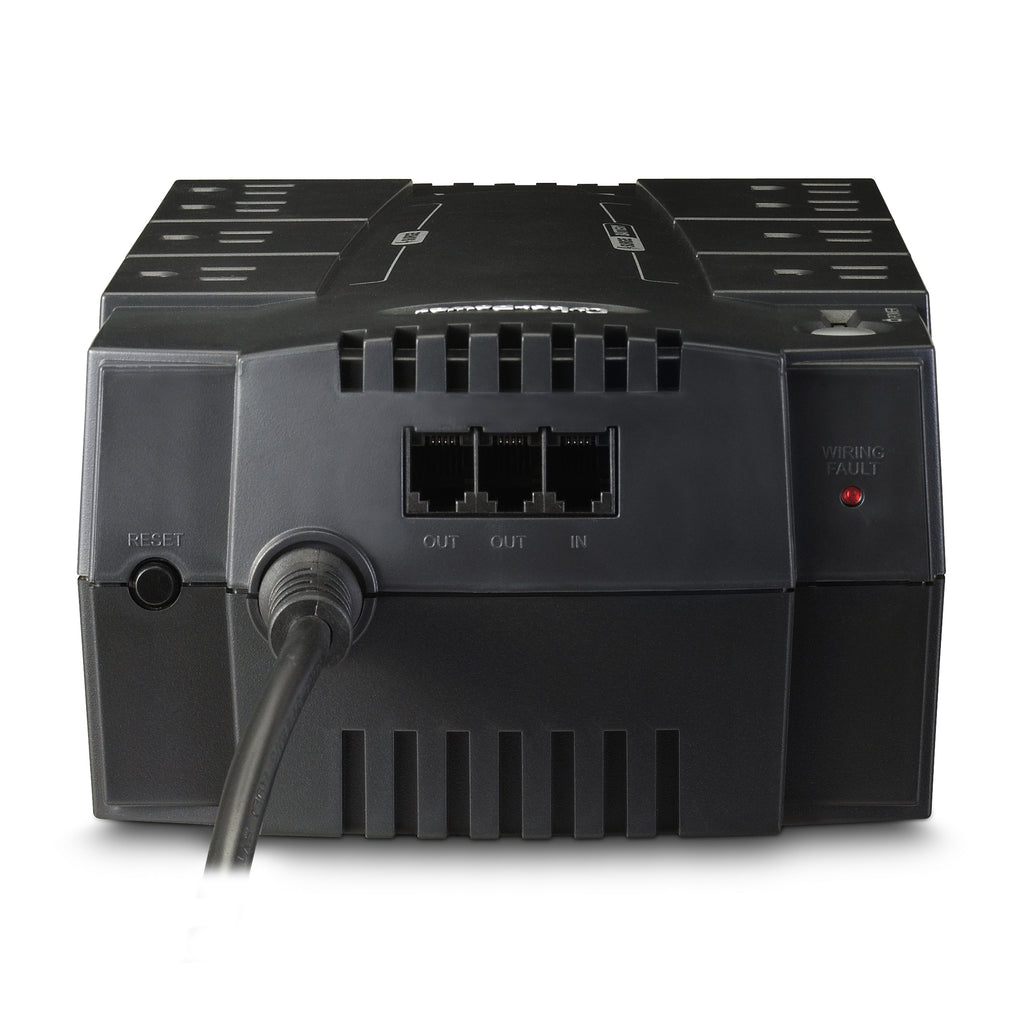

RJ-11 ports (1 in / 2 out) provide surge protection for telecommunications devices such as phones and DSL modems. -
Standby Topology
Ensures that when incoming power drops below or surges above safe voltage levels, the UPS switches to DC battery power and then inverts to AC power to run connected equipment. -
Simulated Sine Wave Output
Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output. -
LED Status Lights
Indicate Power-On and wiring faults. -
GreenPower UPS™ High-Efficiency Design
Reduces power consumption, utilizing a compact charger and power inverter to create an ultra-efficient backup power system for home and office use. -
Ultra Quiet Design
Minimizes noise during operation for a quieter work environment. -
ENERGY STAR
This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
General | |
---|---|
UPS Topology | Standby |
Energy Saving | GreenPower UPS™ High-Efficiency |
ENERGY STAR® Qualified | Yes |
Form Factor | Compact |
Input | |
Voltage | 96Vac – 140Vac |
Frequency | 47Hz – 63Hz |
Plug Type | NEMA 5-15P |
Plug Style | Right Angle, 45 Degree Offset Right |
Cord Length | 5′ |
Output | |
VA | 425 |
Watts | 255 |
Automatic Voltage Regulation | No |
On Battery Voltage | 120Vac ± 5% |
On Battery Frequency | 50/60Hz ± 1% |
On Battery Waveform | Simulated Sine Wave |
Outlet Type | NEMA 5-15R |
Outlets – Total | 8 |
Outlets – Battery & Surge Protected | 4 |
Outlets – Surge-Only Protected | 4 |
Outlets – Widely Spaced | 4 |
Transfer Time | 4ms |
Battery | |
Runtime at Half Load (min) | 7 |
Runtime at Full Load (min) | 2 |
Battery Type | Sealed Lead-Acid |
Battery Quantity | 1 |
User Replaceable | No |
Typical Recharge Time | 8 Hours |
Surge Protection & Filtering | |
Surge Suppression | 890 Joules |
Phone Protection RJ11 | 1-In, 2-Out |
Ethernet Protection RJ45 | None |
Coax Protection RG6 | None |
Management & Communications | |
HID Compliant USB Port | No |
Serial Port | No |
LED Indicators | Power On, Wiring Fault |
Audible Alarms | On Battery, Low Battery, Overload |
Software | None |
Physical | |
Dimensions – W×H×D (in) | 9.75 × 6 × 3 inches |
Weight (lbs) | 5.0 lbs |
Certifications | |
Safety | UL1778, cUL 107.3, FCC DOC Class B |
Environmental | RoHS Compliant |
GreenPower UPS Technology
GreenPower UPS™ Technology from CyberPower consists of three different energy-saving designs that improve operating efficiency, reduce heat generation, and consume less power than conventional UPS models.
ECO Mode: Our ECO Mode is a form of bypass technology that can be switched on full time, set for noncritical times (such as nights and weekends), or switched off. This flexibility can help conserve power and save money.
Bypass Design: Our patented bypass design allows current to bypass the transformer and automatic voltage regulation (AVR) when utility power is normal, thus reducing energy consumption and associated costs. Because utility power functions normally most of the time, the bypass design allows for substantial energy savings. This technology also reduces heat generation, an important factor in decreasing operating costs.
High-Efficiency Design: significantly decreases power consumption to create an ultra-efficient backup battery for home and office use.
Transformers and Transformer Outlets
A transformer converts alternating current line voltage to a higher value or a lower value. Transformers rely upon electromagnetic induction, the process which occurs when the alternating current within a circuit generates current in a nearby circuit.
Transformers vary in design and size, as well as using different amounts of current. Small transformers plug into a wall outlet and create low direct current voltages which are used by common electronic devices. Transformer outlets are more widely spaced than other outlets to accommodate transformer block adapters or other adapters that are large in size. Transformer outlets can be used to connect any appropriate device to a surge protector.
