Chevy OEM LG Chem 20s 64.8v 11.88kWh

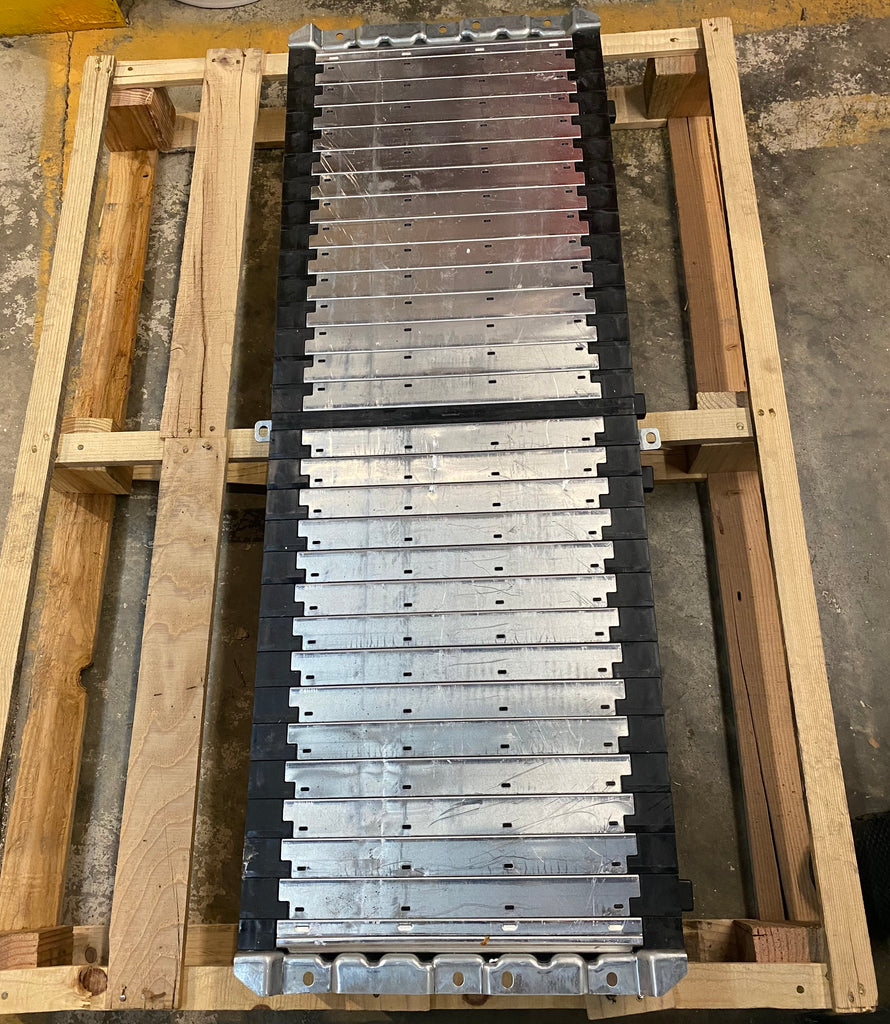

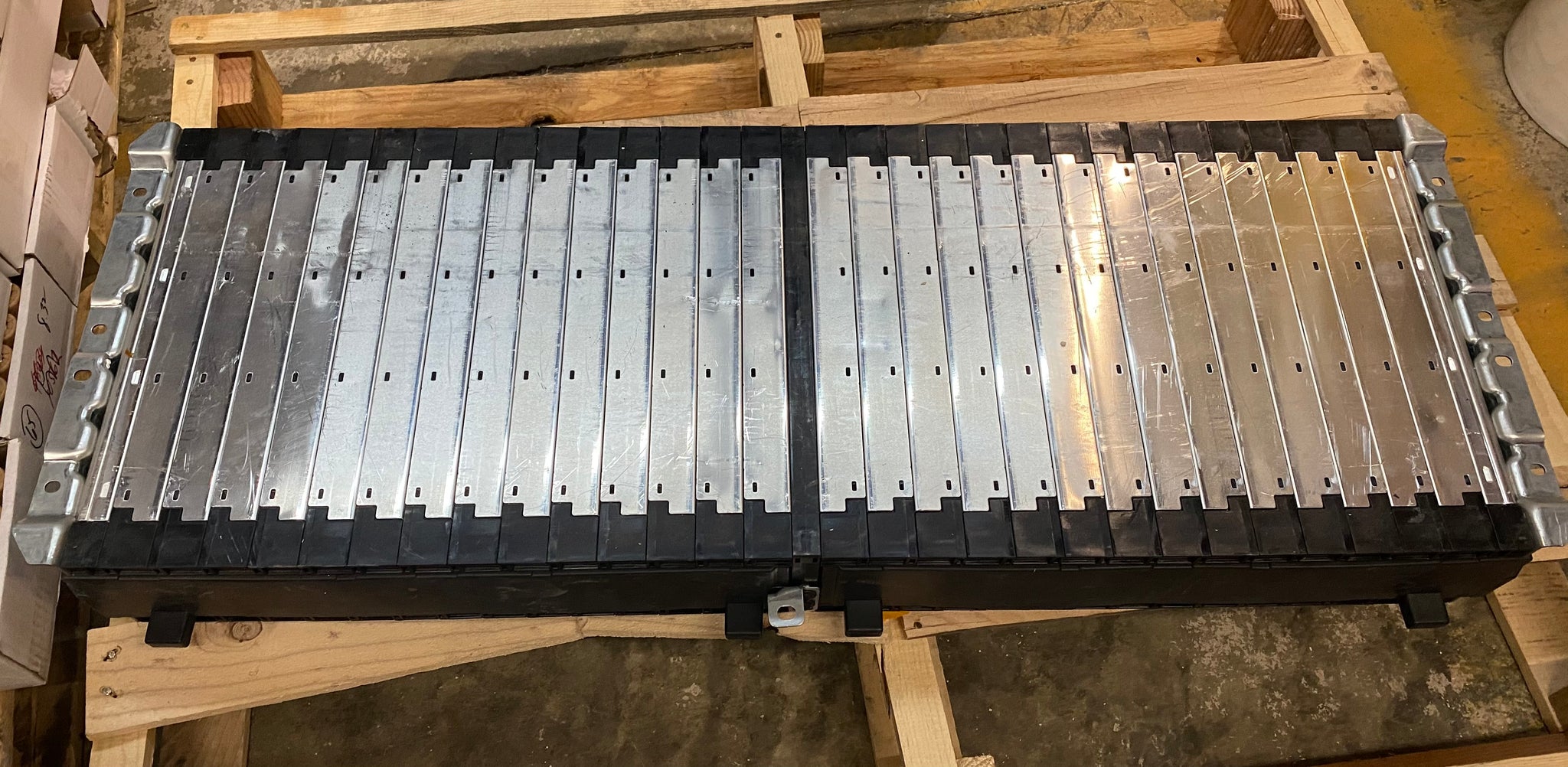

What a beautiful day... When batteries that have never been cycled are on Battery Hookup for under $100 per kWh. Doesn't get any better! These LG Chem modules came out of Chevy battery assembly where the bolt patterns didn't line up with the frame. This LG Chem module is made up of 2 10s 5.94kWh modules making a 20s 11.88kWh module. Easy access to the busbars on the sides. These are the easiest, cheapest, never cycled EV battery ever offered near this price. You can easily remove the threaded rods and separate the 2 10s modules.
We do not recommend disassembling the packs down to cell level. The way these are made, the cells break out into 2 cells at a time but there are 3 cells in parallel so you can't just take off 1 group of 3 cells.
Module weight is around 150 lbs. and the dimensions are approximately 38" x 14" x 4".
Shipping is $350 flat rate, if you buy 1 or 100. This includes liftgate and residential delivery as well! These have to be shipped by freight. You can also pickup at our Bensalem, PA warehouse.
There is no BMS but you have easy access to the busbars which will make wiring your bms super easy! We have BMS units available in our accessories page.
Below are the specs of the cells used. This module contains 54 LG Chem N2.1 60ah cells.
Specifications
| Type | Lithium Ion - 3.6V 60Ah |
| Shell | Aluminum Plastic Film |
| Max charge full voltage | 4.2V |
| Discharge cut-off voltage | 2.8V |
| Standard charge and discharge current |
CC charge 1.0C/60Ah,cutoff voltage
4.20V,Capacity>60Ah
|
| Max continuous discharge current | 180A(3c) |
| Weight | About 0.88±0.02Kg |
|
Internal
Impedance(Max, at 1000Hz)
|
≤1.5mΩ
|
|
Standard Charge method
|
0.5C CC charge to 4.2V, 4.2V CV charge to 0.02C cut-off
|
|
Operate temperature
|
charge :0-40℃
discharge:-20-45℃
storage :-20-45℃
|
|
Size
|
145*100*300mm |
