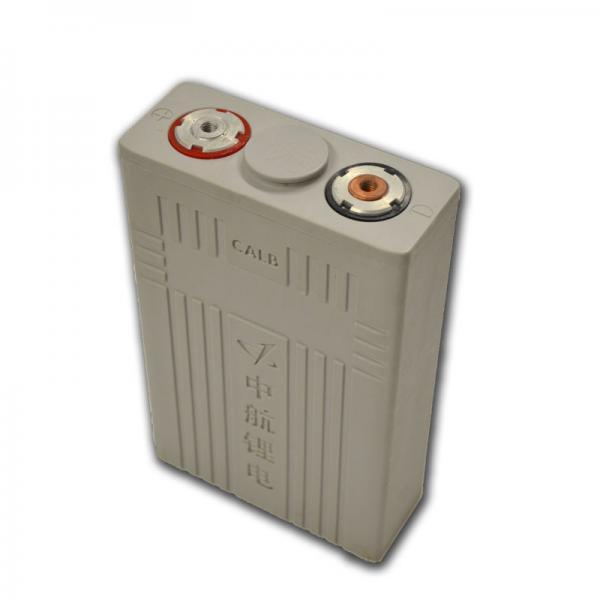

ZERO VOLT - CALB CA180 3.2V 180AH LIFEPO4 PRISMATIC CELL
Battery Hookup

ZERO VOLT - CALB CA180 3.2V 180AH LIFEPO4 PRISMATIC CELL

Regular price $15.00 $0.00 Unit price per

Here are CALB CA180 180AH batteries that were salvaged.  When these were in the original application the BMS slowly drained these down to 0V but you should be able to salvage them as there are no indications of bloating or leaking coming from the terminals!  These are sold as is with no guarantees!

Capacity: 180Ah
Height: 280 mm (11.02 inch)
Width: 71 mm (2.80 inch)
Length: 180 mm (7.08 inch)
Weight: 5.6kg (12.35 lbs)
Bolt Size: M8
Voltage nominal: 3.2V
Charge voltage cut-off: 3.6V
Discharging cut-off: 2.5V
Life Cycle (0.3c Charging-Discharging, 80%DOD): 2000
Maximum Discharging Current (10 sec.):10C - 1800 Amps
Internal Impendance (1khz Ac, m-&#8486): Less Than 0.8
Chemistry: LiFePO4
