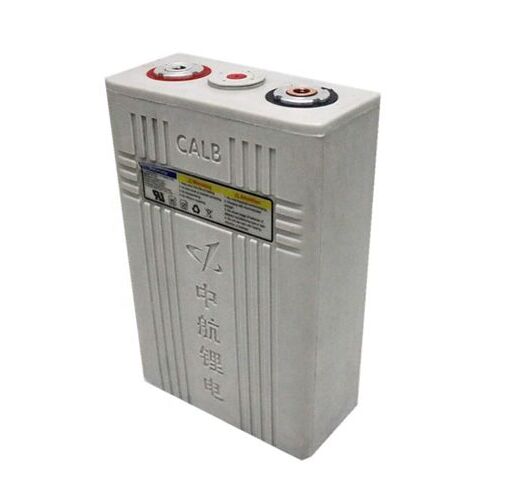

ZERO VOLT - CALB CA100 3.2V 100AH LIFEPO4 PRISMATIC CELL
Regular price
$10.00
Here are CALB CA100 3.2V 100AH batteries that were salvaged. When these were in the original medical application the BMS slowly drained these down to 0V but you should be able to salvage them as there are no indications of bloating or leaking coming from the terminals! These are sold as is with no guarantees!
Capacity: 100Ah
Height: 216 mm (8.5 inch)
Width: 67 mm (2.64 inch)
Length: 140 mm (5.5 inch)
Weight: 3.4kg (7.5 lbs)
Bolt Size: M8
Voltage nominal: 3.2V
Charge voltage cut-off: 3.6V
Discharging cut-off: 2.5V
Life Cycle (0.3c Charging-Discharging, 80%DOD): 2000
Maximum Discharging Current (10 sec.):10C - 1000 Amps
Internal Impendance (1khz Ac, m-Ω): Less Than 0.8
Chemistry: LiFePO4
