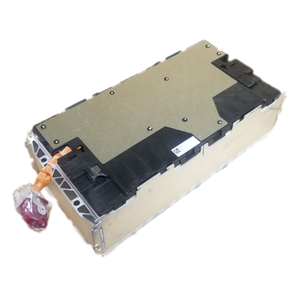

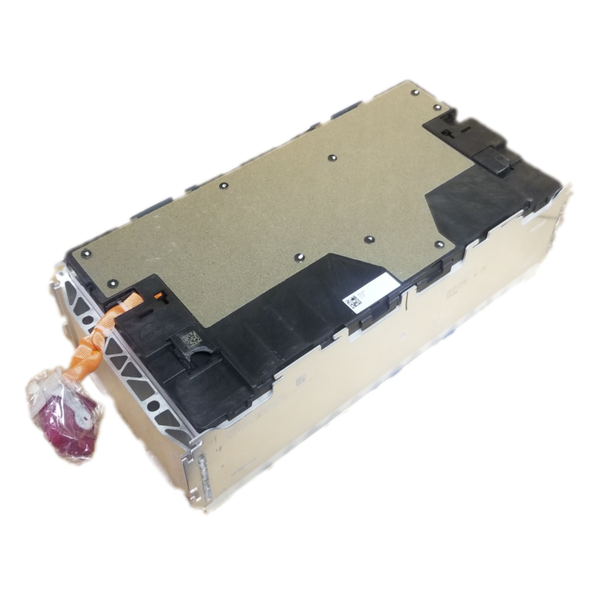

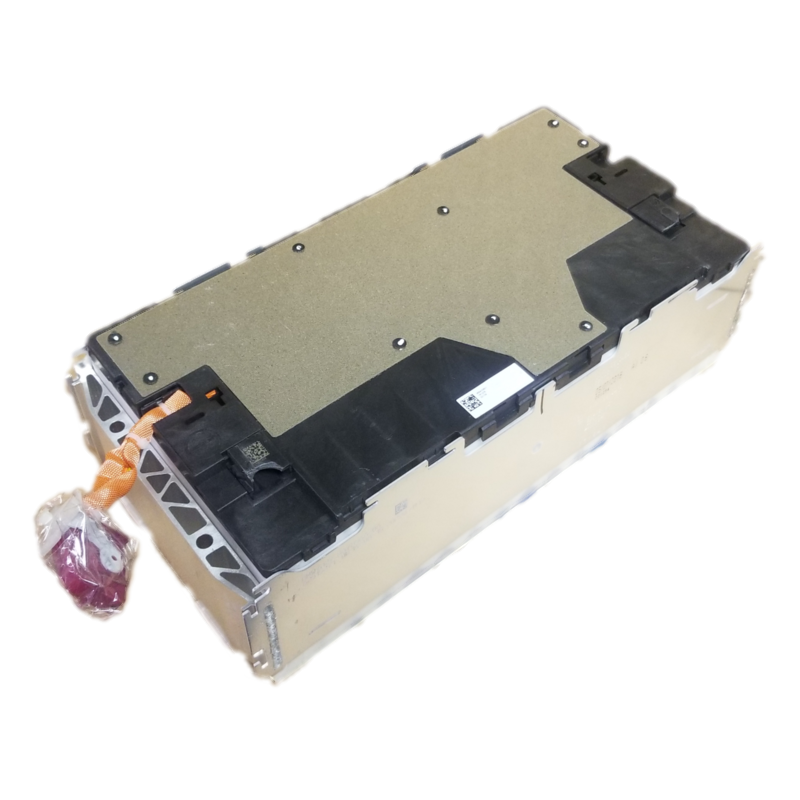

BMW OEM 8s 28.8v 70ah 2kWh with LEADS

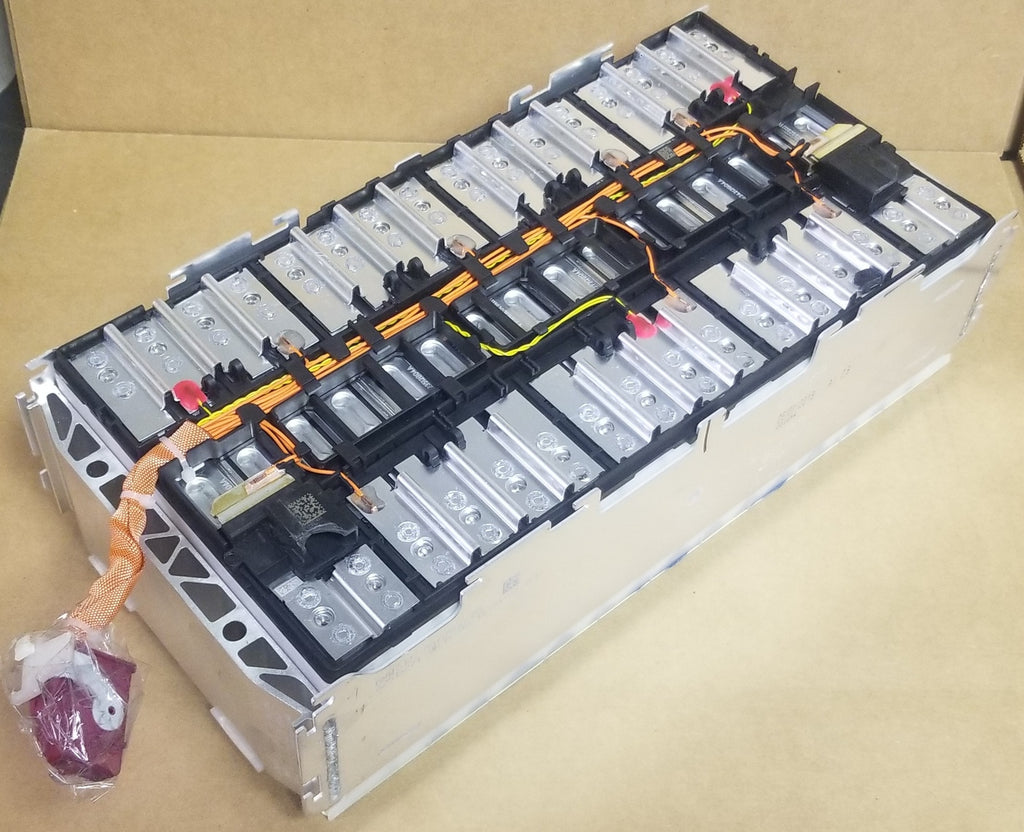

These modules come with the wiring harness so you can easily connect your balance leads for your bms. The connector is proprietary so you can't find the male end but the wiring is already soldered to the batteries so it will save you that time.
Here are awesome BMW batteries at Kia prices! These modules are testing above 90% of original capacity and they are built like tanks! They use 35ah Samsung cells. The module is 8s2p. You can buy 2 modules, series them together, and have an amazing 16s powerwall. If you have an EV conversion, golf cart upgrade, powerwall, etc. These batteries are built to last,. fully balanced, and guaranteed!
We don't have too many of these in stock so get them while they last. We recommend using a Daly brand bms, 8s lithium ion or if you are going to series 2 of these together then a 16s li-ion Daly bms will be perfect. You can connect to the main positive and negative with alligator clips or just solder to the busbars. Super easy battery pack to work with.
If you have an inverter that accepts up to 64v input this is a perfect battery for a powerwall. Just wire 2 of these in series and use 1 BMS. Of course since this is an EV battery these are great for EV, golf carts, forklifts, ebikes, etc as well.
Chemistry: Lithium Ion
Nominal Voltage: 28.8
Fully Charged Voltage: 33.6
Fully discharged Voltage: 22.4
Recommended Max Charge rate: 70a (1c) (2000w)
Recommended Max Discharge rate: 210a (3c) (6000w)
Pulse Discharge rate (10 seconds): 350a (5c) (10,000w)
Measurements: 14.5" x 7" x 4"
Weight: 28.65 lbs.
Here's a helpful BMS wiring video by a fellow DIY battery community member. Give him a subscribe and let's support the community.
