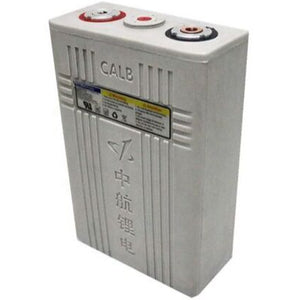

CALB CA100 3.2V 100AH LIFEPO4 PRISMATIC CELL - FULLY TESTED
Battery Hookup

CALB CA100 3.2V 100AH LIFEPO4 PRISMATIC CELL - FULLY TESTED

Regular price $25.00 $0.00 Unit price per

Every battery is fully tested and comes with the complete test printout with graph. The D-CC reading will show the capacity. You can choose the tested capacity in the drop down box.

These were salvaged from medical packs and in excellent condition.

They don't make these anymore with this type of enclosure material.

Capacity: 100Ah
Height: 216 mm (8.5 inch)
Width: 67 mm (2.64 inch)
Length: 140 mm (5.5 inch)
Weight: 3.4kg (7.5 lbs)
Bolt Size: M8
Voltage nominal: 3.2V
Charge voltage cut-off: 3.6V
Discharging cut-off: 2.5V
Life Cycle (0.3c Charging-Discharging, 80%DOD): 2000
Maximum Discharging Current (10 sec.):10C - 1000 Amps
Internal Impendance (1khz Ac, m-&#8486): Less Than 0.8
Chemistry: LiFePO4
