A123 36V MODULE with 48 26650 ANR26650M1-B

Battery Hookup

Regular price $59.99

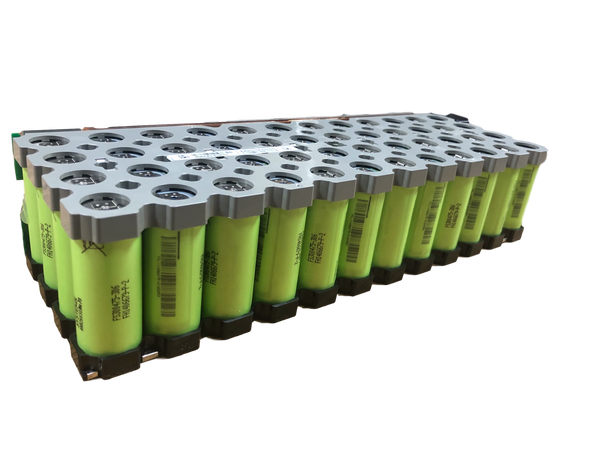

36V EMC MODULES WITH 48X A123 26650 ANR26650M1-B CELLS!

WE CAN SHIP UP TO 5 IN A BOX. IF YOU ORDER MORE THAN 5 IT MAY SAY WE CAN'T SHIP, JUST BREAK THE ORDER DOWN TO QUANTITIES OF 5 AT A TIME. IT SHOULD SAVE YOU ON SHIPPING COSTS TOO.

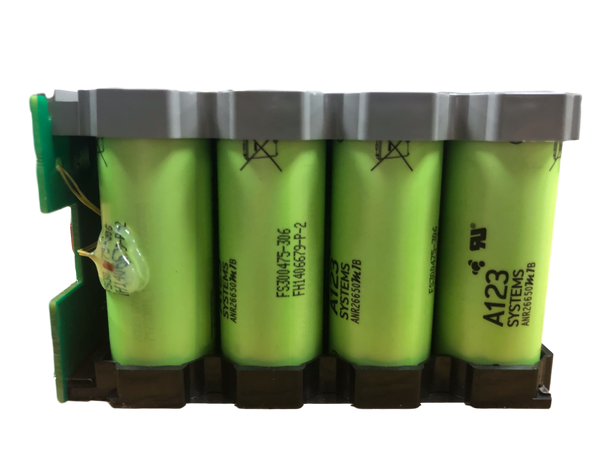

THIS PACK IS 12S4P. 39.6V, 9.2AH, 364WH. YOU SHOULD BE ABLE TO DISASSEMBLE THESE INTO 12V 4S4P PACKS. YOU WILL NEED A T8 SECURITY BIT TO OPEN THE CASE, ONE THAT IS AT LEAST 2 INCHES LONG. THERE IS A SCREW UNDER THE STICKER AND

THIS DEAL WILL PROBABLY SELL OUT FAST AT JUST $1.25/CELL. WE TESTED A LOT OF THESE AND THE CELLS TEST OUT GREAT SINCE THESE WERE USED IN A HOSPITAL SETTING. THE PACK IS BEAUTIFUL AND ALL THE CELLS ARE TESTED. WE ARE GUARANTEEING NO DEAD CELLS!

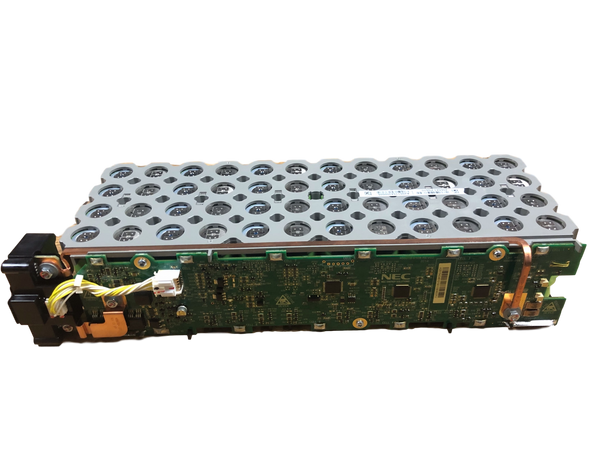

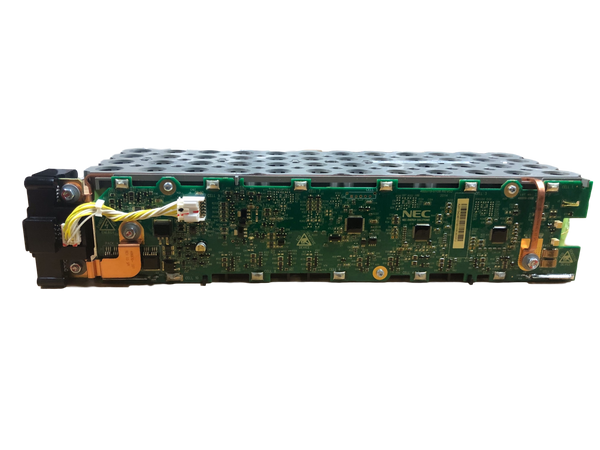

THE BMS IS PROPRIETARY, MAYBE YOU CAN FIGURE OUT THE OUTPUT BUT WE RECOMMEND KEEPING THE BMS IN PLACE FOR THE BALANCING FEATURE WHICH STILL WORKS AND ADDING YOUR OWN BMS FOR CHARGING AND DISCHARGING. OR BREAK DOWN AND THE SALVAGE THE VALUABLE CELLS. YOU CAN ALSO RECOVER SOME GOOD COPPER AND HIGH GRADE PCB FOR SCRAP.

THIS WOULD BE A GREAT OPTION FOR AN EBIKE, POWERWALL, FORKLIFT, GOLF CART, ETC.

THIS IS ONE OF OUR POP UP DEALS THAT WE HAVE LIMITED QUANTITY OF BUT WE NEED TO CLEAR SOME SPACE HERE IN THE WAREHOUSE AND YOU ALL NEED SOME GREAT DEALS!

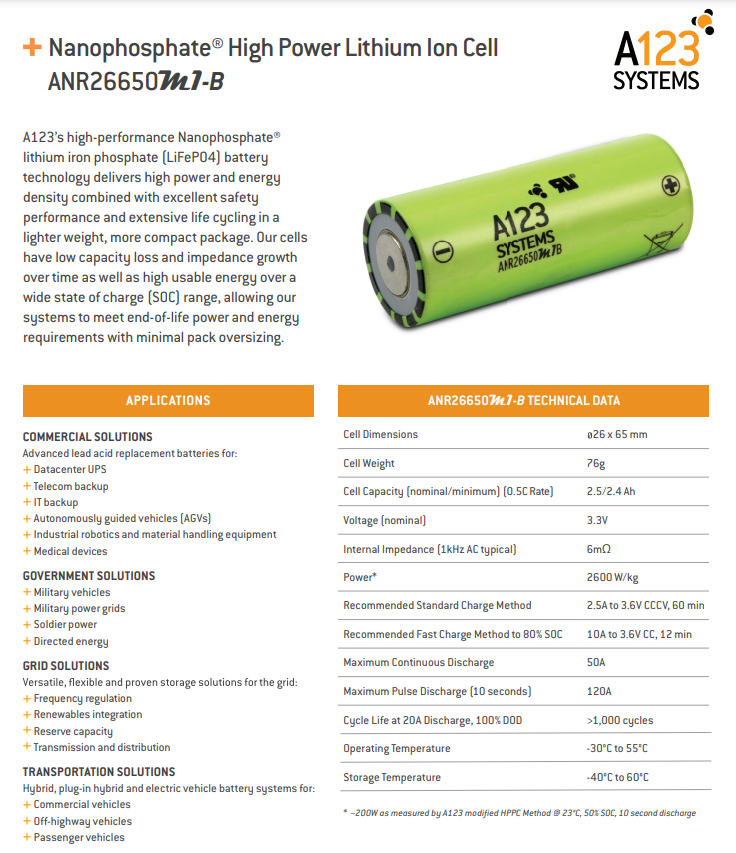

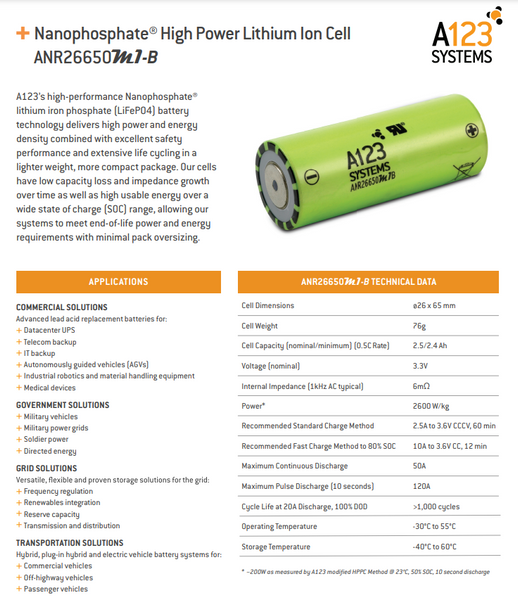

CHECK OUT THE AWESOME SPECS OF THE CELLS. THIS IS THE BEST A123 LIFEPO4 CELL ON THE MARKET AND THE NEWEST VERSION. SPEC SHEET IS ALSO IN OUR PHOTOS.

ANR26650M1-B Specifications
 Nominal Ratings
  Voltage: 3.3 Volts
  Capacity: 2.5 Ah
  Energy: 8.25 Wh
  Specific Power: 2600 W/kg
  Impedance (1KHz AC Typical) 6 mΩ
  Cycle Life at 1C/1C, 100% DOD: > 4000 cycles
  Cell Type: 26650 Lithium Ion Power Cylindrical Cell

 Discharging
  Max Continuous Discharage: 50 A
  Max Pulse Discharge Current >50% SOC (10s): 120 A
  Minimum Voltage: 2 Volts
  Temperature: -30ºC to 55ºC

 Charging
  Recommended Standard Charge: 2.5 Amps
  Max Charge Rate: 10 Amps
  Max Pulse Charge Current <50% SOC (10s): 25 A
  Float Voltage: 3.45 Volts
  Recommended charge V & Cut-off Current: 3.6 Volts, taper to 125mA
  Temperature
    (reduce charging current to 250mA when under 0ºC): 0ºC to 55ºC

 Mechanical
  Diameter: Ø25.96 +/- 0.5 mm
  Length: 65.15 +/- 0.5 mm
  Mass: 76 g

 Certifications
  Transportation: UN 3480 (UN38.3), CIQ
  Safety: UL 1642, IEC 62133
