8x Panasonic NCR18650A cell module - Drager
Regular price
$8.00

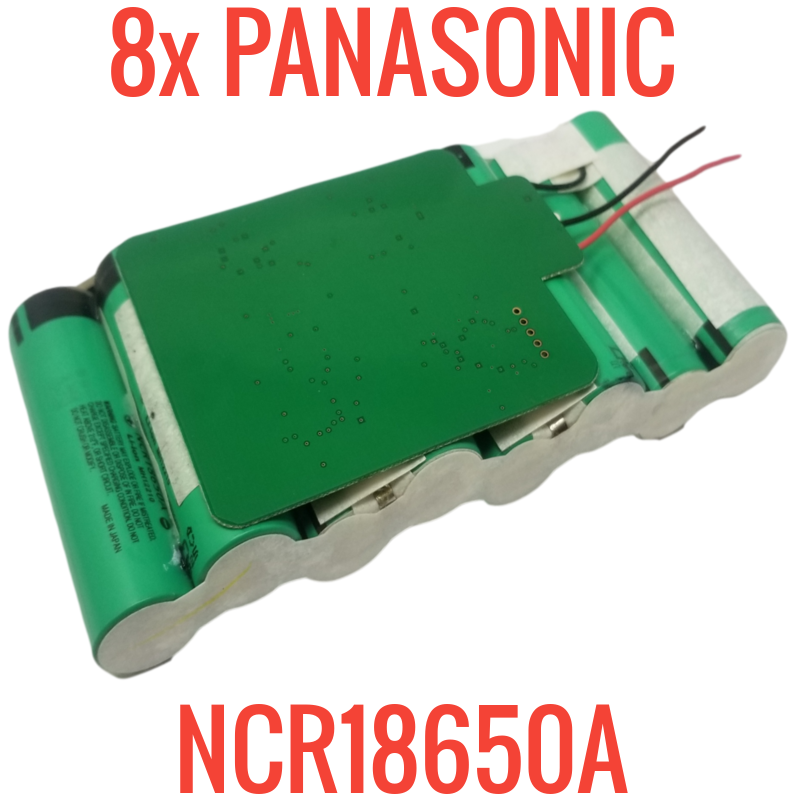

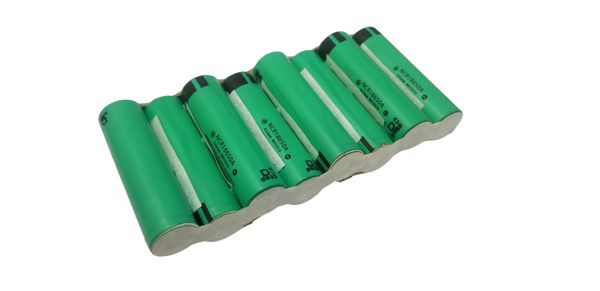

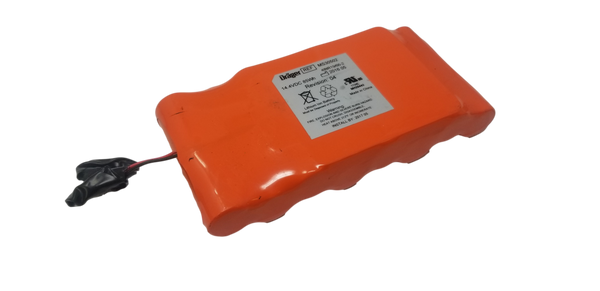

Here are cool little 8 cell 18650 packs. They consist of 8x Panasonic NCR18650A cells. There is also a BMS but since these are untested the value is just the cells. The pack might work but they are untested. The cells are in 4s2p configuration. These are from infinity gamma patient monitors which are medical devices. Typically medical batteries test really well after use because the hospitals swap them out with very few cycles of use. The BMS may be proprietary but it's not certain. Great source for $1 NCR18650A Panasonic cells.
![]() |
|
Brand: | Panasonic |
Model: | NCR18650A |
Capacity: | 2900mAh Rated |
Voltage: | 3.60V Nominal |
Charging: | 4.20V Maximum 1475mA Standard --- mA Maximum |
Discharging: | 2.50V Cutoff 580mA Standard 5800mA Maximum |
Description: | Green Cell Wrapper White Insulator Ring 18650 Form Factor |
