Battery Hookup

8x 3p 3.7v 7800mah Molicel ICR18650K 24 2600mah cells

Regular price $24.00 $0.00 Unit price per

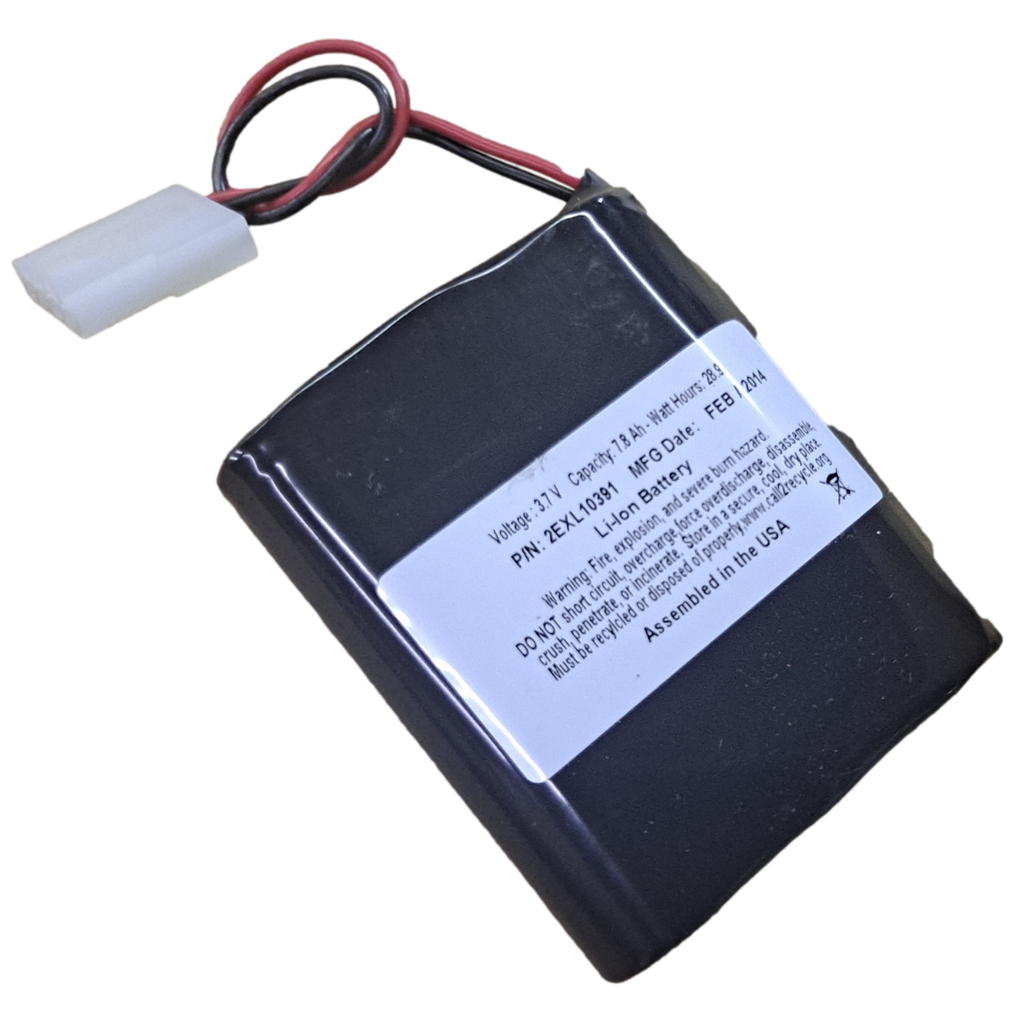

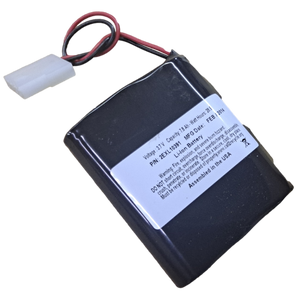

These 3p modules are overstock and were never cycled. You get 24 cells per box. The 24 cells are connected into 8x 3p packs. So you will get 8 packs that are 3.7v 7.8ah 28.9wh. We tested hundreds of these cells and they all tested above 2600mah. With these packs since they are in 3p configuration and they have the red and black wires coming out you can easily series these packs together. 7 packs you can make a 24v 7.8ah module and 14 packs you can make a 48v 7.8ah module. Not sure what the connector is but I would just clip the wires and make your connections with B-wire/Dolphin style connectors. You can even splice the BMS balance leads in as well.

The wires seem a little thin so I would recommend to charge and discharge these 7.8ah modules at 0.5c (3.9a) at most. Of course you can always salvage the cells or add thicker nickel and wiring but to use these as is I would keep the amps per pack lower.

If you make a 7s3p module out of 7 of these packs you would be looking at 25.9v nominal at 7.8ah. 202wh. I would charge and discharge that pack at most 100w using the original wiring and nickel already on the packs.

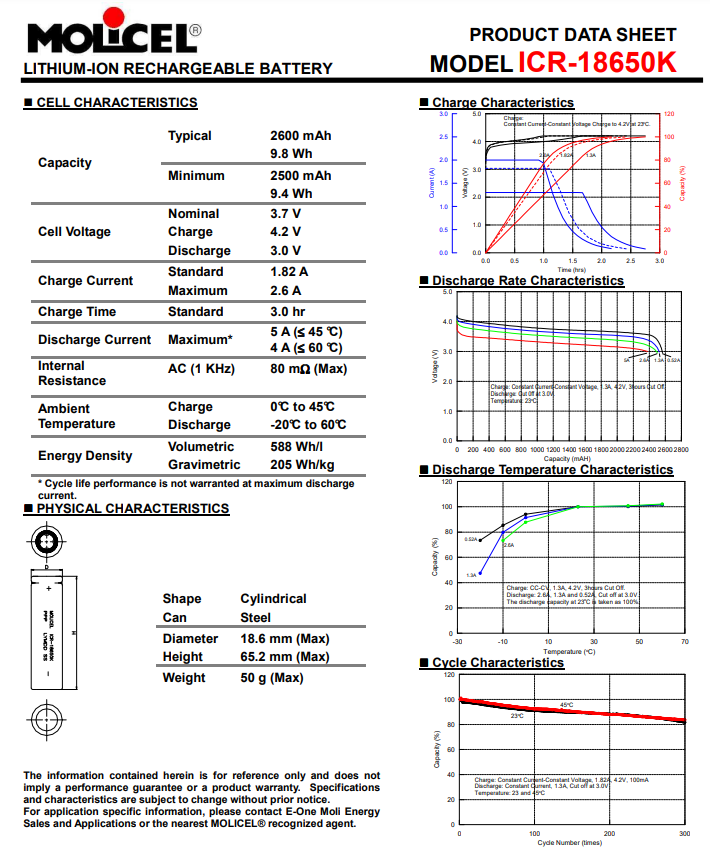

Specs of the cells are in the 2nd photo.
