COMPLETE KIT 8 Pack SAB 3.2v 55ah - 12.8v 110ah

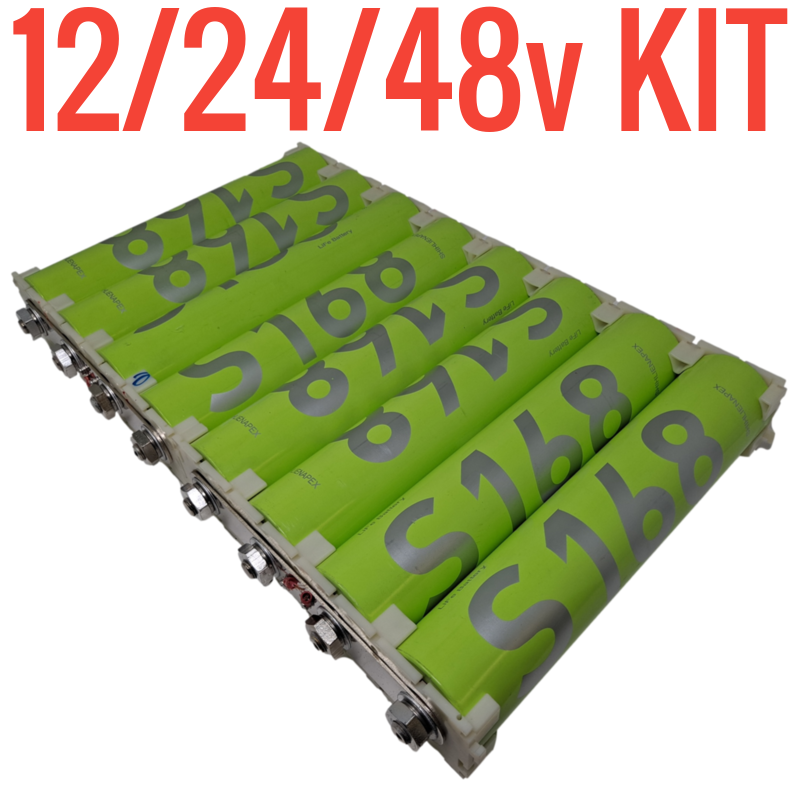

With this kit you have everything you need to assemble a 12.8v 110ah 1408wh battery with just 1 box. 2 boxes you can make a 24v pack, 3 boxes 36v, and 4 boxes 48v pack. This is a professional kit with everything you need to assemble a pack in just minutes.

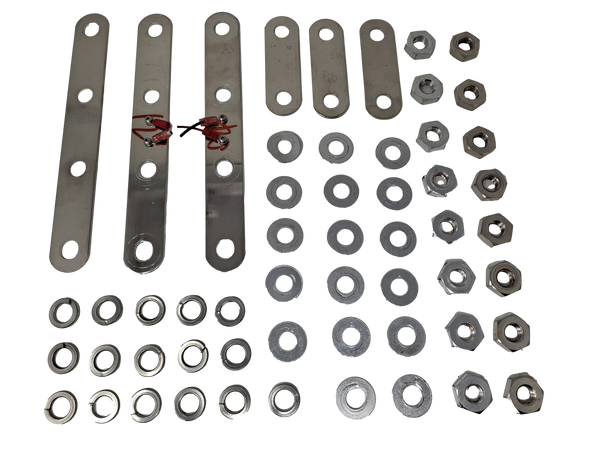

Each box comes with:

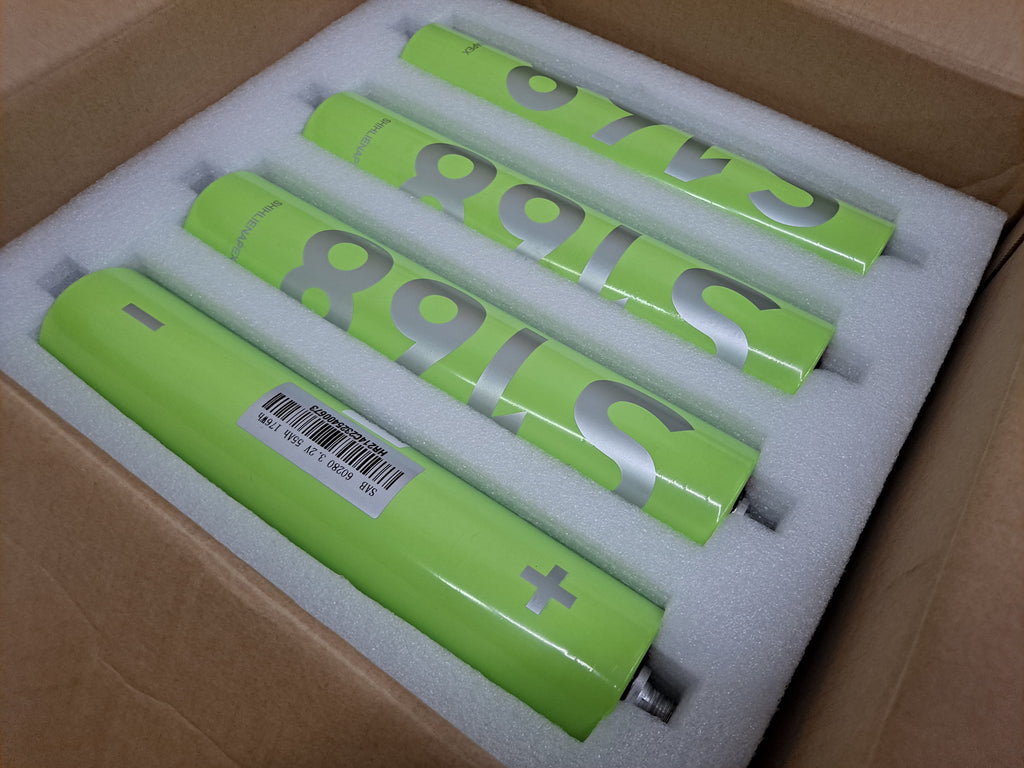

8 cells

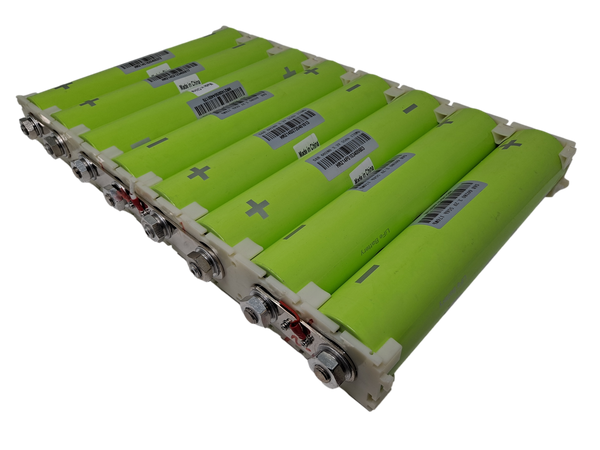

16 cell holders (for both sides as shown in the photo)
8 aluminum nuts (for negative cell connections
8 nickel plated copper nuts (for positive cell connections)
16 washers
16 lock washers
3x nickel plated copper 4 cell busbars
3x nickel plated copper 2 cell busbars

We include an extra 2 cell busbar in case you want to make a 24v pack with 2 cases you'll have the busbar to make that bridge connection. This whole pack can be assembled with a wrench and the busbars even have holes and screws for your BMS balance leads. This kit does not get any easier to assemble. NO COMPRESSION NEEDED.

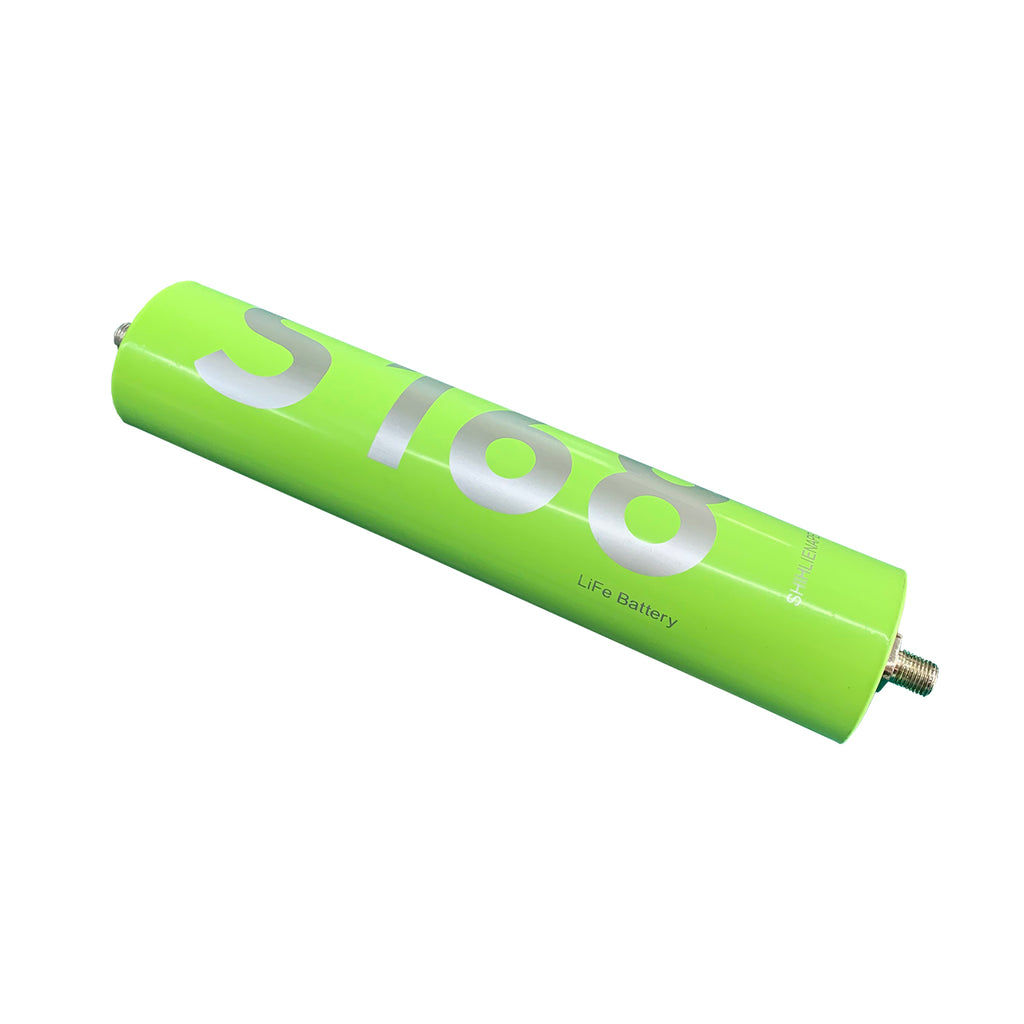

This is an amazing deal for 2500 cycle rated cells. These are lifepo4 batteries that do not need compression like prismatic cells and perfect for many different applications. These batteries came out of new, overstock EV modules. Every battery has been fully tested ABOVE 55ah. Most in the 58-59ah range. Overall just beautiful cells.

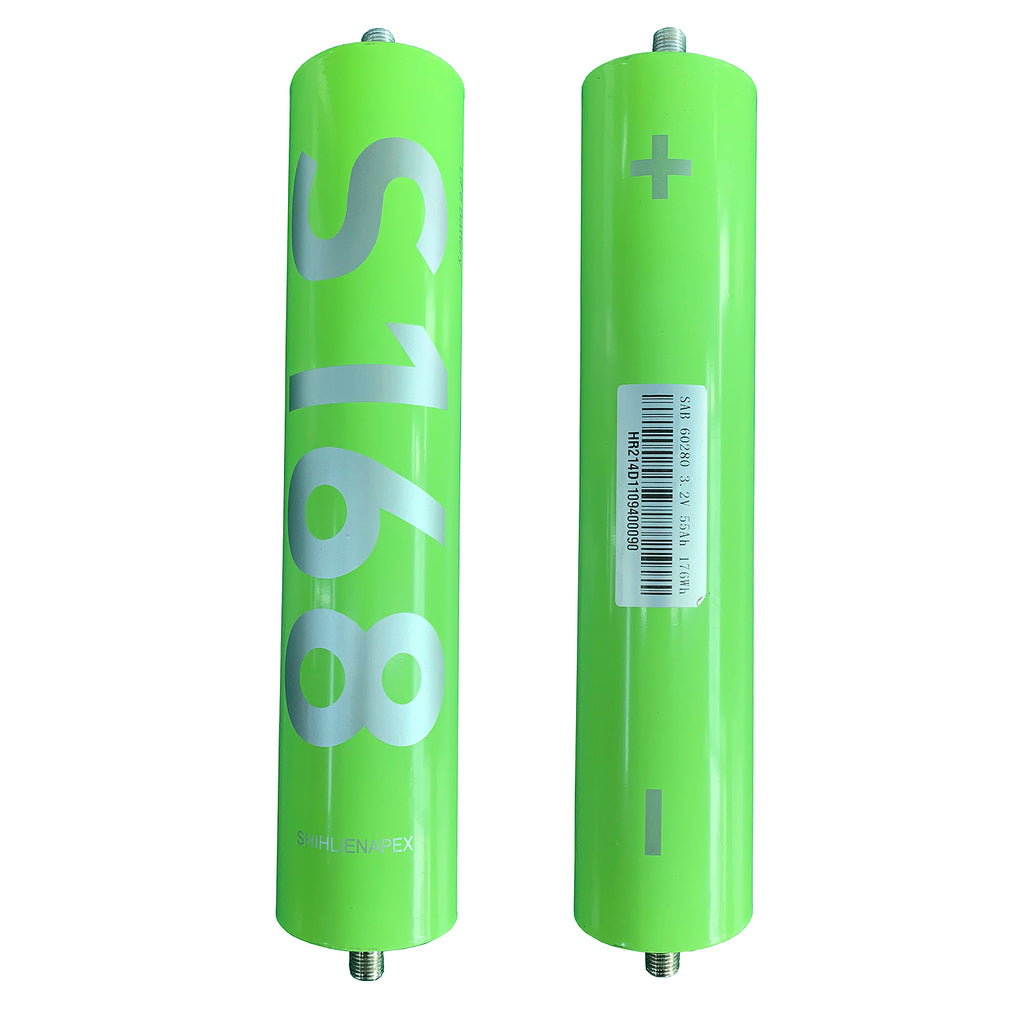

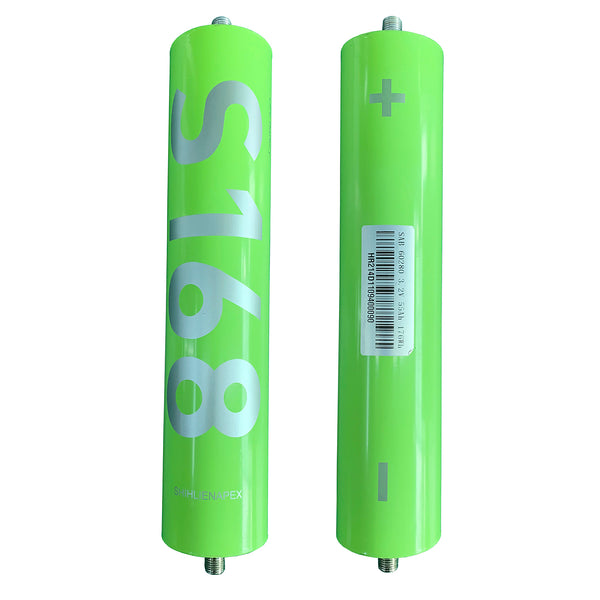

3.2v nominal
3.65v fully charged
2.5v fully discharged
Recommend max charge 55a (1c)
Recommended max discharge 110a (2c)

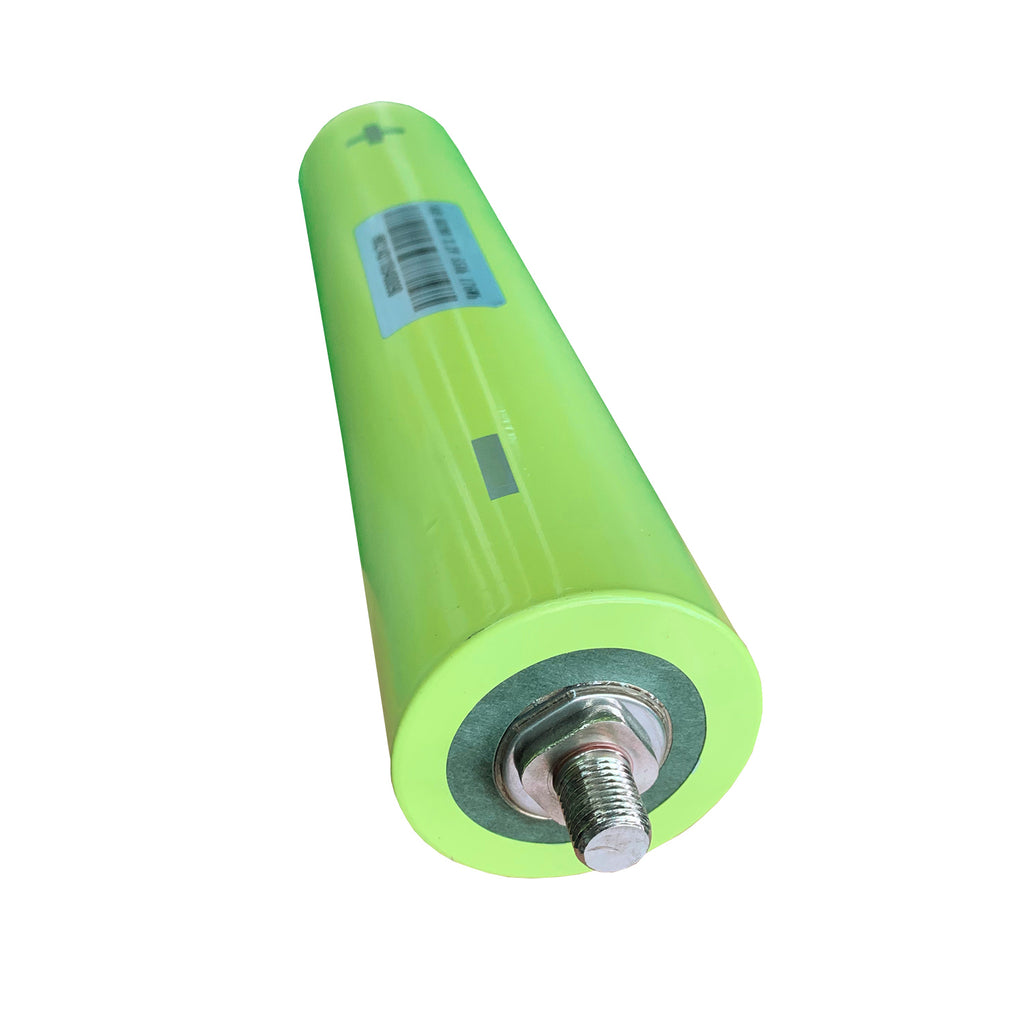

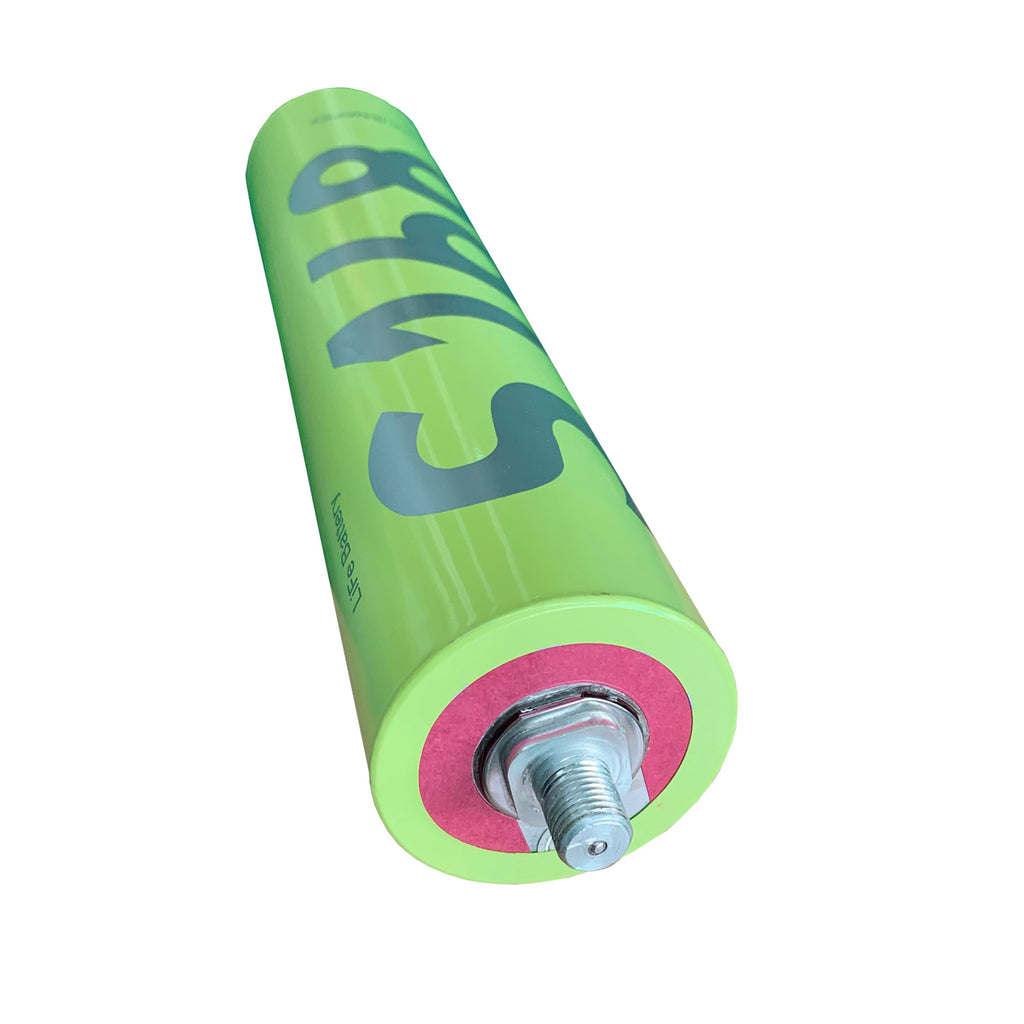

Threaded posts are extra thick, roughly 1/2" diameter. Nuts are not included but certainly can be found at Home Depot or Lowes.
Dimensions are 60mm x 280mm

1 case you can make

4s2p 12.8v (12v) 110ah 1408wh
8s1p 25.6v (24v) 55ah 1408wh

2 cases you can make

4s4p 12.8v (12v) 220ah 2816wh
8s2p 25.6v (24v) 110ah 2816wh
16s1p 51.2v (48v) 55ah 2816wh
