6s4p 21.6v 6ah Lithium Ion Module 24x 18650 HB2 Cells

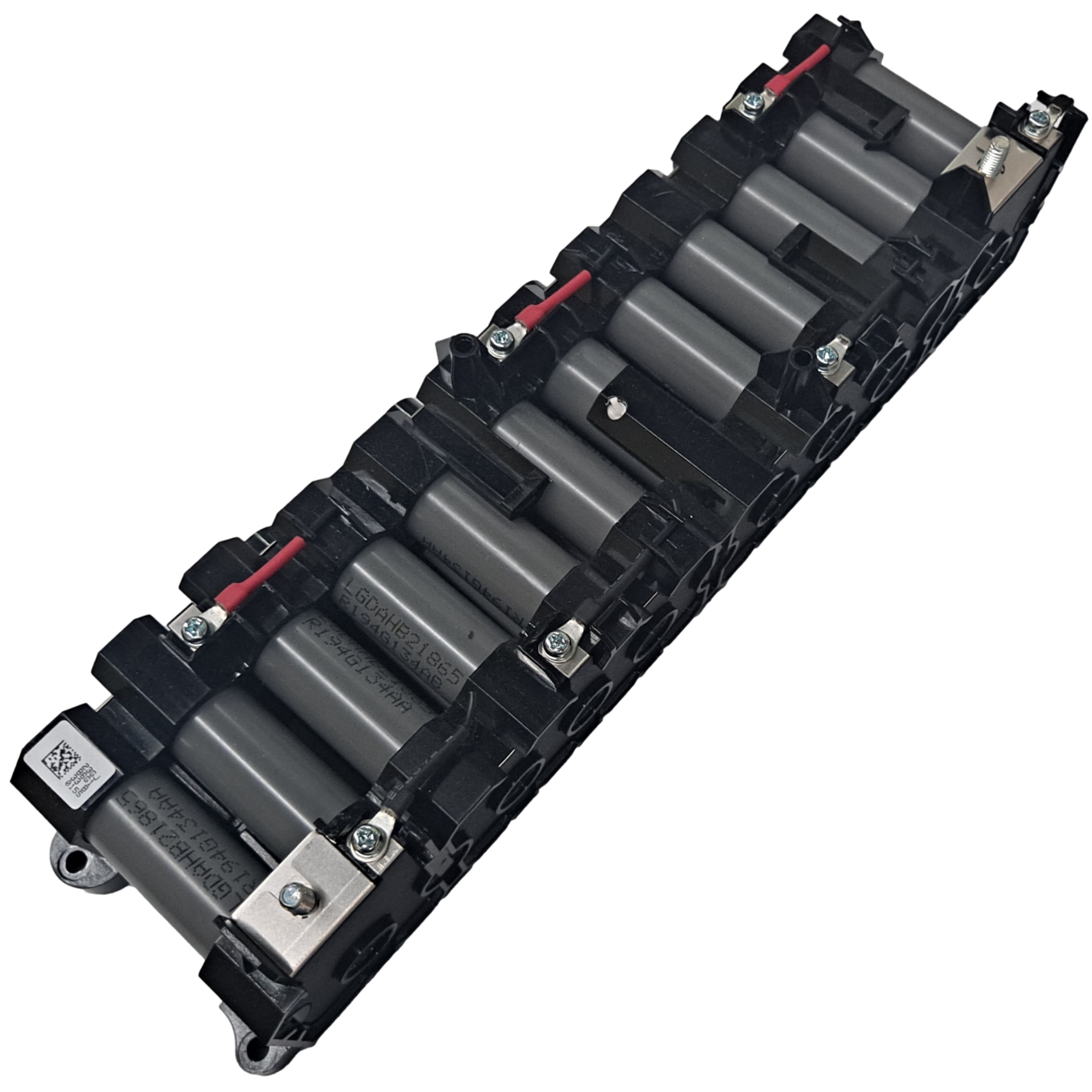

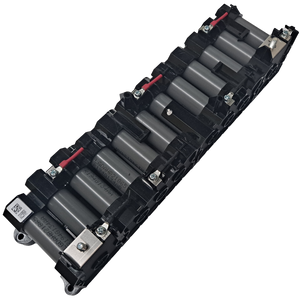

These modules were used as backup only. They have 24 HB2 18650 cells which are one of the highest C rate power cells ever made in 18650 form. Each cell can handle up to 30a continuous. These modules are built like tanks. You can easily add small ring terminals to your BMS balance wires and make the connections with the included bolts as you can see in the photos.

You will just need 2x M5-0.8 nuts for the main positive and negative connections.

Weight of the module is 2.75 lbs.

Cells are in 6s4p. 21.6v 6ah packs. Super heavy duty cell holders and cells are already spot welded.

If you need a small 6s power pack this is it. The pack is built for up to 50a continuous discharge. It is an absolute beast. Such a small module (10" x 3" x 2") that can push 800w.

Fully charged voltage is 25.2v (4.2v per cell) and fully discharged voltage is 16.8v (2.8v per cell). We have 6s 30a BMS units that would work well with these.

Note: These modules come with grey or green cell wraps. Both are the same exact cells. Also perfect to just recover the cells and reuse for another project.
