4p 200a BUSBAR FOR SPIM08HP 16ah - Copper/Steel

These busbars are for the SPIM08HP 3.7v 16ah cells.

They fit 4 of the 16ah modules.

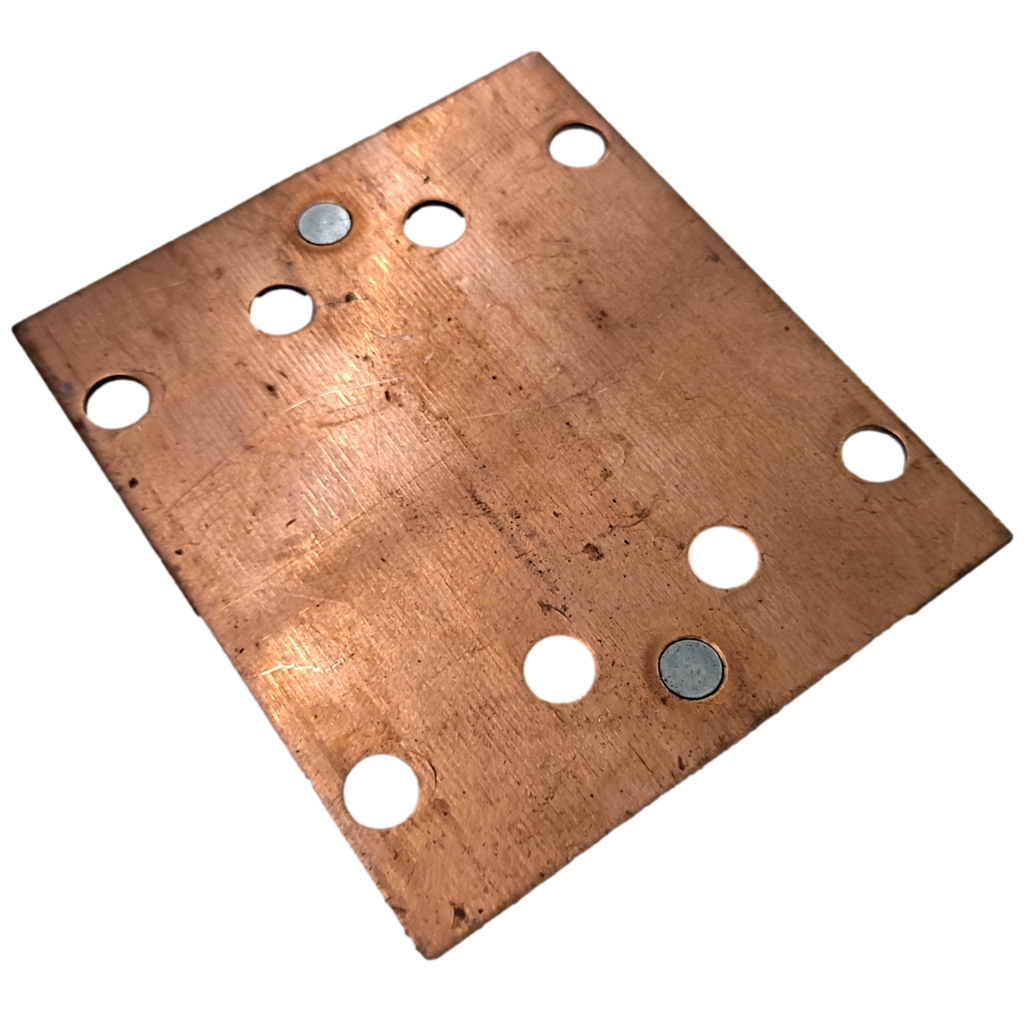

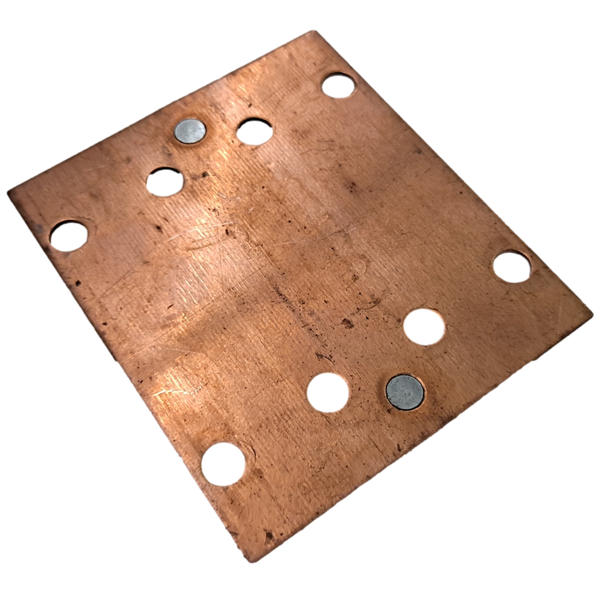

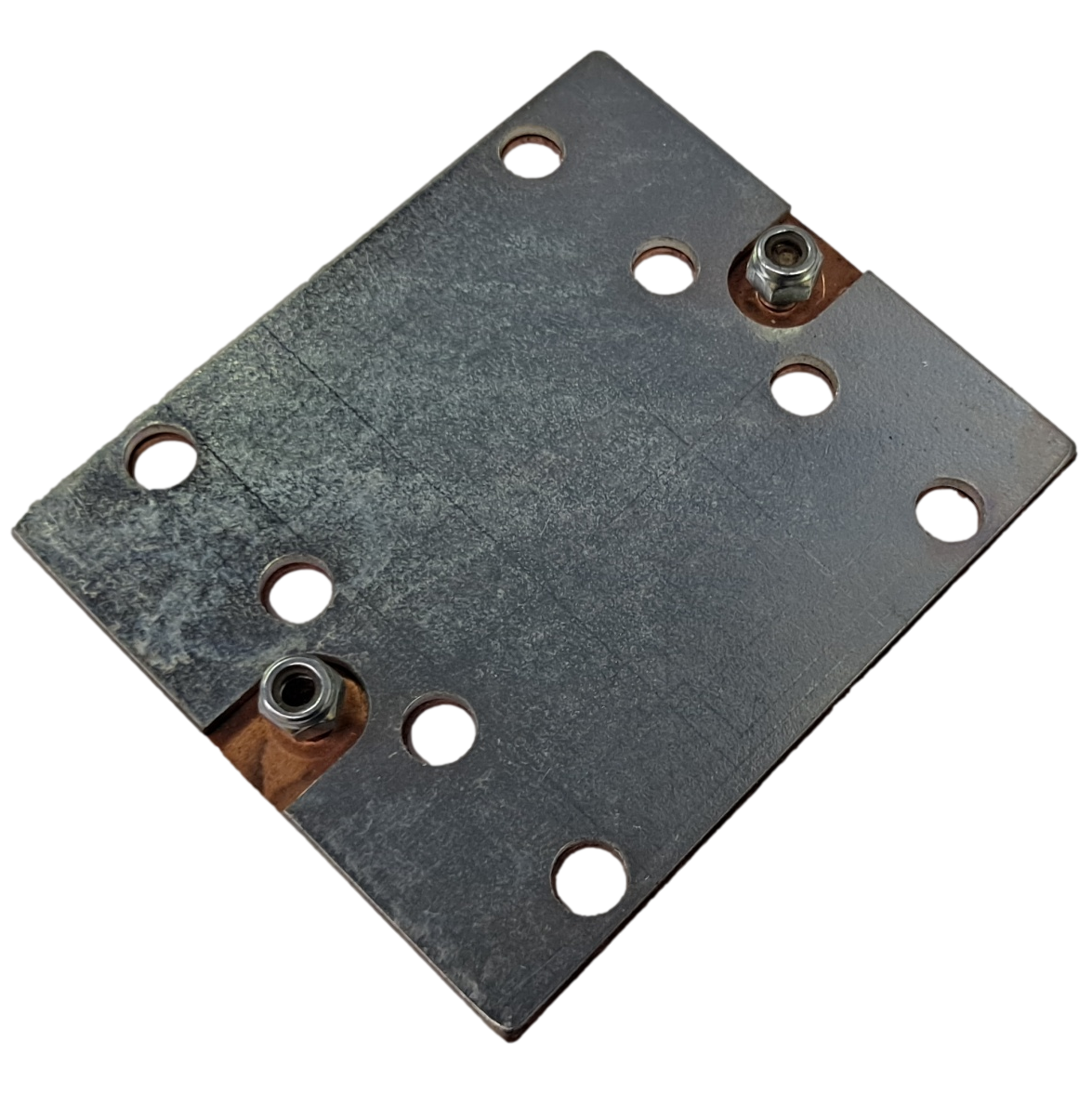

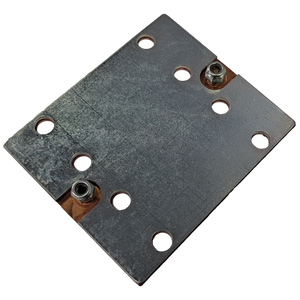

These consist of 2 layers. A 1/32" layer of copper on the bottom and a 1/16" layer of steel on top. This set up is perfect for up to 200a. These busbars also come with threaded posts and nuts so you can easily add a BMS balance lead with a ring terminal.

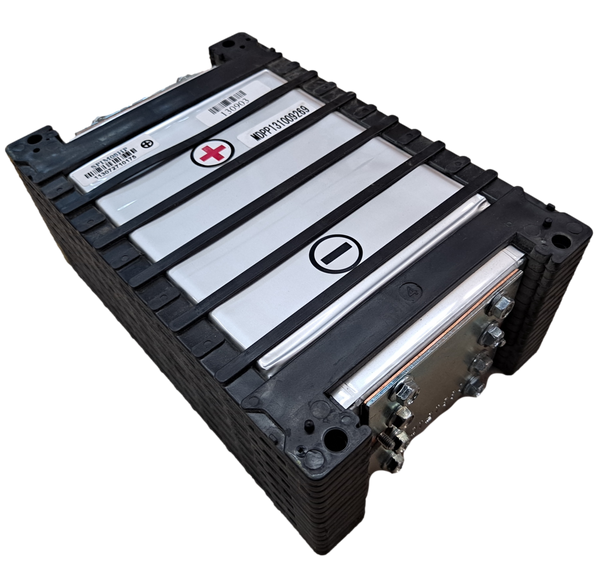

One use can be to connect 4x 16ah cells in parallel to make a 64ah module. You would need 2 of these for that. Sample shown in the 3rd photo.

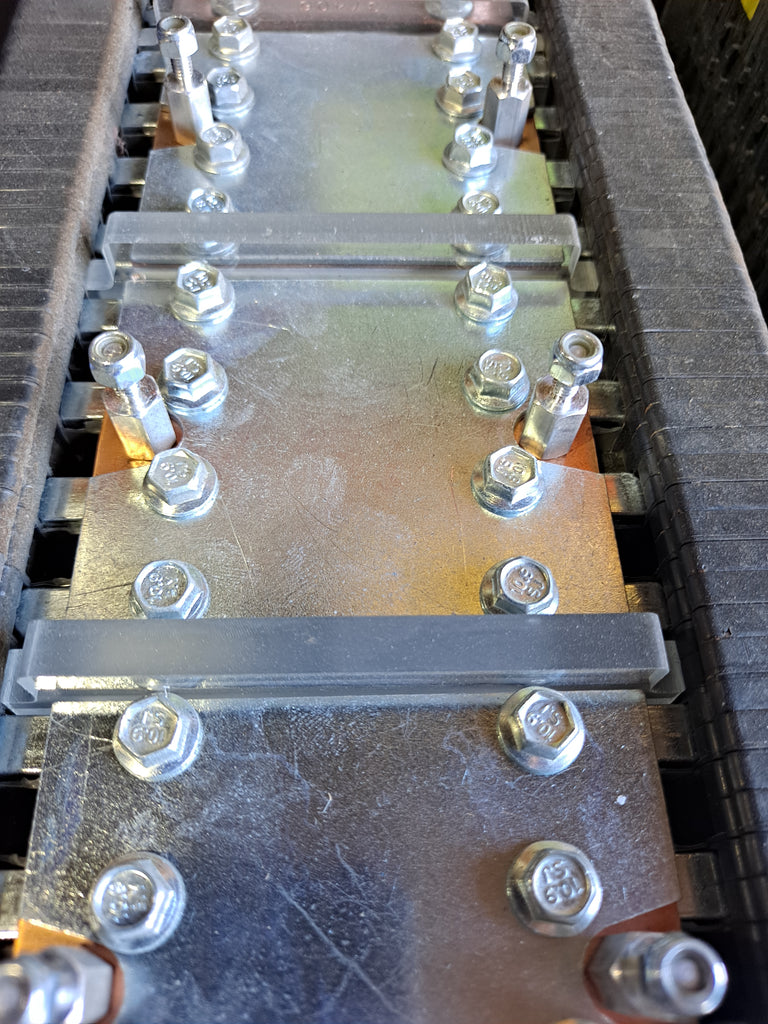

Another use is for series connecting 2p 32ah packs. Let's say you want to build a 7s 24v 32ah module. You would need 6 total of these and 2 total of the 2p ends. Or you can buy a 7th one of these and cut it in half for the 2p ends. Sample shown in 4th photo.

3 1/8" x 2 5/8"
