46v LTO Toshiba SCiB 20,000 cycles! 20x 20ah Cells

JUST 2 LEFT IN STOCK

These are amazing value LTO batteries. Each comes with 2x 10 cell modules wired in series. These were for start/stop EV modules and they appear to be unused. LTO can be discharged down to 0v and works excellent for car audio and also low temperature applications. There will be 20x 20ah cells that can be recovered from these modules.

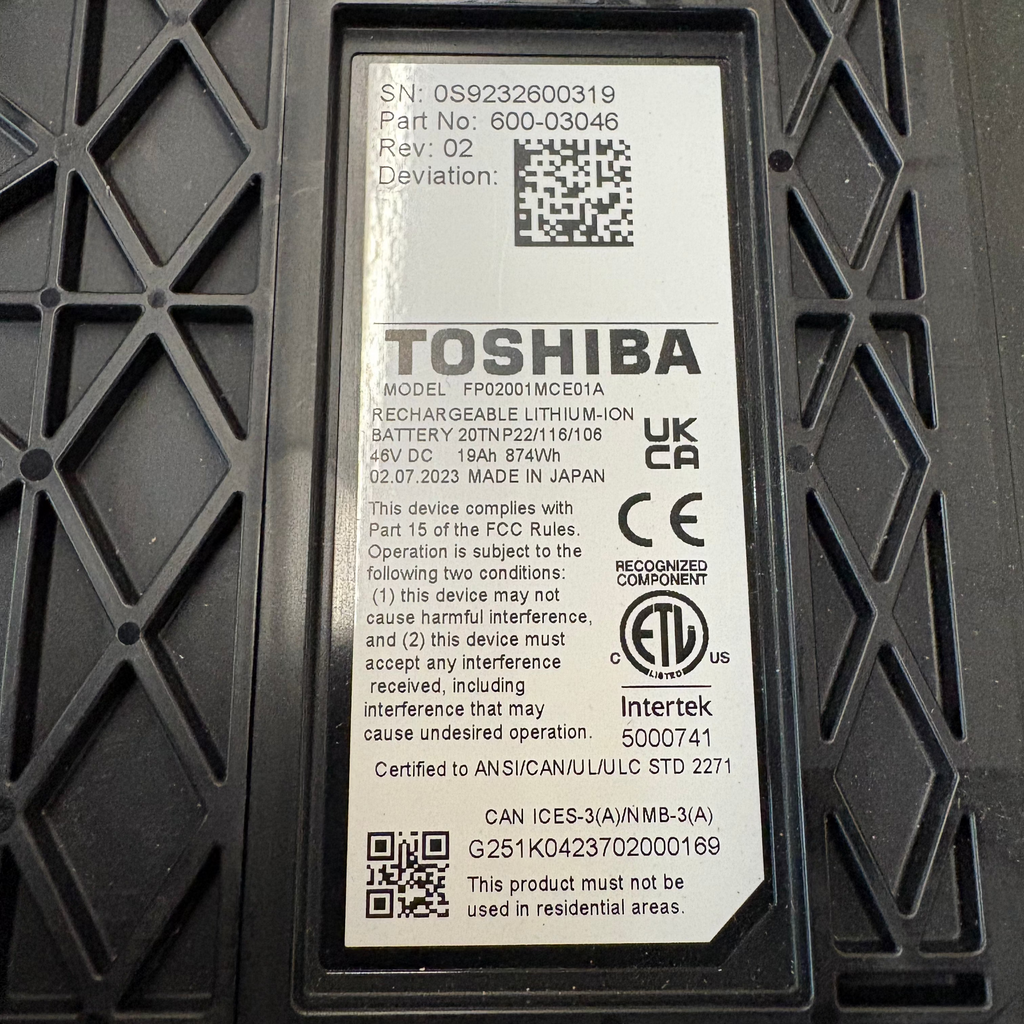

2x 10 cell genuine Toshiba SCiB LTO modules that are rated for 20,000 cycles. 20s makes a great choice for a 48v battery. The bms is proprietary and I don't think it will work without being connected to the application it was intended for but you will at least get a lot of accessories and thick cables to mess around with. Maybe you can get the bms to work but we are only selling these for the value of the 20 Toshiba SCiB LTO cells that are 20ah. If you build a battery out of these packs it will likely end up in your will. That's how long these will last.

The photo below shows the discharge curve of LTO cells.

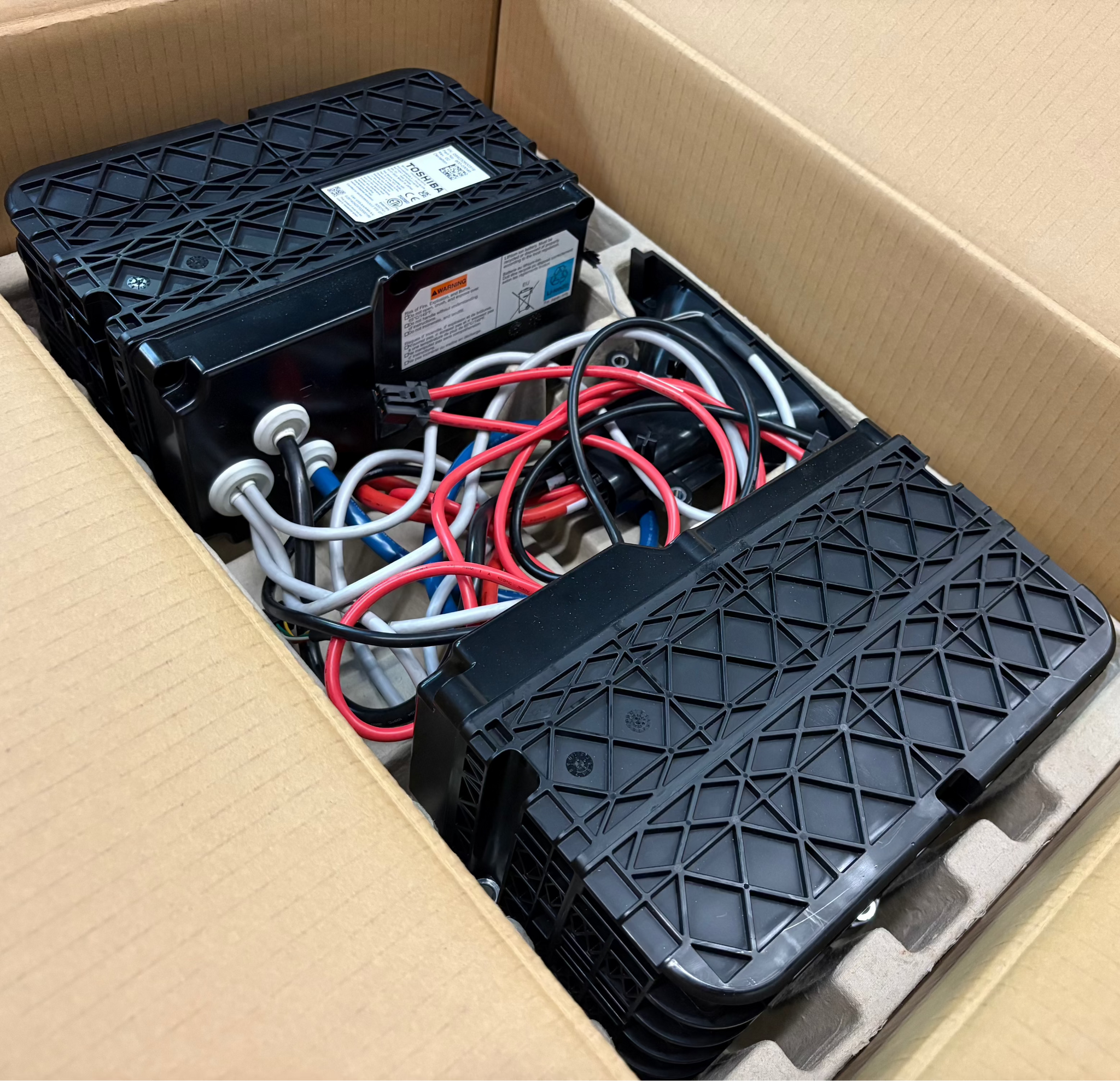

Comes in the original box.

As you can see, 1 of these packs in 10s form will fully charge to 26v (2.6v per cell) and at 20v (2v per cell) the bulk of the battery capacity is used. LTO can be fully discharged. The SCiB cells are rated down to 1.5v by spec.

LTO can be used even at -30 degrees Celcius.

Recommended max charge and discharge is 10c or 200a per cell.

If you want to configure these into different voltages you can easily cut the busbar connections with a dremel wheel. Each series connection has an area raised higher where you can cut without worrying about hitting the cells if done carefully.

Individual cell dimensions are 116mmx22mmx106mm. I'm sure you can take the cells out of the holder but I would recommend keeping the original busbars and spacing in tact. Its a professional connection that you can use. Just utilize the screw terminals to make your connections with wires and ring terminals. Makes this super easy, no soldering.
