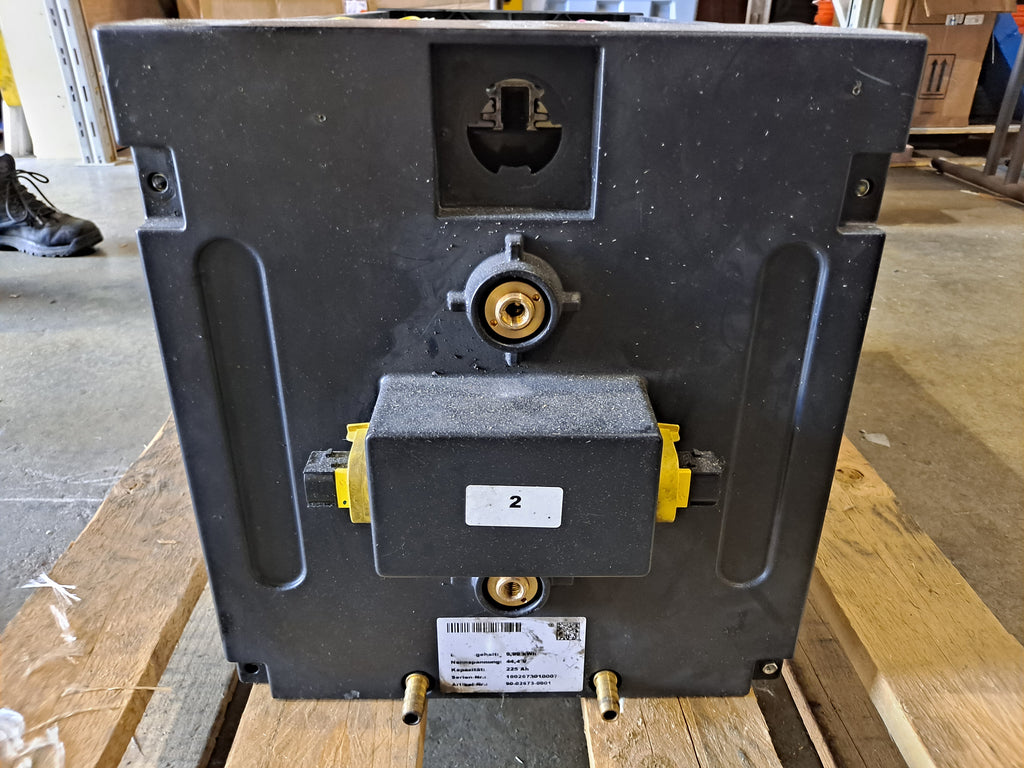

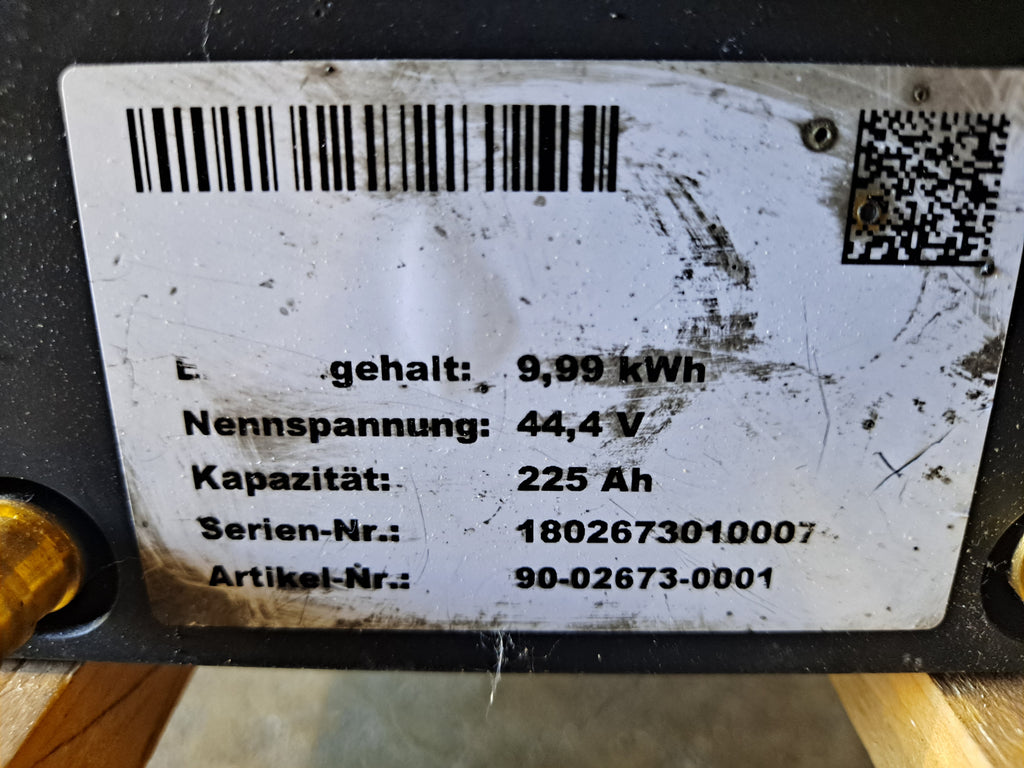

44.4v 225ah 10kWh Kokam module

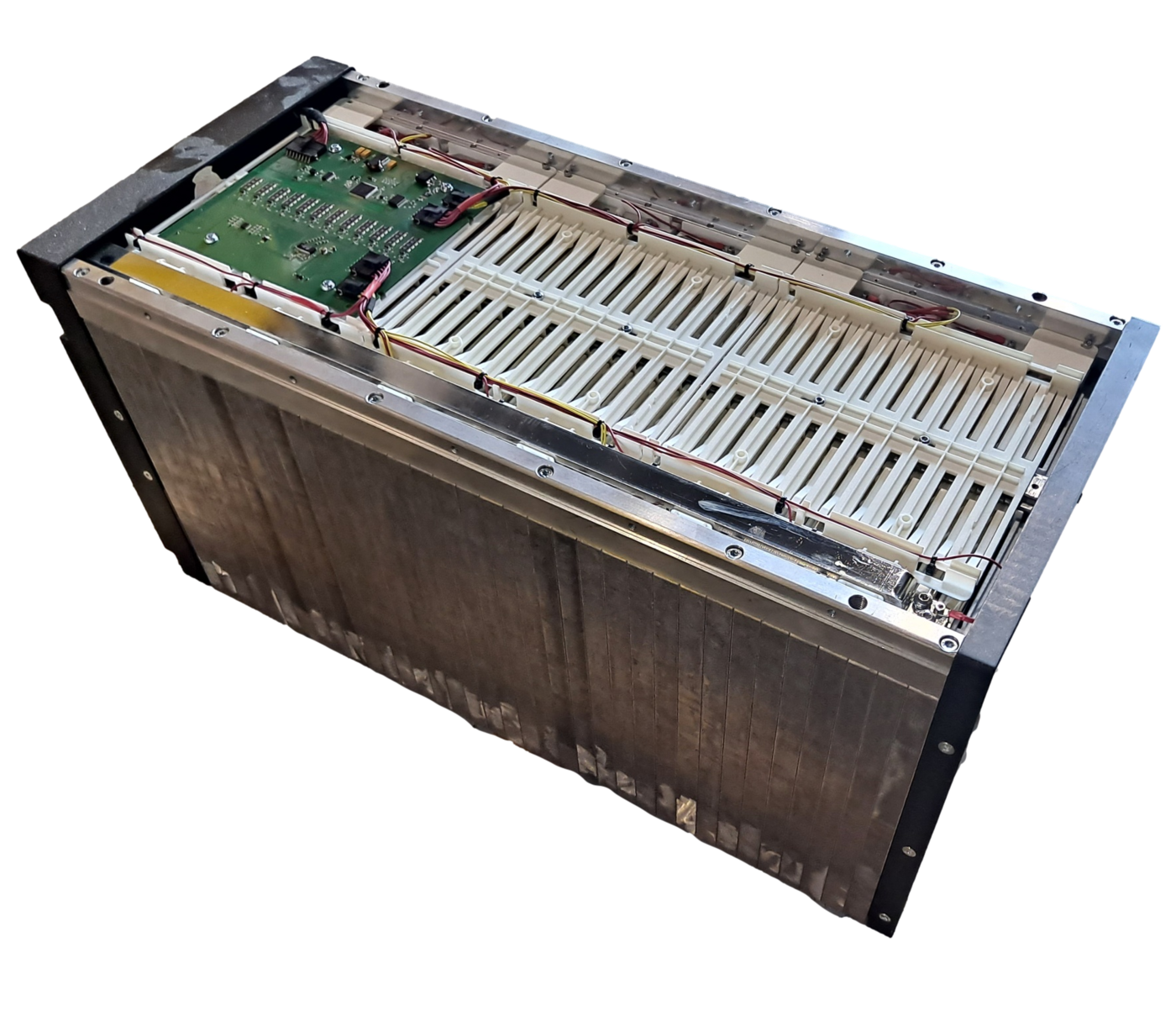

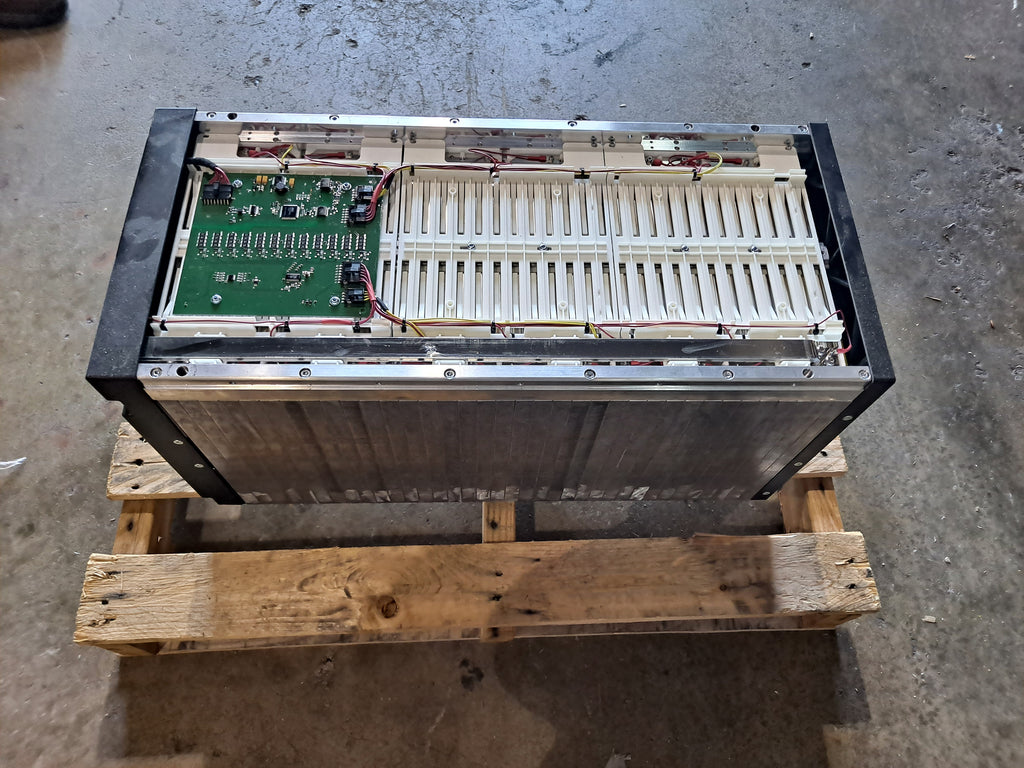

This module was removed from service due to a faulty BMS. The module is perfectly balanced and was only used for a month. This is the only one we have. Of course this one has to ship freight or you can pickup from our Bensalem, PA. We get excellent freight rates which is calculated at checkout and that includes lift gate and residential delivery. The module uses Kokam 75ah cells in 12s3p configuration. Easy access to the balance leads and busbars as you can see in the photo. If you have a golf cart with a 36/48v controller then this would be a simple drop in. Fully charged would be 4.2v per cell x 12 which is 50.4v. Fully discharged would be 2.8v per cell times 12 which is 33.6v.

Dimensions 27" x 13" x 12"

The busbars are more than enough to push 300a continuous and 600a burst.
