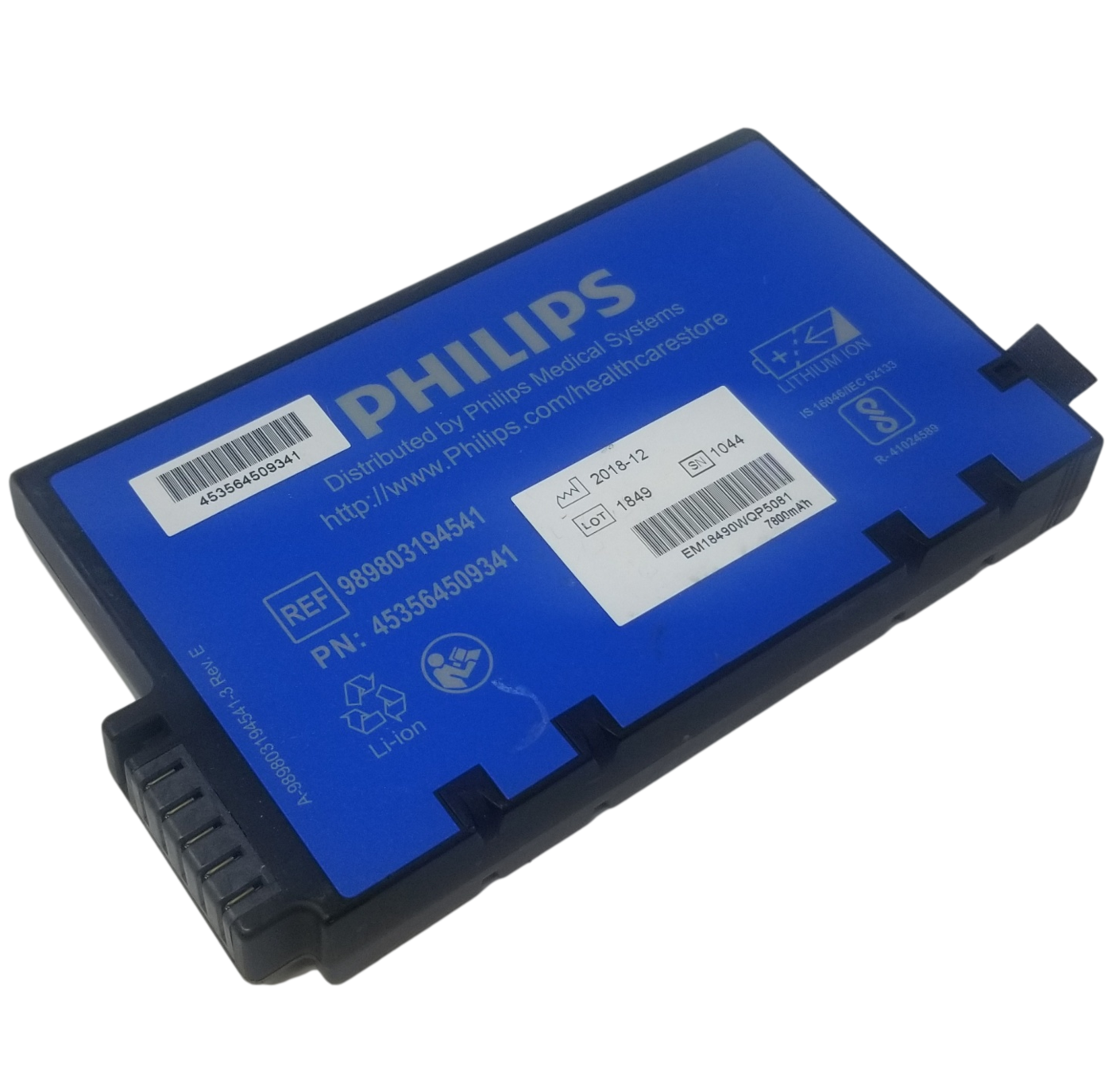

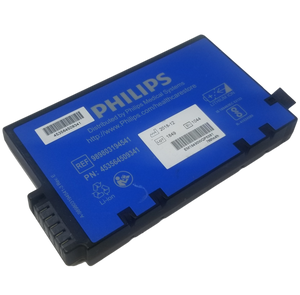

3s3p Molicel Module with 9 2600mah 18650 Philips 86.58wh
Regular price
$6.75
Here are really nice Molicel medical modules. These have 9x ICR-18650K 2600mah cells inside and are in 3s3p configuration. The greatest thing about medical batteries is they don't get cycled too many times before they get recycled so these cells you can expect pretty good capacity readings. Also medical batteries tend to use gold plated connections so for those of you who like to salvage gold from boards the BMS/PCB is very high grade.
The datasheet for the cells is in the 3rd photo.
The BMS is likely proprietary so these would be for cell recovery and PCB scrap.
![]() |
|
Brand: | Moli Energy |
Model: | ICR-18650K |
Capacity: | 2600mAh Rated |
Voltage: | 3.70V Nominal |
Charging: | 4.20V Maximum 1820mA Standard 2600mA Maximum |
Discharging: | 3.00V Cutoff 520mA Standard 5000mA Maximum |
Description: | Purple Cell Wrapper Blue (Dark) Insulator Ring 18650 Form Factor |
