3s3p Module with 9 2600mah 87wh 18650 cells - DR202 Energy+
Regular price
$6.75

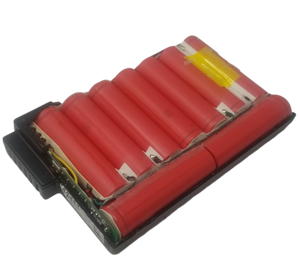

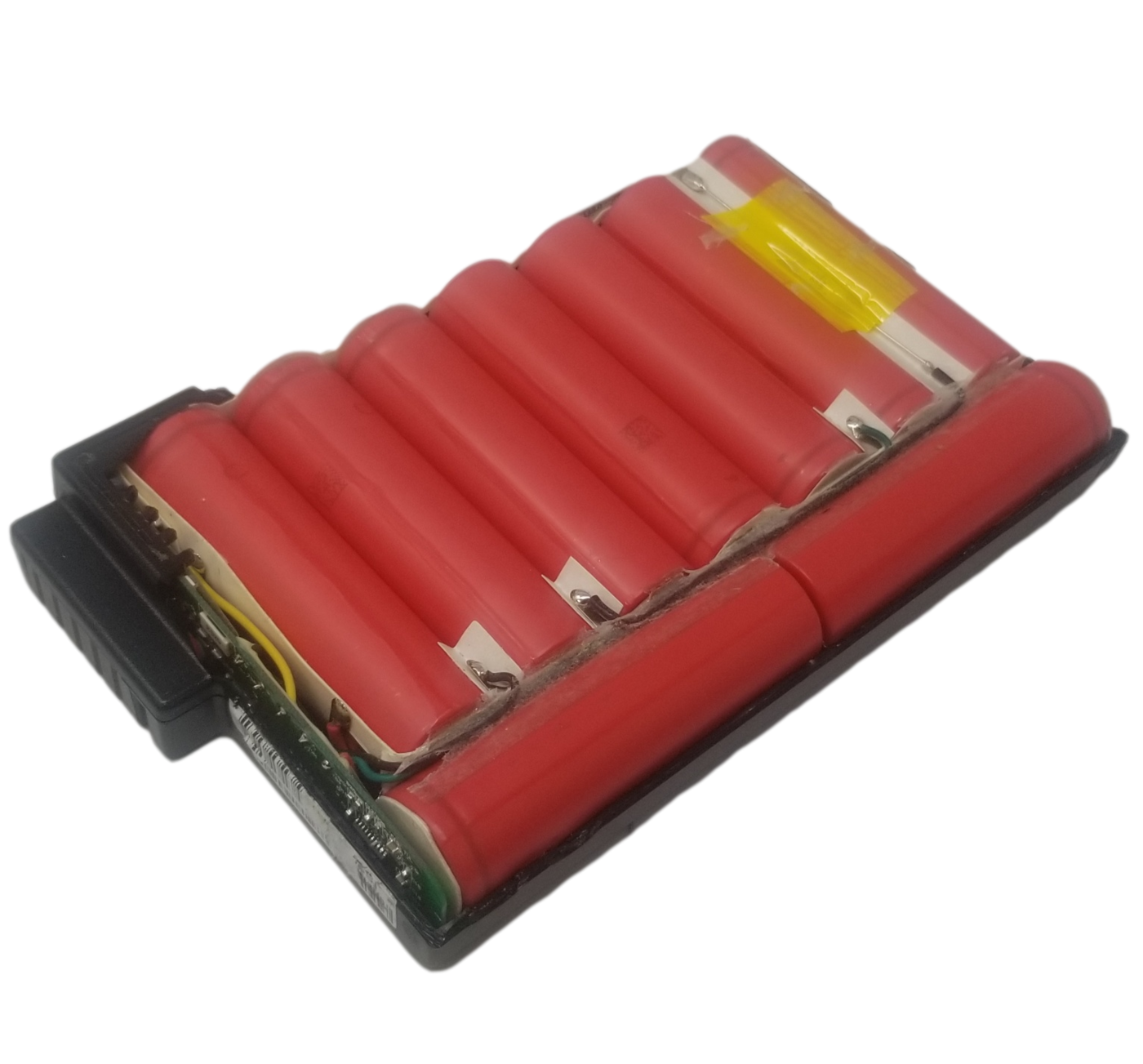

Here are really nice medical modules. These have 9x 2600mah cells inside and are in 3s3p configuration. The greatest thing about medical batteries is they don't get cycled too many times before they get recycled so these cells you can expect pretty good capacity readings. Also medical batteries tend to use high grade PCB boards for those of you who like to scrap.
The BMS is likely proprietary so these would be for cell recovery and PCB scrap.
We opened a few of these and they all had the good Sanyo UR18650FM 2600mah cells inside but there is a chance some modules may have Samsung or LG cells inside.
| Manufacturer: | Sanyo |
| Model: | UR18650FM |
| Size: | 18650 |
| Style: | Flat Top |
| Protected: | NO, UNPROTECTED. This cell is unprotected and intended for use in protected battery packs only and NOT individually or as a standalone product. In order to operate safely it must have additional protection in the form of a PCB (protection circuit board) or BMS (battery management system), which is not included. |
| Nominal Capacity: | 2600mAh |
| Discharge Current: | 5A Maximum Continuous |
| Nominal Voltage: | 3.6V |
| Maximum Voltage: | 4.2V |
| Cutoff Voltage: | 2.75V |
| Approximate Dimensions: | 18.38mm x 64.56mm |
| Approximate Weight: | 45.6g |
| Origin: | Japan |
| Specification Datasheet: | Sanyo UR18650FM Datasheet |
