Battery Hookup

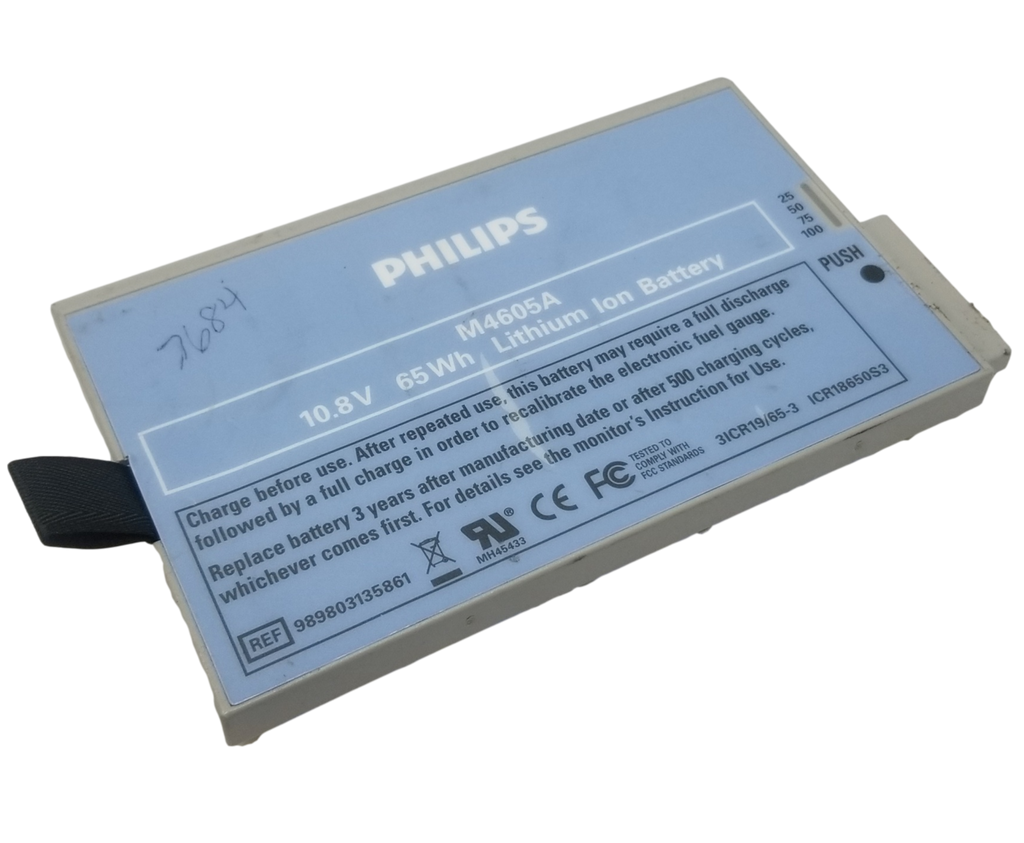

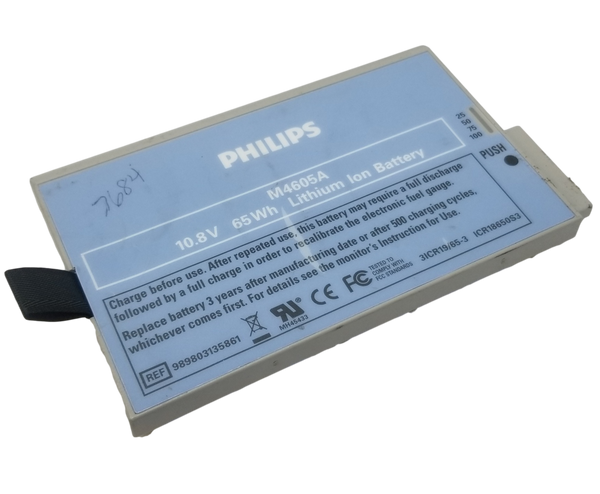

3s3p LG Module with 9 2200mah 18650 Philips 65wh
Regular price
$4.50
Here are really nice LG medical modules. These have 9x LGDAS31865 2200mah cells inside and are in 3s3p configuration. The greatest thing about medical batteries is they don't get cycled too many times before they get recycled so these cells you can expect pretty good capacity readings. Also medical batteries tend to use high grade PCB boards for those of you who like to scrap.
The BMS is likely proprietary so these would be for cell recovery and PCB scrap.

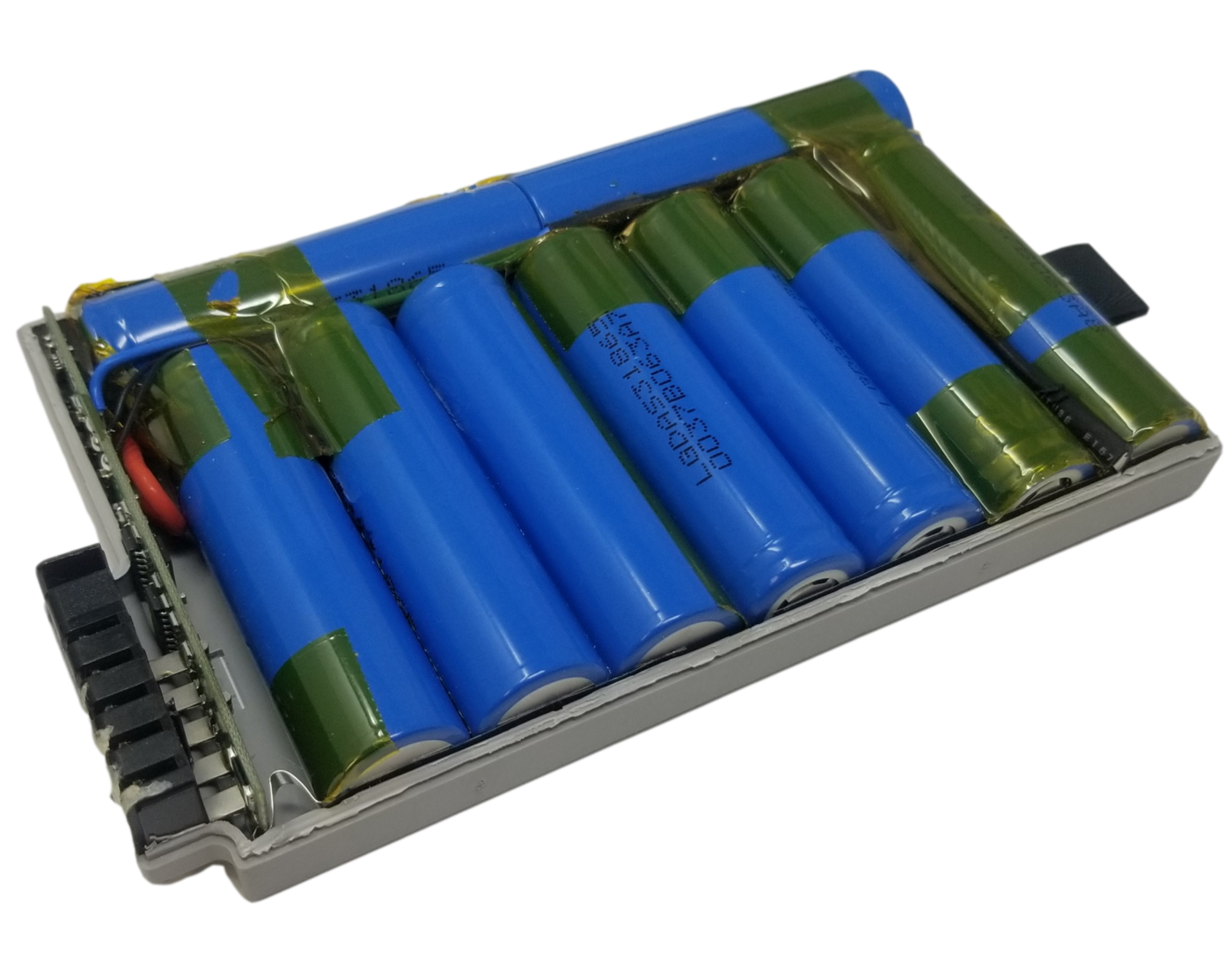

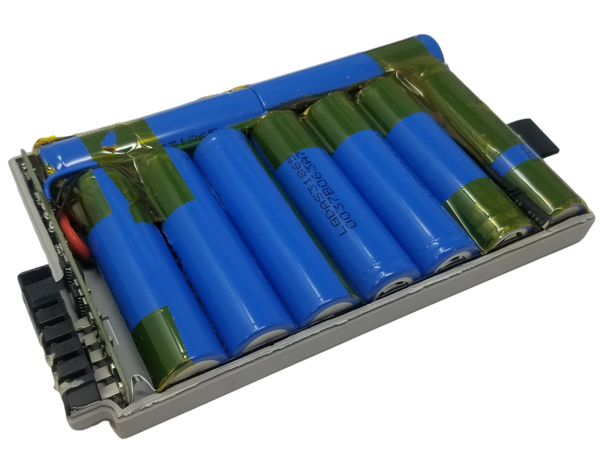

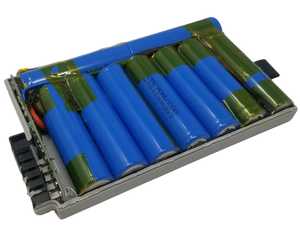

We opened a few of these and they all had the Blue LG chem cells inside but there was 1 that had Panasonic 2200mah cells. Either way these medical packs will have genuine, name brand cells inside. Mostly LG and Panasonic, maybe some Samsung as well, but all 2200mah cells for sure.
![]() |
|
Brand: | LG |
Model: | LGDAS31865 (ICR18650S3) |
Capacity: | 2200mAh Rated |
Voltage: | 3.60V Nominal |
Charging: | 4.20V Maximum 1075mA Standard 2150mA Maximum |
Discharging: | 3.00V Cutoff 430mA Standard 3225mA Maximum |
Description: | Blue Cell Wrapper White Insulator Ring 18650 Form Factor |
