Battery Hookup

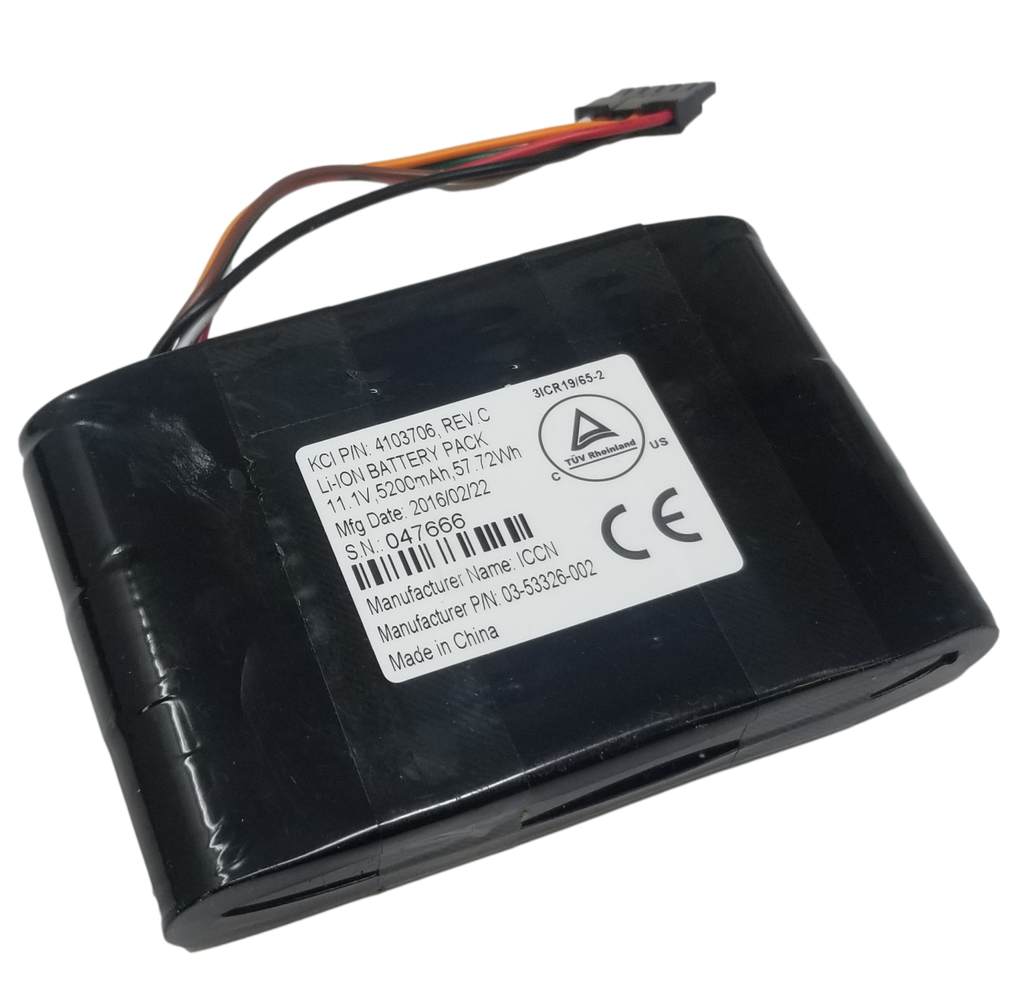

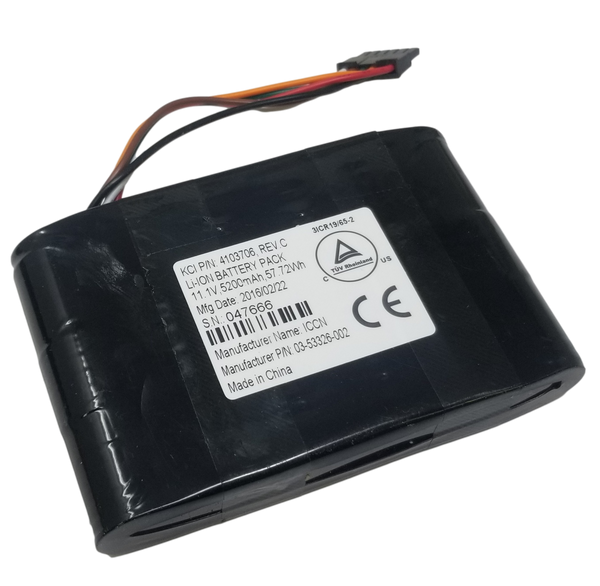

3s2p Samsung Module with 6 2600mah 18650 - 57.72wh Inventus
Regular price
$4.99

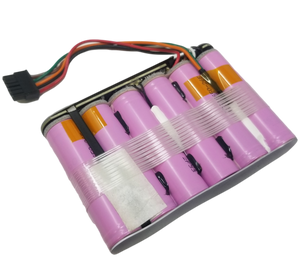

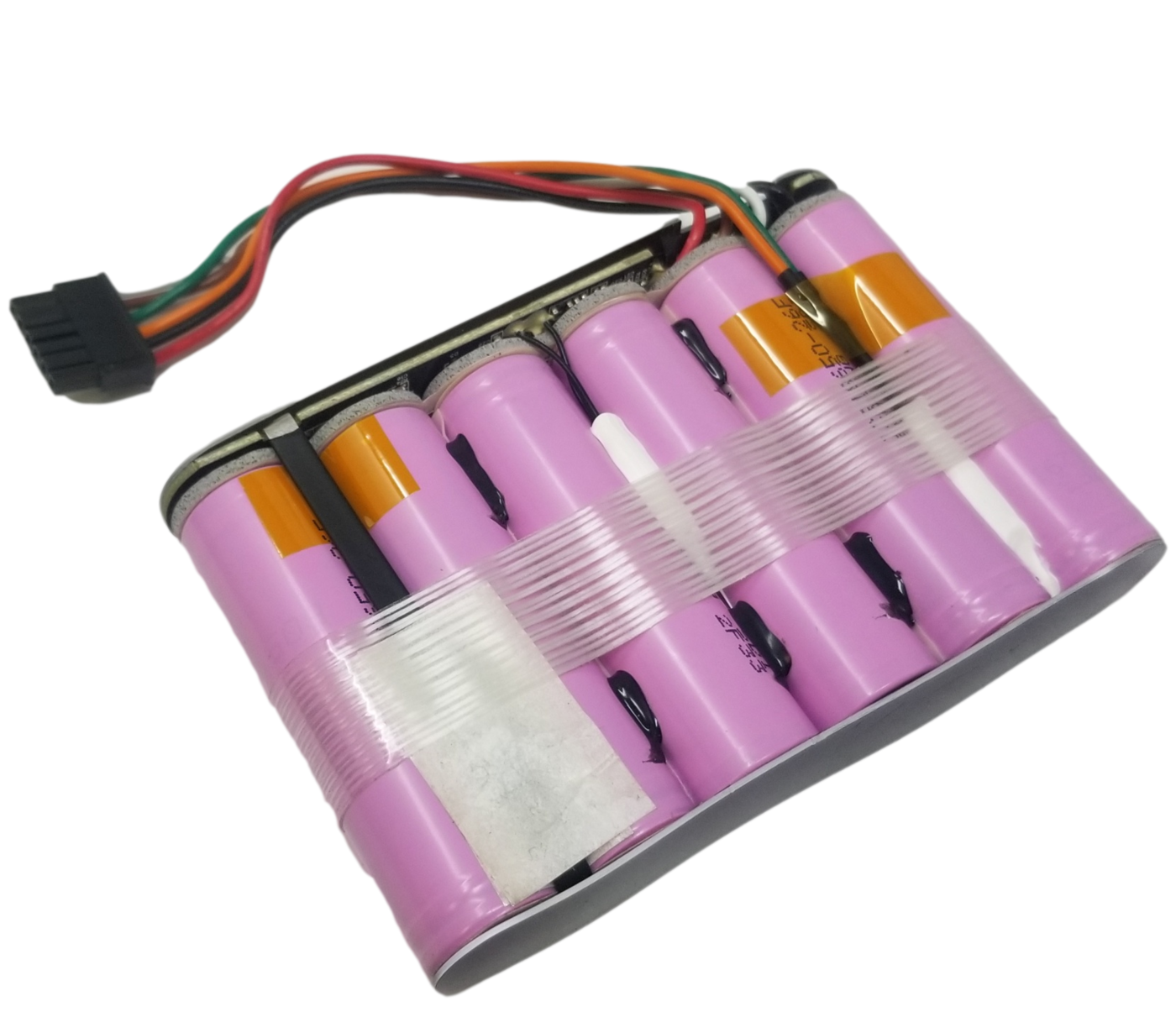

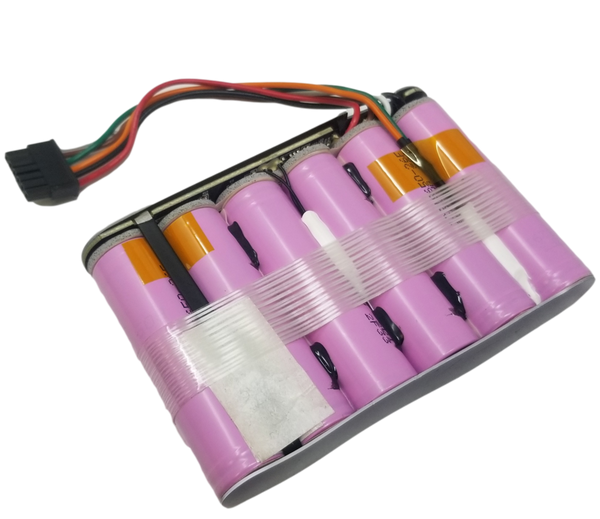

Here are really nice Samsung medical modules. These have 6x ICR18650-26f 2600mah cells inside and are in 3s2p configuration. The greatest thing about medical batteries is they don't get cycled too many times before they get recycled so these cells you can expect pretty good capacity readings. Also medical batteries tend to use high grade PCB boards for those of you who like to scrap.
The BMS allows for circuitry to flow in and out from the red and black wires and it is likely a 5a or 10a rated BMS.
![]() |
|
Brand: | Samsung |
Model: | ICR18650-26F |
Capacity: | 2600mAh Rated |
Voltage: | 3.70V Nominal |
Charging: | 4.20V Maximum 1300mA Standard 2600mA Maximum |
Discharging: | 2.75V Cutoff 520mA Standard 5200mA Maximum |
Description: | Pink Cell Wrapper White Insulator Ring 18650 Form Factor |
