Battery Hookup

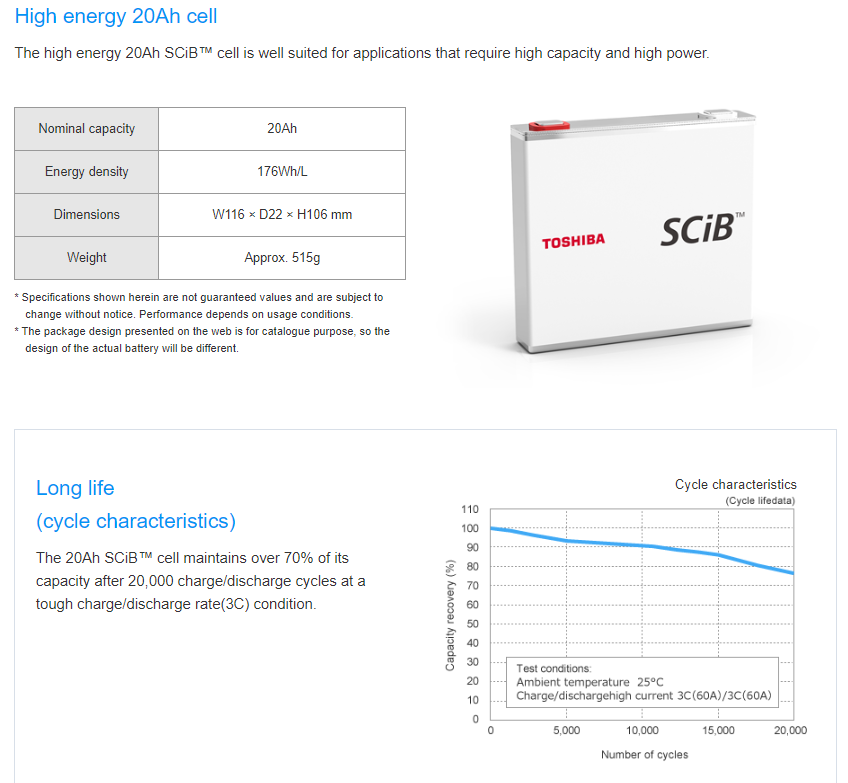

LTO 2.3v 20ah Toshiba SCiB 20,000 cycles
Regular price
$10.00

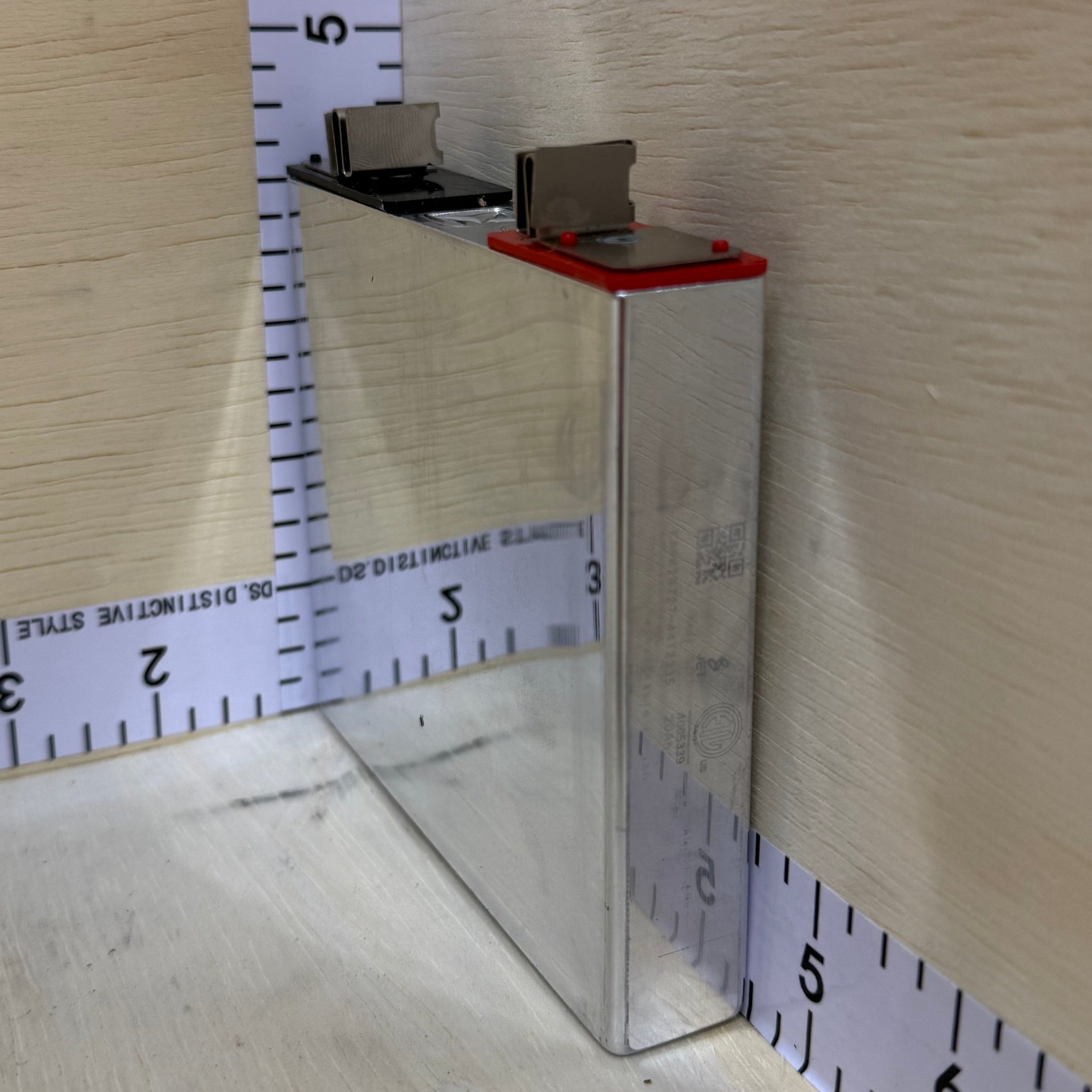

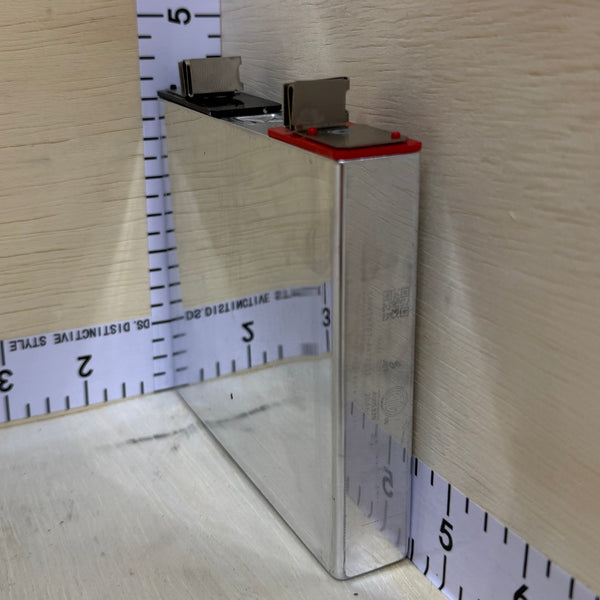

These cells have tabs sticking up which you can make holes in for bolted connections. They were recovered in working condition from a larger battery that was used for backup starting power only and these cells likely test near full capacity.
Just $10 per cell for unused Toshiba 2.3v 20ah LTO cells rated for 20,000 cycles!
We checked each cell to confirm they have good voltage.

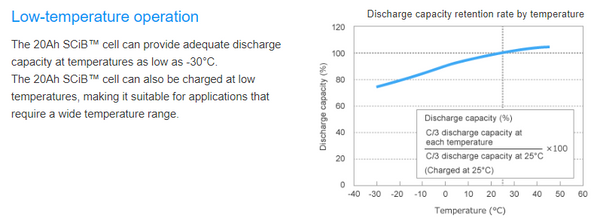

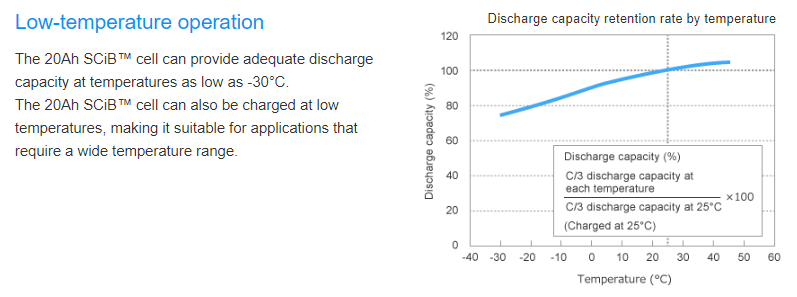

LTO can be used even at -30 degrees Celcius and can also be fully discharged down to 0v with no issues.
Recommended max charge and discharge is 8c or 160a per cell. Note: The nickel tabs are thick but likely cannot handle that large of current. The nickel tabs should be able to handle around 40a of current as is.
Fully charged voltage per cell is 2.7v and fully discharged voltage per cell is 1.5v. Nominal voltage is 2.3v.
Note: the cells are naked. There is no shrink wrap around them. They need to be isolated from each other when you build a pack so some kind of separator in between each cell is necessary.
