Battery Hookup
2x 3.2v 4500mah - 6x 18650 Lifepo4 Cells
Regular price
$3.00

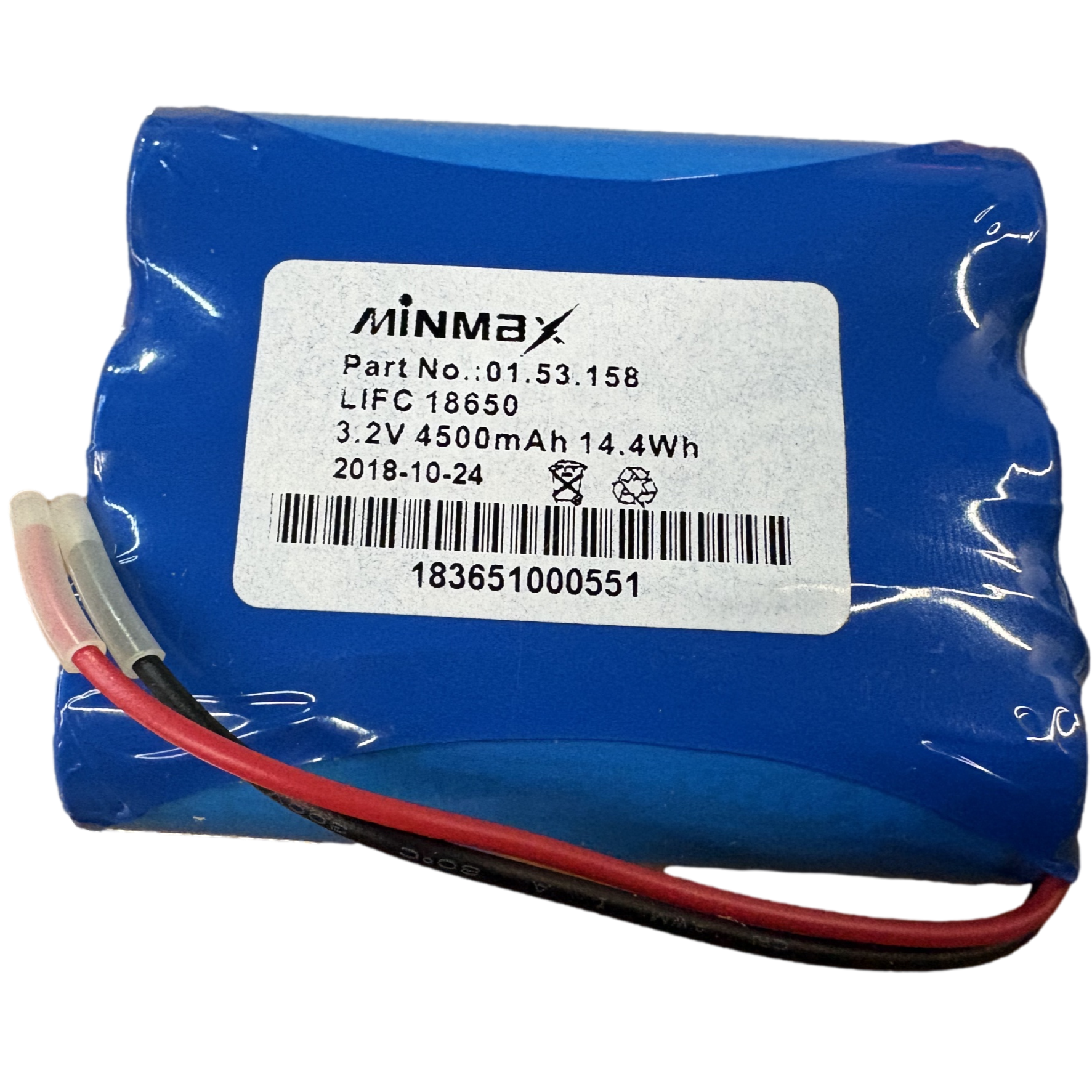

You get 2 batteries for this price. Each battery is made up of 3x 18650 lifepo4 3.2v 1500mah cells in parallel. The BMS appears to be a 1a or 2a BMS. You're essentially getting 6 unused cells for this price and they are easy to recover if you just wanted the cells to rebuild them into a new project. These were left over from a larger battery project and all cells we checked were still at nominal voltage. We had some full cases and these 2 batteries were the last of the lot.
Each cell fully charged is 3.65v and fully discharged is 2.5v.
We recommend max continuous charge/discharge of 1C (1.5a) per cell. Short pulse up to 4.5a discharge. Awesome cells for many projects.
