2x 22s Samsung Modules 44x 3.7v 78ah Cells - 12.1212Wh

You can pick up from our Bensalem, PA location for free or we have excellent freight rates which include residential and lift gate service. Of course you can always set up your own shipping as well.

Product Weight: 210 lbs.
Pallet Weight: 250 lbs.
Pallet Dimensions: 48" (D) x 40" (W) x 18" (H)

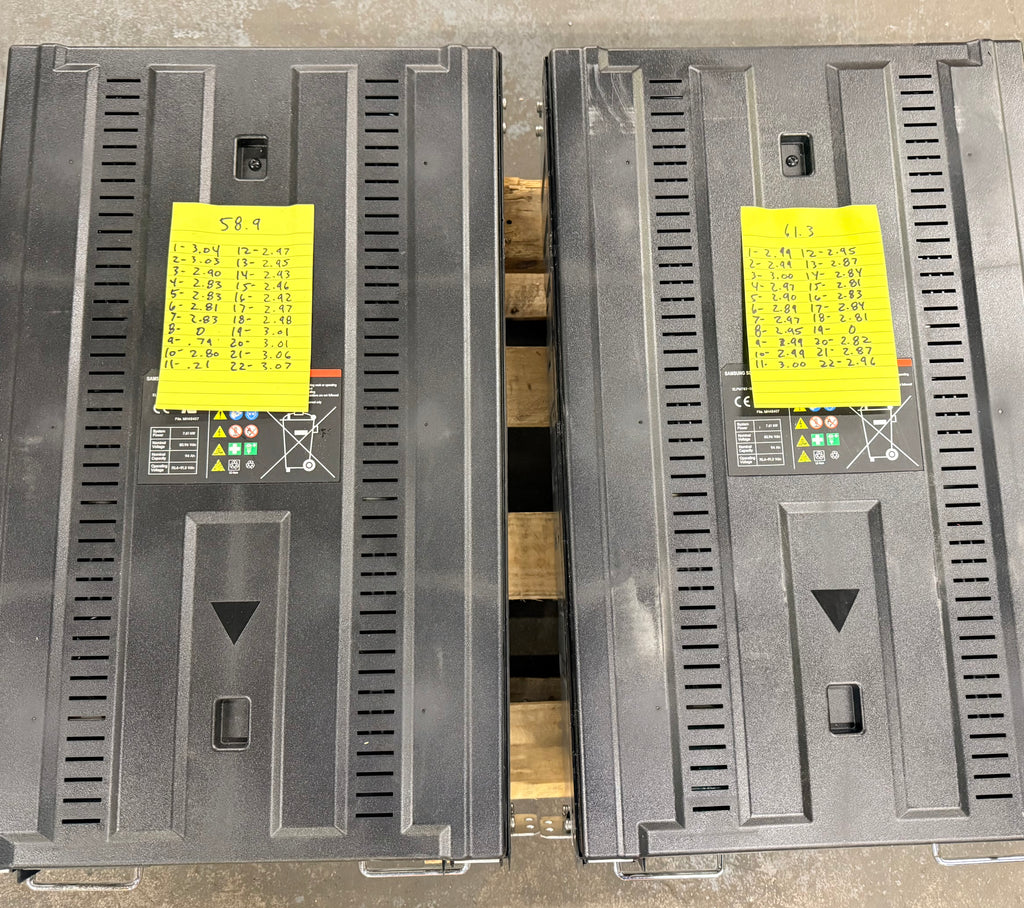

You get 2 batteries in this auction. Each battery is 22s configuration with 22x 3.7v 78ah prismatic cells in each battery.  We wrote the voltage of all the cells on the top of each battery as you can see in the photos. Either one or two dead cells out of these lots.

We recommend breaking these down to cell level.

Notice in the 4th photo the busbar between 2 halves of 11s is shaped like a fuse. In some of the other modules in this lot, that fuse was broken. That's why we recommend breaking down to cell level. They're all prismatic lithium-ion cells so should be easy to reconfigure into whatever new pack you want.

There is space in between the cells where the series busbars connect. You may be able to cut the series busbars carefully and at your own risk with a Dremel then you will have extra tabs to work with. You could lift up the tab a little, drill a hole, then make your connections with nuts and bolts.
