28.8v 280ah 8.06kWh Lifepo4 9 Cell Modules

You can pick up from our Bensalem, PA location for free or we have excellent freight rates which include residential and lift gate service. We also have a shipping calculator at the bottom of this page to quickly estimate your shipping costs.

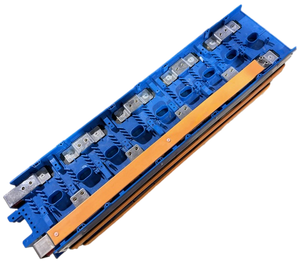

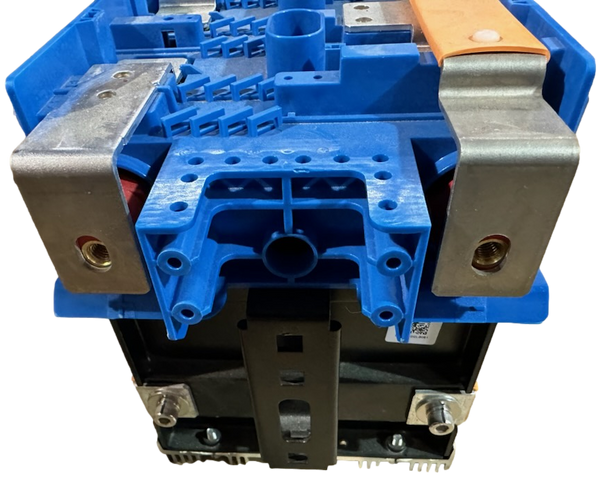

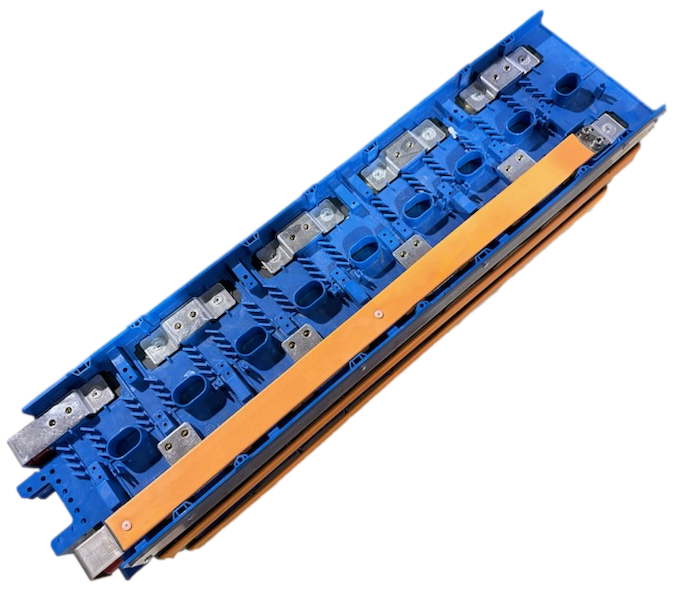

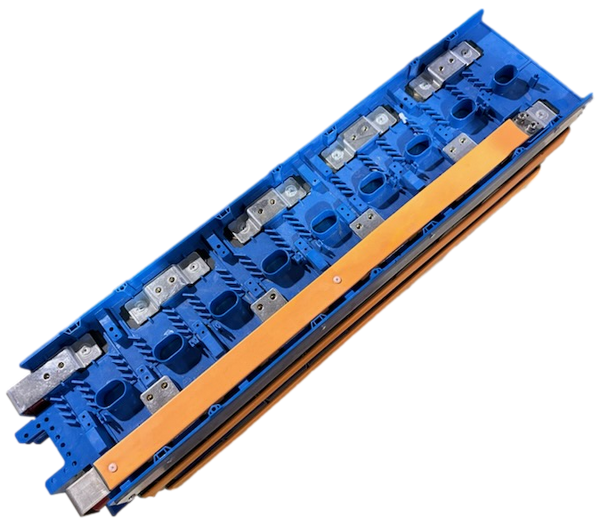

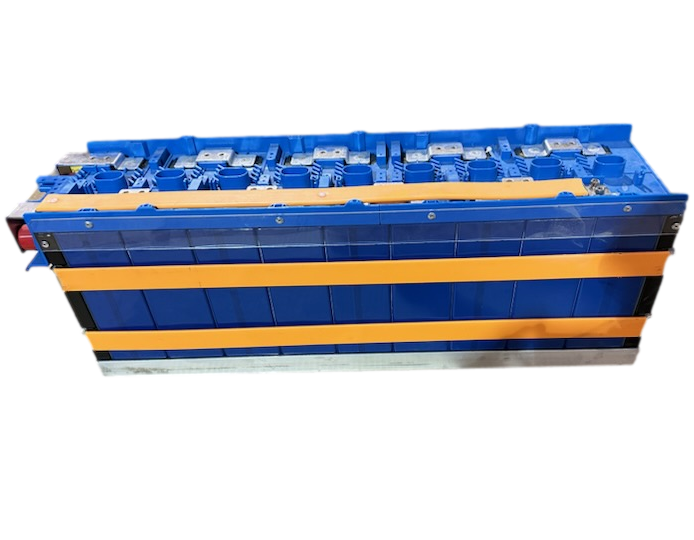

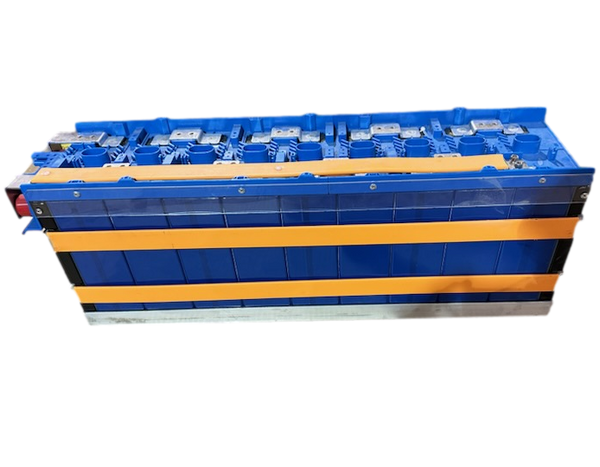

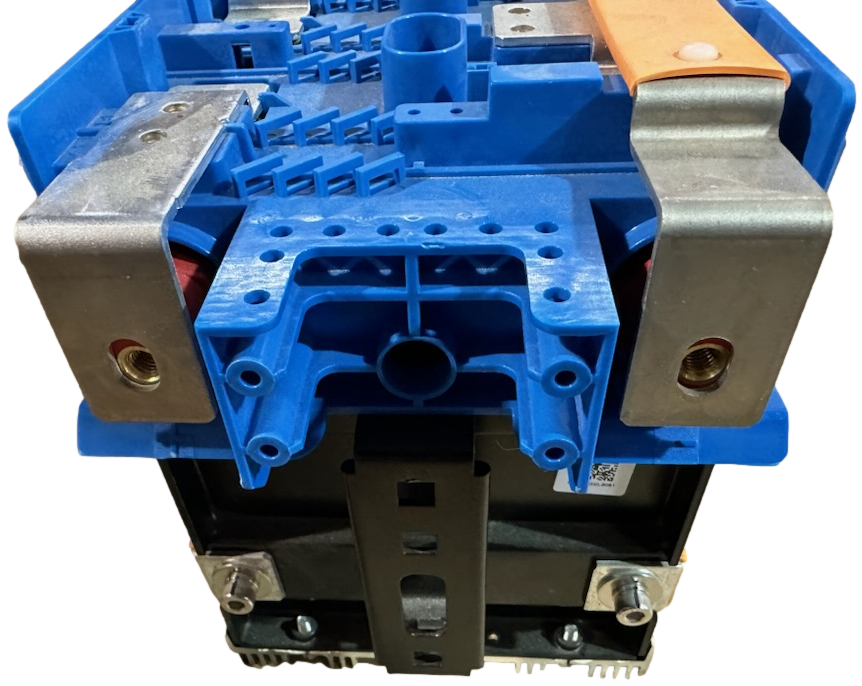

Each module has 9x 3.2v 280ah cells in 9s1p configuration. There is no BMS however as you can see you can easily add a BMS to it.

They are used and not capacity tested however we did confirm they are balanced and have good voltage.

Module weight is approximately 135 lbs.

Dimensions are 10" tall x 7" wide x 34" deep

Fully charged - 32.85v (3.65v per cell)
Fully discharged - 22.5v (2.5v per cell)
Recommended max continuous charge and discharge rate - 280a
