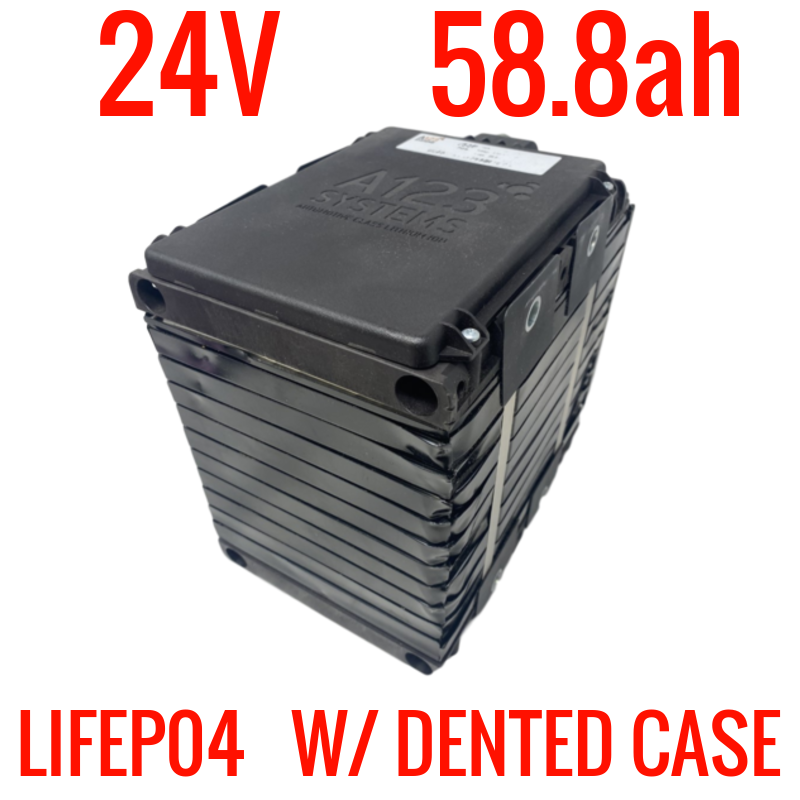

24V 58.8ah 1.35kWh LIFEPO4 A123 MODULE 7s with DENTED CASE**

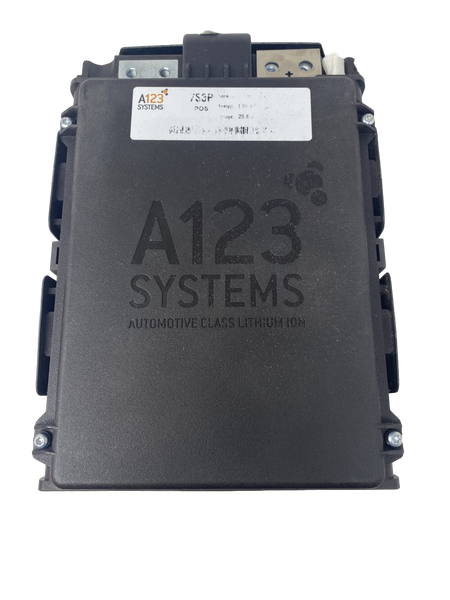

Here are 24v Lifepo4 A123 modules, *****These packs have a bit of cosmetic damage as the corners of the batteries casing has been damaged slightly. The batteries themselves are unharmed and in perfect condition.******* They were salvaged from 350v EV military modules that were barely used. These modules are testing above 90% capacity consistently. We capacity tested them at 80w discharge and got almost full capacity so I'm sure on a heavier discharge rate you will get around 90-95%. Photo of capacity test results is included. These are 7s lifepo4 packs, the A123 pouch cells used are 3.3v nominal. This pack will work great on a 24v inverter since the bulk of the capacity is between 21v-24.5v. You will need to add a 7s LifePo4 BMS. We recommend Daly brand BMS units. These packs can easily push 10c discharge rate on a pulse which would be almost 600 amps. Balance connector is included. There are 10 wires. 8 for balance and 2 for the temp probe. This pack is built to last and it uses the highest quality A123 cells so you can expect these to last for a very long time.
Module Dimensions: 8.75" x 6.5" x 9.75"
Module Weight 27.13 lbs
Nominal Voltage: 23.1 (7 cells, 3.3v per cell)
Maximum Charge Voltage: 25.55 (3.65v per cell)
Maximum Discharge Voltage: 17.5 (2.5v per cell)
Recommended max charge rate: 117a (2700w) (2c)
Recommended max discharge rate: 176a (4000w) (3c)
